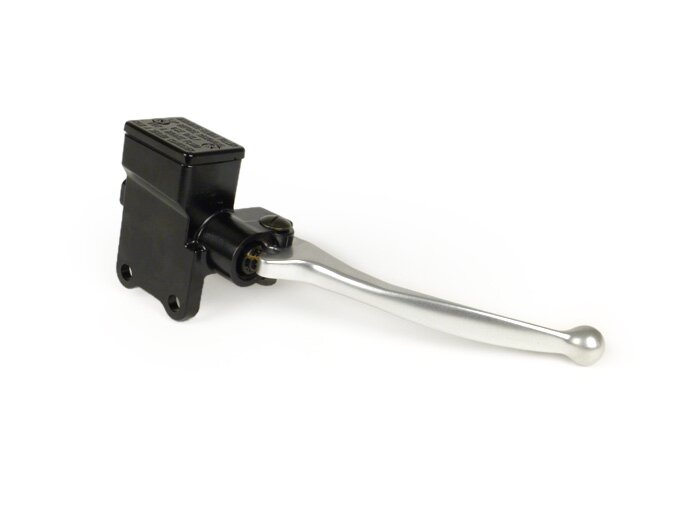

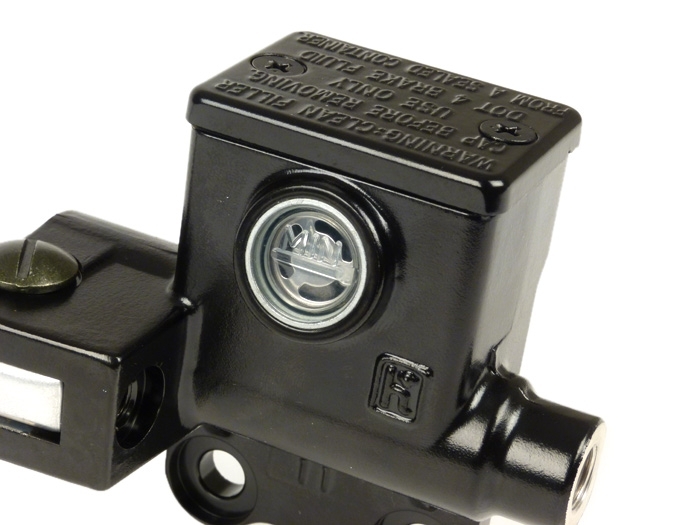

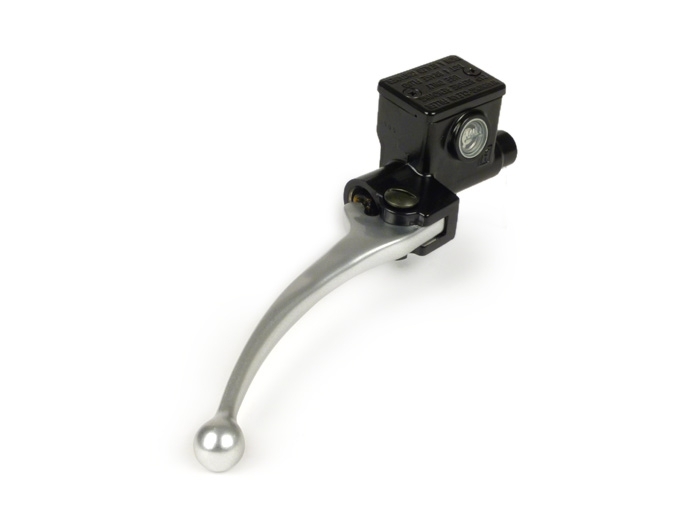

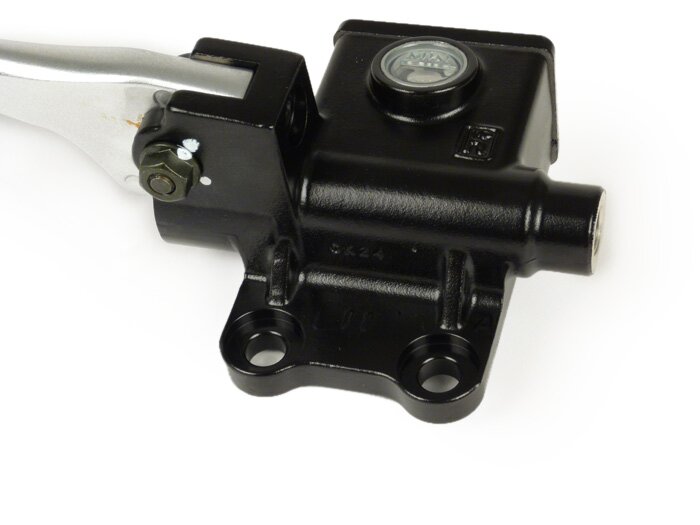

Piaggio Item number: 7673010
Piaggio
2 Ratings
74,00 €*
available immediately
Shipping weight 0,43 kg
Piaggio has also been using brake pumps from the Asian manufacturer HengTong since Grimeca's delivery problems. These are cheaper than their Italian counterparts, but unfortunately no accessory levers and covers from e.g. Grand Sport.

Here is an overview of the force applied to the brake piston when combining different calipers and pump combinations.

In general, if the slave pistons are enlarged while the master pistons remain the same, there is always an increase in the braking force, although the lever travel is longer.
On the other hand, if a brake pump with a larger piston but the same brake calliper is installed, a decrease in the force applied to the brake pistons can be assumed, although the lever travel is smaller. Thus the brake becomes more direct, but requires more lever force for the same brake performance.

driving piston (brake caliper)

25mm

28mm

30mm

32mm

dispenser piston
(Pump)

10mm

375 N

p>470 N

540 N

614 N

11mm

310N

389 N

446 N

p>508 N

12mm

260 N

327 N

375 N

427 N

13mm

p>222 N

278 N

320 N

364 N

14mm

191 N

240 N

p>276 N

313 N

15mm

167 N

209 N

240 N

273 N

16mm

146 N

184 N

211 N

240 N

17mm

130 N

163 N

187 N

213 N


AI-translation>/em>/sub>

This is how we ensure, that reviews come from real consumers.
Alan M. from Dublin 04/29/2025
Yoann M. from Arles 05/12/2025
Color
Base color
schwarz

Mirror adapter
External thread
ohne

Brake lever & clutch lever
Adjustable
nein

Banjo bolt
Thread
M10 x 1,00

Brake pump cover cap
Length
48 mm
Width
36 mm
Height
5 mm
Number of fixing holes
2
Ø mounting hole
M4
Distance between fixing holes
36 mm

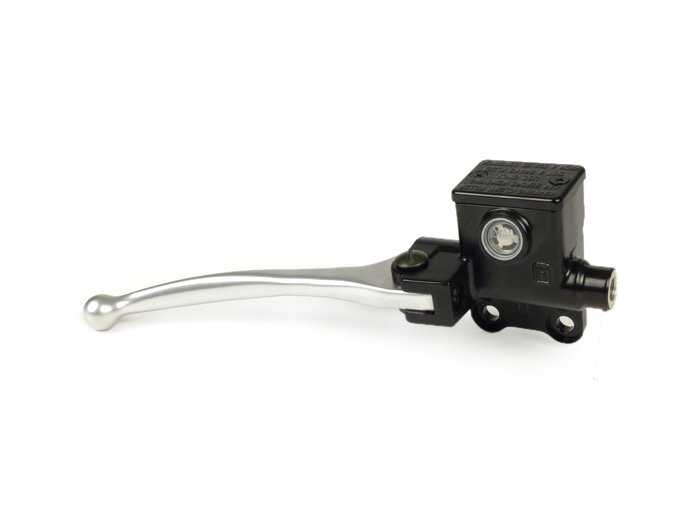

Brake pumps
Mounting position
Lenker rechte Seite
Type of expansion tank
integrierter Ausgleichbehälter
Ø Piston
12 mm
Mounting type
2-fach am Lenker
Mounting option for a brake light switch
ja
