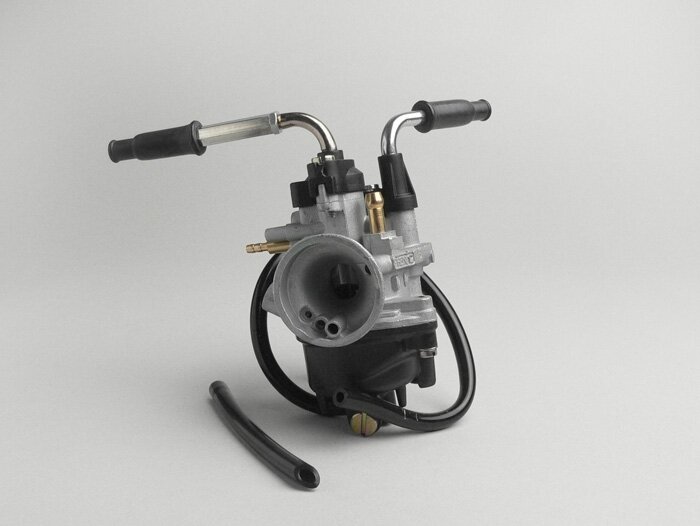

DellOrto carburettors are a constant in the scooter sector. Installed e.g. on MBK booster, Yamaha BW (main jet 93) connection width for air filter 35mm.
AI-translation

Rate this article now and let us know what you think.
Carburetor
Main nozzle size
93
Main nozzle type
Dellorto 6mm (6413)
Secondary nozzle type
Dellorto 4mm (11600)
Choke nozzle type
Dellorto (14770)
Needle type
Dellorto A (16250)
Slider type
Rundschieber
Choke type
manuell Seilzug
Connection type Intake manifold
Gummiverbindung
Position of mixture screw
links
Fuel hose position
rechts
Fitting type
M6 x 0.75
Float chamber material
Kunststoff
Size of secondary nozzle
36
Choke nozzle size
40
Needle size
A21
Mixing tube size
GA211
has Powerjet
nein
Slider size
40
Height
98 mm
Width
65 mm
Depth
75 mm
Relative connection height
46.5 mm
Connection width air filter
38 mm
Connection width of intake manifold
23 mm
Fuel hose connection width
5.5 mm
has oil connection
ja
has vacuum connection
ja
Venturi size
12 mm
Connection type Air filter
geklemmt
Position of idle throttle screw
links

OEM numbers (for comparison purposes only)
Piaggio:
AP8206676, AP8206866
Dellorto:
03046
