Dellorto Item number: DEL3069

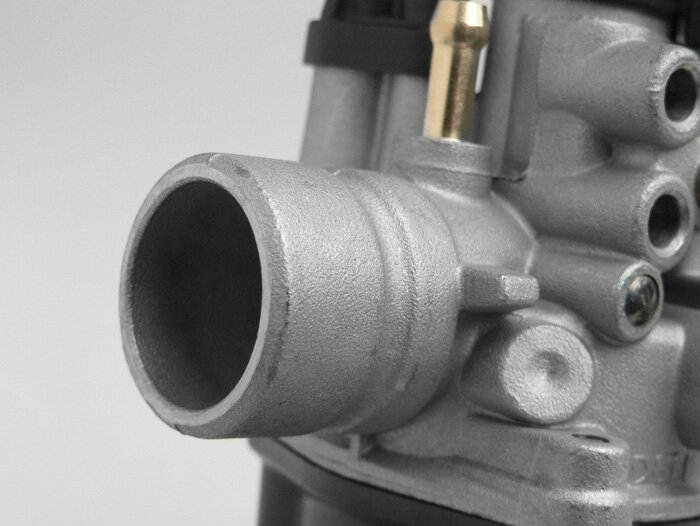

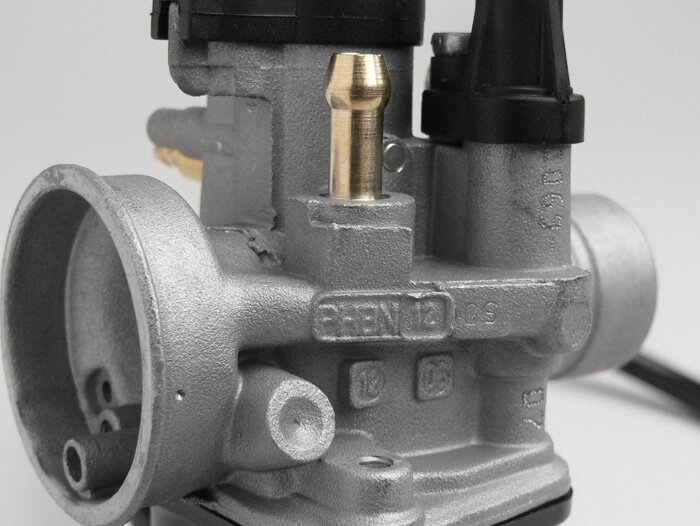

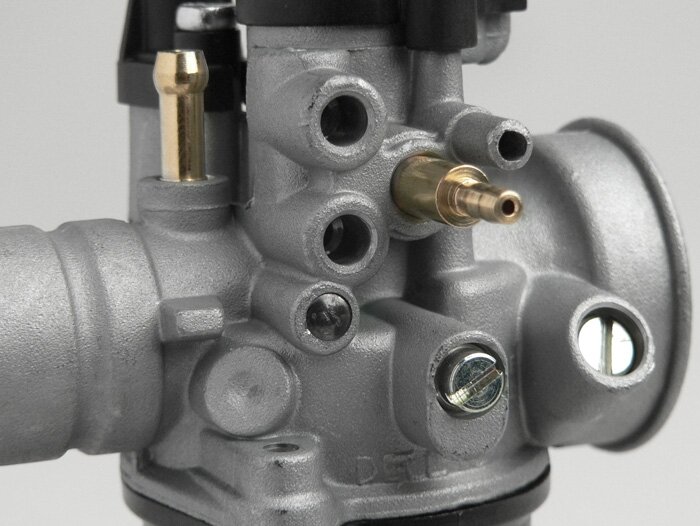

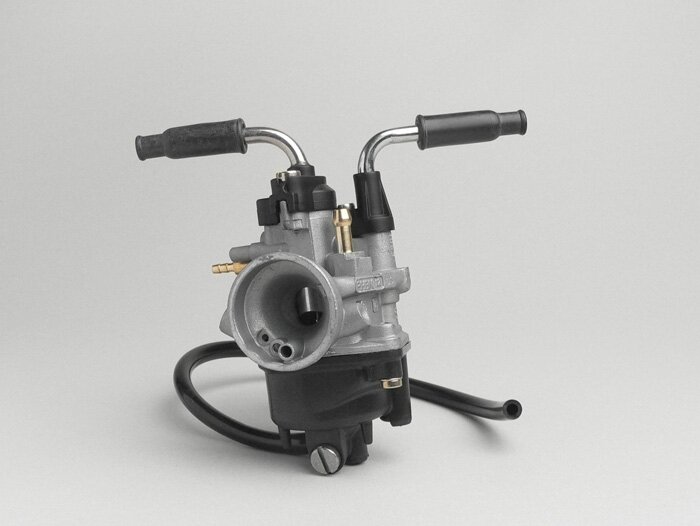

Carburator -DELLORTO 12mm PHBN GS- manual choke, Minarelli 50 cc (MJ=76, IJ=38, AT=209, NE=A12, SL=30) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, BWS 50, JOG50, NEOS, SLIDER, SPY, VINO50, WHY50, ZEST50, ZUMA50, MBK BOOSTER 50, MACH G

2 Ratings

109,00 €*

available immediately

Shipping weight 0,38 kg

Information on product safety

DellOrto carburettors are a constant in the scooter sector. Connection width for air filter 35mm.
_{AI-translation}

This is how we ensure, that reviews come from real consumers.

Anonym 03/10/2016

Ist als Standard gut

Anonym 07/26/2017

Top Qalität zu einen günstigen Preis.Hervorragendes Unternehmen,jederzeit gerne wieder.

Rate this product now

Carburetor

Main nozzle size

76

Main nozzle type

Dellorto 6mm (6413)

Secondary nozzle type

Dellorto 4mm (11600)

Choke nozzle type

Dellorto (14770)

Needle type

Dellorto A (16250)

Slider type

Rundschieber

Choke type

manuell Seilzug

Connection type Intake manifold

Gummiverbindung

Position of mixture screw

links

Fuel hose position

rechts

Fitting type

M6 x 0.75

Float chamber material

Kunststoff

Size of secondary nozzle

38

Choke nozzle size

45

Needle size

A12

Mixing tube size

GA209

has Powerjet

nein

Slider size

30

Height

98 mm

Width

65 mm

Depth

75 mm

Relative connection height

46.5 mm

Connection width air filter

38 mm

Connection width of intake manifold

23 mm

Fuel hose connection width

5.5 mm

has oil connection

ja

has vacuum connection

ja

Venturi size

12 mm

Connection type Air filter

geklemmt

Position of idle throttle screw

links

OEM numbers (for comparison purposes only)

Piaggio:

AP8206866

Dellorto:

03069
