BGM ORIGINAL Item number: BGM8521A

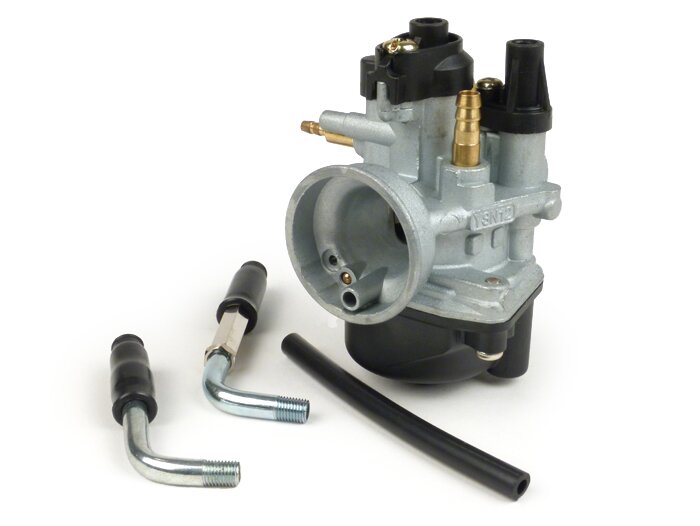

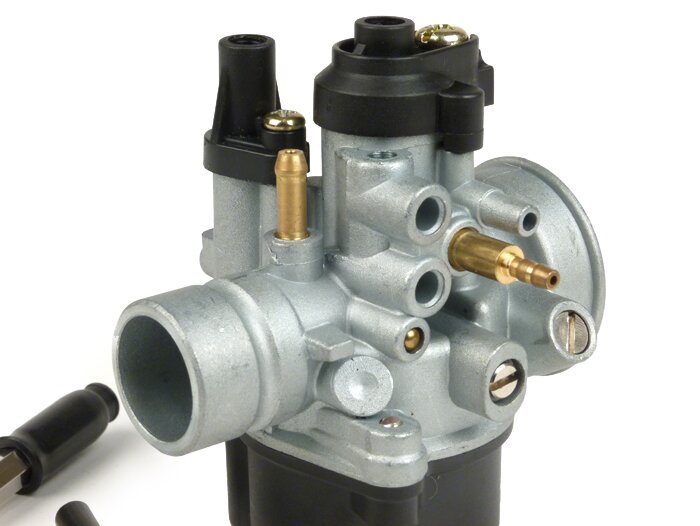

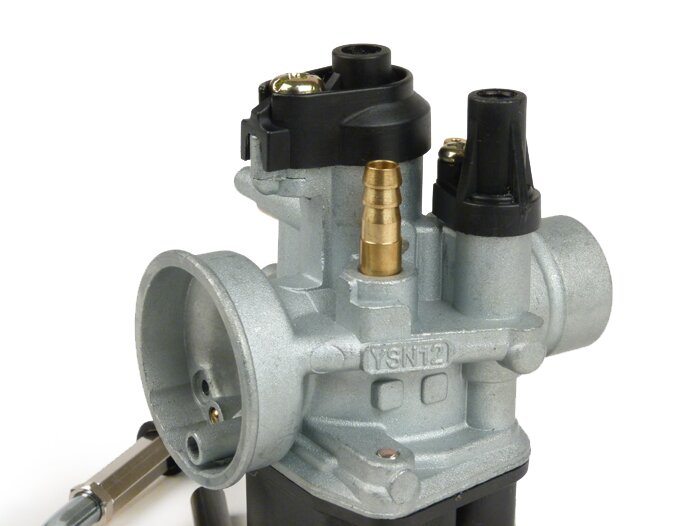

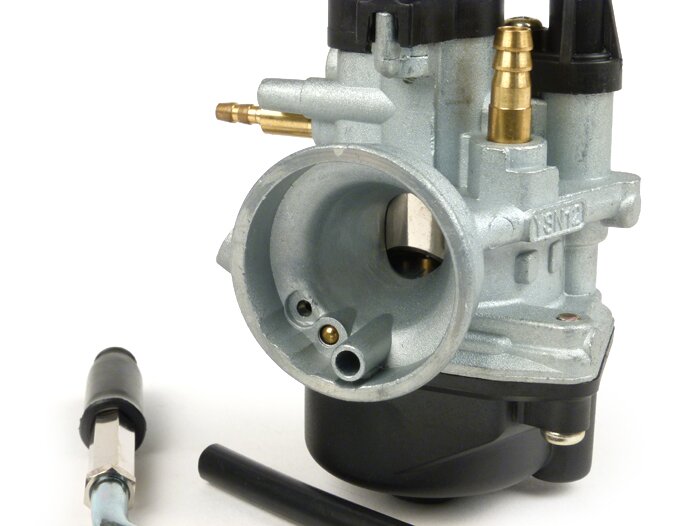

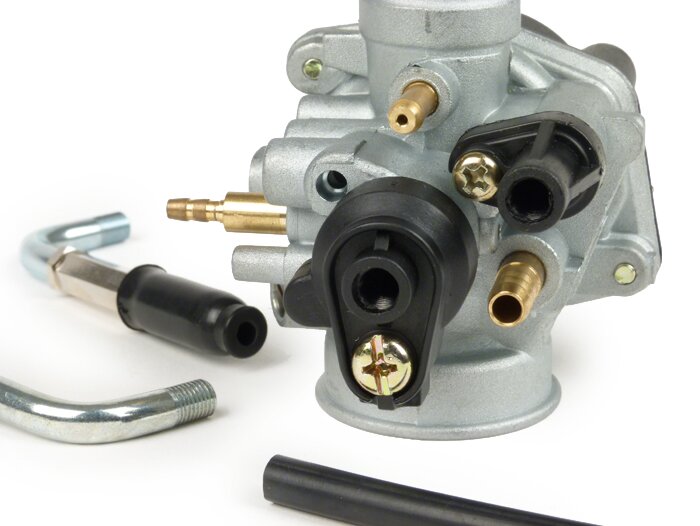

Carburettor -BGM ORIGINAL PHBN 12- Minarelli 50 cc (manual choke) - CS=23mm

4 Ratings

41,90 €*

available immediately

Shipping weight 0,35 kg

Information on product safety

This is how we ensure, that reviews come from real consumers.

Anonym 12/18/2016

Habe das Teil noch nicht eingebaut, Produkt macht auf jeden Fall qualitativ einen guten Eindruck

Anonym 08/12/2015

Top Qualität, problemloser Einbau, empfehlenswert

Anonym 11/22/2015

Hat optimal gepasst und funktioniert bestens!

Anonym 07/04/2020

Guter Vergaser zum fairen Preis.

Rate this product now

Carburetor

Main nozzle size

90

Main nozzle type

Dellorto 6mm (6413)

Secondary nozzle type

Dellorto 4mm (11600)

Choke nozzle type

Dellorto (14770)

Needle type

Dellorto A (16250)

Slider type

Rundschieber

Choke type

manuell Seilzug

Connection type Intake manifold

Gummiverbindung

Position of mixture screw

links

Fuel hose position

rechts

Fitting type

M6 x 0.75

Float chamber material

Kunststoff

Size of secondary nozzle

36

Choke nozzle size

40

Needle size

A21

Mixing tube size

GA211

has Powerjet

nein

Slider size

40

Height

93 mm

Width

72 mm

Depth

78 mm

Relative connection height

47 mm

Connection width air filter

35 mm

Connection width of intake manifold

23 mm

Fuel hose connection width

5.5 mm

has oil connection

ja

has vacuum connection

ja

Venturi size

12 mm

Connection type Air filter

geklemmt

Position of idle throttle screw

links

General

EAN

4250366665429

OEM numbers (for comparison purposes only)

Piaggio:

AP8206866

Matching

Spare parts

Float needle -DELLORTO, triangular- PHBG, PHVA, PHVB, PHBN, FHBB - spring loaded

Dellorto
3332254

Float needle -DELLORTO, triangular- PHBG, PHVA, PHVB, PHBN, FHBB - spring loaded

Throttle slide -DELLORTO PHVA 12 & PHBN 16 - (30) H=23mm, Ø=15mm

Dellorto
1368530

Throttle slide -DELLORTO PHVA 12 & PHBN 16 - (30) H=23mm, Ø=15mm

Caburator top cap -DELLORTO- PHBN

Dellorto
1440953

Caburator top cap -DELLORTO- PHBN

Carburettor gasket set -DELLORTO- PHBN

Dellorto
1498410

Carburettor gasket set -DELLORTO- PHBN

Needle plate -DELLORTO- PHBN, PHVA

Dellorto
2599003

Needle plate -DELLORTO- PHBN, PHVA

Needle circlip -DELLORTO- PHBN, PHVA, PHBG

Dellorto
2599004

Needle circlip -DELLORTO- PHBN, PHVA, PHBG

Slide spring -DELLORTO- PHBN, PHVA

Dellorto
295148

Slide spring -DELLORTO- PHBN, PHVA

Cable choke kit -DELLORTO- SHBC 19, PHBN

Dellorto
5300578

Cable choke kit -DELLORTO- SHBC 19, PHBN

Float -DELLORTO- PHBN, PHVA, PHVB - including float needle

Dellorto
5350078

Float -DELLORTO- PHBN, PHVA, PHVB - including float needle

Carburettor repair kit -BGM ORIGINAL- Dellorto PHVA, PHBN

BGM ORIGINAL
BGM8520G

Carburettor repair kit -BGM ORIGINAL- Dellorto PHVA, PHBN

Screw float chamber -DELLORTO- SHB, PHVA, PHVB, PHBN

Dellorto
C11561

Screw float chamber -DELLORTO- SHB, PHVA, PHVB, PHBN

Delivery date

Cable choke kit -DELLORTO- PHBN

Dellorto
C11641

Cable choke kit -DELLORTO- PHBN

Float chamber (without drain) -DELLORTO- PHBN, PHVA, PHVB - carburator Ø=10-12-14-17,5-18mm

Dellorto
CIF11554

Float chamber (without drain) -DELLORTO- PHBN, PHVA, PHVB - carburator Ø=10-12-14-17,5-18mm

Matching

Accessories

Main jet set -BGM PRO for Dellorto (type: 6413) 6mm- (50-72) - (50-52-55-58-60-62-65-68-70-72)

BGM PRO
2599113

Main jet set -BGM PRO for Dellorto (type: 6413) 6mm- (50-72) - (50-52-55-58-60-62-65-68-70-72)

Oil drain container 8L -HÜNERSDORFF- black

Hünersdorff
3330922

Oil drain container 8L -HÜNERSDORFF- black

Float needle -DELLORTO, triangular- PHBG, PHVA, PHVB, PHBN, FHBB - spring loaded

Dellorto
3332254

Float needle -DELLORTO, triangular- PHBG, PHVA, PHVB, PHBN, FHBB - spring loaded

Intake manifold -101 Octane Twist- Minarelli/CPI 50cc (horizontal cylinder) = CS=23mm + CS=32mm

101 Octane
3332992

Intake manifold -101 Octane Twist- Minarelli/CPI 50cc (horizontal cylinder) = CS=23mm + CS=32mm

Needle set -BGM PRO- Dellorto PHVA, PHBN (A2, A7, A8, A12, A13, A20, A21, A26, A28, A33)

BGM PRO
7671255

Needle set -BGM PRO- Dellorto PHVA, PHBN (A2, A7, A8, A12, A13, A20, A21, A26, A28, A33)

Secondary nozzle set -BGM PRO for Dellorto (type: 11600) 4mm- (30-52) (30-32-35-38-40-42-45-48-50-52)

BGM PRO
7671256

Secondary nozzle set -BGM PRO for Dellorto (type: 11600) 4mm- (30-52) (30-32-35-38-40-42-45-48-50-52)

Carburator cleaner -MOTUL- 400ml

Carburator cleaner -MOTUL- 400ml

Fuel/air mixture screw and throttle valve ajduster screw set -DellOrto PHBN carburettor- Minarelli 50cc (manual choke)

BGM ORIGINAL
7673421

Fuel/air mixture screw and throttle valve ajduster screw set -DellOrto PHBN carburettor- Minarelli 50cc (manual choke)

Air filter tube -MARCHALD- Marchald 220mm - CS=39mm, 36mm (Dellorto PHVA, PHBN, PHBL, PHVB, Mikuni VM16, VM20, ARRECHE 17,5)

Marchald
7900128

Air filter tube -MARCHALD- Marchald 220mm - CS=39mm, 36mm (Dellorto PHVA, PHBN, PHBL, PHVB, Mikuni VM16, VM20, ARRECHE 17,5)

Intake manifold -BGM PRO- Minarelli 50cc (vertical cylinder) - CS=23mm - BOOSTER, BUMP50, BWS50, SLIDER50, SPY, SR50 (-1994), STUNT, ZUMA50, AMICO

Intake manifold -BGM PRO- Minarelli 50cc (vertical cylinder) - CS=23mm - BOOSTER, BUMP50, BWS50, SLIDER50, SPY, SR50 (-1994), STUNT, ZUMA50, AMICO

Intake manifold -BGM PRO- Minarelli/CPI 50 ccm (horizontal) - AW=23mm

Intake manifold -BGM PRO- Minarelli/CPI 50 ccm (horizontal) - AW=23mm

Choke mechanism at handlebar -PIAGGIO- Aprilia SR 50 (- 1999) handlebar Ø=22mm

Piaggio
AP8212529

Choke mechanism at handlebar -PIAGGIO- Aprilia SR 50 (- 1999) handlebar Ø=22mm

Choke mechanism -DELLORTO PHBN, SHBC- lever at carburettor

Dellorto
C11639

Choke mechanism -DELLORTO PHBN, SHBC- lever at carburettor

Intake manifold -MALOSSI MHR Replica- Minarelli/CPI 50cc (horizontal cylinder) - CS=23mm

Malossi
M028481B

Intake manifold -MALOSSI MHR Replica- Minarelli/CPI 50cc (horizontal cylinder) - CS=23mm

Choke mechanism -UNIVERSAL- handlebar Ø=22,2mm

Choke mechanism -UNIVERSAL- handlebar Ø=22,2mm

Matching

Alternative products

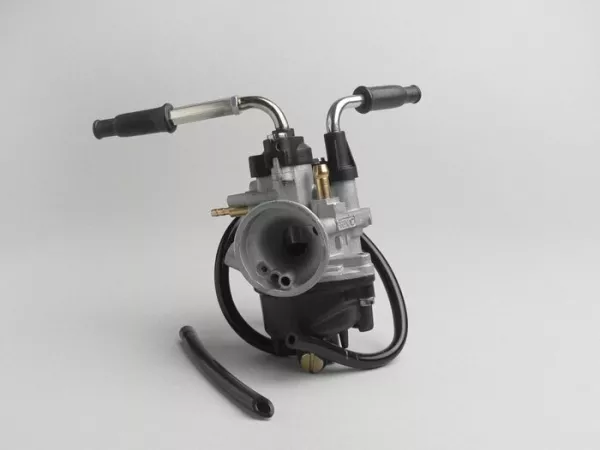

Carburator -DELLORTO 12mm PHBN HS- manual choke, Minarelli 50 cc (MJ=93, IJ=36, AT=211, NE=A21, SL=40) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, BWS 50, JOG50, NEOS, SLIDER, SPY, VINO50, WHY50, ZEST50, ZUMA50, MBK BOOSTER 50, MACH G

Dellorto
DEL3046

Carburator -DELLORTO 12mm PHBN HS- manual choke, Minarelli 50 cc (MJ=93, IJ=36, AT=211, NE=A21, SL=40) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, BWS 50, JOG50, NEOS, SLIDER, SPY, VINO50, WHY50, ZEST50, ZUMA50, MBK BOOSTER 50, MACH G

Delivery date

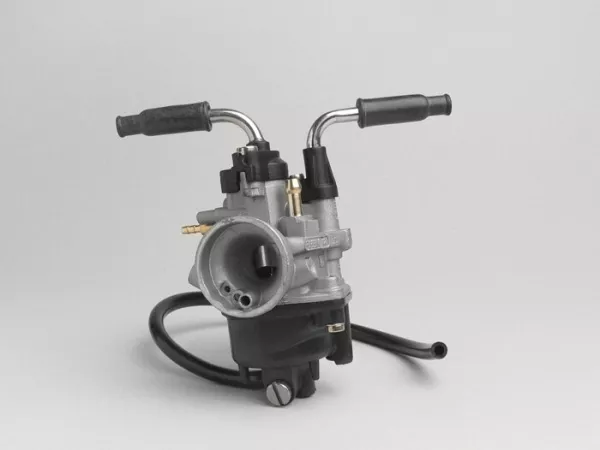

Carburator -DELLORTO 12mm PHBN GS- manual choke, Minarelli 50 cc (MJ=76, IJ=38, AT=209, NE=A12, SL=30) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, BWS 50, JOG50, NEOS, SLIDER, SPY, VINO50, WHY50, ZEST50, ZUMA50, MBK BOOSTER 50, MACH G

Dellorto
DEL3069

Carburator -DELLORTO 12mm PHBN GS- manual choke, Minarelli 50 cc (MJ=76, IJ=38, AT=209, NE=A12, SL=30) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, BWS 50, JOG50, NEOS, SLIDER, SPY, VINO50, WHY50, ZEST50, ZUMA50, MBK BOOSTER 50, MACH G

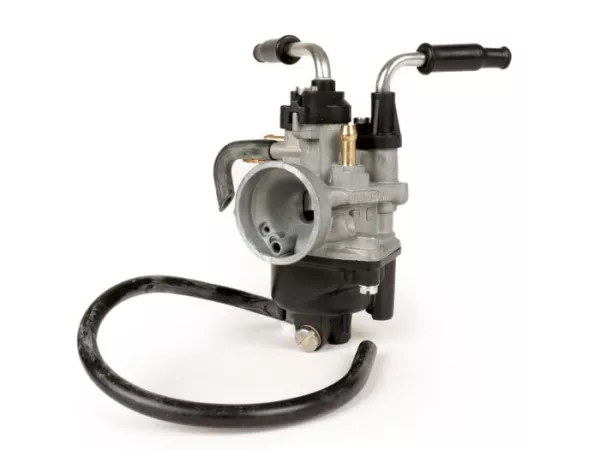

Carburettor -DELLORTO 12mm PHBN GS- manual choke, Minarelli 50 cc (MJ=74, IJ=38, AT=211, NE=A12, SL=30) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, BWS 50, JOG50, NEOS, SLIDER, SPY, VINO50, WHY50, ZEST50, ZUMA50, MBK BOOSTER 50, MACH G

Dellorto
DEL3077

Carburettor -DELLORTO 12mm PHBN GS- manual choke, Minarelli 50 cc (MJ=74, IJ=38, AT=211, NE=A12, SL=30) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, BWS 50, JOG50, NEOS, SLIDER, SPY, VINO50, WHY50, ZEST50, ZUMA50, MBK BOOSTER 50, MACH G

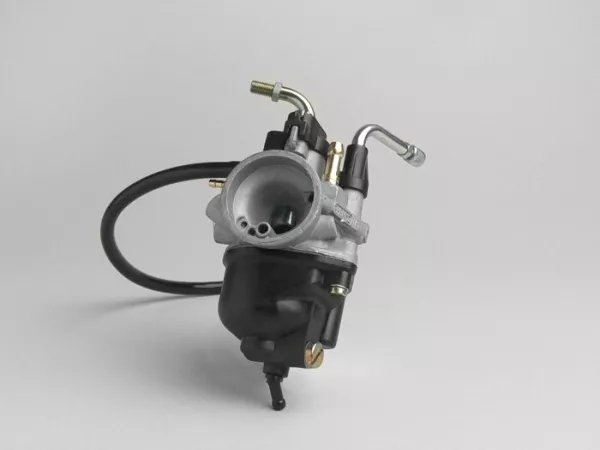

Carburator -DELLORTO 12mm PHBN HS- manual choke, Minarelli 50 cc (MJ=78, IJ=38, AT=210, NE=A12, SL=40) - CS=23mm- APRILIA SR50 (Minarelli), YAMAHA Aerox (YQ50/L) 50, NEOS, Nitro (YQ50/L) , OVETTO 50, AREA51, GULLIVER, RALLY, SCARABEO, SONIC
