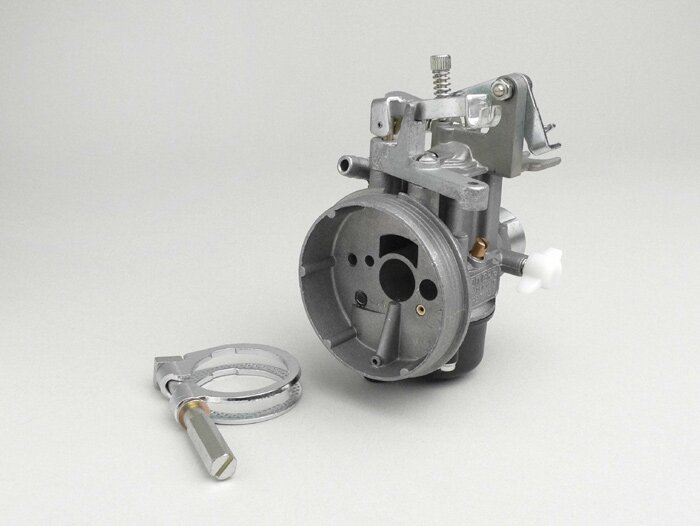

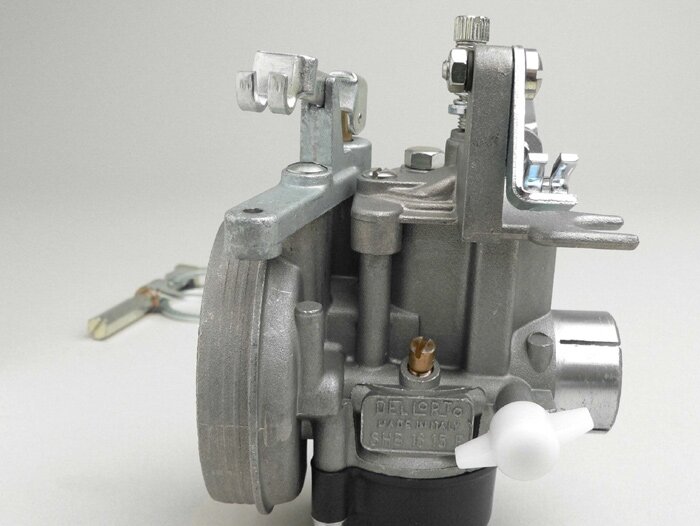

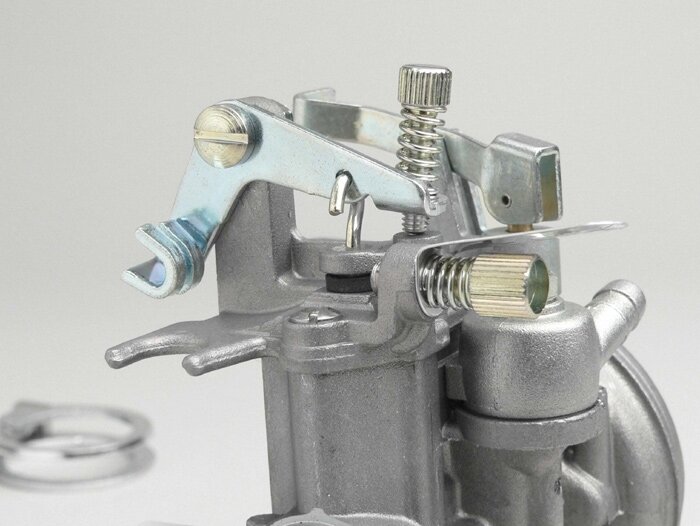

This Dell'Orto SHB16 15 F is exclusively used in the PK XL2 (also FL2/HP models). You can see that they have the choke lever on the handlebars (not above the fuel tap as on the previous models). It has a supply of the choke cable from below and has therefore a so called pull rocker.

The SHB series is the classic among scooter carburettors. This successful carburettor type was used on almost every small frame.

The very easy to adjust carburettors are available with diameters up to 19mm. The passage is sufficiently dimensioned, in order to make also engines with 112 ccm sufficiently mixture available. Due to their very identical construction, independent of the carburettor cross section, these carburettors are optimally suited to fit the V50, PK50 with a 16mm carburettor as standard with a larger one.

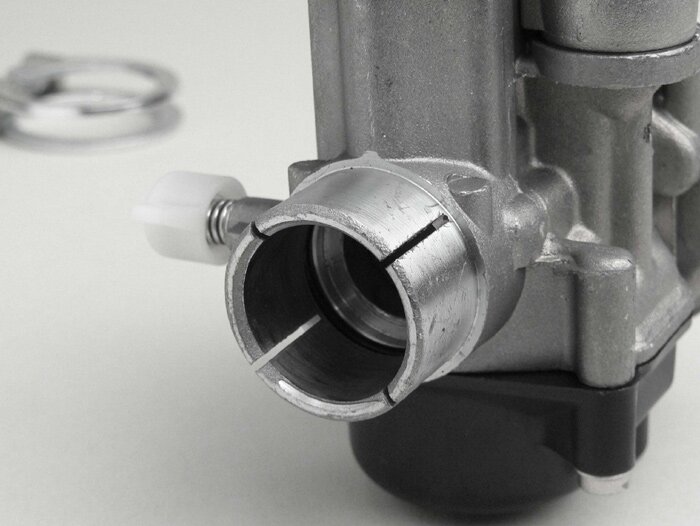

Attention: A larger carburettor must have a different intake manifold because the carburettors have a different inner diameter and a different clamping width.AI-translation



This is how we ensure, that reviews come from real consumers.
Anonym  11/13/2015

Perfekt

Anonym  01/14/2016

immer wieder

Anonym  04/18/2016

Alles super Original teile

Anonym  07/26/2017

Gute Qualität

Ralf R. from Ahaus 06/11/2025
Carburetor
Main nozzle size
65
Main nozzle type
Dellorto 5mm (1486)
Secondary nozzle type
Dellorto SH (8022)
Slider type
Flachschieber
Choke type
manuell Seilzug
Connection type Intake manifold
Klemmverbindung
Position of mixture screw
rechts
Fuel hose position
links
Fitting type
M6 x 0.75
Float chamber material
Kunststoff
Size of secondary nozzle
42
Choke nozzle size
50
has Powerjet
nein
Slider size
6231.8
Height
115 mm
Width
66 mm
Depth
82 mm
Relative connection height
44 mm
Connection width air filter
62 mm
Connection width of intake manifold
21.5 mm
Fuel hose connection width
7 mm
has oil connection
nein
has vacuum connection
nein
Venturi size
15 mm
Connection type Air filter
geklemmt
Position of idle throttle screw
oben

OEM numbers (for comparison purposes only)
Piaggio:
286952
Dellorto:
00940
