Polini Item number: 1010002
Polini
1 Rating
165,00 €*
available immediately
Shipping weight 2,51 kg

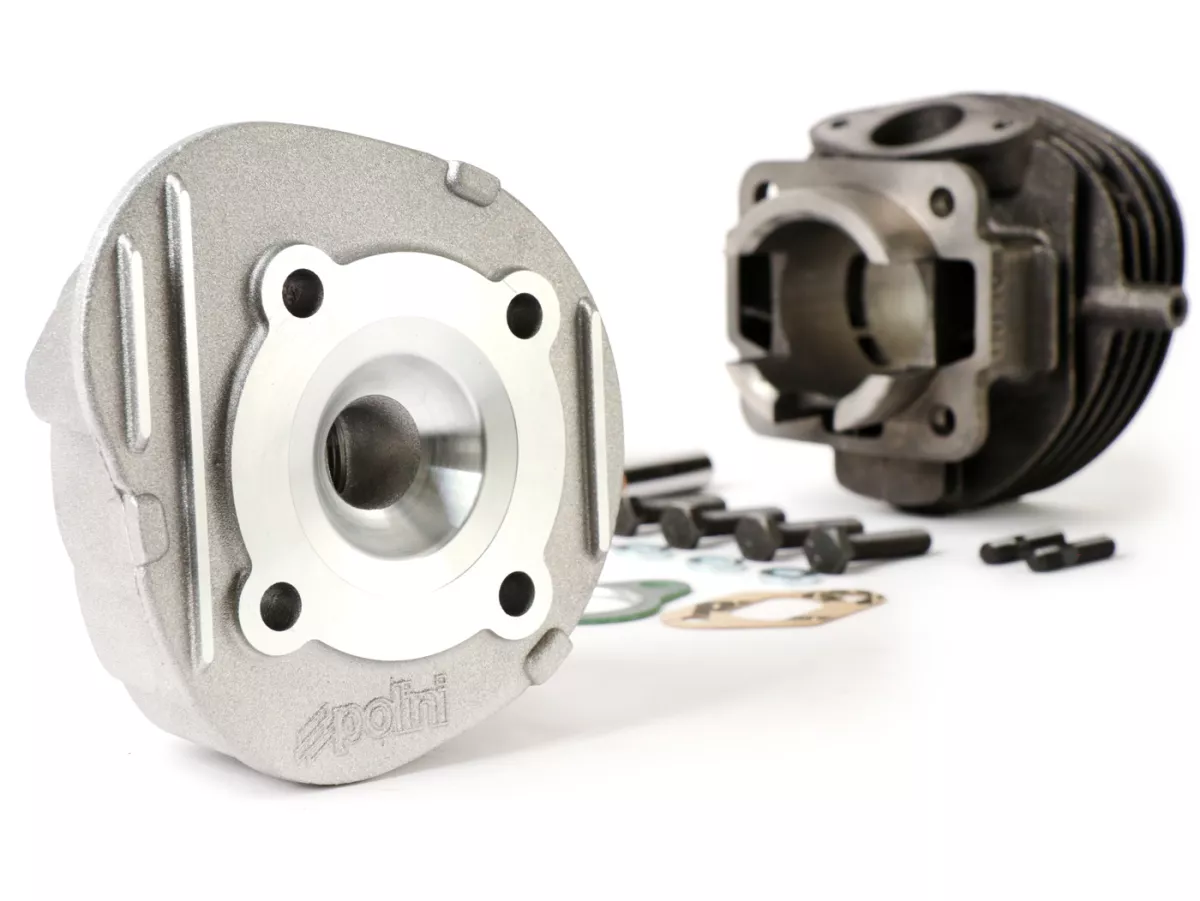

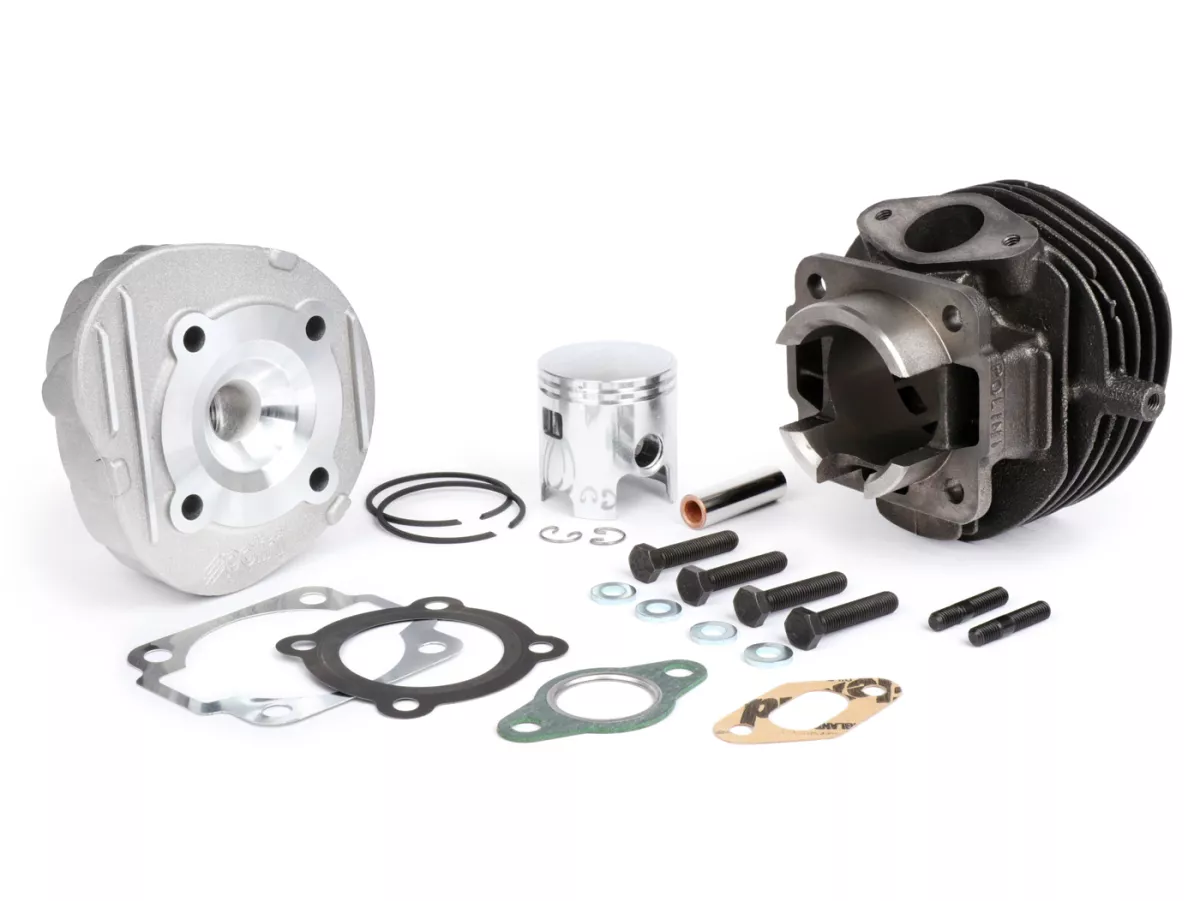

75 cc Polini cylinder - sporty classic for V50 and PK50

The 75 cc Polini is similar to the D.R., a very good-natured and powerful cylinder. The workmanship is at a good level typical of Polini and promises a long service life. It is characterized by a somewhat sportier layout than is the case with the normal DR 75. Despite this sportiness, you don't have to compromise on durability.

Due to the higher compression ratio of 11.2:1, the Polini should be operated with premium petrol. As with the D.R., a 70-74 main jet and a W4CC are recommended with original add-on parts.

This is how we ensure, that reviews come from real consumers.
Anonym  06/04/2016

Dies ist bereits der zweite Zylindersatz den ich gekauft habe. Ich fahre ihn auf einer PK50 Lusso und bin absolut zufrieden. Nun habe ich den zweiten Satz bei einem Bekannten montiert, ebenfalls ein PK50.

General
Performance class
Sport

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B8ES
Spark plug thread
lang

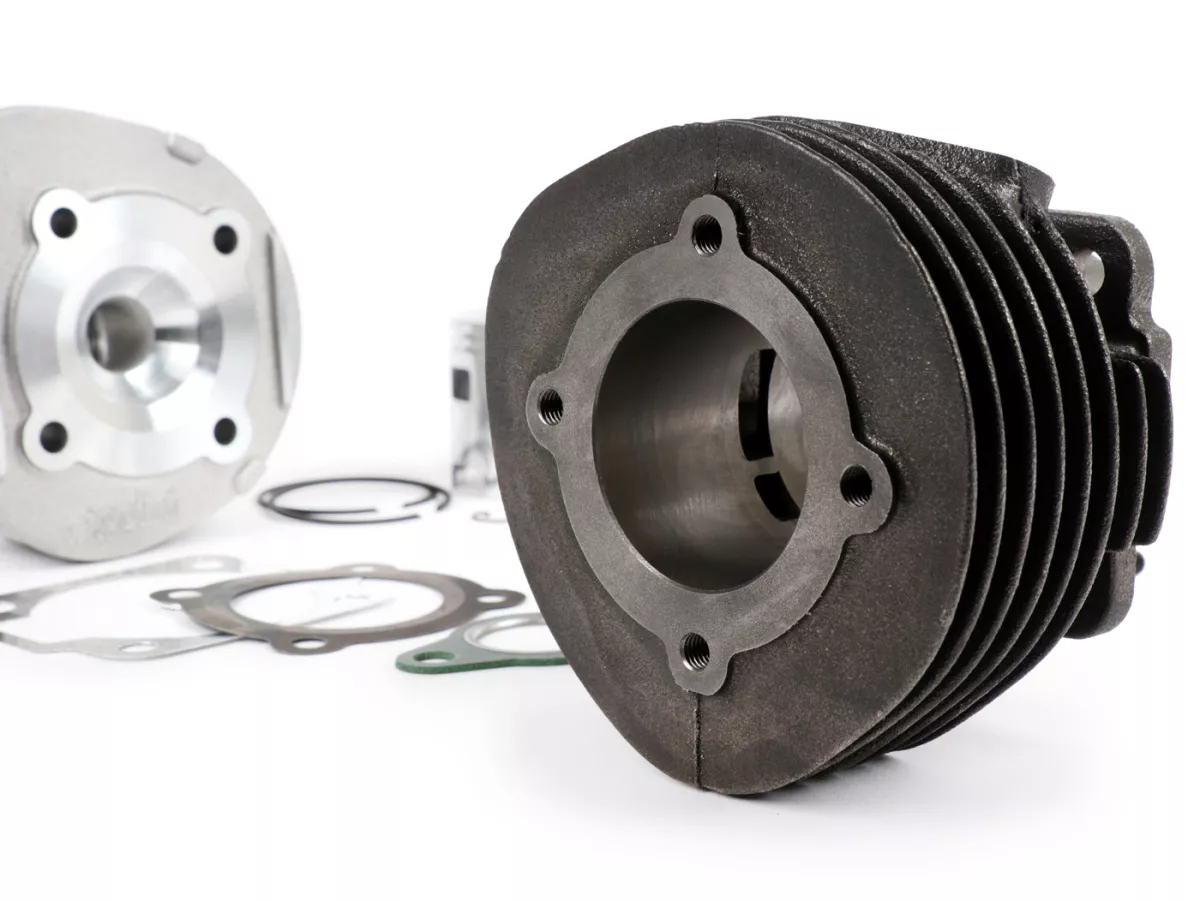

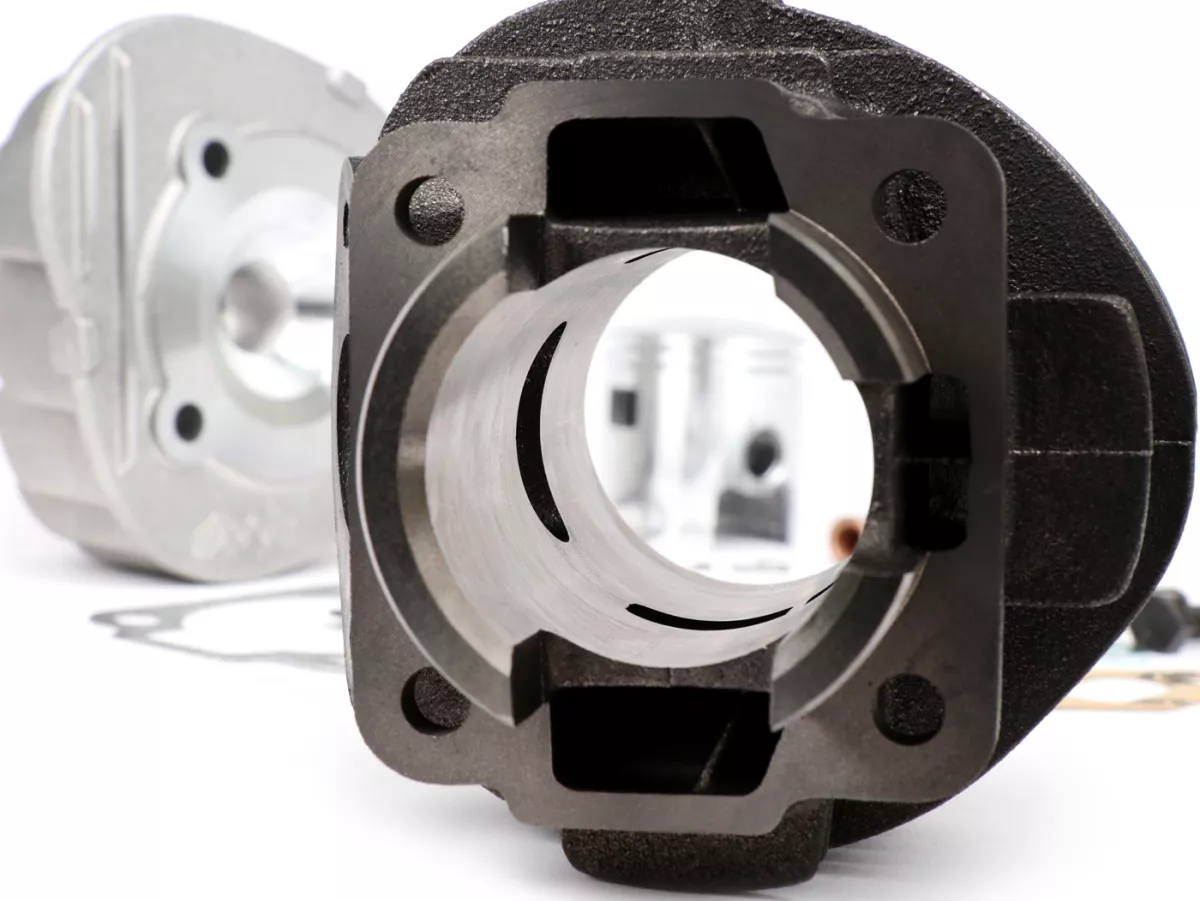

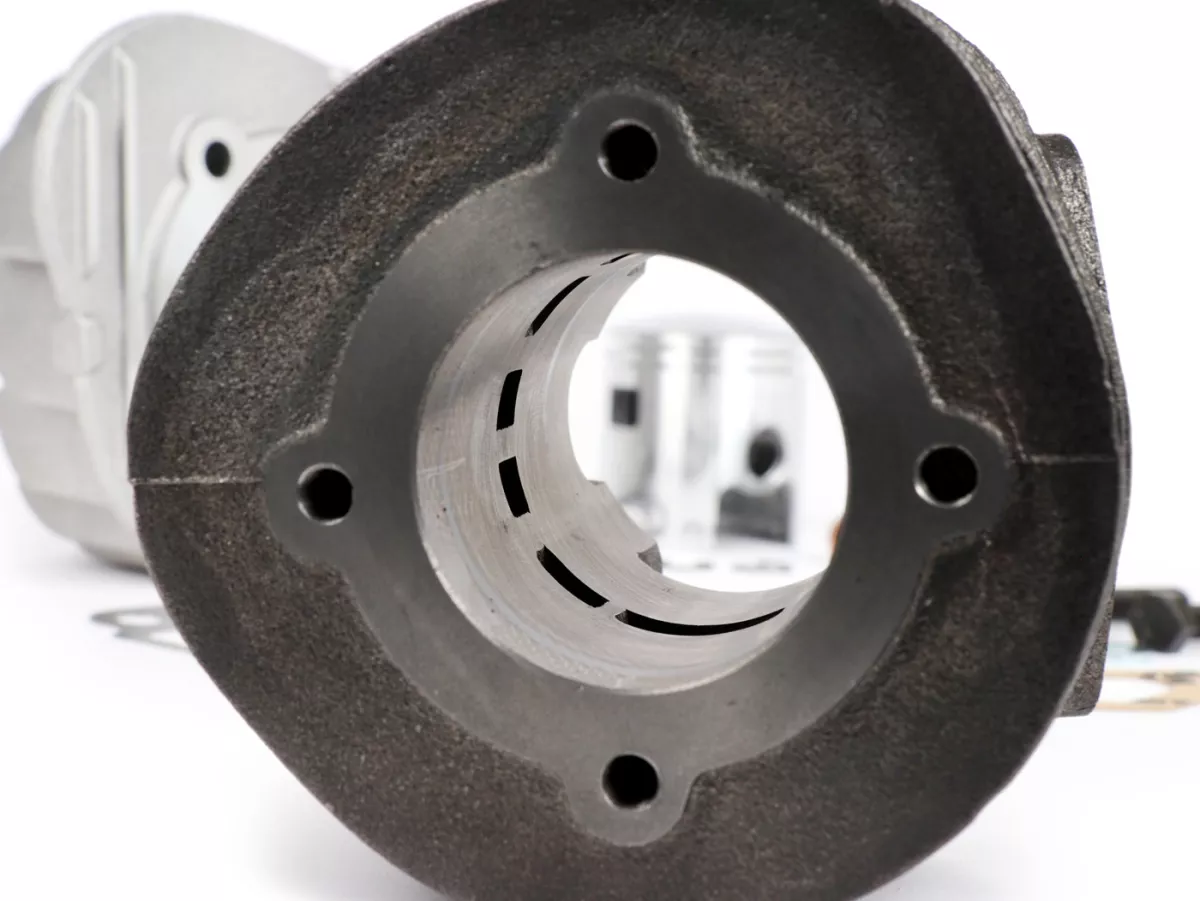

Cylinder
Drill hole
47 mm
Type of cooling
luftgekühlt
Displacement
75 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß

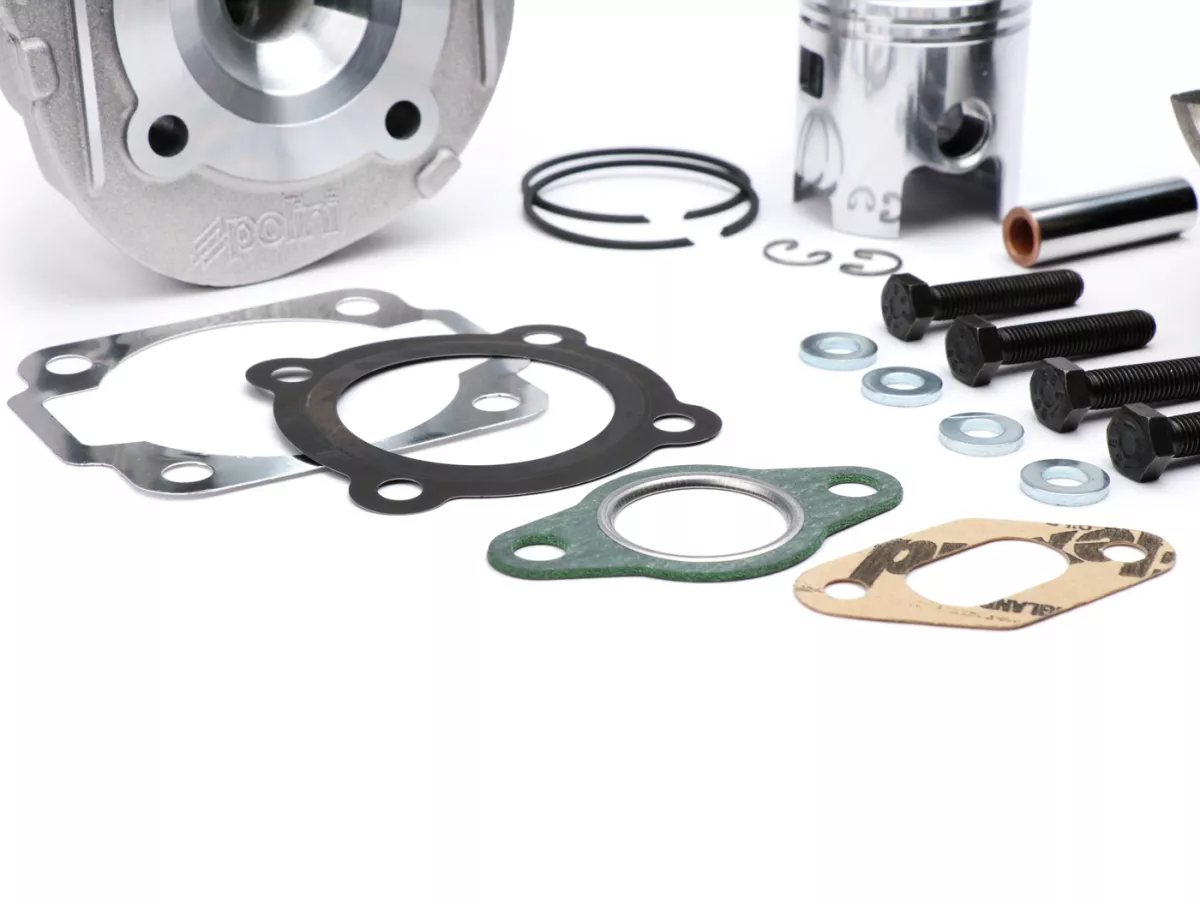

Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
52 mm
Threaded exhaust studs
M6
Number of boost ports
2
Number of transfers (incl. boost ports)
6

Crankshafts
Stroke
43 mm

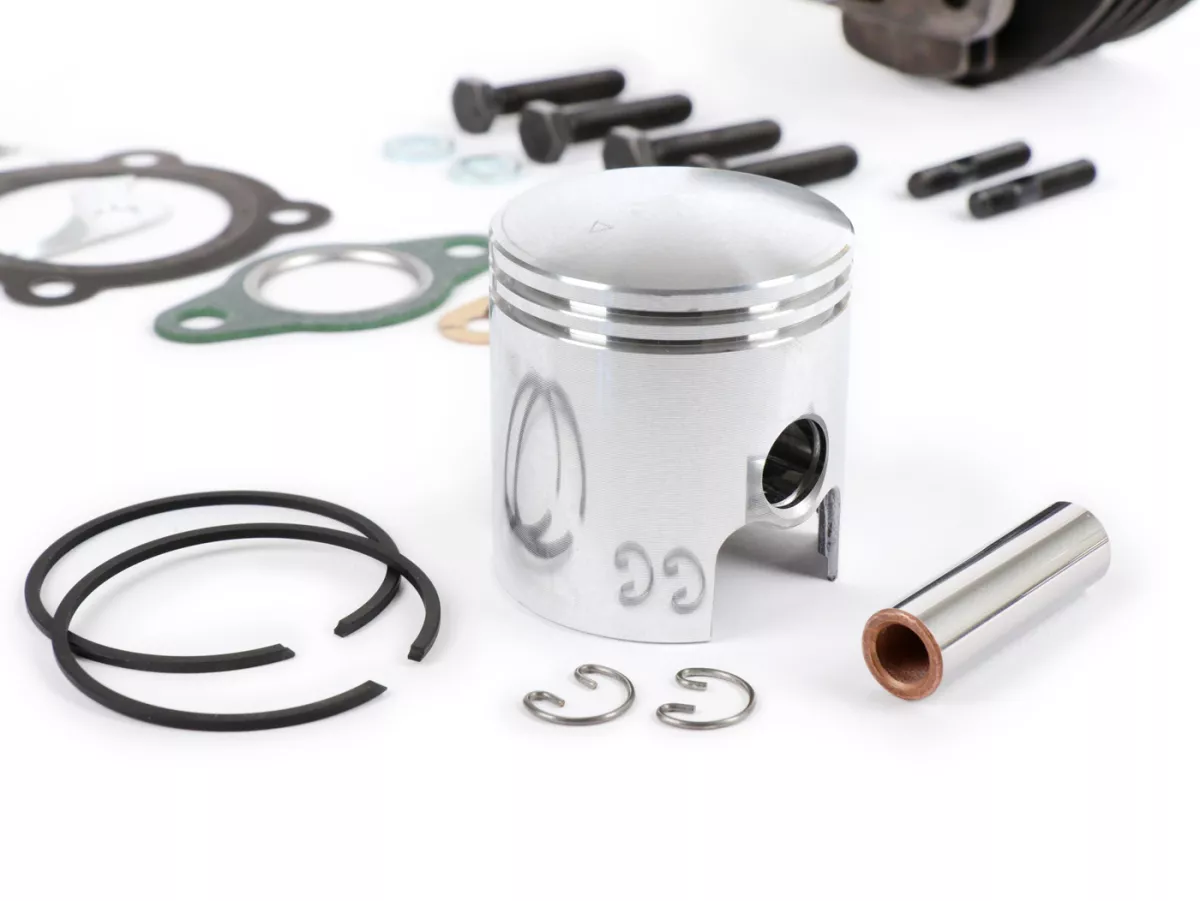

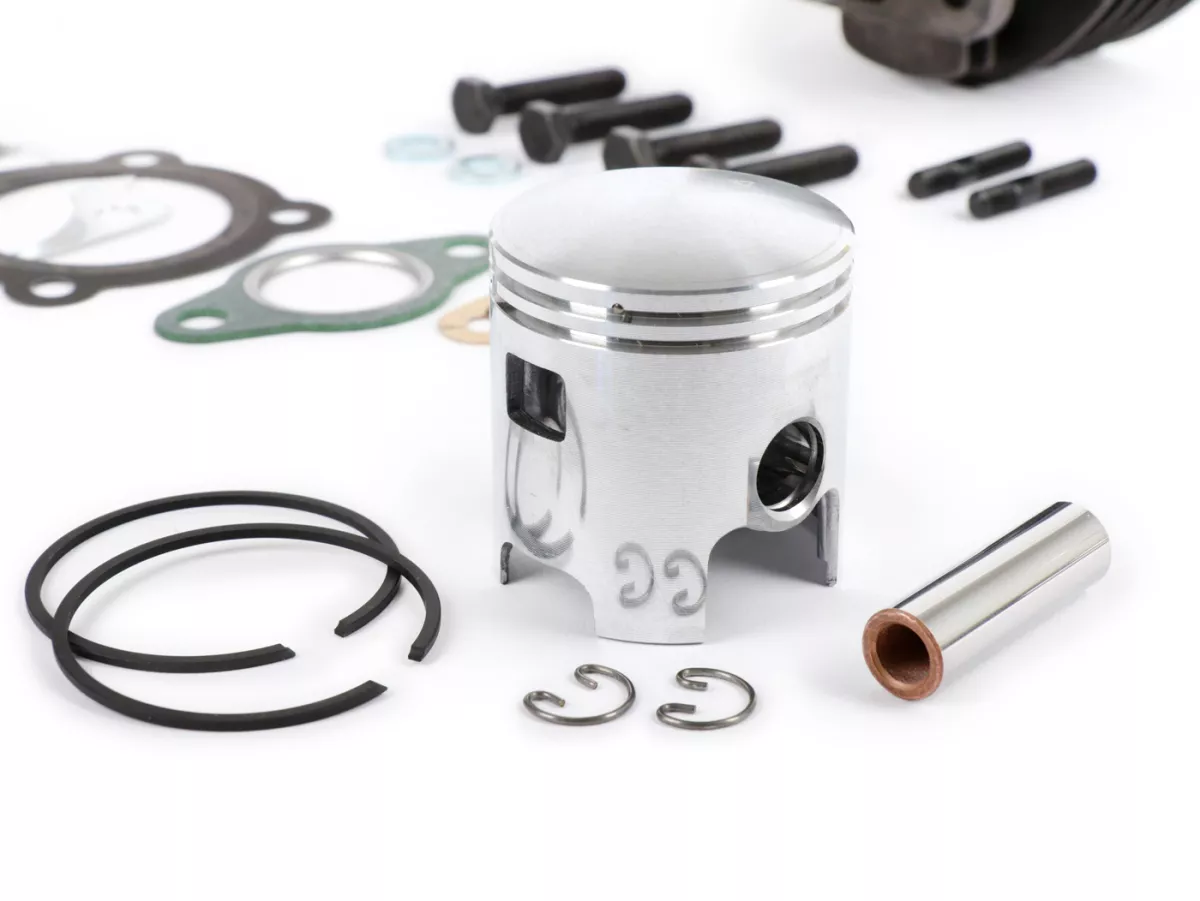

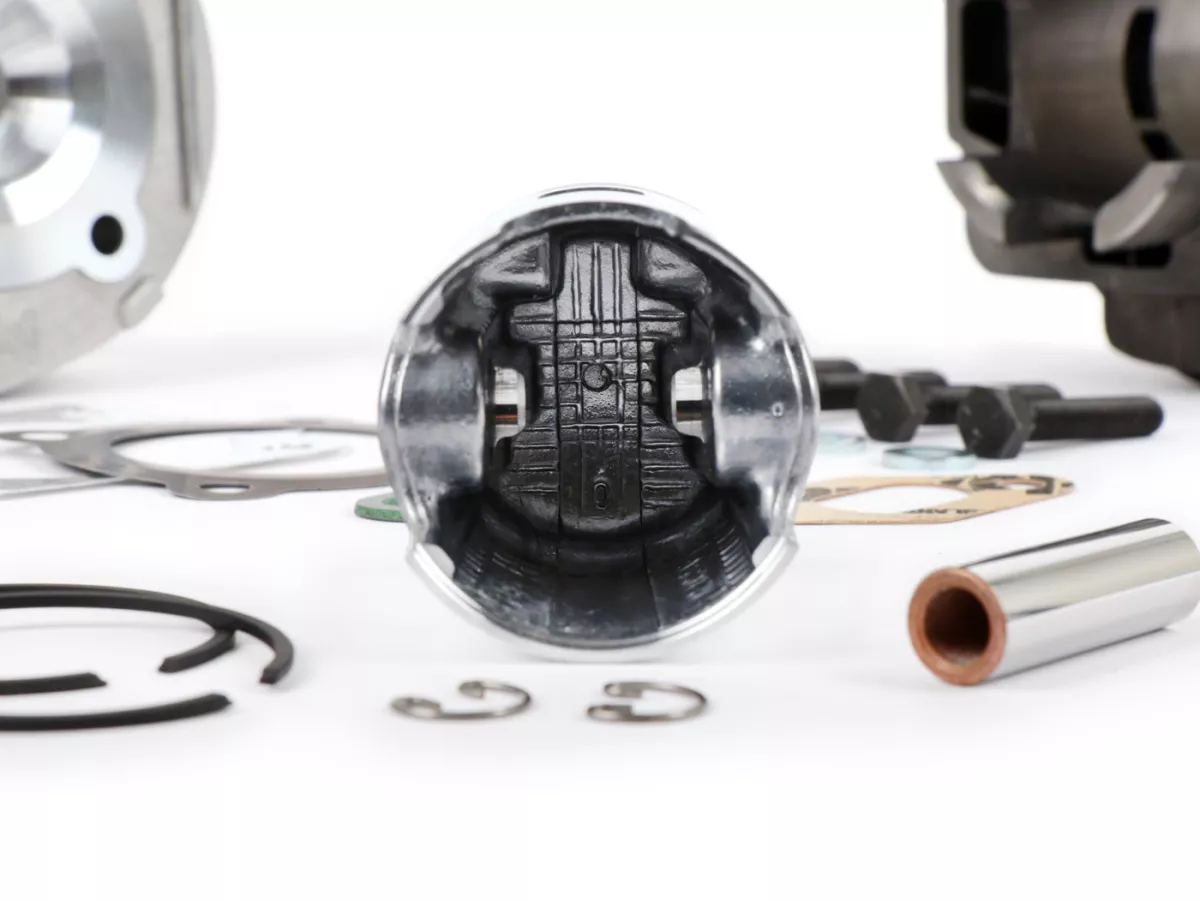

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
Doppel G-Typ
Wire gauge Piston clip
1,0mm

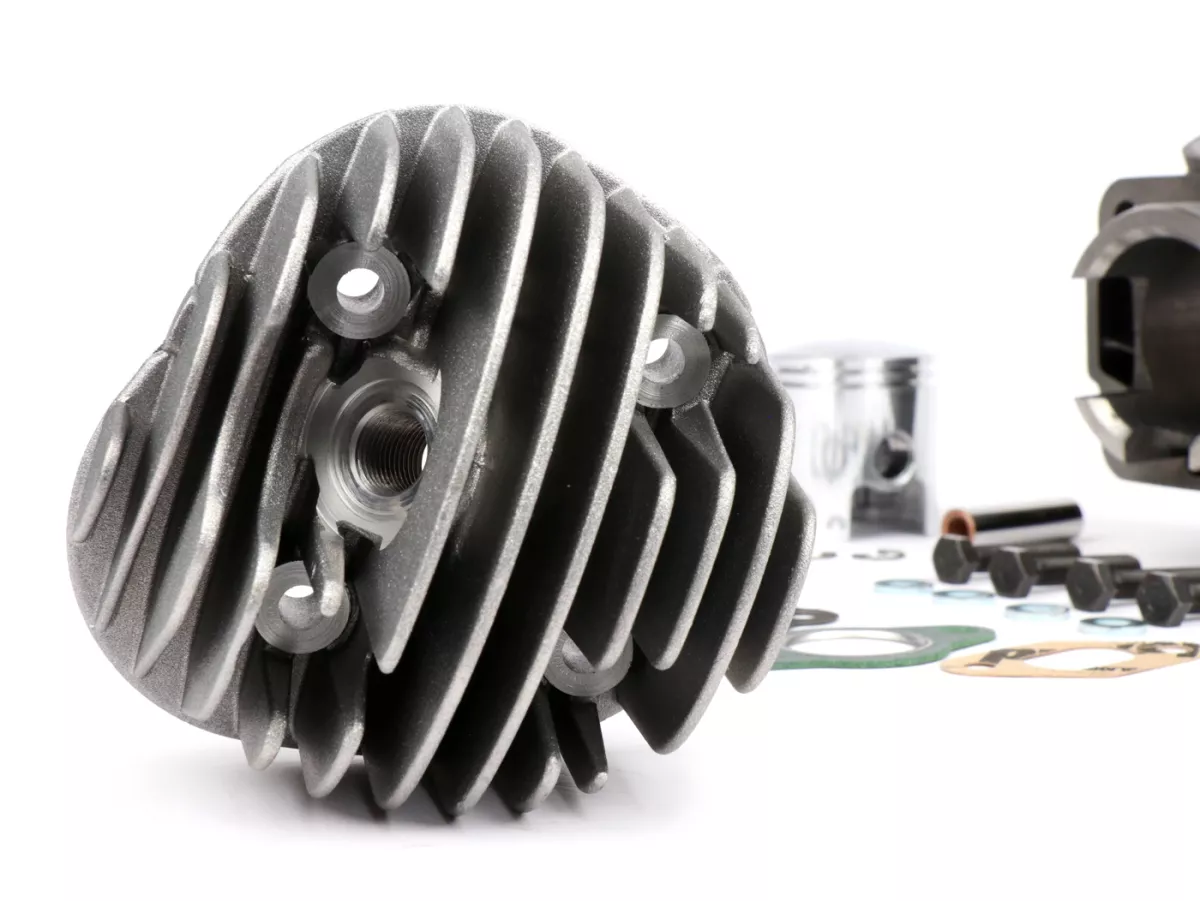

Cylinder heads
Cylinder head type
einteilig

OEM numbers (for comparison purposes only)
Polini:
140.0053, 1400053, P140.0053, P1400053
