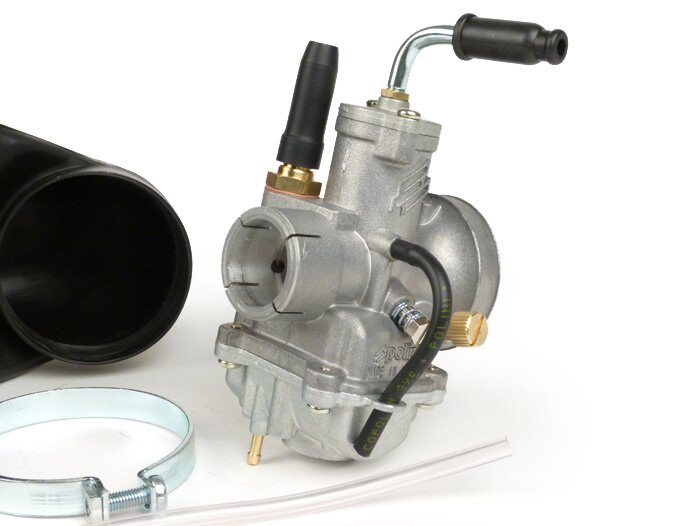

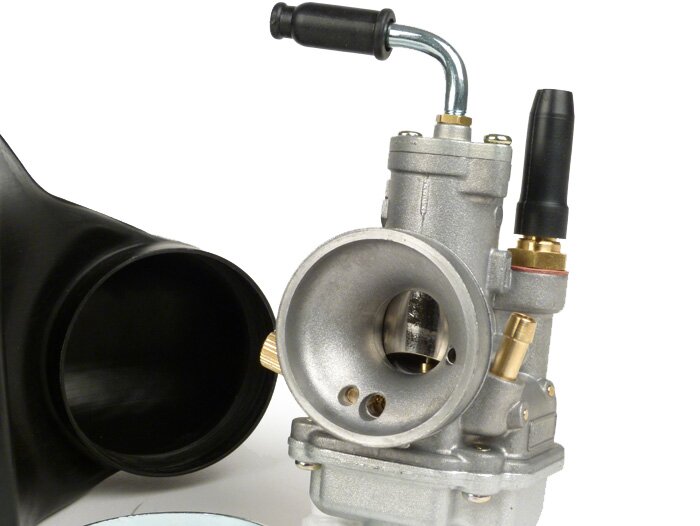

Carburator -POLINI- CP 19mm - Vespa PV125, ET3, PK S, PK XL - fits original intake manifold 19/19 -CS=Ø23/30mm

The Polini CP carburettors are a completely new and proprietary development from Polini. At first sight they offer a mixture of Keihin PWK and Dell'Orto PHBG carburettors. A classic round slide is housed here in a relatively small carburettor body, making them ideal for the limited space available in the small Vespa models like the V50, 50N, PV125 or ET3.
The CP carburettor versions especially made for the Vespa fit the original connectors of the 125cc models. 50cc engines therefore require the manifold of the 125cc models with 19mm passage.

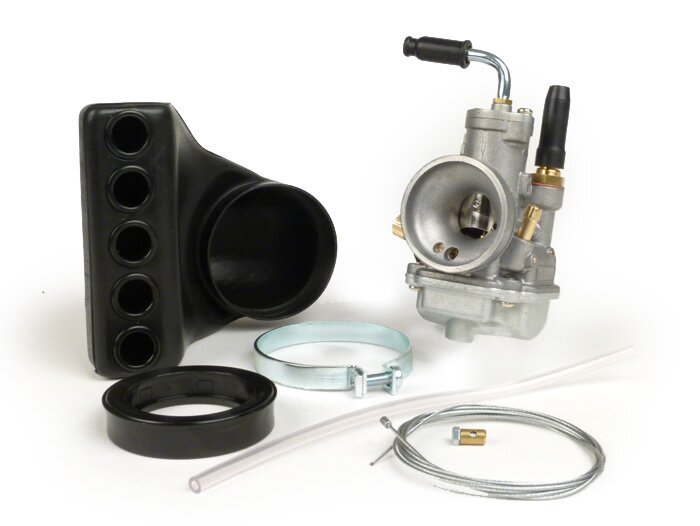

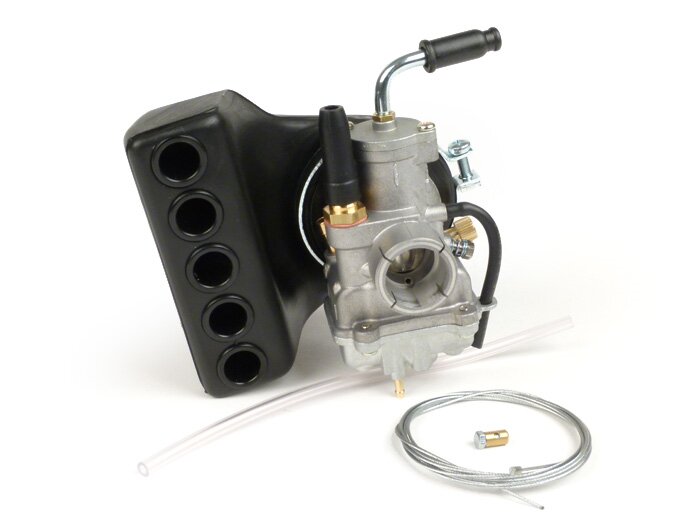

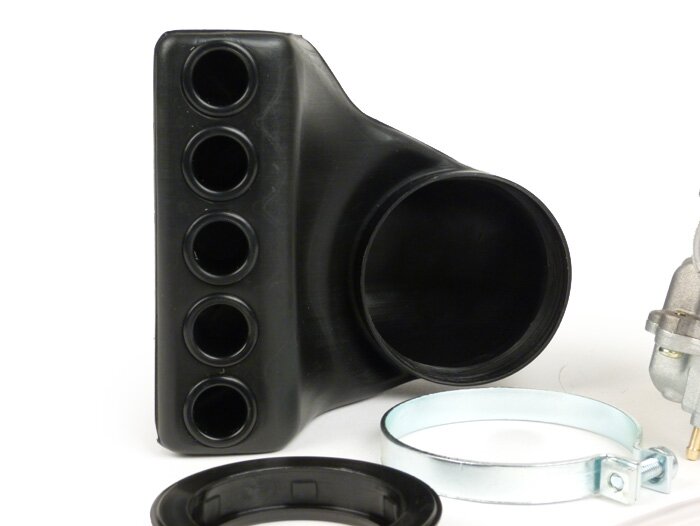

The set includes the carburetor, an intake funnel with adapter ring and a throttle cable. The main jet is identical to the Keihin PWK, all other tuning parts are Polini's own. The carburetor has a cable choke (choke not included).

main jet: 84

second jet: 38

sliding needle: 14/22

sliding needle: 24x30°

needle jet: Ø2,7mm

The carburettor is pre-tuned for a Polini 130 cast iron cylinder with Polini exhaust (worm/banana).
