Piaggio Item number: 7672429
Piaggio
4,50 €*
available immediately
Shipping weight 0,06 kg

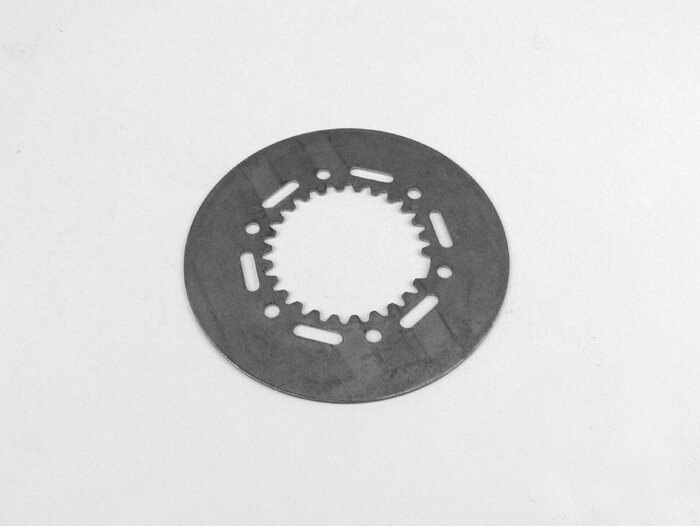

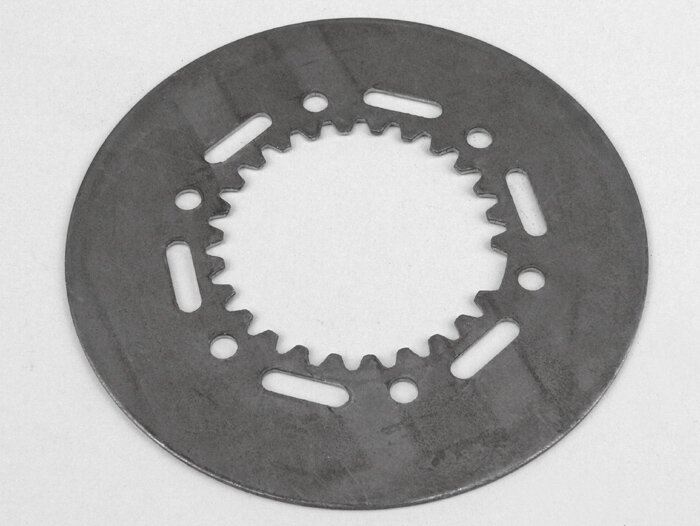

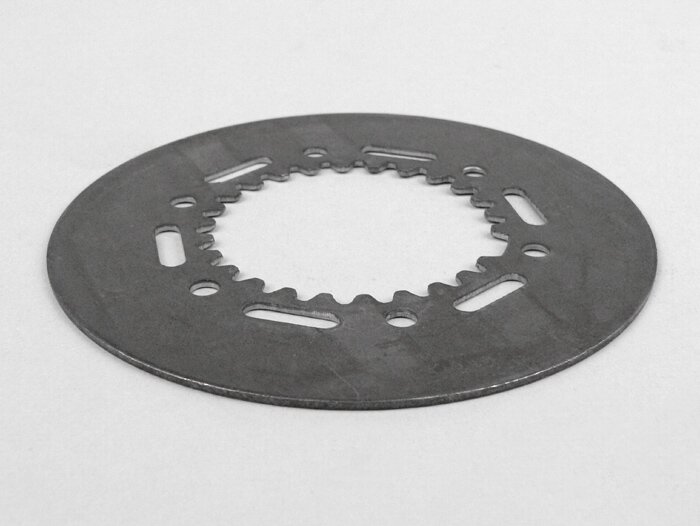

Original steel disc for the large clutch of the PX200/T5 125cc engines.
The disc(s) should not be discolored or warped for the proper function of the clutch. To check if the discs are not straight anymore, simply put them on top of each other and twist them with both hands. Thus distortions become visible very quickly.
Although original from Piaggio, many discs do not have perfectly flat surfaces even when new. If necessary, however, the discs can easily be straightened by hand (e.g. on the edge of a workbench). A slight wobble of the discs is also generally important to make the discs stand out better from each other (air discs).


A three disc clutch (like original) needs two of these steel discs.


Sport clutches with four discs usually use thinner steel discs (which also warp faster), so the original steel discs described here cannot be used there.


  • Necessary quantity: 2pcs.
  • Delivery quantity: 1pcs.
  • Ø: 108mm
  • Clutch type: 7-springs

  • We recommend BGM Pro Street gear oil (BGM2025, corresponds to specification API GL-3) as lubricant.


    AI-translation

    Rate this article now and let us know what you think.
    OEM numbers (for comparison purposes only)
    Piaggio:
    093745, 93745
