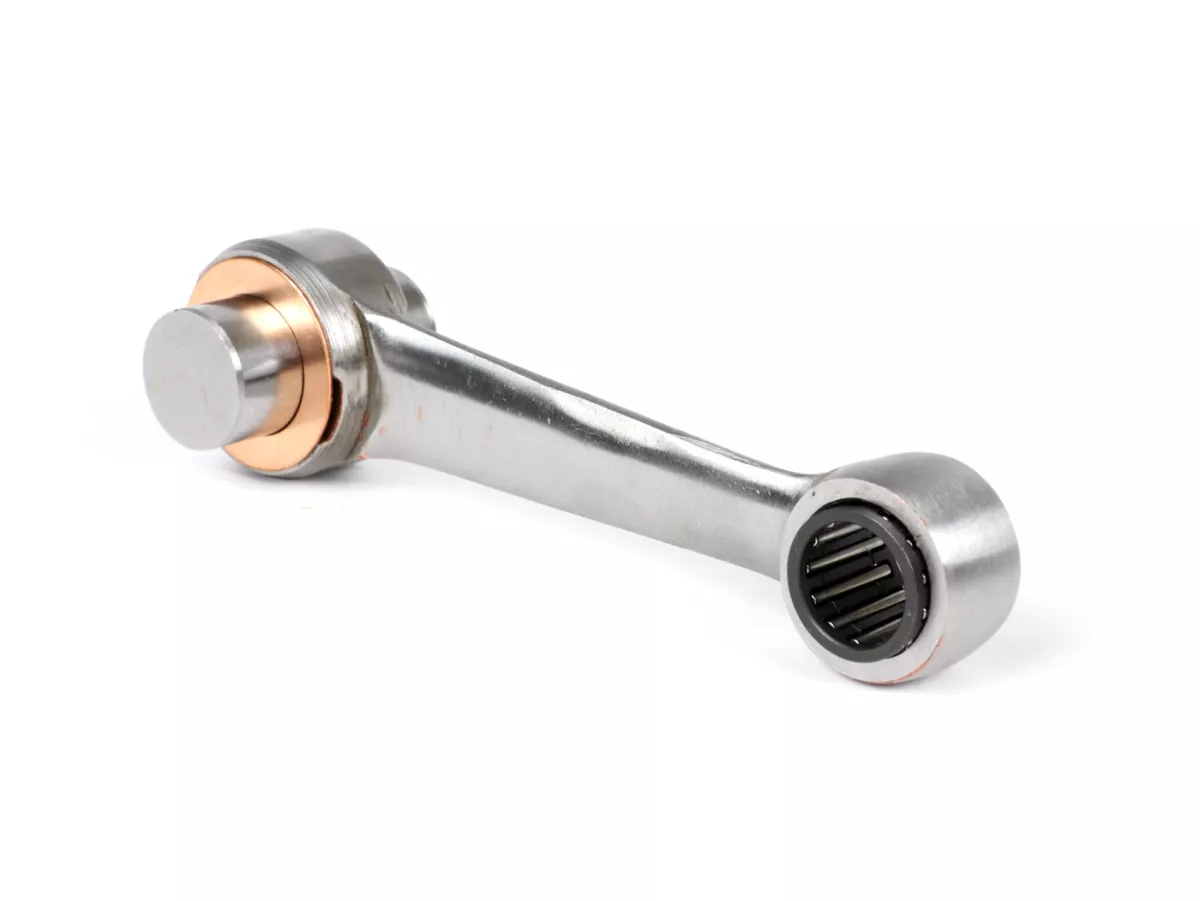

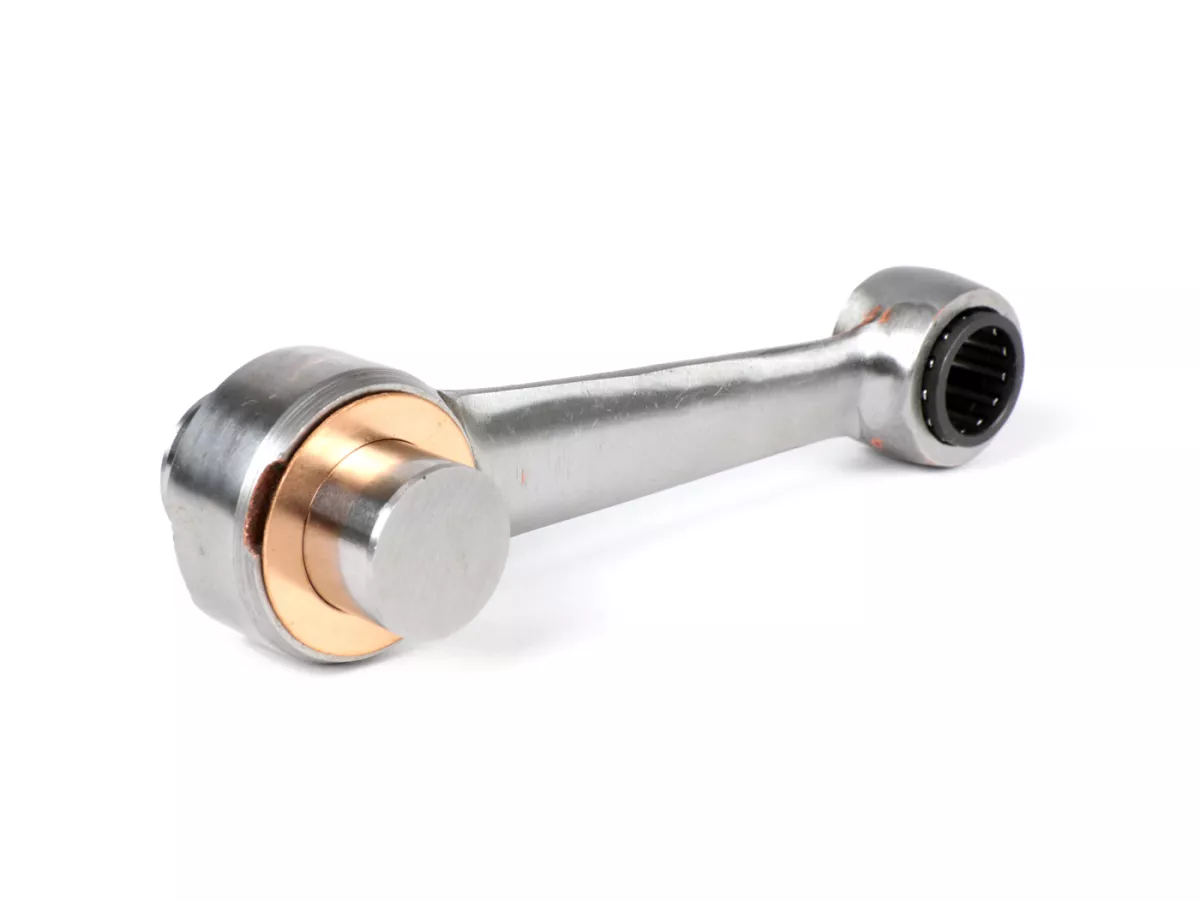

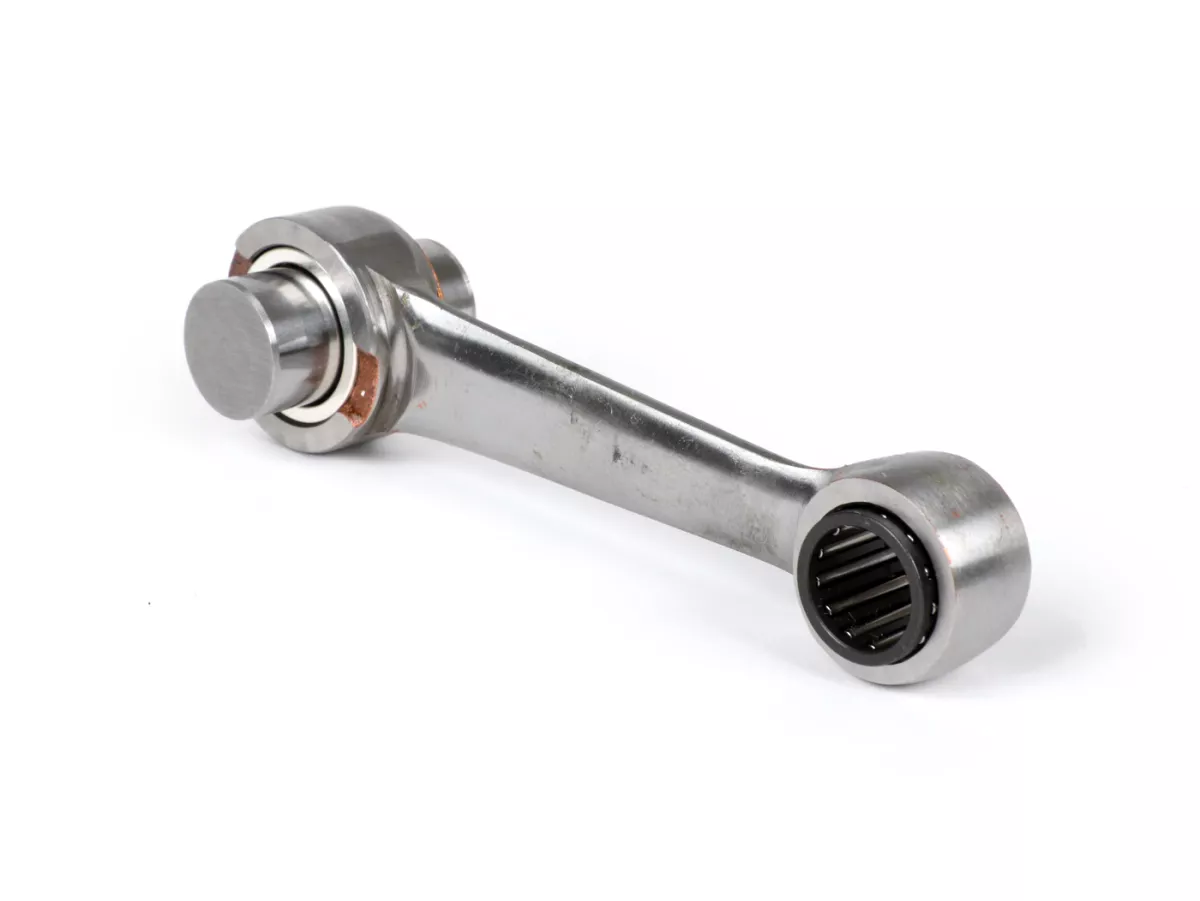

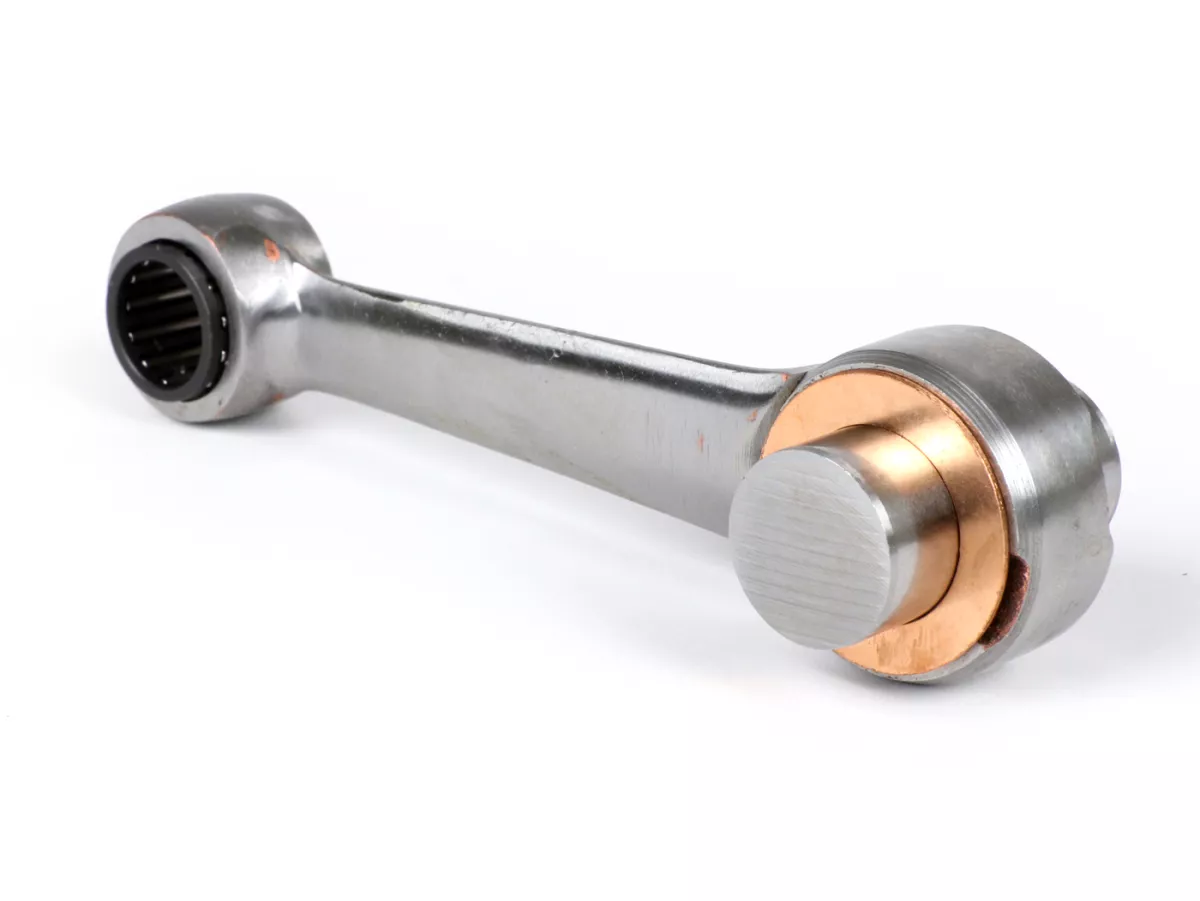

Connecting rod -MAZZUCHELLI- Piaggio Vespa PX125, PX150 (105mm, piston pin Ø=15mm, crank pin Ø20mm, used for 60mm long stroke shaft)

MAZZUCCHELLI connecting rod 105 mm for PX125/150 long stroke shafts

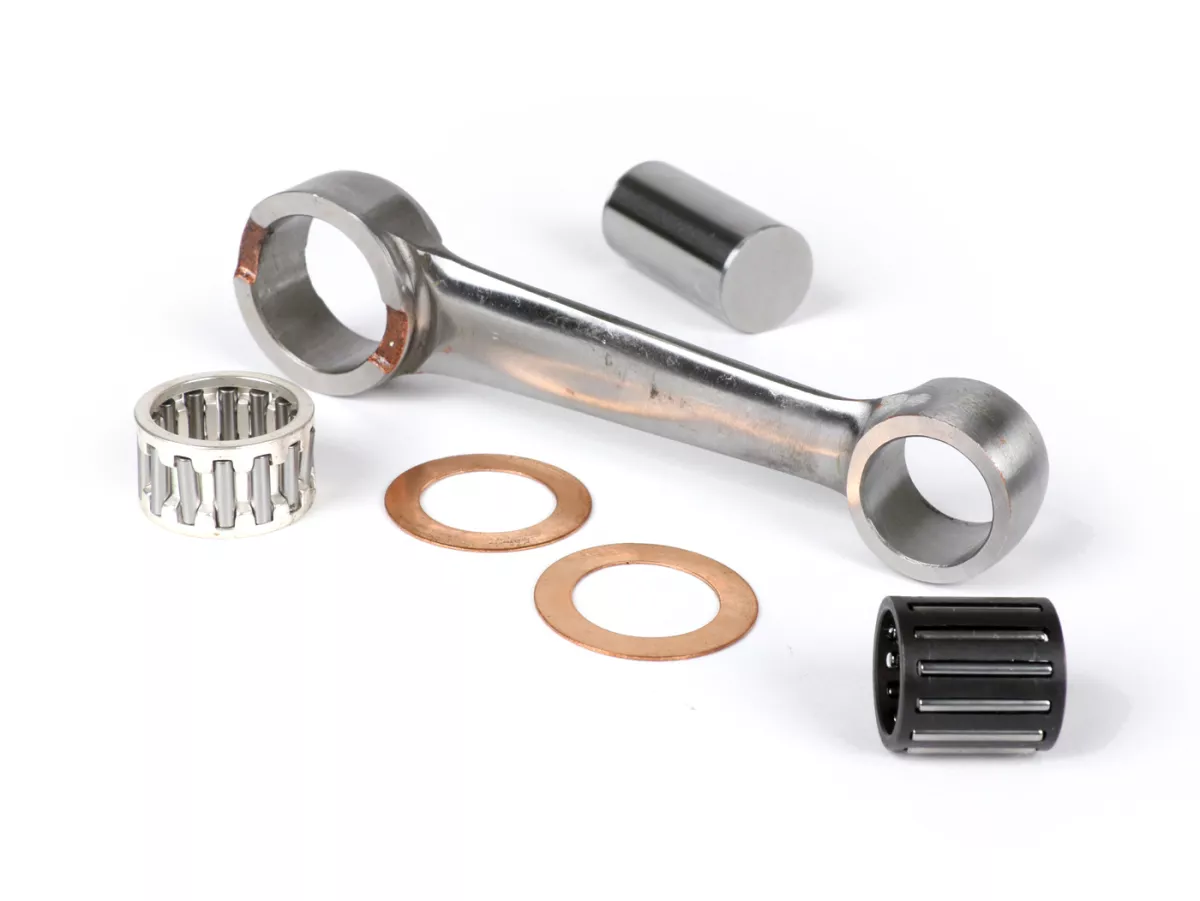

Spare part from Mazzucchelli for their 60 mm stroke crankshafts of the PX125/150 models. The connecting rod has the standard length of 105 mm, but the size of the crank pin is 20 mm different to the 57 mm stroke crankshafts from Mazzucchelli. Otherwise, everything is included in the scope of delivery for repressing.

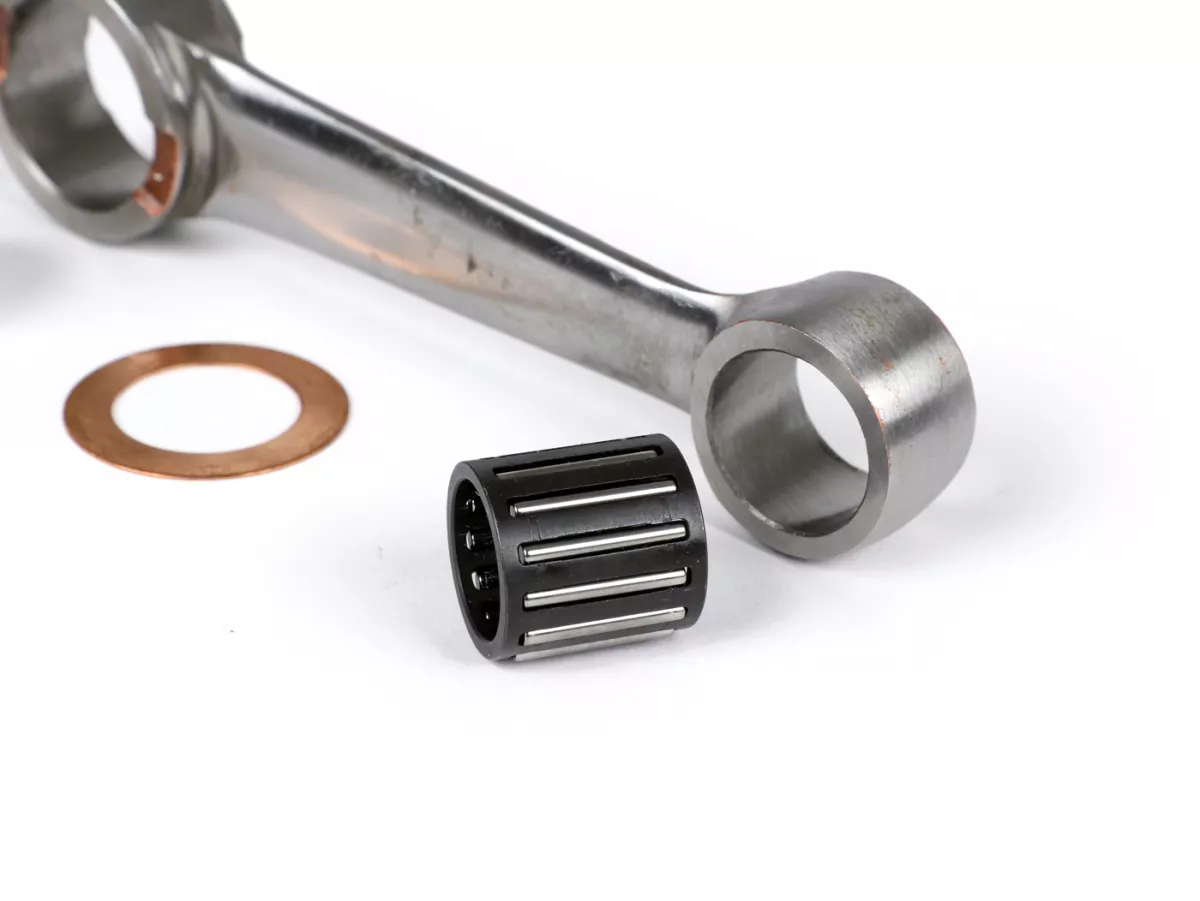

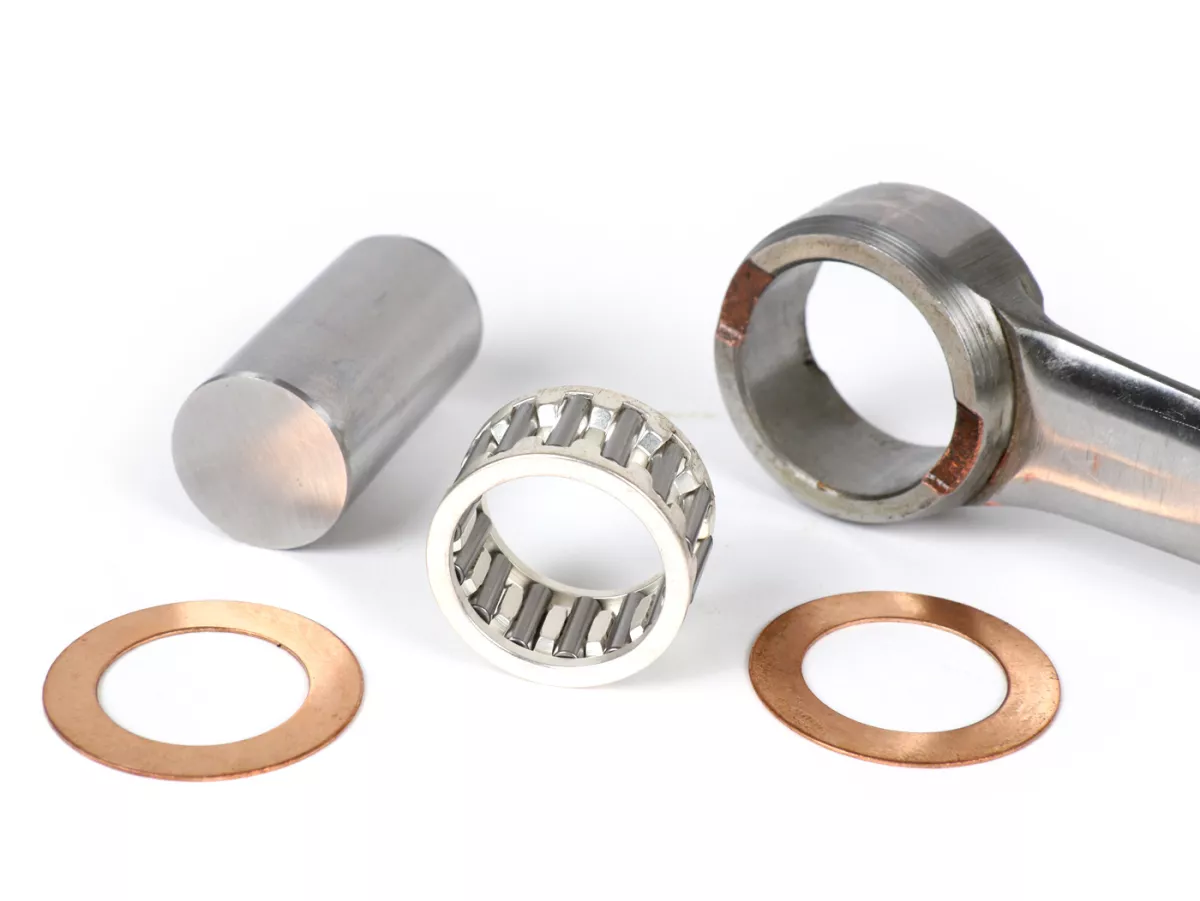

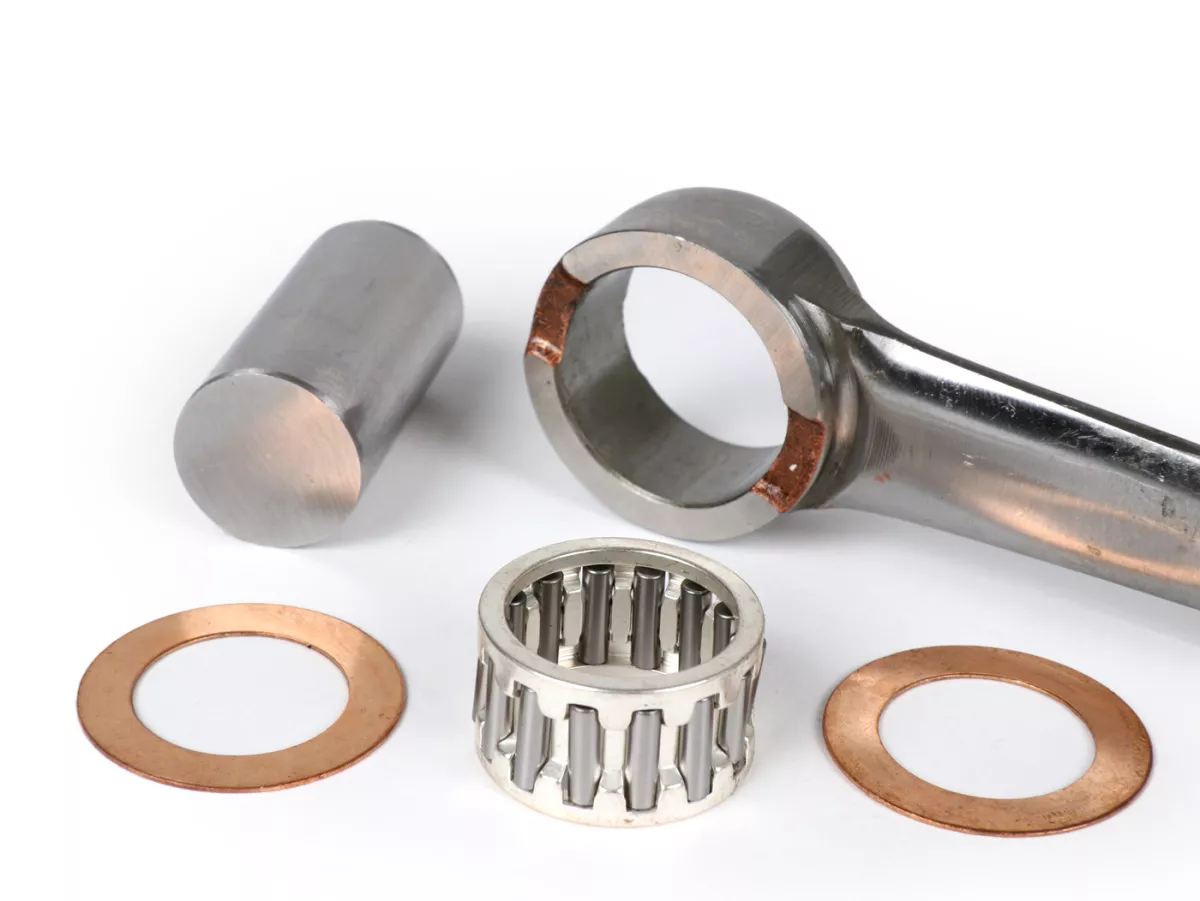

• Piston pin bearing

• Connecting rod bearing

• Silver cage at the bottom

• thrust washers

• Crank pin.



(TW070222)
