Mazzucchelli Item number: 1610001

Crankshaft -MAZZUCCHELLI Standard (rotary valve)- Vespa V50, PK50 S (Ø 19mm cone)

2 Ratings

109,00 €*

not available

Shipping weight 1,35 kg

Send me an e-mail as soon as the item is back in stock.

Information on product safety

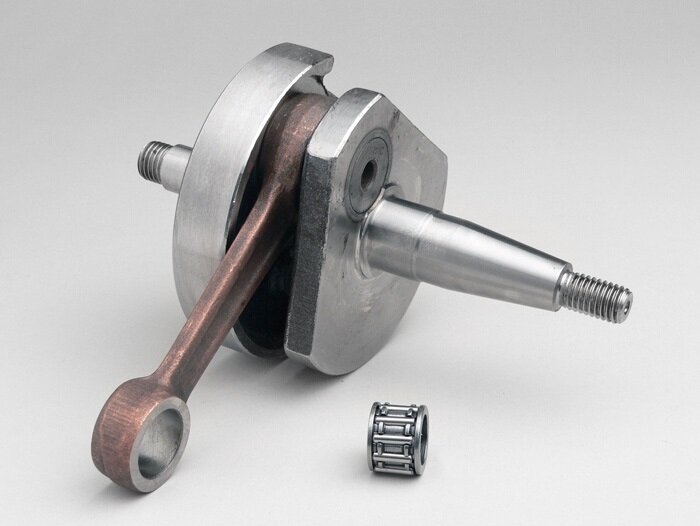

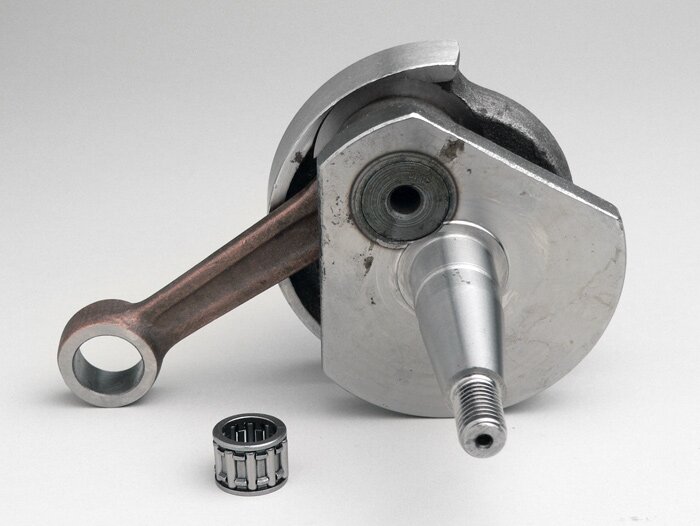

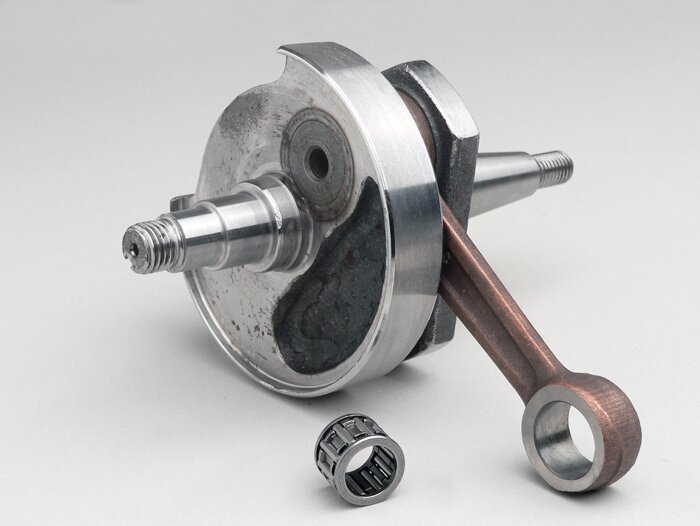

MAZZUCCHELLI crankshaft with Ø19 mm cone for V50 and PK50

The standard crankshafts for the V50 are ideal for replacing the outdated original shafts with bushings instead of needle bearings in the upper connecting rod eye. This greatly increases the service life of the engine, as the connecting rod bushes often become out-of-round or fail over time.

TIP: For cylinders with a displacement of 75cc or more, order a wider upper connecting rod bearing at the same time! (see accessories)

This is how we ensure, that reviews come from real consumers.

Anonym 06/29/2015

Gute Preis Leistung! Ideal um V50 auf Nadellager umzurücsten

Anonym 07/20/2015

top

Rate this product now

Ball bearing

Dimensions

12x17x13mm

Piston pin

Diameter

12 mm

Crankshafts

Stroke

43 mm

Thread on alternator side

M10x1,5 Rechtsgewinde

Thread on drive side

M10x1,5 Rechtsgewinde

Crank web diameter

87 mm

Crankcase must be spindled

nein

Motor housing must be modified

nein

Rotary vane crankshaft

ja

Length of rotary vane sealing surface on crank web

201 mm

Vespa V50, PV - Control angle short sealing surface (22mm) (°)

117

Vespa PK XL2, ETS - Control angle long sealing surface (28mm) (°

123

Vespa PK XL2, ETS - Control angle long sealing surface (37mm ful

133

Full cheek crankshaft

nein

Wide crank webs

37.6 mm

Bearing seat diameter on alternator side

20 mm

Bearing seat diameter on drive side

17 mm

Diameter of sealing ring seat on alternator side

19 mm

Diameter of sealing ring seat on drive side

22.7 mm

Connecting rod

Connecting rod length

97 mm

Connecting rod strength

4.8 mm

Connecting rod eye top diameter

17 mm

Lifting pin diameter

20 mm

Upper connecting rod eye lubrication hole

ja

Lower connecting rod eye lubrication hole

Nut

Connecting rod thrust washers

ja

OEM numbers (for comparison purposes only)

Piaggio:

112154, 1961056, 224587, 2245875, 90203

Scooter Center:

1610001
