243,00 € *

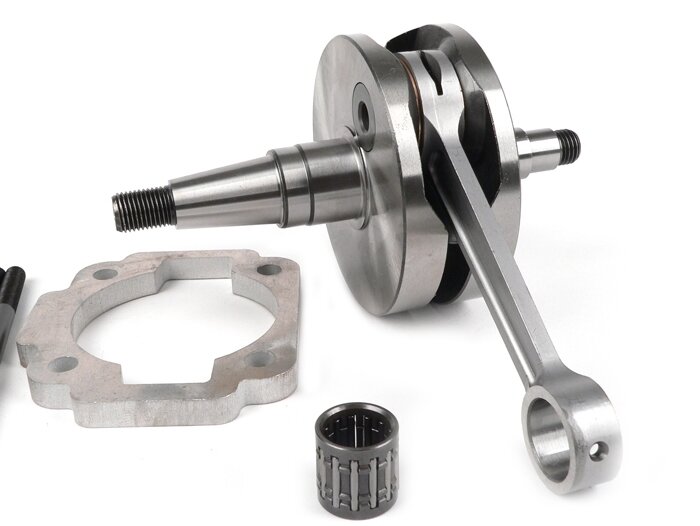

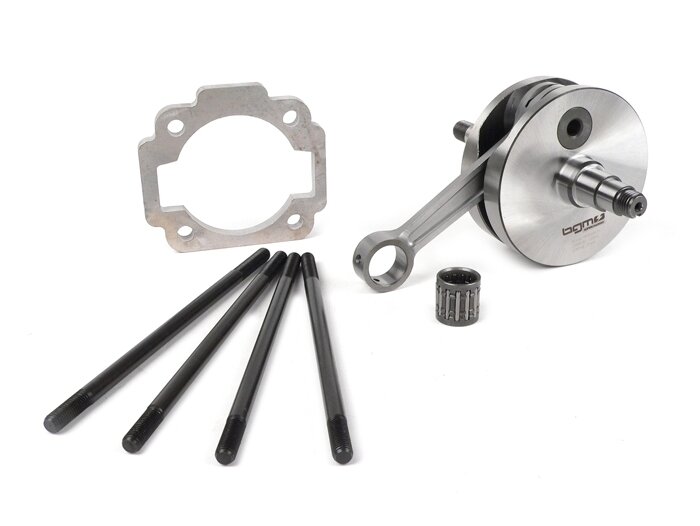

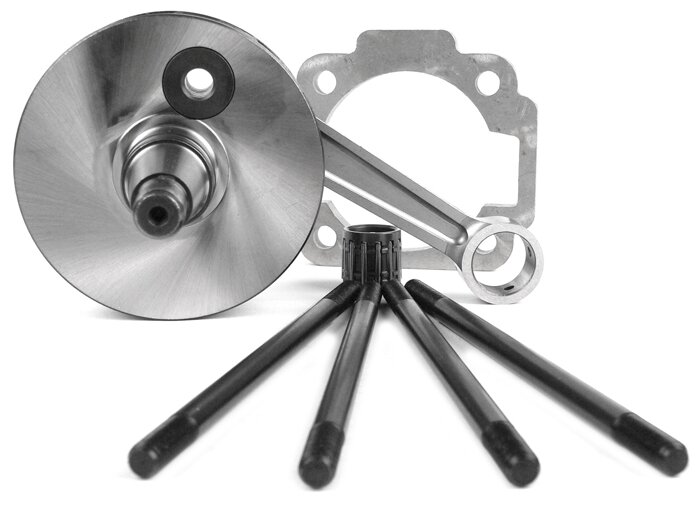

The bgm PRO Racing Shaft with 51 mm stroke is perfectly suited for class 1 of the

ESC and people who need a stable shaft for ambitious road tuning.

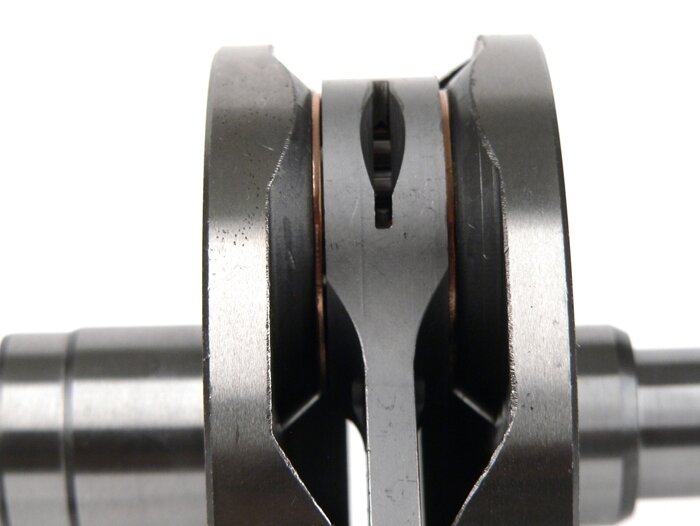

The proven crank webs of the 54 mm shaft are used here. The larger cheek diameter has been retained here to achieve the necessary higher overlap at the crankpin and thus additional torsional safety to

. This minimises the risk of twisted cheeks and welding with the usual disadvantages is not necessary.

For virgin housings the housing must be spindled to 88 mm

.

A later ascent to the 54mm shaft for even more displacement and power is then possible without any problems, as the cheek diameters are identical.

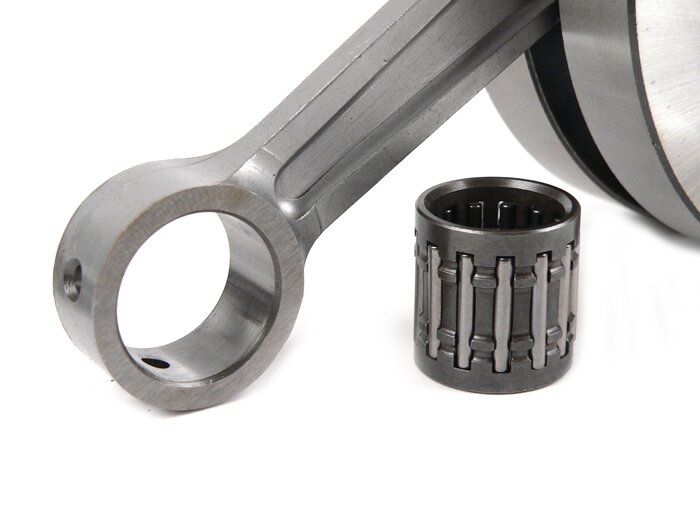

A huge advantage is the high quality 105 mm long connecting rod , with cleanly executed lubrication holes and now 5mm thickness. This is eight millimetres longer than the standard connecting rod of the 125 series. The advantages of the longer connecting rod are a more favourable deflection angle and the resulting lower friction of the piston in the raceway.

This increases the performance and results in a lower pre-compression, which works great especially with the new reso systems such as the fire magic of the company Ludwig und Scherer. M7 studs (BGM 0290) must be used.

The shaft is operated with the standard bearing of the ETS.

- Non-rotating,Stable cheeks

- High-quality connecting rod

- Good lubrication holes and slots

- Reasonably dimensioned thrust washers

- Designed for the high-speed ETS Lima bearing

-lower precompression

- Favourable deflection angle at the connecting rod bearing


AI-translation

Rate this article now and let us know what you think.
Ball bearing
Dimensions
15x19x20mm

Piston pin
Diameter
15 mm

Crankshafts
Stroke
51 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M10x1,5 Rechtsgewinde
Crank web diameter
87 mm
Crankcase must be spindled
nein
Motor housing must be modified
ja
Rotary vane crankshaft
nein
Full cheek crankshaft
ja
Filling material for full cheek
Stahl
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
17 mm
Diameter of sealing ring seat on alternator side
24 mm
Diameter of sealing ring seat on drive side
22.7 mm

Connecting rod
Connecting rod length
105 mm
Connecting rod eye top diameter
19 mm

General
EAN
4250366692784

OEM numbers (for comparison purposes only)
Scooter Center:
7673185
