Mazzucchelli Item number: 9130001

Crankshaft -STANDARD- Vespa Sprint150 (VLB1T), GL150 (VLA1T), GT125 (VNL2T), GTR125 (VNL2T), VNB, VBA, VBB ,T4 ,Super

3 Ratings

149,00 €*

available immediately

Shipping weight 2,01 kg

Information on product safety

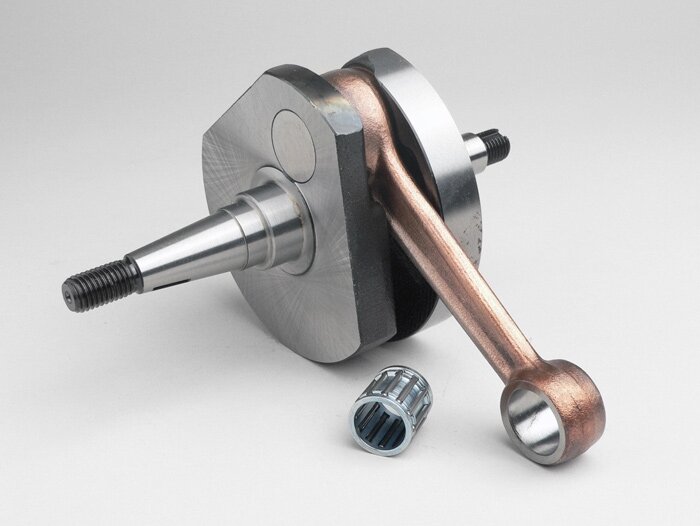

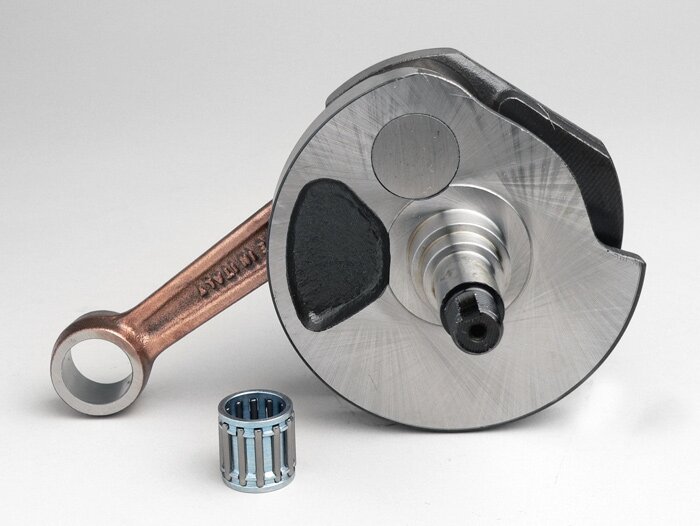

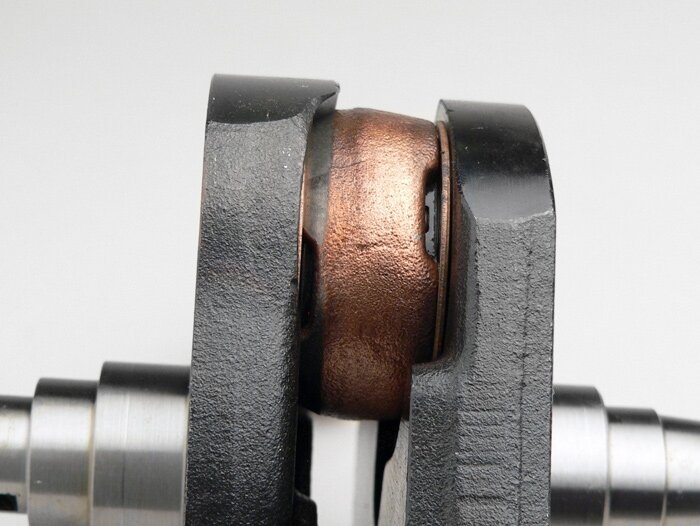

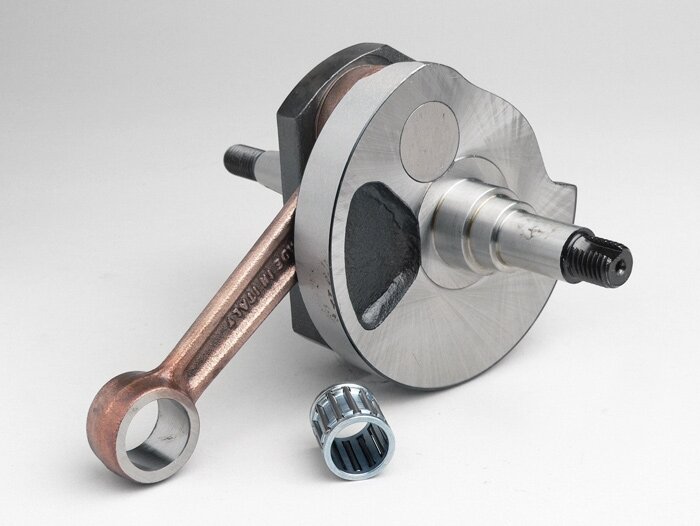

Mazzucchelli standard crankshaft for Vespa 125-150 ccm

High quality repro of this Vespa crankshaft made by Mazzucchelli.

Fits all Vespa 125-150 Largeframe models built between 1958 and 1976.

This is how we ensure, that reviews come from real consumers.

Anonym 03/23/2016

einwandfrei, passgenau, selten was besseres gehabt!!

Anonym 04/03/2016

absoluter Top Artikel, bin davon 100%ig überzeugt!!

Anonym 01/30/2019

ph. hotz
Absoluter top Artikel!!!

Rate this product now

Ball bearing

Dimensions

15x19x20mm

Piston pin

Diameter

15 mm

Crankshafts

Stroke

57 mm

Thread on alternator side

M11x1,5 Rechtsgewinde

Thread on drive side

M12x1,5 Rechtsgewinde

Crank web diameter

98 mm

Crankcase must be spindled

nein

Motor housing must be modified

nein

Rotary vane crankshaft

ja

Wide rotary slide cheek

15.3 mm

Length of rotary vane sealing surface on crank web

214 mm

Vespa PX125-150 - Control angle short sealing surface (53mm full

171

Vespa PX125-150 - Control angle long sealing surface (33mm) (°)

148

Full cheek crankshaft

nein

Wide crank webs

39 mm

Bearing seat diameter on alternator side

25 mm

Bearing seat width on alternator side

12 mm

Bearing seat diameter on drive side

25 mm

Diameter of sealing ring seat on alternator side

20 mm

Diameter of sealing ring seat on drive side

20 mm

Connecting rod

Connecting rod length

105 mm

Connecting rod strength

6 mm

Connecting rod eye top diameter

19 mm

Lifting pin diameter

22 mm

Upper connecting rod eye lubrication hole

nein

Lower connecting rod eye lubrication hole

Nut

Connecting rod thrust washers

ja

OEM numbers (for comparison purposes only)

Piaggio:

131321, 86657, 89267, 91060

Scooter Center:

9130001
