CM Item number: 3331049

Crankshaft -CM STANDARD- Vespa Sprint150 (VLB1T), GL150 (VLA1T), GT125 (VNL2T), GTR125 (VNL2T), VNB, VBA, VBB ,T4 ,Super

109,00 €*

available immediately

Shipping weight 1,85 kg

Information on product safety

Crankshaft -CM STANDARD- Vespa Sprint150 (VLB1T), GL150 (VLA1T), GT125 (VNL2T), GTR125 (VNL2T), VNB, VBA, VBB ,T4 ,Super

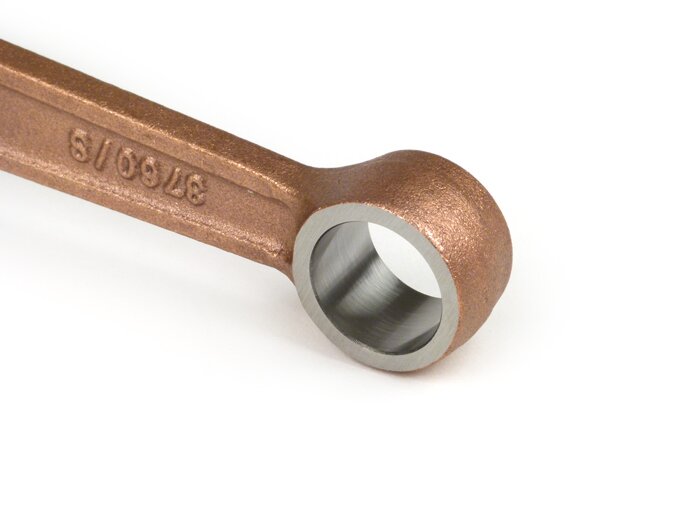

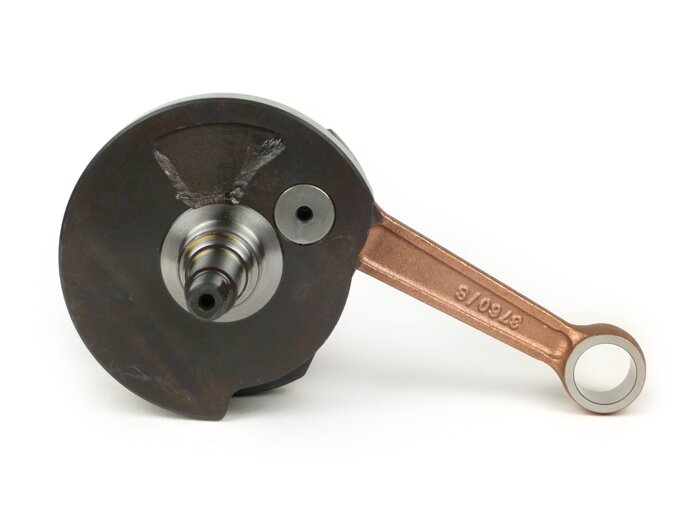

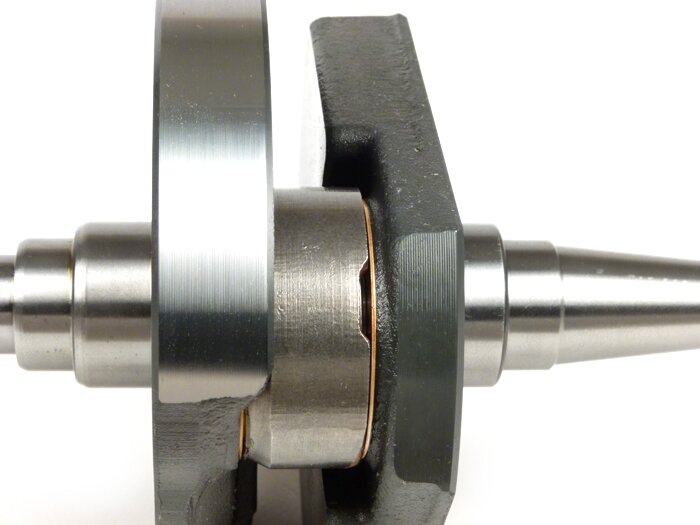

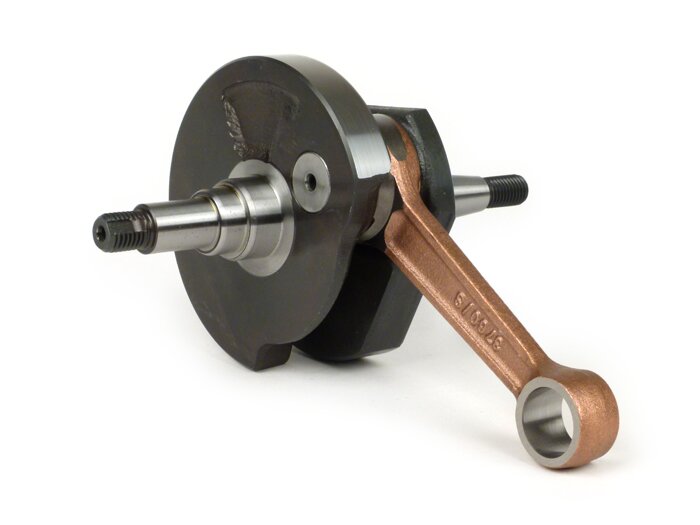

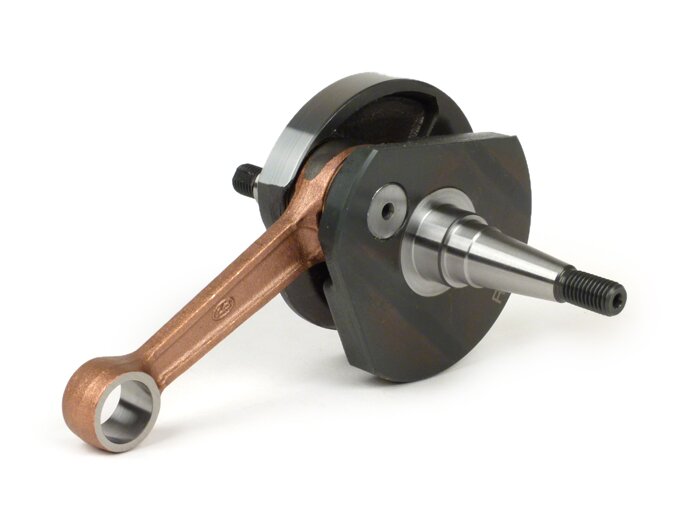

Crankshaft from Italy with original kept timing angles, dimensions and is therefore intended as a replacement part for the original shaft. The connecting rod is forged, burnished and comes with the connecting rod bearing . Remember to order new crescent wedges if necessary.

(TW051222)

_{AI-translation}

Rate this article now and let us know what you think.

Rate this product now

Ball bearing

Dimensions

15x19x20mm

Piston pin

Diameter

15 mm

Crankshafts

Stroke

57 mm

Crank web diameter

98 mm

Crankcase must be spindled

nein

Motor housing must be modified

nein

Rotary vane crankshaft

ja

Full cheek crankshaft

nein

Bearing seat diameter on alternator side

25 mm

Bearing seat diameter on drive side

25 mm

Diameter of sealing ring seat on alternator side

20 mm

Diameter of sealing ring seat on drive side

20 mm

Connecting rod

Connecting rod length

105 mm

Connecting rod eye top diameter

19 mm

OEM numbers (for comparison purposes only)

Piaggio:

131321, 86657, 89267, 91060

Scooter Center:

3331049

Matching

Accessories

Syringe -B.BRAUN Injekt® Solo- PE - 20ml

B.Braun
3331021

Syringe -B.BRAUN Injekt® Solo- PE - 20ml

Woodruff key -PIAGGIO 3x5mm- for crankshaft/flywheel side Vespa Ciao, Bravo, SI, Piaggio 50-180cc 2-stroke, Piaggio 50-200cc (4-stroke), PX, PK, Cosa, Lambretta A, B, C, LC, D 125 (1951-1955), Minarelli 2-stroke 50cc

Piaggio
9000093

Woodruff key -PIAGGIO 3x5mm- for crankshaft/flywheel side Vespa Ciao, Bravo, SI, Piaggio 50-180cc 2-stroke, Piaggio 50-200cc (4-stroke), PX, PK, Cosa, Lambretta A, B, C, LC, D 125 (1951-1955), Minarelli 2-stroke 50cc

Woodruff key -DIN6888- 4 x 6,5 (used for crankshaft/clutch side Vespa PX, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, crankshaft/flywheel side Lambretta LI, LIS, SX, TV, DL, GP, Piaggio 250-300cc 4-stroke)

OEM-Qualität
9999002

Woodruff key -DIN6888- 4 x 6,5 (used for crankshaft/clutch side Vespa PX, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, crankshaft/flywheel side Lambretta LI, LIS, SX, TV, DL, GP, Piaggio 250-300cc 4-stroke)

Bearing dummy crankshaft -BGM PRO- 613912 (25x62x12mm) - (used for crankshaft, drive side Vespa PX, T5 125cc, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, GS150/GS3... - crankshaft, flywheel side, Sprint, GS150/GS3, VNA, VNB, VBA, VBB...)

BGM PRO
BGM1200TL

Bearing dummy crankshaft -BGM PRO- 613912 (25x62x12mm) - (used for crankshaft, drive side Vespa PX, T5 125cc, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, GS150/GS3... - crankshaft, flywheel side, Sprint, GS150/GS3, VNA, VNB, VBA, VBB...)

Delivery date

Pole nut M11 x 1.50 (high-strength) collar Ø=25mm h=7mm SW=14 -BGM PRO- Vespa Sprint150 Veloce (VLB1T-294259), GT125 (VNL2T), GTR125 (VNL2T), TS125 (VNL3T), Super125 (VNC1T), Super150 (VBC1T, -412373), GL150 (VLA1T), VNB5T, VNB6T, VBB2T (228699-)

BGM PRO
BGM2252

Pole nut M11 x 1.50 (high-strength) collar Ø=25mm h=7mm SW=14 -BGM PRO- Vespa Sprint150 Veloce (VLB1T-294259), GT125 (VNL2T), GTR125 (VNL2T), TS125 (VNL3T), Super125 (VNC1T), Super150 (VBC1T, -412373), GL150 (VLA1T), VNB5T, VNB6T, VBB2T (228699-)

Milling jig intake rotary valve -bgm Pro- Vespa 2-channel engines, +15° from TDC/ +8° to TDC, Vespa VNB, VBB, VLB, VNC, Sprint, Super

BGM PRO
BGM3112VBB

Milling jig intake rotary valve -bgm Pro- Vespa 2-channel engines, +15° from TDC/ +8° to TDC, Vespa VNB, VBB, VLB, VNC, Sprint, Super

Matching

Alternative products

Crankshaft -BGM Original 57mm stroke- Vespa Sprint150 (VLB1T), GL150 (VLA1T), GT125 (VNL2T), GTR125 (VNL2T), VNB, VBA, VBB ,T4 ,Super

BGM ORIGINAL
7700010

Crankshaft -BGM Original 57mm stroke- Vespa Sprint150 (VLB1T), GL150 (VLA1T), GT125 (VNL2T), GTR125 (VNL2T), VNB, VBA, VBB ,T4 ,Super

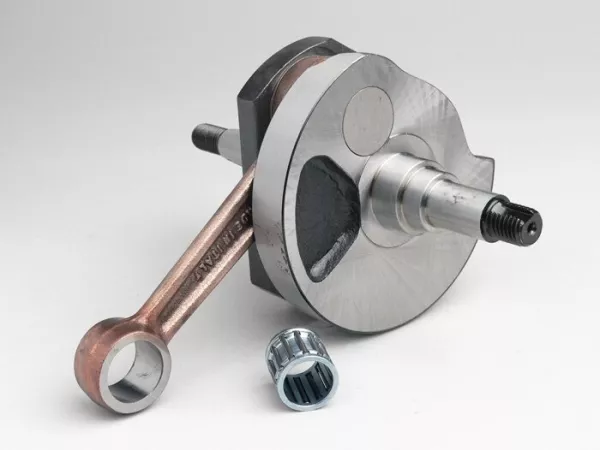

Crankshaft -STANDARD- Vespa Sprint150 (VLB1T), GL150 (VLA1T), GT125 (VNL2T), GTR125 (VNL2T), VNB, VBA, VBB ,T4 ,Super
