Tameni Item number: 1620001T

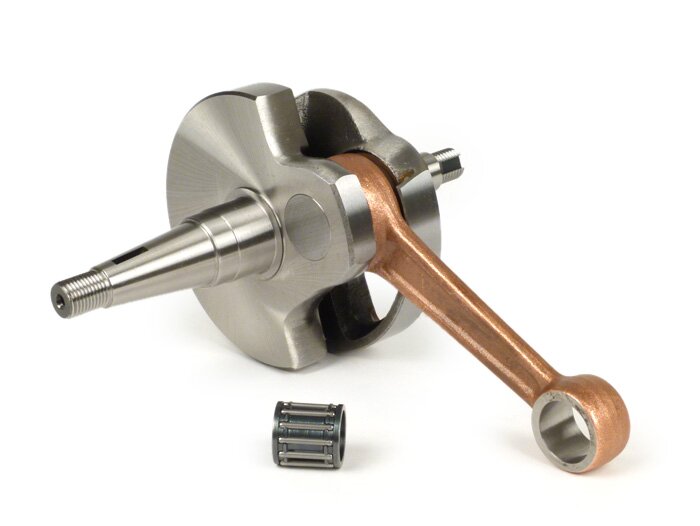

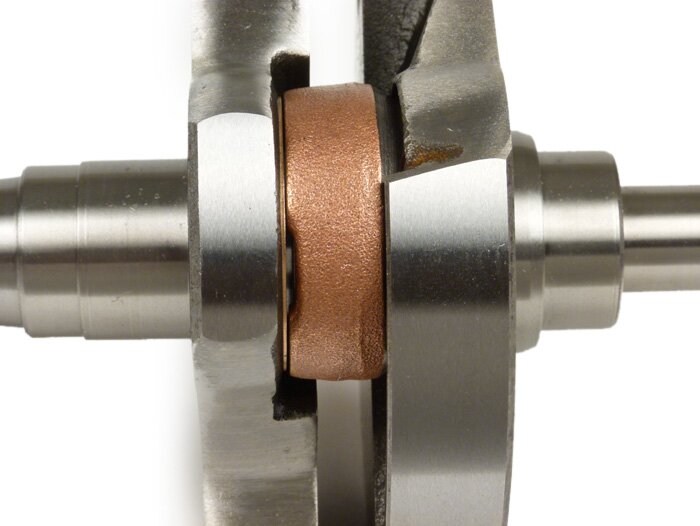

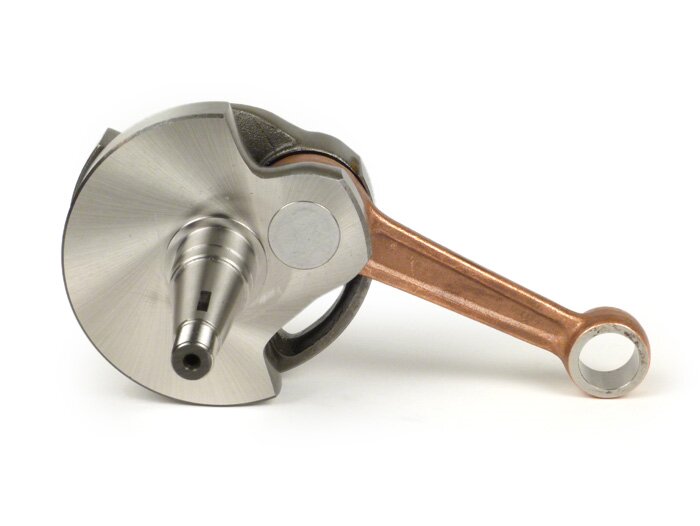

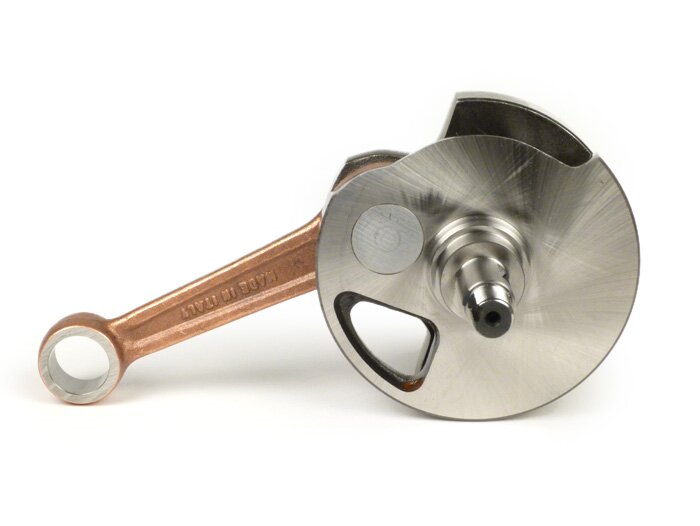

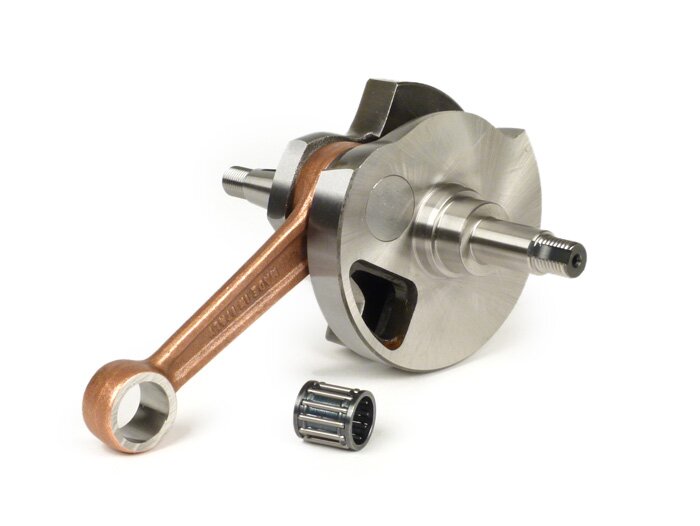

Crankshaft -TAMENI Standard (rotary valve) 57mm stroke- Vespa PX125, PX150

175,00 €*

available immediately

Shipping weight 1,97 kg

Information on product safety

Crankshaft -TAMENI Std - Vespa PX125, PX150

Crankshaft manufactured by Tameni for the PX125-150 models with original standard timing. The connecting rod is burnished and forged with105mm length at 57mm stroke.
Piston pin bearing is included.

(TW12122)

_{AI-translation}

Rate this article now and let us know what you think.

Rate this product now

Ball bearing

Dimensions

15x19x20mm

Piston pin

Diameter

15 mm

Crankshafts

Stroke

57 mm

Thread on alternator side

M11x1,5 Rechtsgewinde

Thread on drive side

M12x1,5 Rechtsgewinde

Crank web diameter

98 mm

Crankcase must be spindled

nein

Motor housing must be modified

nein

Full cheek crankshaft

nein

Bearing seat diameter on alternator side

25 mm

Bearing seat diameter on drive side

25 mm

Diameter of sealing ring seat on alternator side

24 mm

Diameter of sealing ring seat on drive side

31 mm

Connecting rod

Connecting rod length

105 mm

Connecting rod eye top diameter

19 mm

OEM numbers (for comparison purposes only)

Piaggio:

1331545

Scooter Center:

1620001T

Matching

Accessories

Syringe -B.BRAUN Injekt® Solo- PE - 20ml

B.Braun
3331021

Syringe -B.BRAUN Injekt® Solo- PE - 20ml

Flywheel nut M12 x 1.25 -PIAGGIO- Vespa PX, T5 125cc, Cosa, PK XL, PK125 ETS

Piaggio
9000008

Flywheel nut M12 x 1.25 -PIAGGIO- Vespa PX, T5 125cc, Cosa, PK XL, PK125 ETS

Woodruff key -PIAGGIO 3x5mm- for crankshaft/flywheel side Vespa Ciao, Bravo, SI, Piaggio 50-180cc 2-stroke, Piaggio 50-200cc (4-stroke), PX, PK, Cosa, Lambretta A, B, C, LC, D 125 (1951-1955), Minarelli 2-stroke 50cc

Piaggio
9000093

Woodruff key -PIAGGIO 3x5mm- for crankshaft/flywheel side Vespa Ciao, Bravo, SI, Piaggio 50-180cc 2-stroke, Piaggio 50-200cc (4-stroke), PX, PK, Cosa, Lambretta A, B, C, LC, D 125 (1951-1955), Minarelli 2-stroke 50cc

Cluch nut tab washer-OEM QUALITY- all Vespa Largeframe models (-1995) - clutch nut

OEM-Qualität
9020084

Cluch nut tab washer-OEM QUALITY- all Vespa Largeframe models (-1995) - clutch nut

Cluch castle nut -BGM PRO- Vespa Largeframe models (-1995) - clutch nut

BGM PRO
9020085

Cluch castle nut -BGM PRO- Vespa Largeframe models (-1995) - clutch nut

Woodruff key -DIN6888- 4 x 6,5 (used for crankshaft/clutch side Vespa PX, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, crankshaft/flywheel side Lambretta LI, LIS, SX, TV, DL, GP, Piaggio 250-300cc 4-stroke)

OEM-Qualität
9999002

Woodruff key -DIN6888- 4 x 6,5 (used for crankshaft/clutch side Vespa PX, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, crankshaft/flywheel side Lambretta LI, LIS, SX, TV, DL, GP, Piaggio 250-300cc 4-stroke)

Bearing dummy crankshaft -BGM PRO- 613912 (25x62x12mm) - (used for crankshaft, drive side Vespa PX, T5 125cc, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, GS150/GS3... - crankshaft, flywheel side, Sprint, GS150/GS3, VNA, VNB, VBA, VBB...)

BGM PRO
BGM1200TL

Bearing dummy crankshaft -BGM PRO- 613912 (25x62x12mm) - (used for crankshaft, drive side Vespa PX, T5 125cc, Rally180 (VSD1T), Rally200 (VSE1T), Sprint, GS150/GS3... - crankshaft, flywheel side, Sprint, GS150/GS3, VNA, VNB, VBA, VBB...)

Delivery date

Bearing dummy for crankshaft -BGM PRO- NBI 253815 (25x38x15mm) - (used for crankshaft, flywheel side, Vespa PX, Cosa, PK125 ETS, Rally200 (Ducati))

BGM PRO
BGM1201TL

Bearing dummy for crankshaft -BGM PRO- NBI 253815 (25x38x15mm) - (used for crankshaft, flywheel side, Vespa PX, Cosa, PK125 ETS, Rally200 (Ducati))

Dismounting tool for needle roller bearing NBI253815 -BGM PRO- type PX , Cosa, PK125 ETS (used for crankshaft bearing, flywheel side)

BGM PRO
BGM7906TL

Dismounting tool for needle roller bearing NBI253815 -BGM PRO- type PX , Cosa, PK125 ETS (used for crankshaft bearing, flywheel side)

Clutch -KINGWELLE DragBikeClutch steel version- Vespa PX, T5, Rally, Cosa

Kingwelle
KW0040

Clutch -KINGWELLE DragBikeClutch steel version- Vespa PX, T5, Rally, Cosa

Clutch -KINGWELLE DragBikeClutch aluminium version- Vespa PX, T5, Rally, Cosa

Kingwelle
KW0041

Clutch -KINGWELLE DragBikeClutch aluminium version- Vespa PX, T5, Rally, Cosa

Matching

Customers also bought

Needle Set 2.0x11.8mm multiple gear cluster -PIAGGIO- Vespa PX125, PX150, PX200, T5 125cc, Cosa, Rally180/200 ((VSD1T/VSE1T), Sprint150 (VLB1T), TS125 (VNL3T), GT/GTR125 (VNL2T), GL150 (VLA1T), Super, VNA, VNB, VBA, VBB - 25 pcs

Piaggio
3330797

Needle Set 2.0x11.8mm multiple gear cluster -PIAGGIO- Vespa PX125, PX150, PX200, T5 125cc, Cosa, Rally180/200 ((VSD1T/VSE1T), Sprint150 (VLB1T), TS125 (VNL3T), GT/GTR125 (VNL2T), GL150 (VLA1T), Super, VNA, VNB, VBA, VBB - 25 pcs

Hose clamp -UNIVERSAL ABA SAFE™- 32-44mm - band width = 12mm

Normfest
3332629

Hose clamp -UNIVERSAL ABA SAFE™- 32-44mm - band width = 12mm

Float valve -DELLORTO Ø=5,0mm- PHBH, PHBL - 300

Dellorto
3333644

Float valve -DELLORTO Ø=5,0mm- PHBH, PHBL - 300

Clutch -OEM QUALITY type 6 springs (Ø=108mm, PX80, PX125, PX150)- 3 friction plates - 21 tooth

GR Gears
3333769

Clutch -OEM QUALITY type 6 springs (Ø=108mm, PX80, PX125, PX150)- 3 friction plates - 21 tooth

Piston -METEOR- Vespa 125cc (3 transfer ports) - Vespa PX125, Cosa125 - 52.5mm (standard)

Meteor Piston
7670932

Piston -METEOR- Vespa 125cc (3 transfer ports) - Vespa PX125, Cosa125 - 52.5mm (standard)

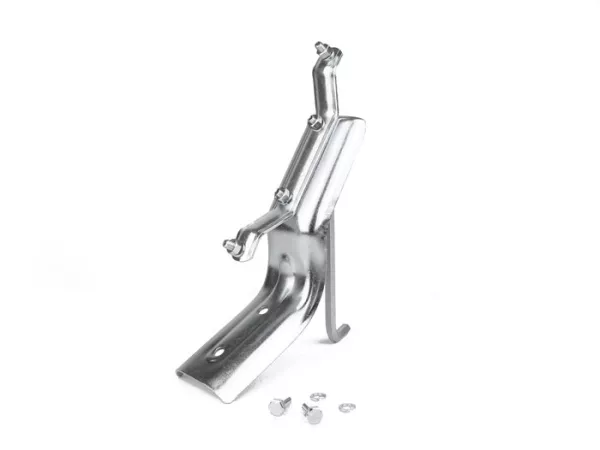

Spare wheel carrier front -AMS CUPPINI- Vespa V50 R (V5A1T since No. 752189), V50 Special (V5A2T, - till 1971), V50 Special Elestart (V5A3T - till 1971) - 9 inch

AMS Cuppini
7673112

Spare wheel carrier front -AMS CUPPINI- Vespa V50 R (V5A1T since No. 752189), V50 Special (V5A2T, - till 1971), V50 Special Elestart (V5A3T - till 1971) - 9 inch

Wire group for sator plate -VESPA- Vespa PX EFL, Cosa (5 wires)

BGM ORIGINAL
7673819

Wire group for sator plate -VESPA- Vespa PX EFL, Cosa (5 wires)

Plug for stator wires -VESPA- Vespa PX Lusso, Cosa - 4-pin - female plug

OEM-Qualität
7676458

Plug for stator wires -VESPA- Vespa PX Lusso, Cosa - 4-pin - female plug

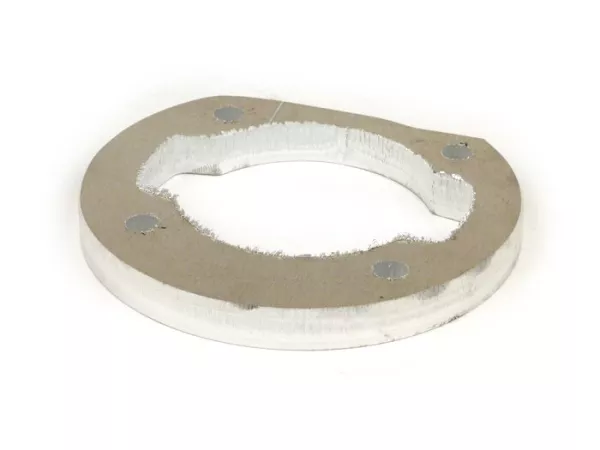

Cylinder base spacer -BGM ORIGINAL for Polini Evolution reed valve 133cc, Parmakit SP09/W-Force, Quattrini M1, Falc- Vespa V50, PV125, ET3, PK50, PK80, PK125 - 10,0mm

BGM ORIGINAL
BGM0224110

Cylinder base spacer -BGM ORIGINAL for Polini Evolution reed valve 133cc, Parmakit SP09/W-Force, Quattrini M1, Falc- Vespa V50, PV125, ET3, PK50, PK80, PK125 - 10,0mm

Oil seal 27x47x6mm -BGM PRO FKM/Viton® (E10/etahnol resistant)- (used for rear hub Vespa PX (-1984), Rally180 (VSD1T), Rally200 (VSE1T), Sprint (since 1972), TS (since 1972), GT125 (since 1972), GTR125 (since 1972), GL150 (VLA1T) (since 1972)), crankshaft

BGM PRO
BGM1043

Oil seal 27x47x6mm -BGM PRO FKM/Viton® (E10/etahnol resistant)- (used for rear hub Vespa PX (-1984), Rally180 (VSD1T), Rally200 (VSE1T), Sprint (since 1972), TS (since 1972), GT125 (since 1972), GTR125 (since 1972), GL150 (VLA1T) (since 1972)), crankshaft

Carb rubber Carburator/intake manifold -BGM PRO- CS=35/35mm

BGM PRO
BGM13535

Carb rubber Carburator/intake manifold -BGM PRO- CS=35/35mm

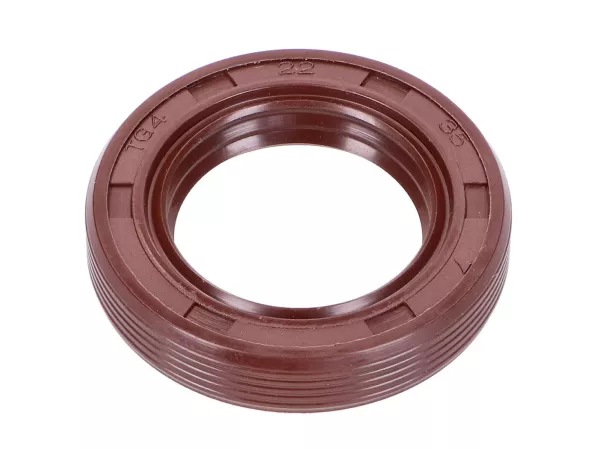

shaft seal ring -NARAKU- FKM Premium 22x35x7
