Piaggio Item number: 3331601

Engine repair kit -PIAGGIO- Vespa PK125 XL, PK125 XL2, ETS125 - (Ø 24mm cone) - NBI

Name: Engine repair kit -PIAGGIO- Vespa PK125 XL, PK125 XL2, ETS125 - (Ø 24mm cone) - NBI
Brand: Piaggio
SKU: 3331601
Price: 202.90 EUR
Availability: InStock

available immediately

Shipping weight 2,7 kg

Information on product safety

Report error

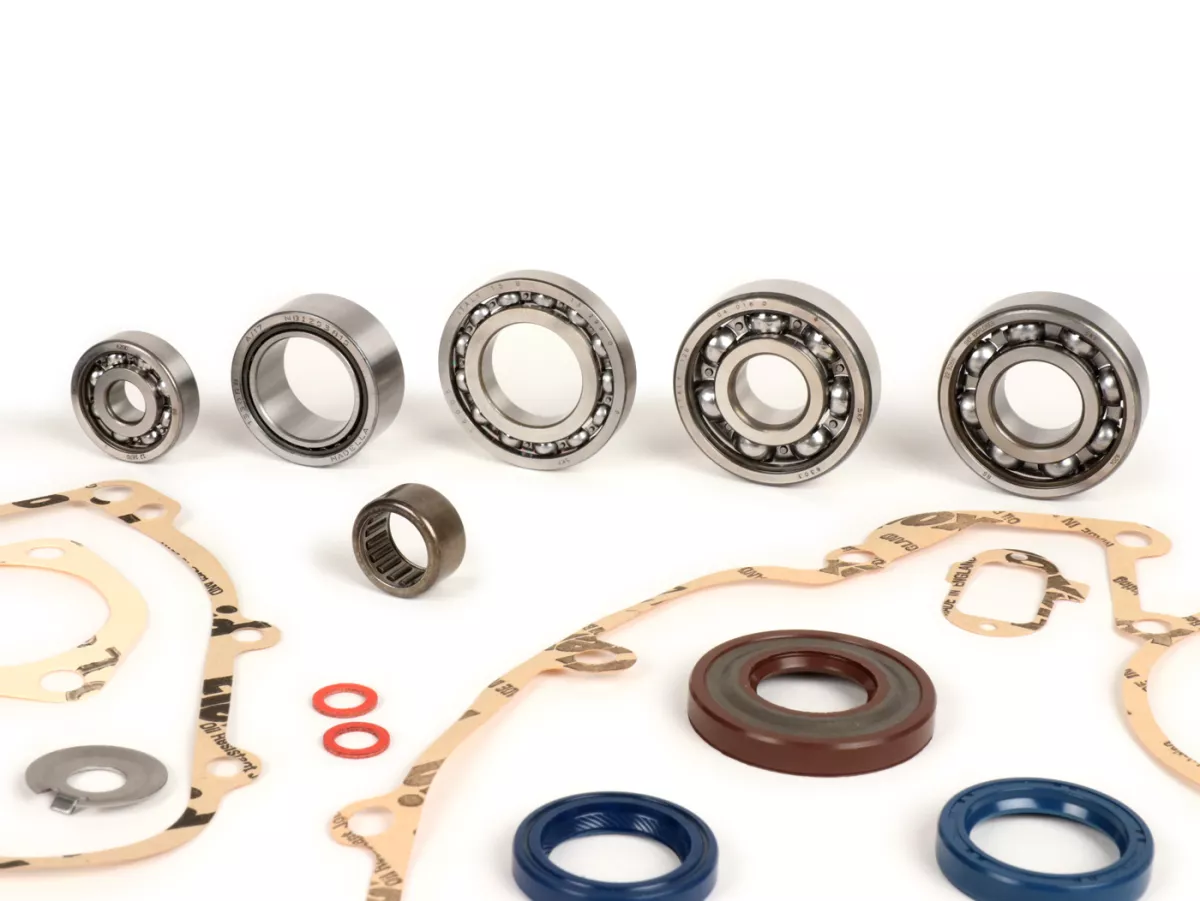

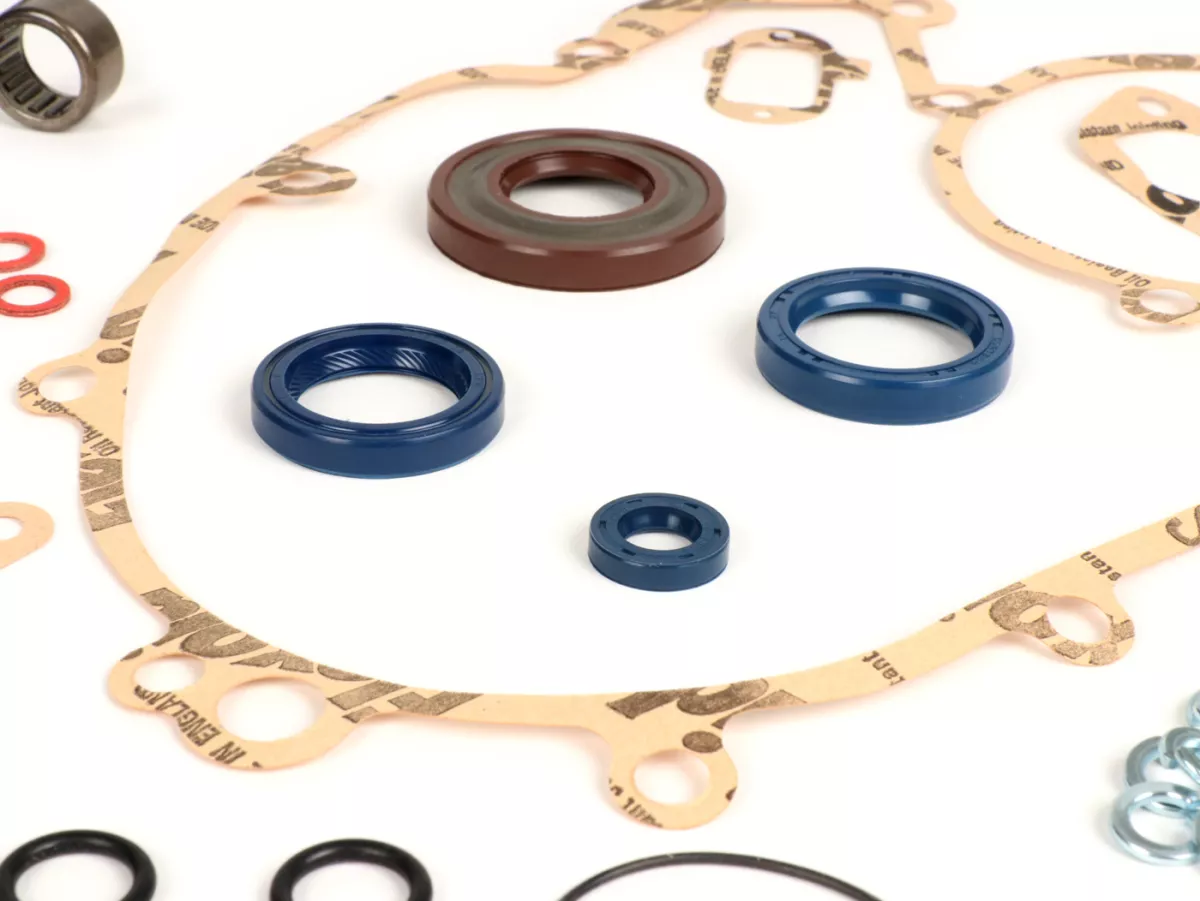

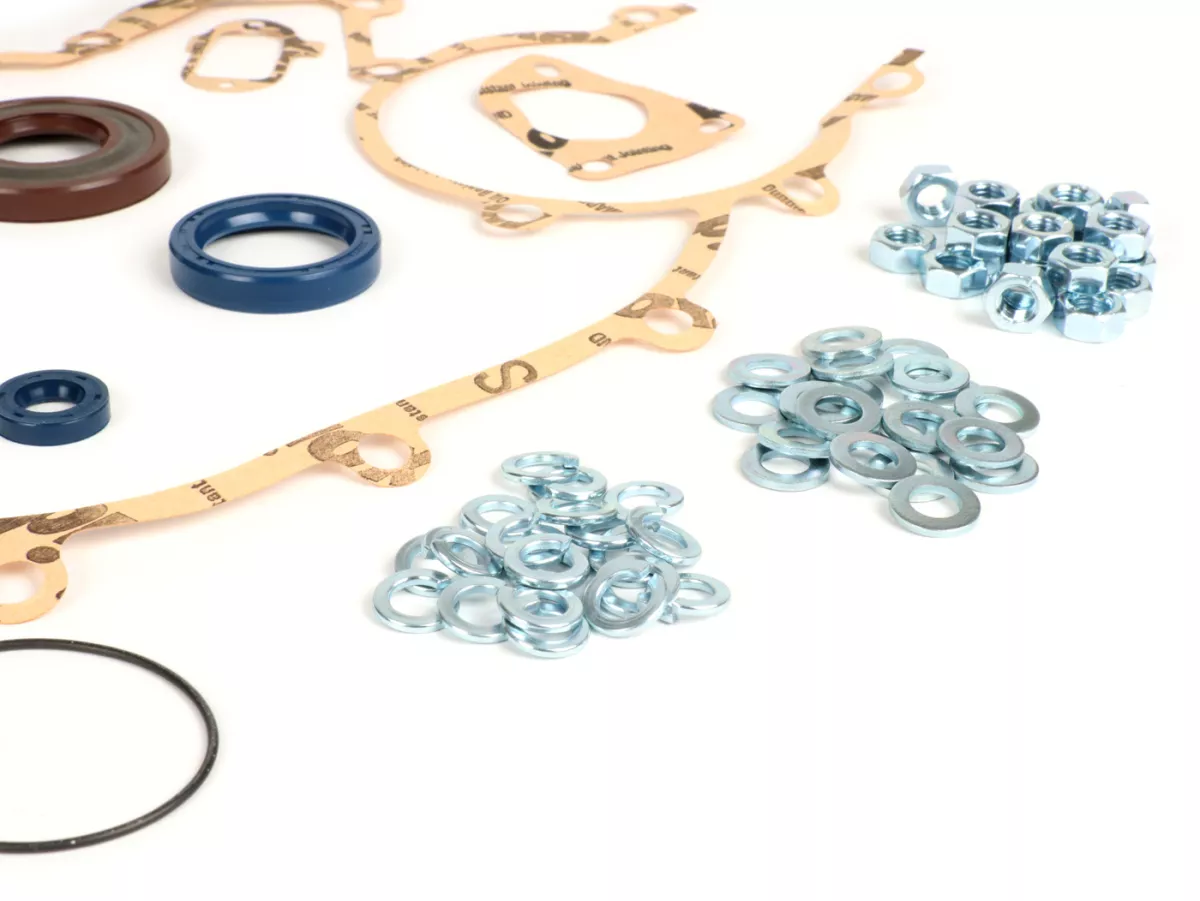

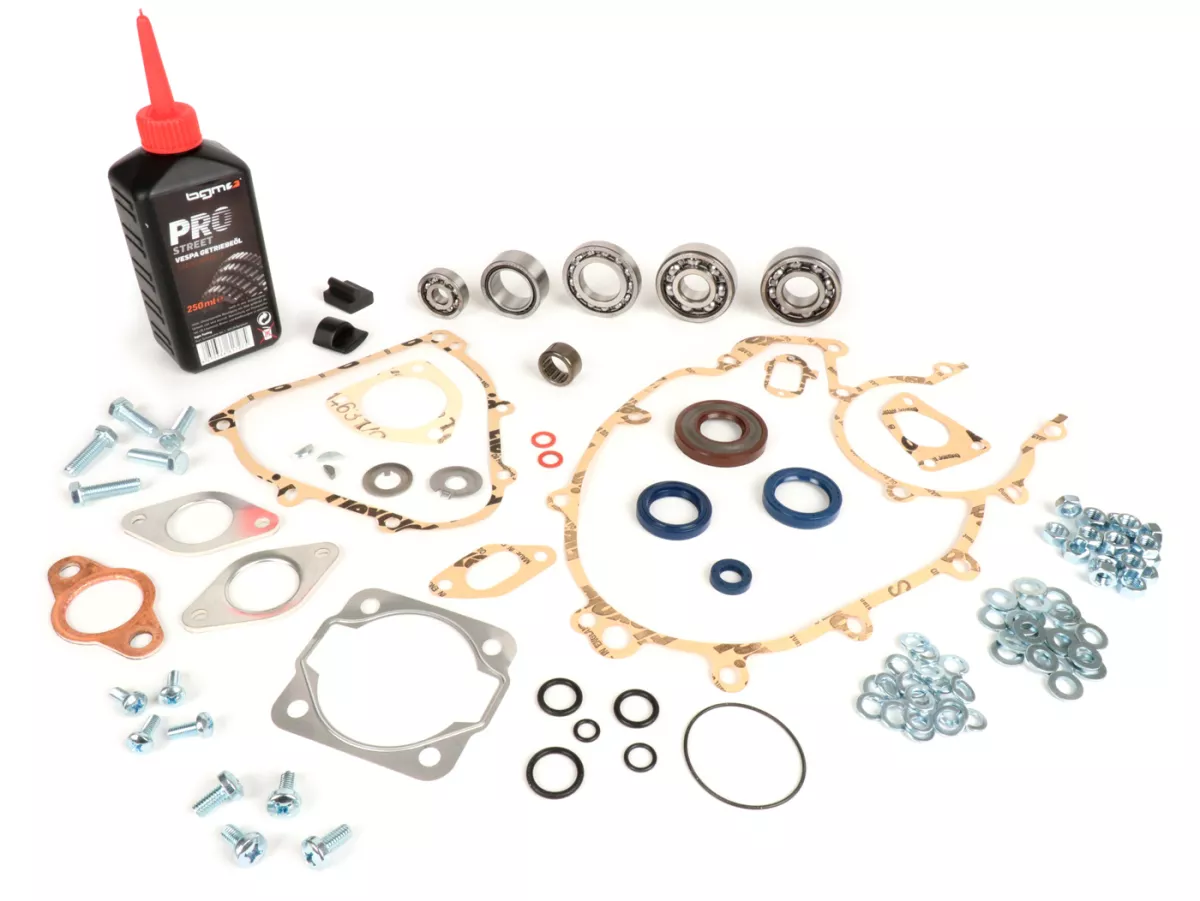

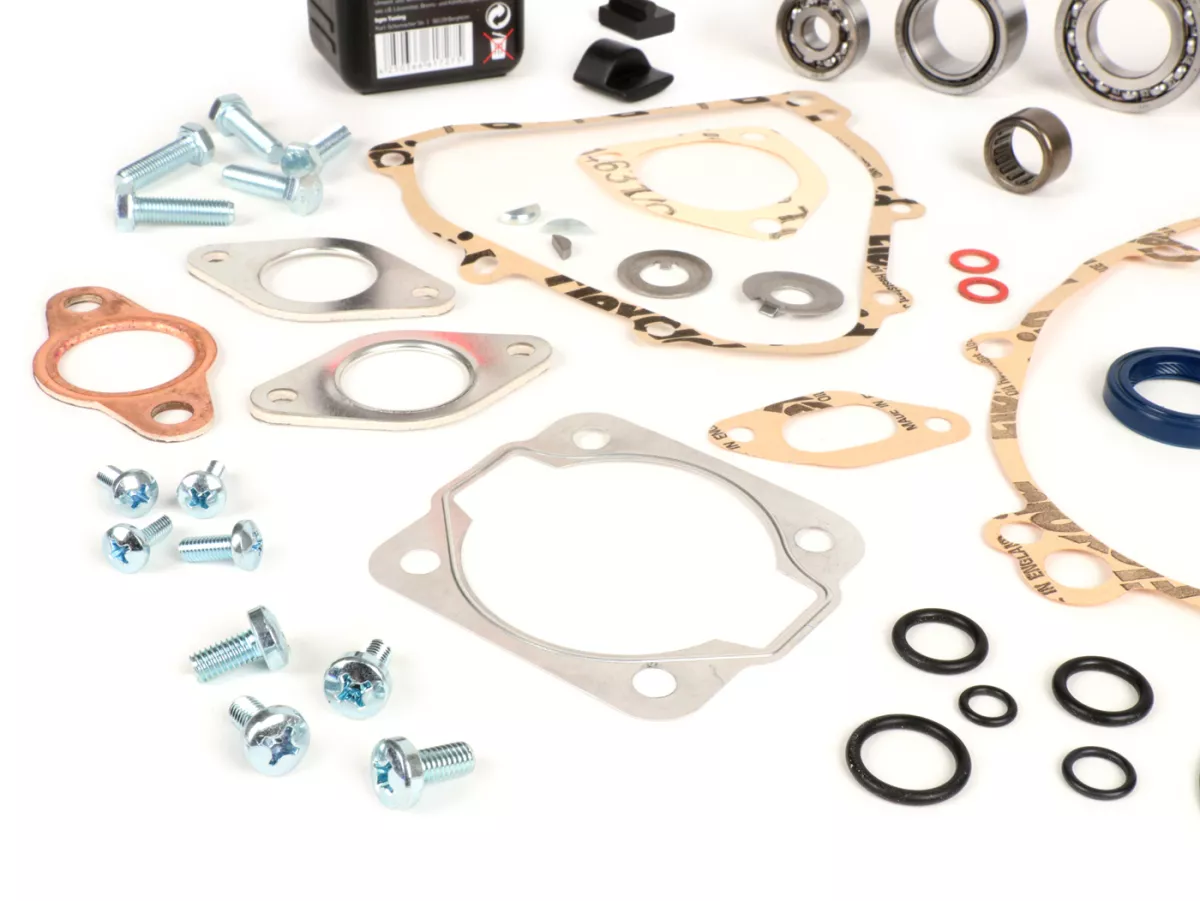

The following components are included in this set:

Oil seal 22,7x47x7/7,5mm -CORTECO FKM- (used for crankshaft drive side Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL - gear box input shaft Piaggio 125-180 cc 2-stroke, Piaggio 125 cc 4-stroke (1st generation))

Gearbox oil -BGM PRO STREET- Vespa SAE30 API GL 3- 250ml

Oil seal 10x18x4mm -BGM PRO FKM/Viton® (E10/etahnol resistant)- (used for gear selector shaft Vespa PK XL2 - water pump Minarelli 50 cc (type MA, CA)

5xScrew -DIN 933- M7 x 25mm (8.8 tensile strength)

20xSpring washer -DIN 127- M7

20xWasher -DIN 125- M7

20xNut -DIN 934- M7

Primary drive retaining plate -OEM QUALITY- V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL

Auxiliary shaft retaining plate -OEM QUALITY- V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL

Woodruff key -DIN 6888- 3x3mm (used for primary gear Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)

Woodruff key -PIAGGIO 3x5mm- for crankshaft/flywheel side Vespa Ciao, Bravo, SI, Piaggio 50-180cc 2-stroke, Piaggio 50-200cc (4-stroke), PX, PK, Cosa, Lambretta A, B, C, LC, D 125 (1951-1955), Minarelli 2-stroke 50cc

2xWoodruff key -PIAGGIO 3x5mm- for crankshaft/flywheel side Vespa Ciao, Bravo, SI, Piaggio 50-180cc 2-stroke, Piaggio 50-200cc (4-stroke), PX, PK, Cosa, Lambretta A, B, C, LC, D 125 (1951-1955), Minarelli 2-stroke 50cc

Kickstart rubber buffer -PIAGGIO- Vespa PK XL, PK XL2, PK HP

Kickstart rubber buffer -PIAGGIO- Vespa V50, V90, PV125, ET3, PK S - 20 x 24 x 9mm

Ball bearing -6303- (17x47x14mm) - (used for crankshaft, drive side Vespa V50, V90, PV125, ET3, PK S, PK XL, Lambretta Lui 50, J 50-100)

Engine gasket set -PIAGGIO- Vespa PK125 S, PK125 XL, PK125 XL2, PK125 ETS - incl. O-rings

4xScrew -DIN 7985- M6 x 12mm (used for flywheel cover Vespa)

4xScrew -DIN 7985- M5 x 12mm (used for stator Vespa PK, PX, PE, Cosa, T5 125ccm)

Oil seal 24x35x6mm -CORTECO NBR- (used for crankshaft flywheel side Vespa PX, Rally200 (VSE1T, 33997-, Ducati), Sprint Veloce150 (VLB1T,294260-), GTR125 (VNL2T, 145901-), TS125 (VNL3T, 18139-), PK125 ETS, PK125 XL2 (VMX6T), PK125 S Elestart (VMX5T, 62607-

Needle roller bearing -HK 1010- (10x14x10mm) - (used for fork/fork link Vespa Wideframe V98, V1-V15, V30-V33, VU, gear selector shaft PK XL2)

Oil seal 27x37x7mm -CORTECO NBR- (used for rear hub Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL, PK XL2, ETS, GT125, GTR125, Sprint, TS, GL150, VBA, VBB, VNA, VNB, Rally180

Needle roller bearing -PIAGGIO-NBI 253815- (25x38x15mm) - 23 needles (used for crankshaft flywheel side Vespa PX, Cosa, PK125 ETS, Rally200 (Ducati))

Ball bearing -6204- (20x47x14mm) - (used for drive shaft Vespa PX, T5 125cc, Cosa, Rally180 (VSD1T), Rally200 (VSE1T), Sprint150 (VLB1T), TS125 (VNL3T), GT125 (VNL2T), GTR125 (VNL2T))

Needle roller bearing -HK 1612- (16x22x12mm) - (used for drive shaft V 50-90, SS 50-90, PV 125, ET3, PK S, PK XL)

Ball bearing -6200- (10x30x09mm) - (used for gear cluster Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)

Ball bearing -16005- (25x47x8mm) - (used for primary gear Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)

202,90 € *

We have put together complete kits for the big engine overhaul. After that, your engine will be fit again and ready for thousands of kilometres.
With the Piaggio kits, we have placed great emphasis on using only original Piaggio spare parts as far as possible. Where these are no longer available, we have resorted to parts that are of original equipment quality.

(TW101121)

(TW101121]

_{AI-translation}

Rate this article now and let us know what you think.

Rate this product now

OEM numbers (for comparison purposes only)

Scooter Center:

3331601
