Scootopia Item number: 10000000
Scootopia
1 Rating
89,00 €*
available immediately
Shipping weight 0,4 kg

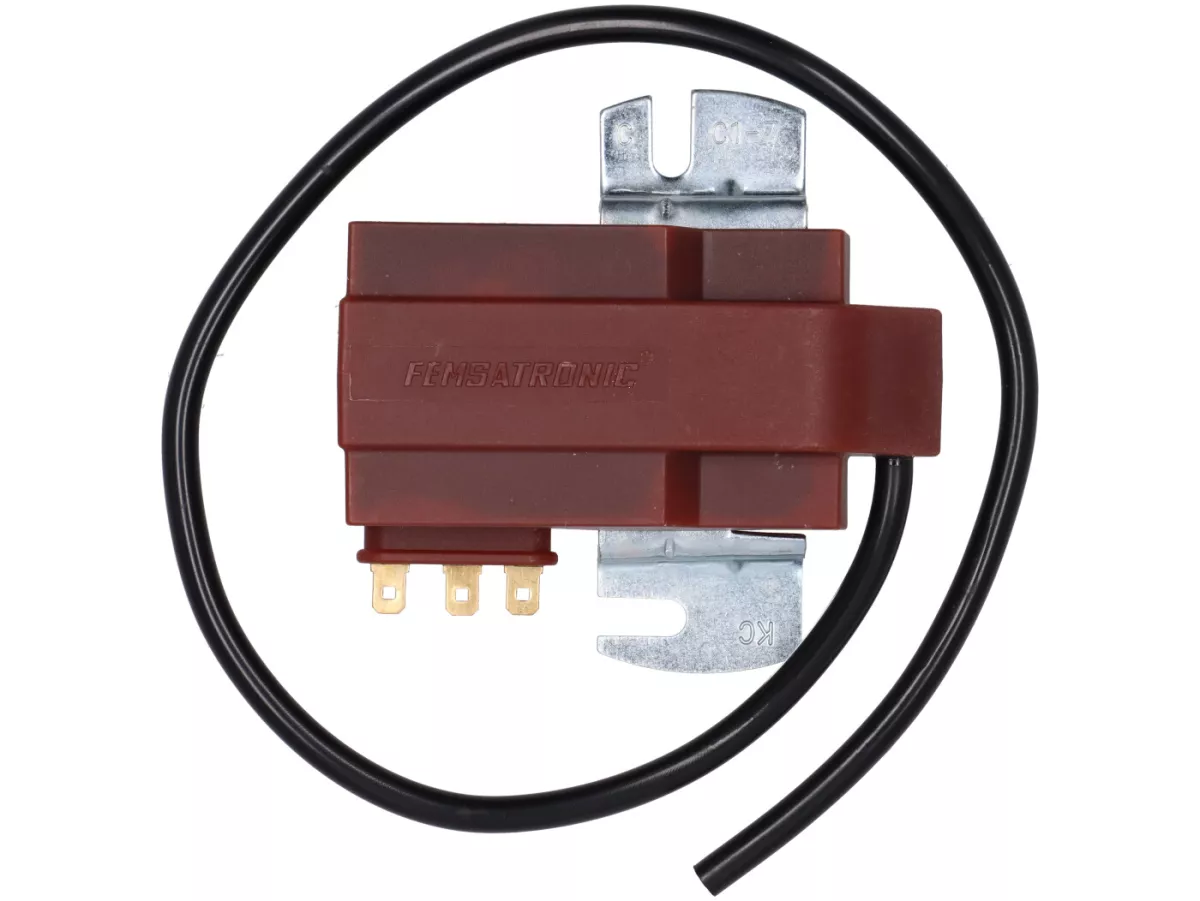

The most common reason for striking or spinning ignitions is the pickup truck. This relatively inexpensive spare part can be exchanged quickly.

Typical symptom for a defective pickup are starting problems with cold and/or warm engine. These are difficult to reproduce and occur very unexpectedly.

Cable colors of the original Femsatronic:

  • Blue = Resistance = 250 Ohm
  • Green = PickUp = 280 Ohm
  • Red = Excitation voltage (charging coil) = 170 Ohm

Measure all values against ground, without connected ignition box (CDI).
Distance of the pick-up to the cam: 0,25-0,30mm


AI-translation

This is how we ensure, that reviews come from real consumers.
Nicola R. from Bari 08/07/2025
OEM numbers (for comparison purposes only)
Piaggio:
127254
Scooter Center:
10000000
