Piaggio Item number: 1831370
Piaggio

Ignition -PIAGGIO- Piaggio 50 cc PureJet since 2000 (Hi-Per 2)

159,00 €*
available immediately
Shipping weight 1,176 kg
Information on product safety
Report error

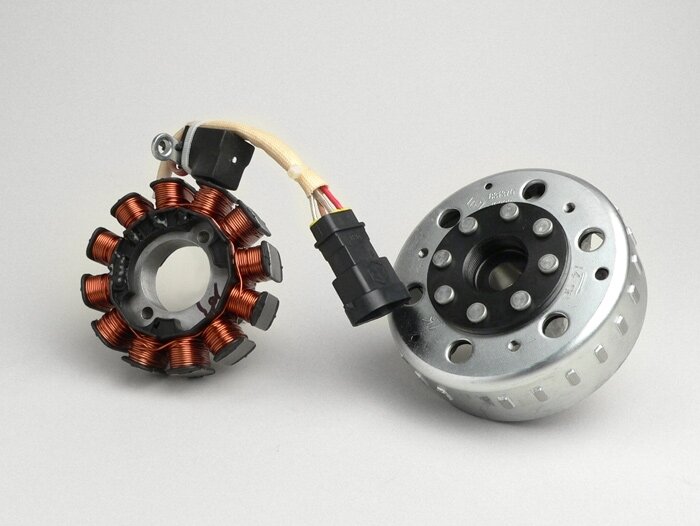

Complete ignition Piaggio 50ccm from 2000 Hi-Per2 (injector) Pure Jet.
Equivalent to the original spare part, therefore in the best quality.
Excellent replacement part for all who have serious problems with their ignition.

NOTE: Piaggio purchases its goods from different manufacturers in Europe and Asia. The picture material may therefore differ from the delivered goods.


AI-translation

Rate this article now and let us know what you think.
Rate this product now

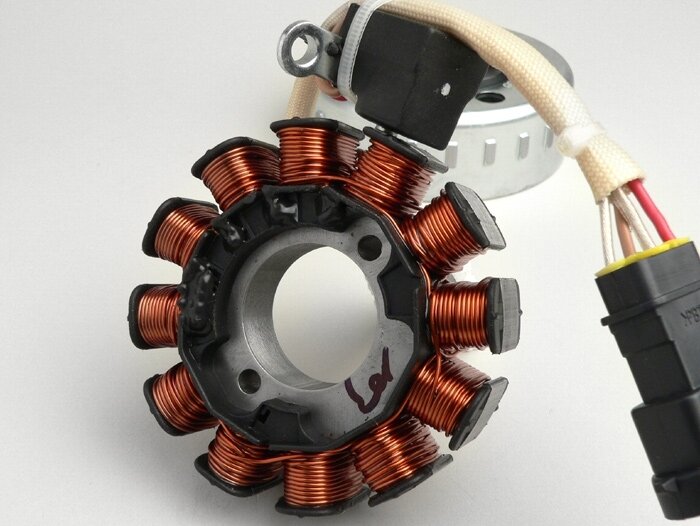

Stator ignition (base plate)
Ignition type
kontaktlos (elektronisch)

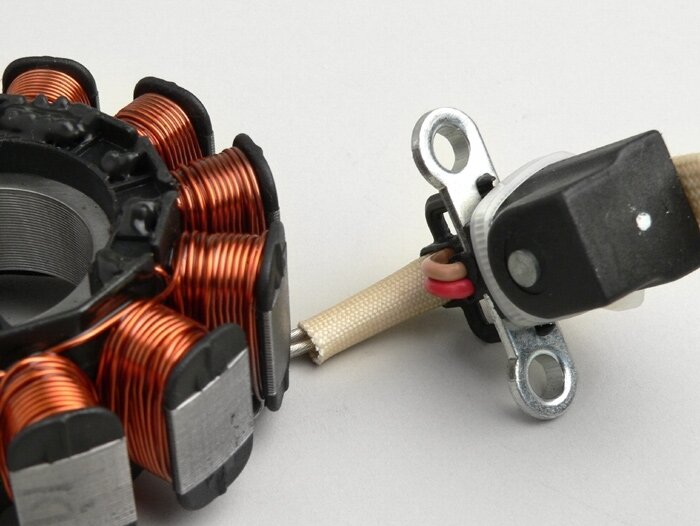

Position (pickup / contact)
außenliegend
Stator uses pole wheel type
Außenrotor
Number of coils
12
Tension
12V
Electricity
Wechselstrom (AC)
Coil diameter
84 mm
Total height
34 mm
Number of cables
5

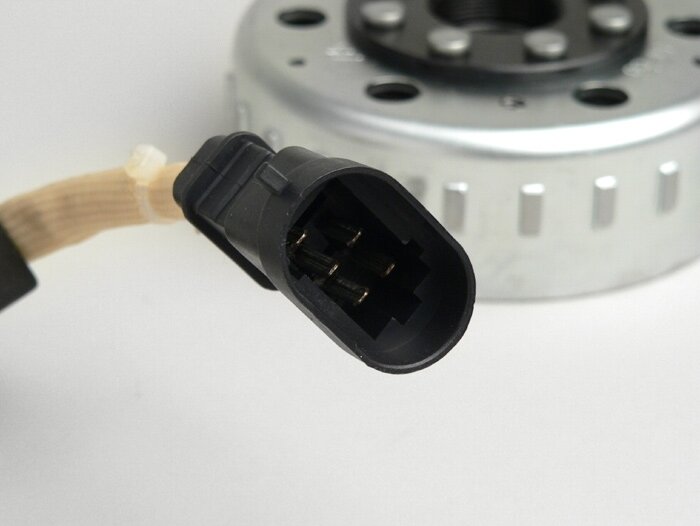

Plug type
Multistecker

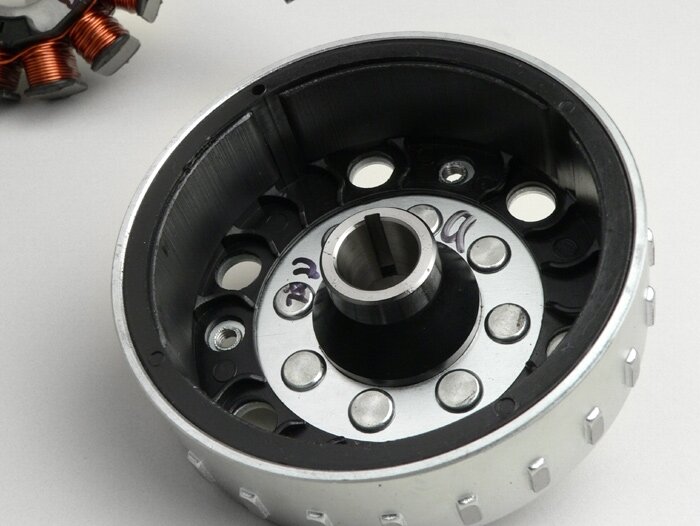

Rotor ignition (pole wheel)
Pole wheel type
Außenrotor

Ignition in general
Rotor (pole wheel) included in the scope of delivery
ja
CDI included in scope of delivery
nein
Voltage regulator included in the scope of delivery
nein
Ignition timing
fest

OEM numbers (for comparison purposes only)
Piaggio:
58062R
Scooter Center:
1831370
