Ignition -PINASCO Flytech 12V- Vespa V50, V90, PV125, ET3, PK S (19mm cone) - 1400gr.

Pinasco Flytech 1400 g ignition for Vespa Smallframe Pin

asco's Flytech is a complete replacement alternator and ignition. In addition to a lower flywheel mass, it offers dynamic ignition timing adjustment with an 8° adjustment range. This results in significantly improved acceleration behavior as well as greater operating safety thanks to an ignition angle that reduces as the engine speed increases. The smaller fan blades with a newly calculated profile enable a noticeable and measurable increase in performance without reducing the cooling capacity in the upper speed range.

Compared to a Vespatronic or Vespower ignition, the magnetic core of the Flytech is sealed off with a stable metal plate. This protects the ignition base plate and coils from damage in the event of a broken magnet. The ignition has a puller thread, as used in the original rotor.

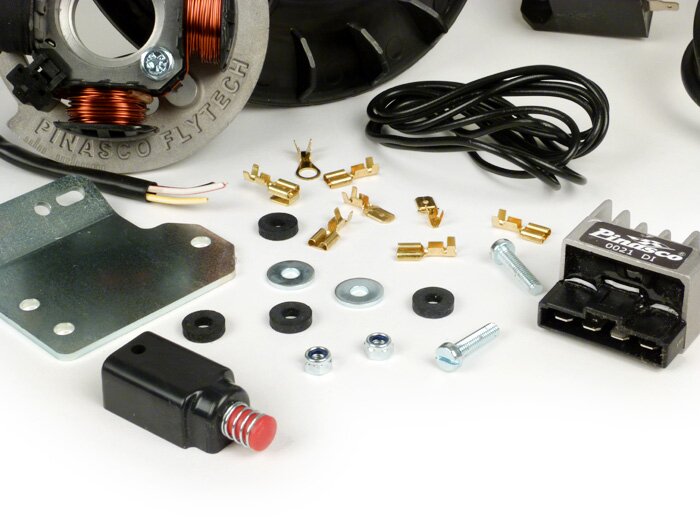

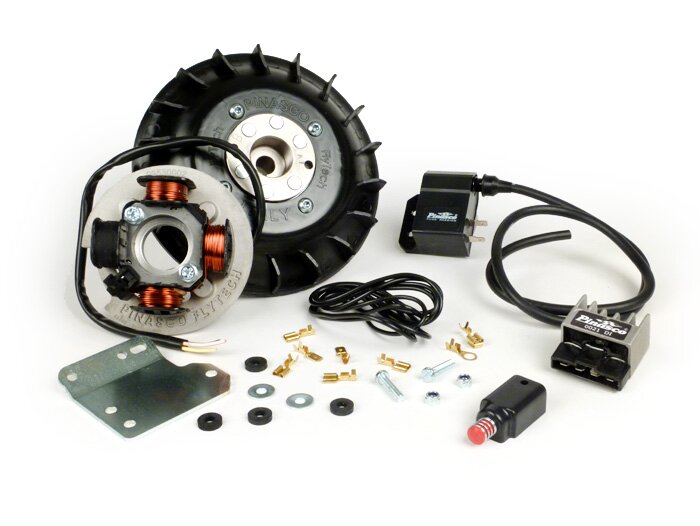

The scope of delivery includes:

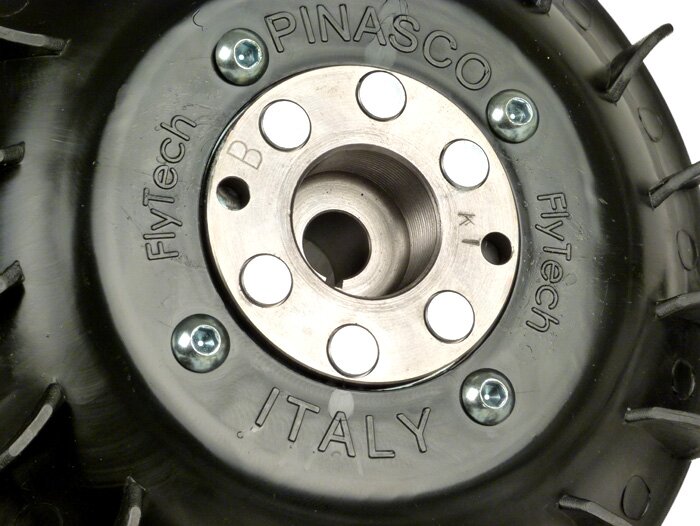

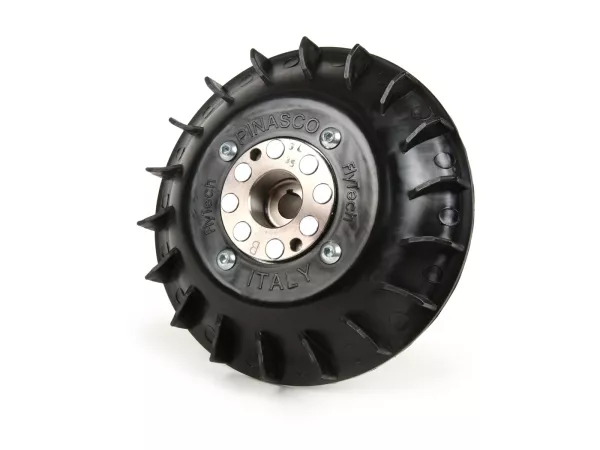

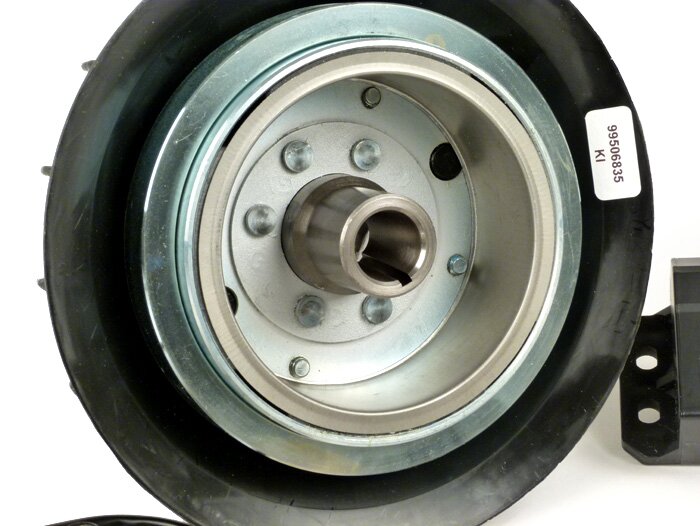

• Flywheel (rotor with fan)

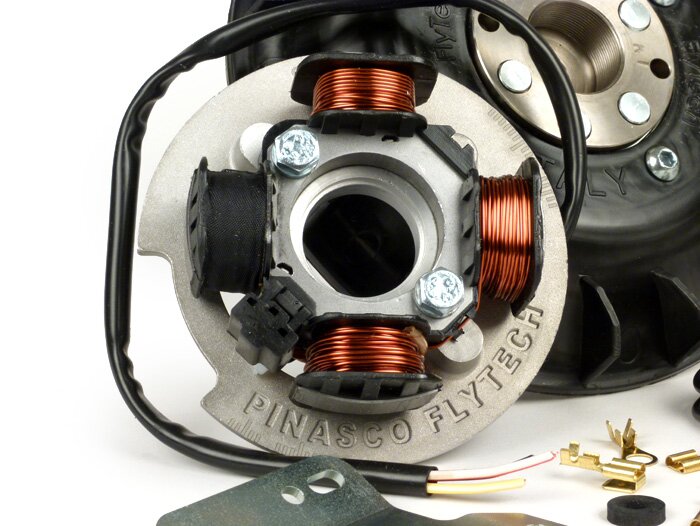

• Base plate with ignition unit (stator)
• CDI with ignition adjustment
• Ignition cable
• Voltage regulator
• Ground cable
• Fitting instructions in Italian and English

NOTE: A 2-pin holder is required to remove the rotor/flywheel. We recommend our versatile holding tool here BGM8801 (see also accessories)
