Benelli primary drives for Vespa Largeframe gearboxes

Gear parts from Stefano Benelli have rightfully earned an excellent reputation in the racing scene. Anyone looking for reliable racing technology for their gearbox will find it here.

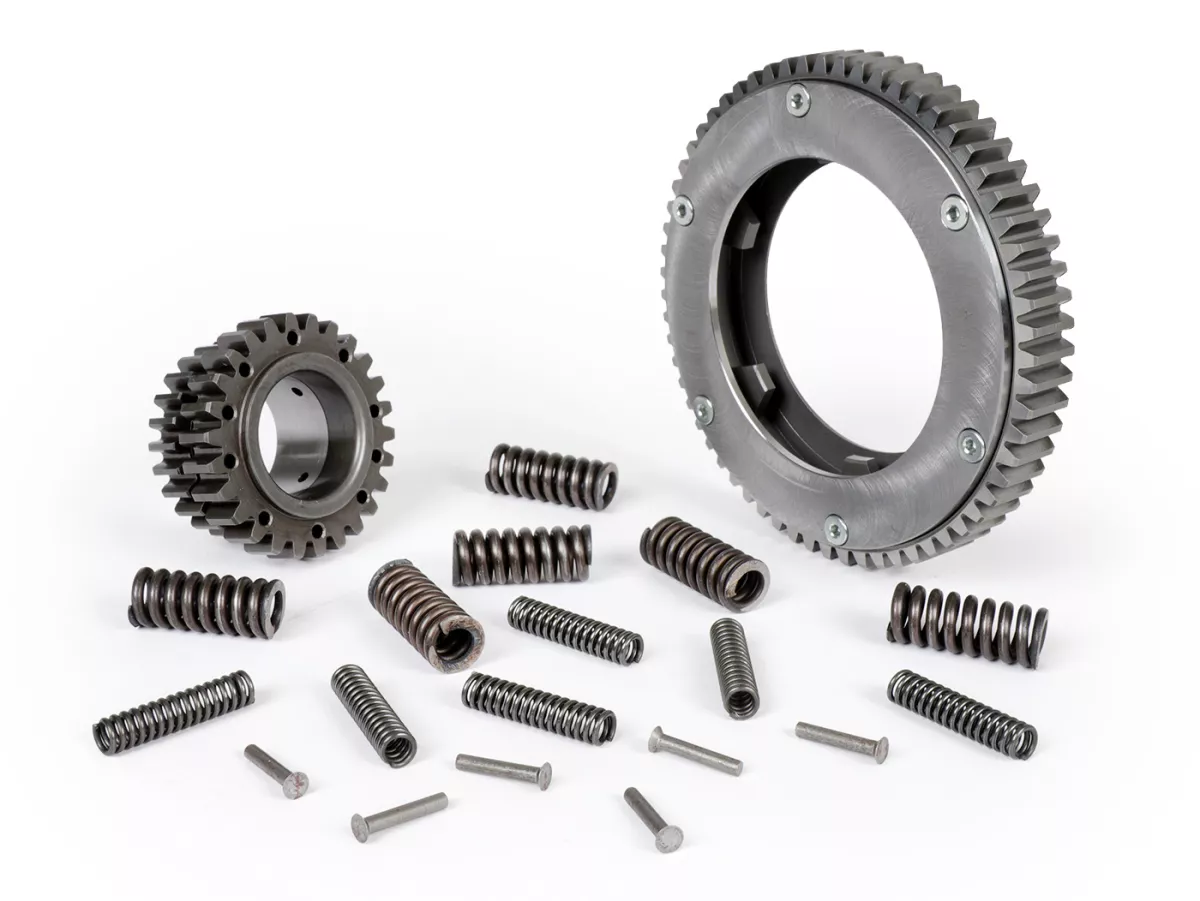

Hardened to an average of 60 HRC, Benelli parts offer exactly the right balance of hardness and elasticity to withstand the enormous stresses in a racing engine over the long term. Benelli offers a reinforced primary kit for Vespa Largeframe engines with wide primary gear (from around 1965 onwards).

This kit offers some special features:

  • Screwed cover plate = no riveting necessary!

  • very wide range of gear ratios = ultra-short (3.25) to ultra-long (2.40)

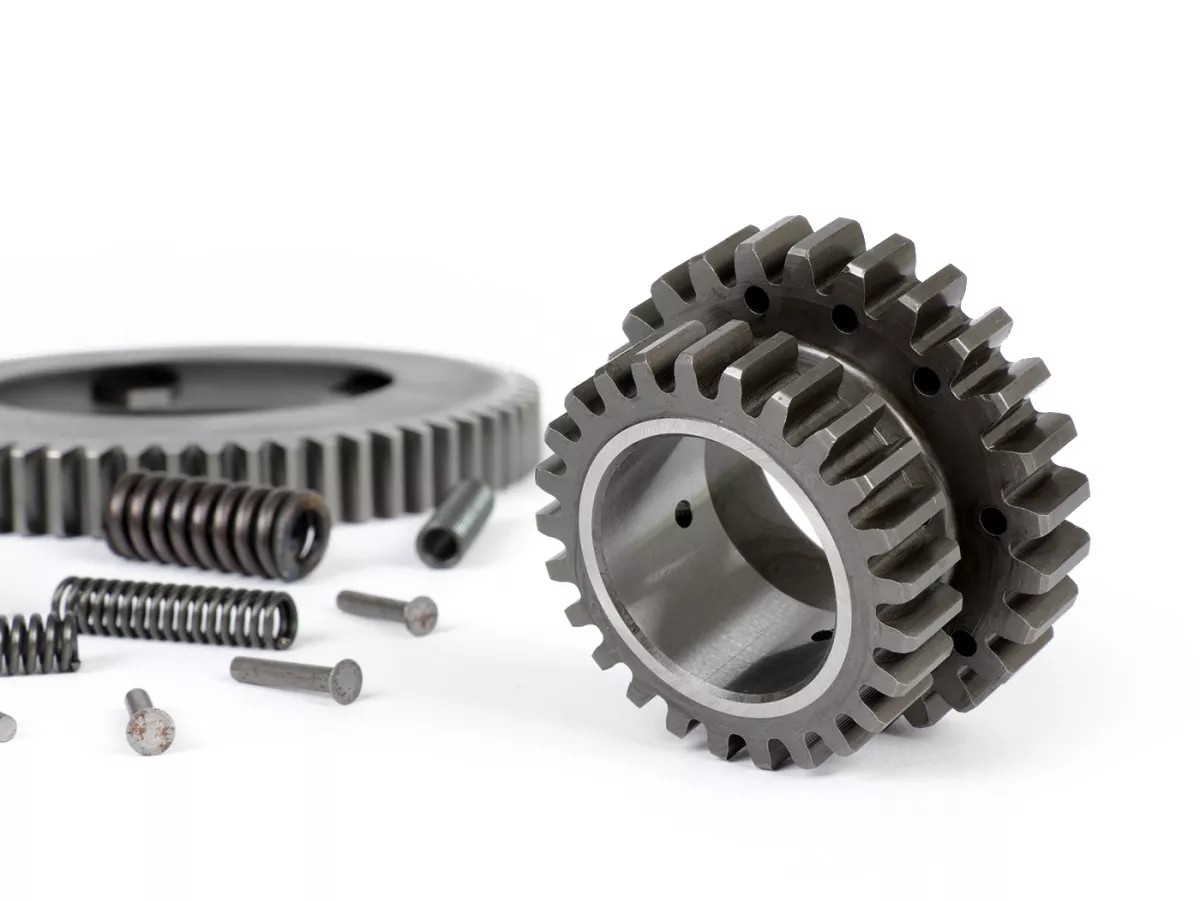

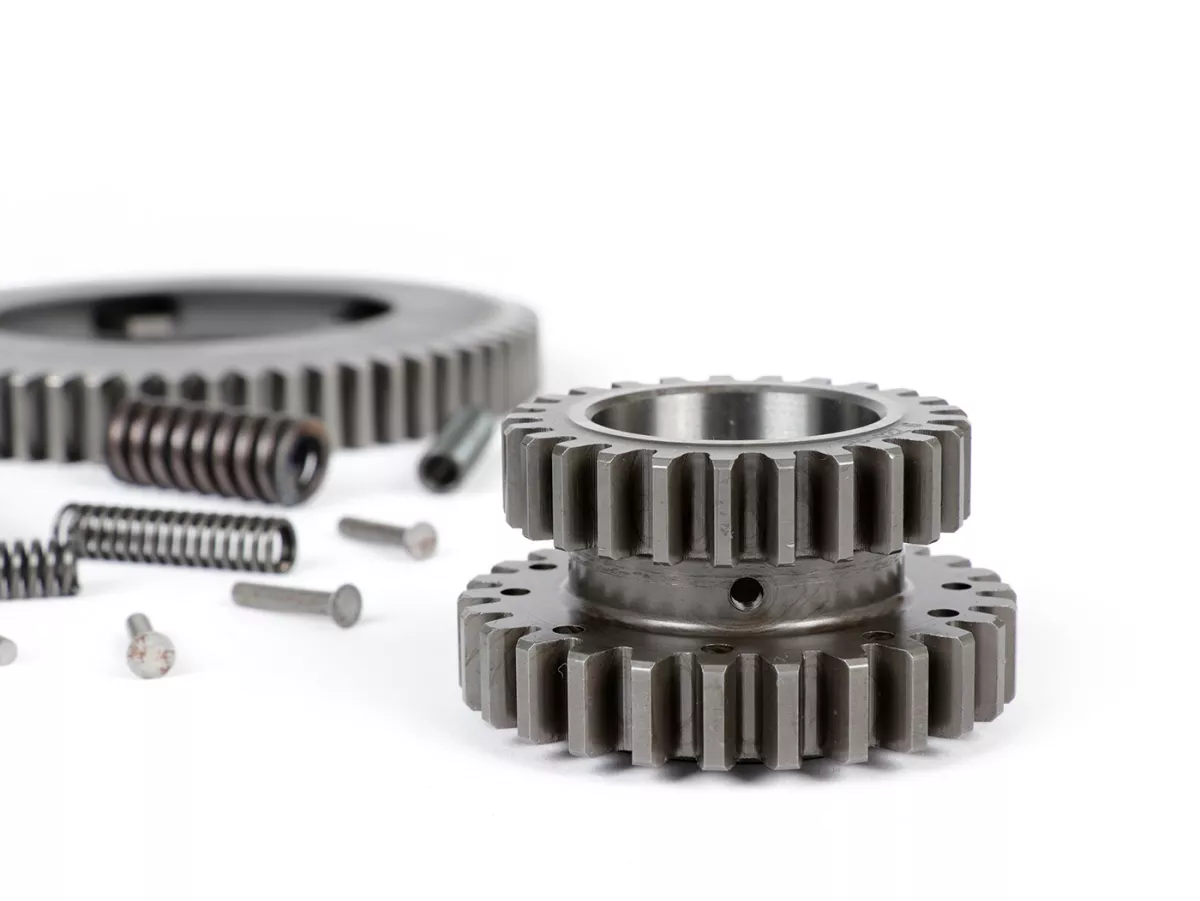

  • Clutch gear for PX old type clutch (6/7 springs) = suitable for Kingwelle or Crimaz CMX clutches

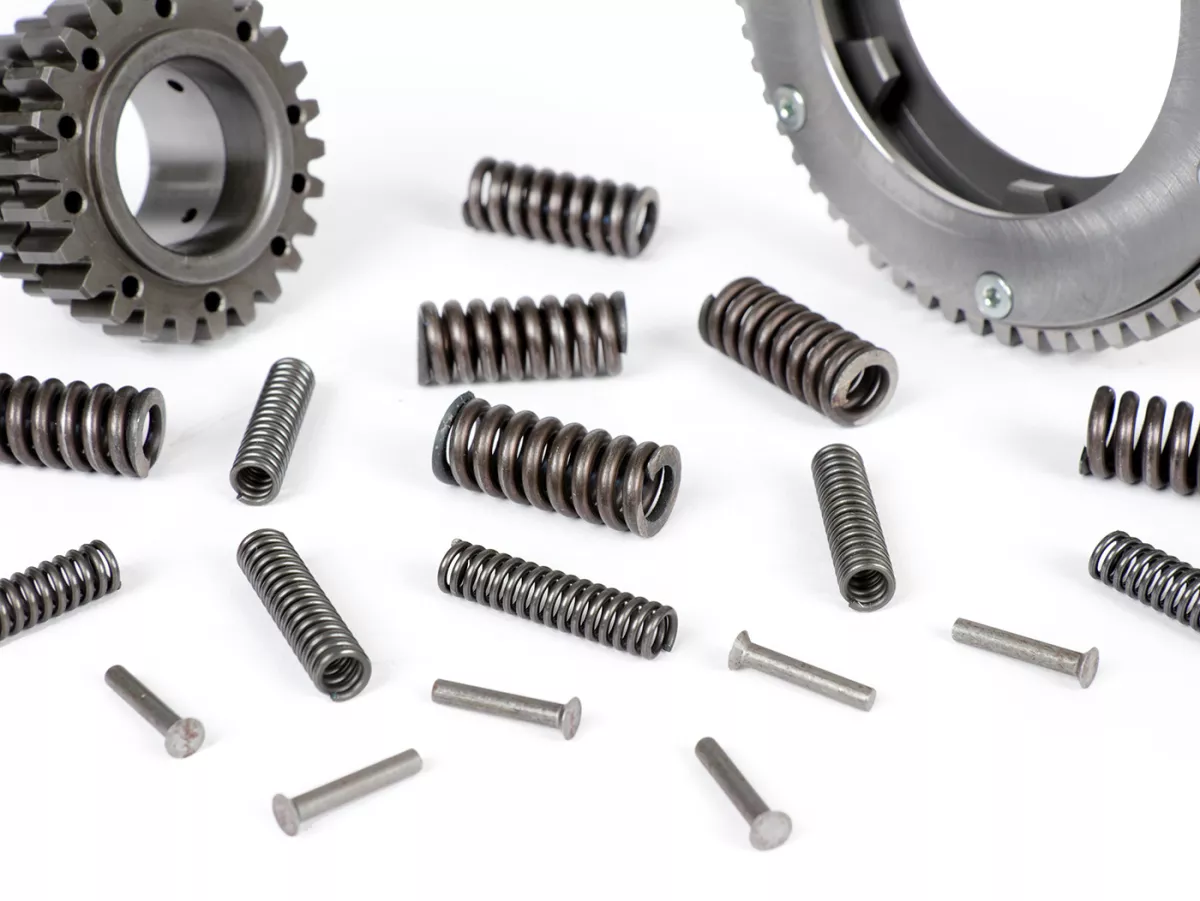

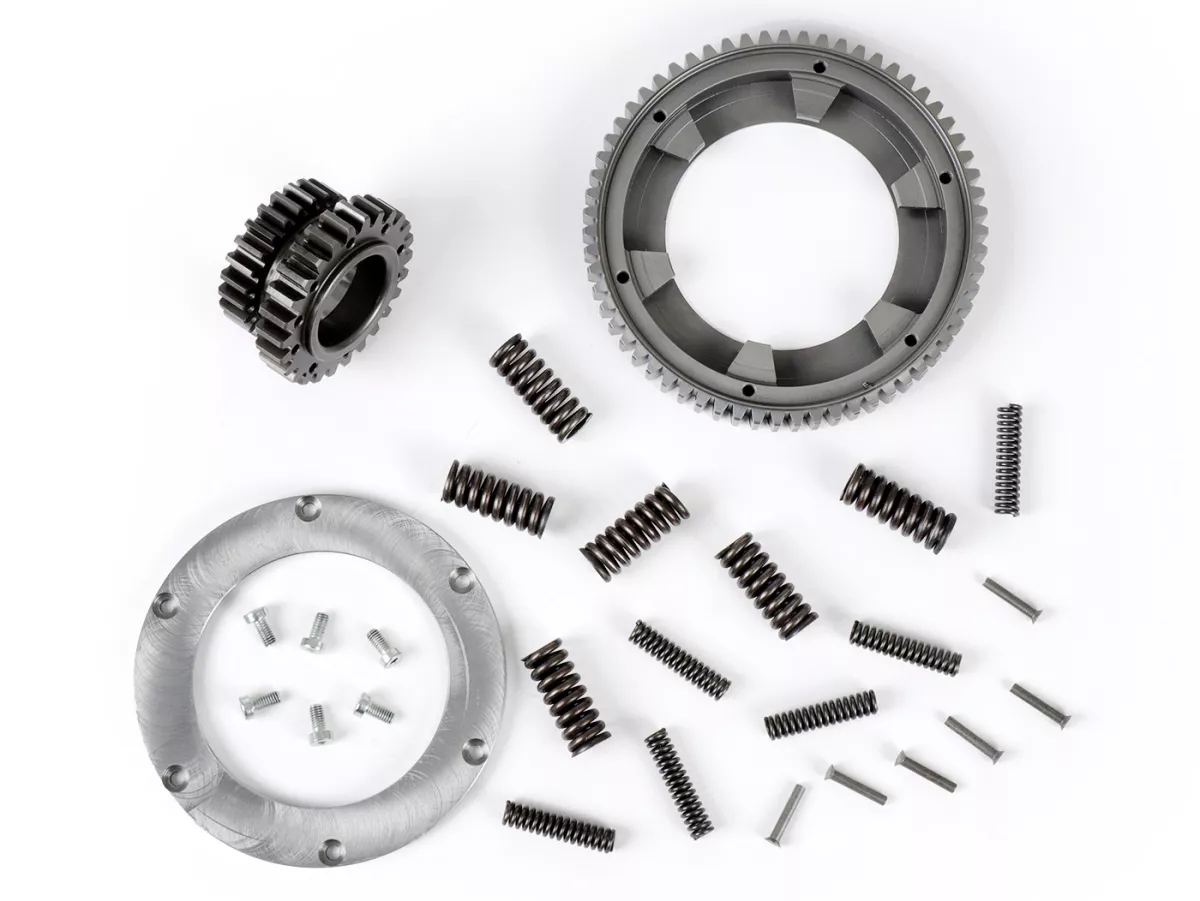

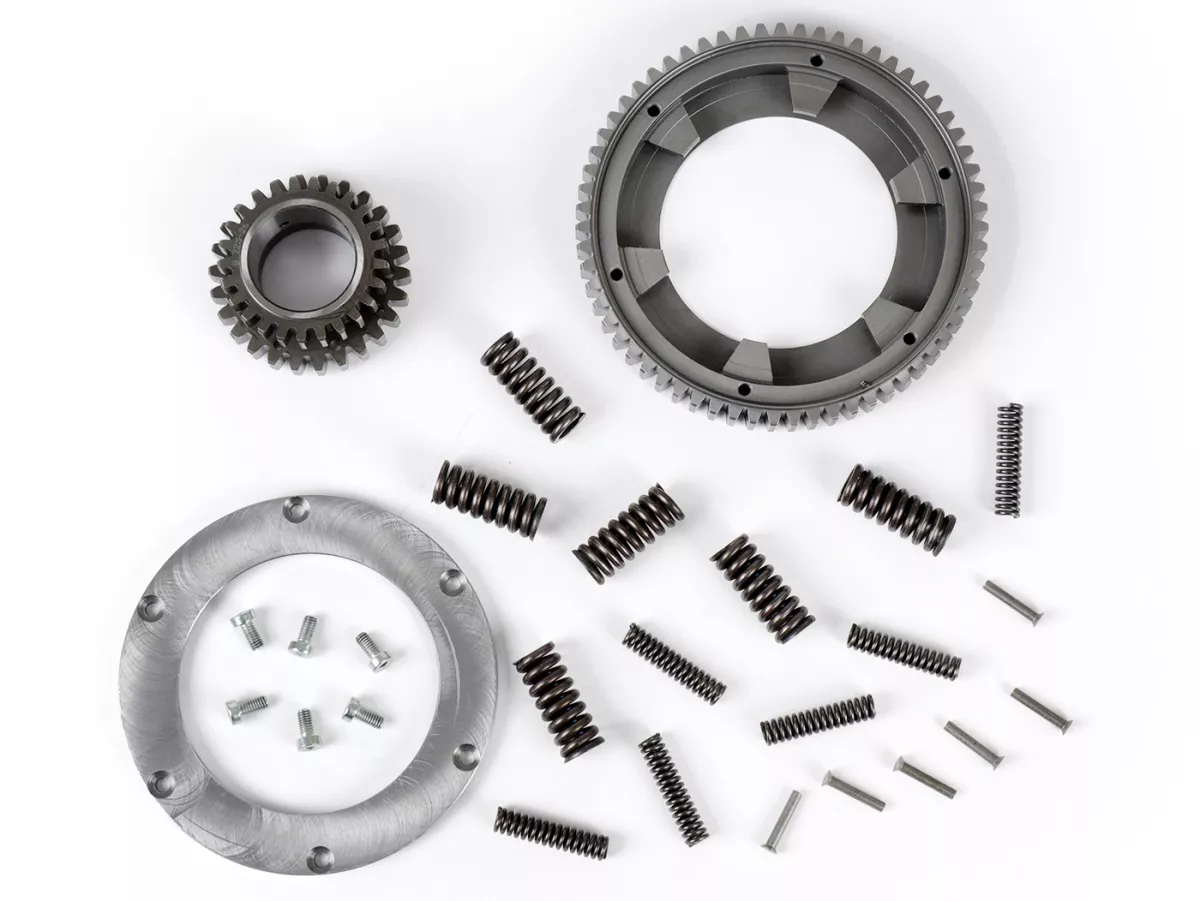

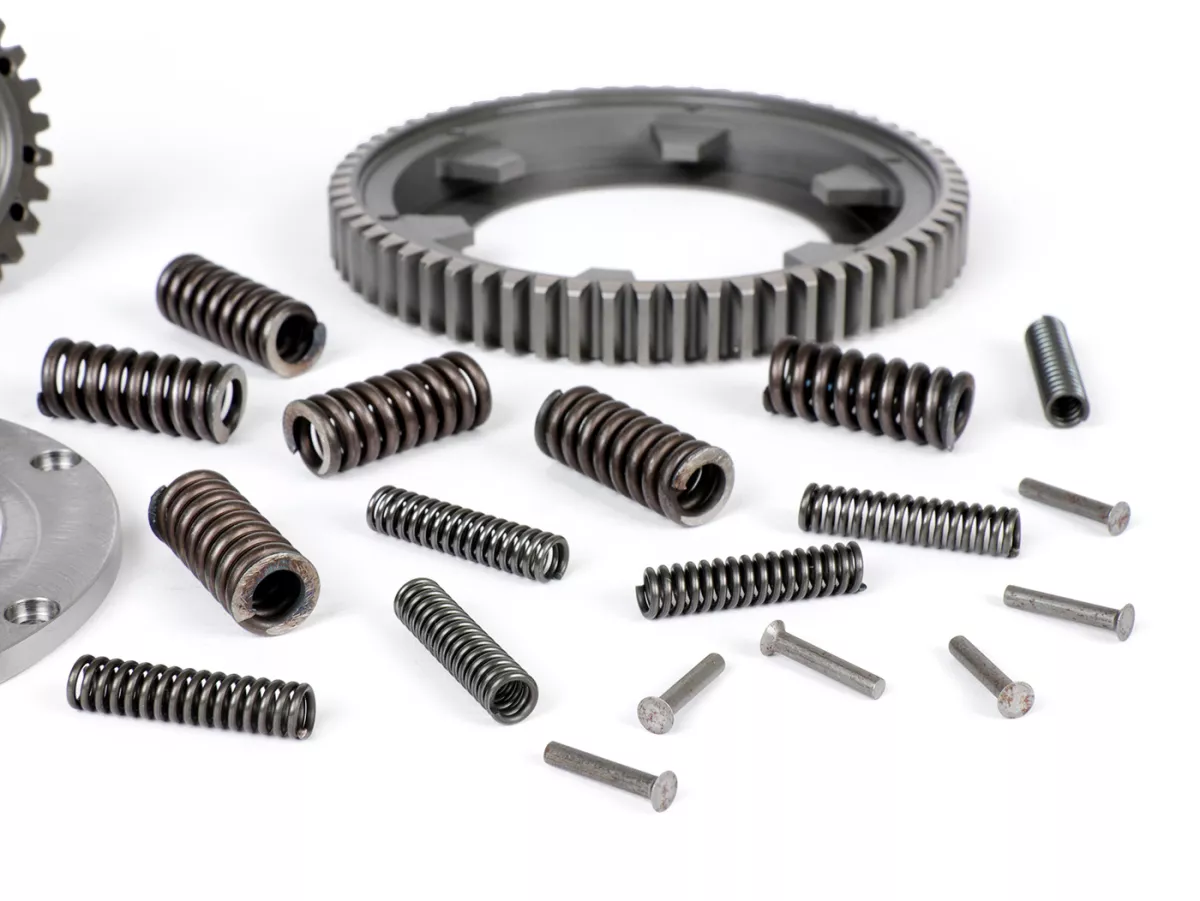

The delivery includes the original primary springs from the PX200 models.

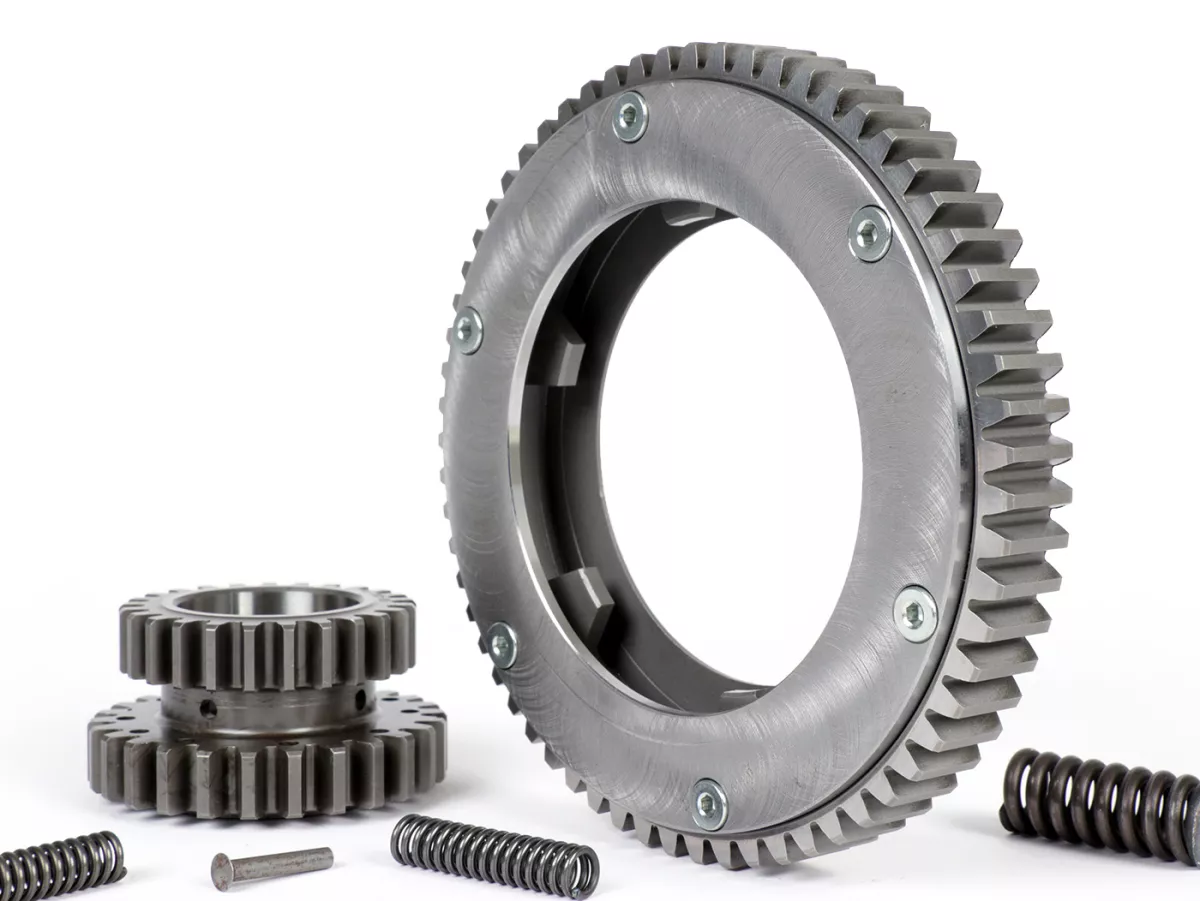

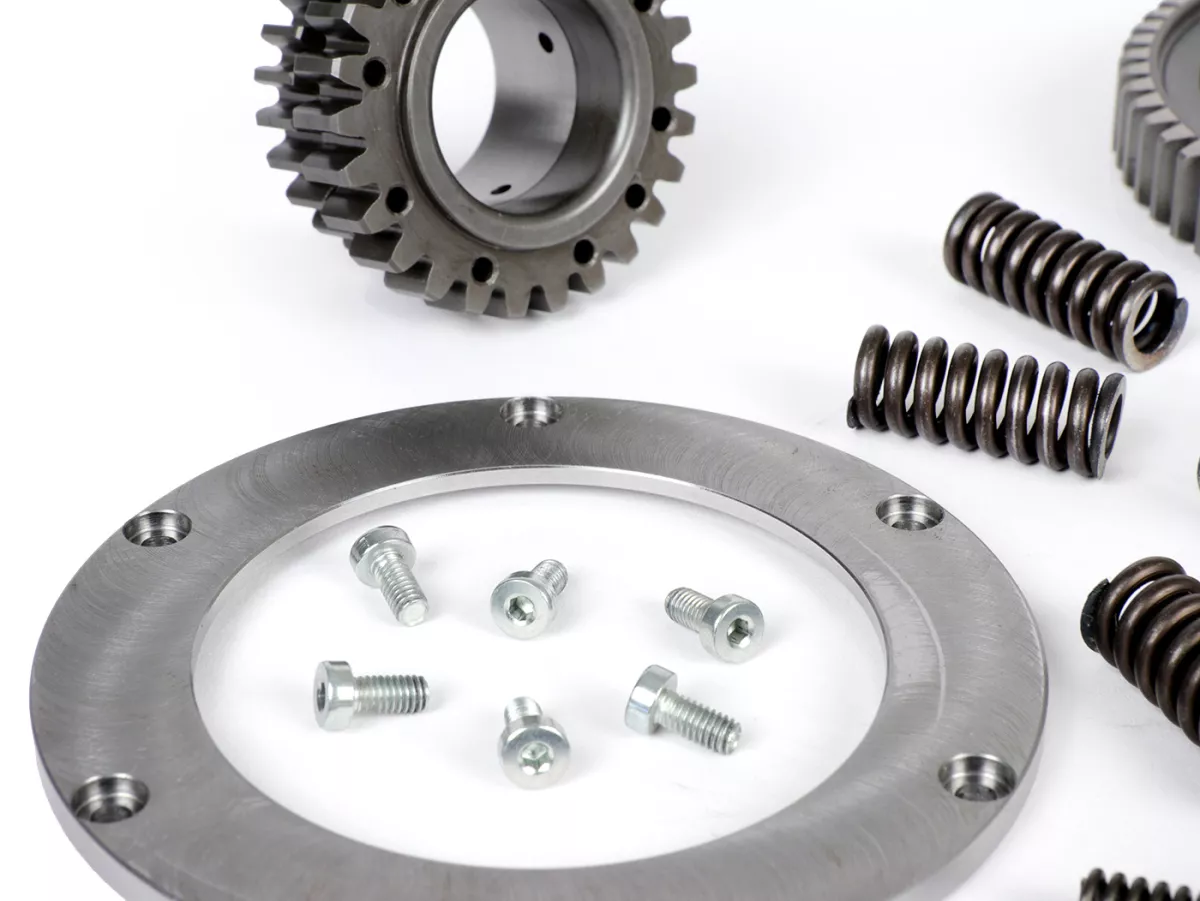

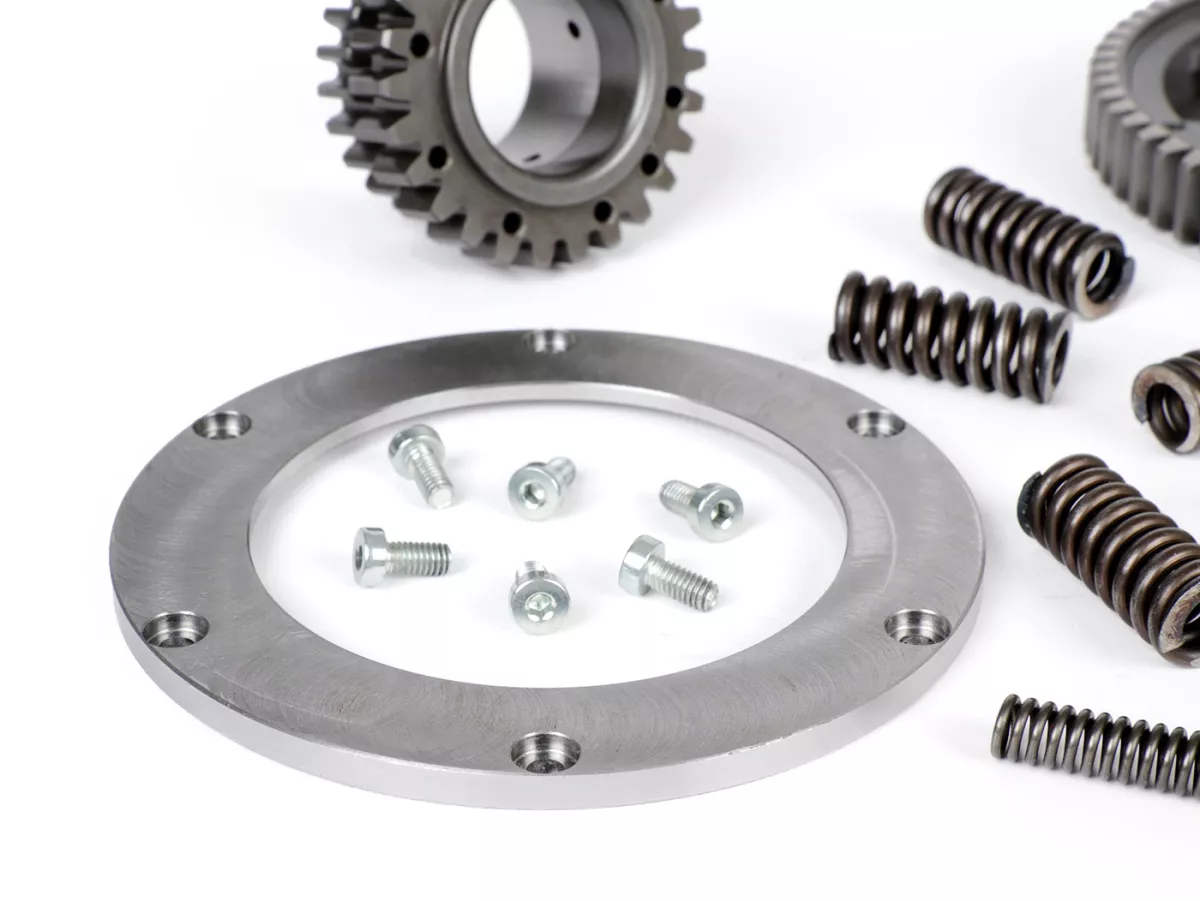

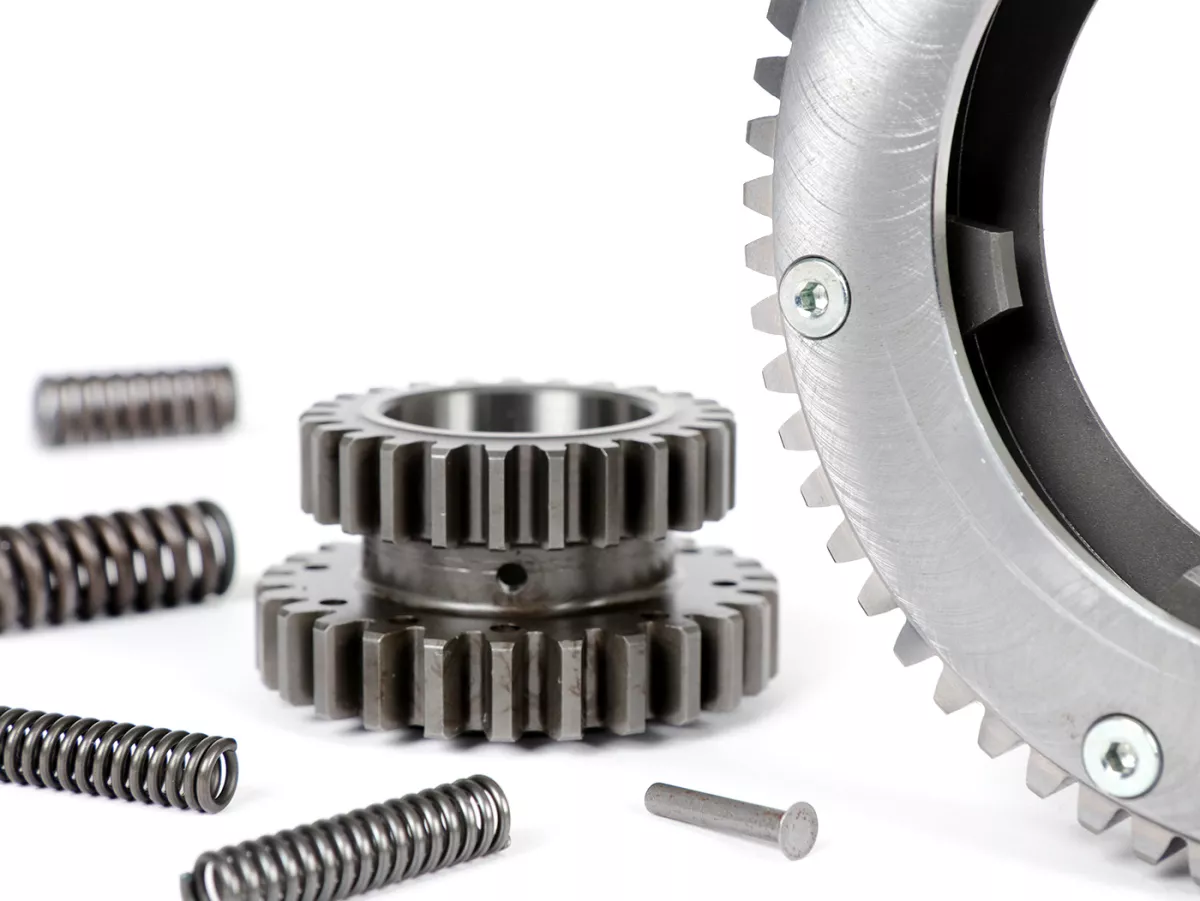

For powerful engines we recommend reinforced primary springs that can handle the high torque of a tuned engine. Unlike original springs, these no longer block completely. This means the springs do not compress fully but still provide sufficient travel. This prevents load peaks from being transferred into the gearbox and protects the components despite higher engine power. The primary kit is supplied ready to install and features a screwed reinforced cover plate for the primary springs.

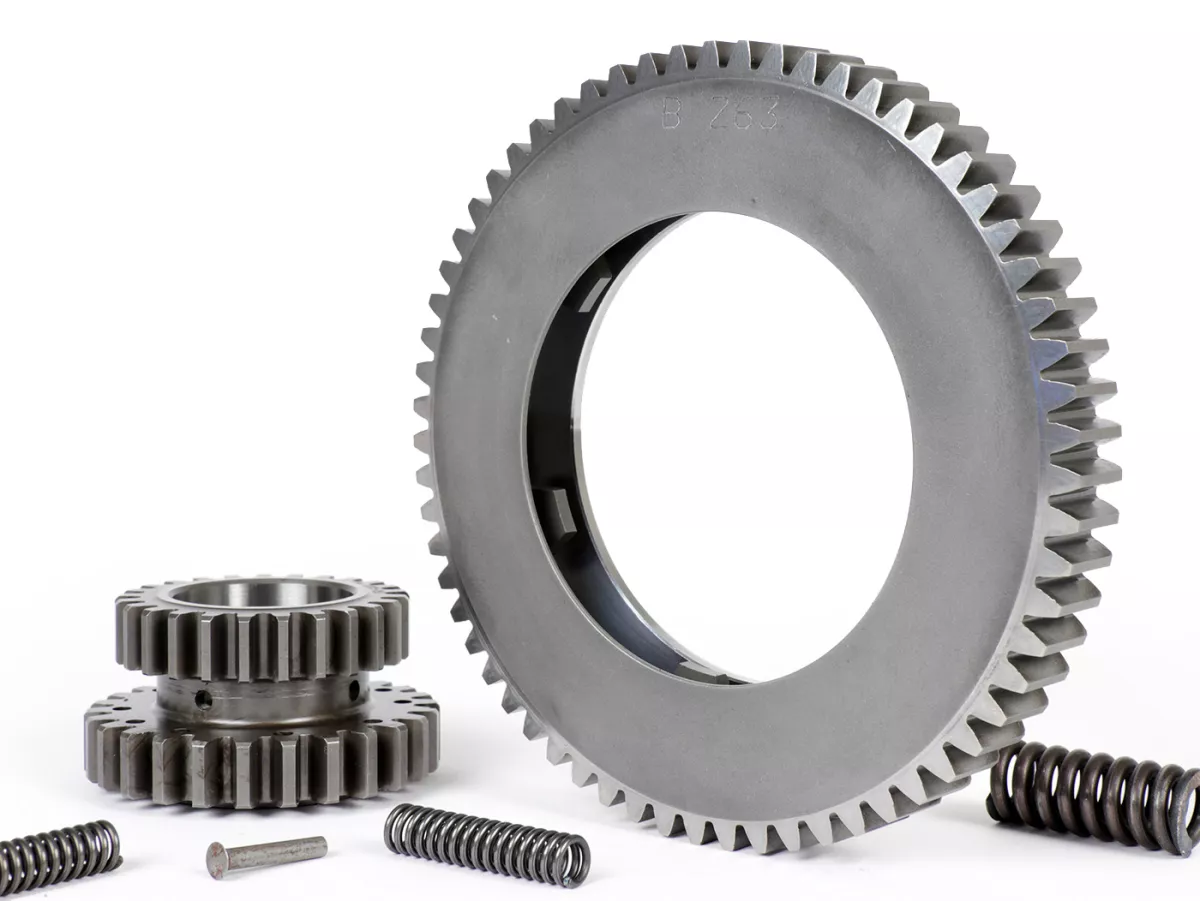

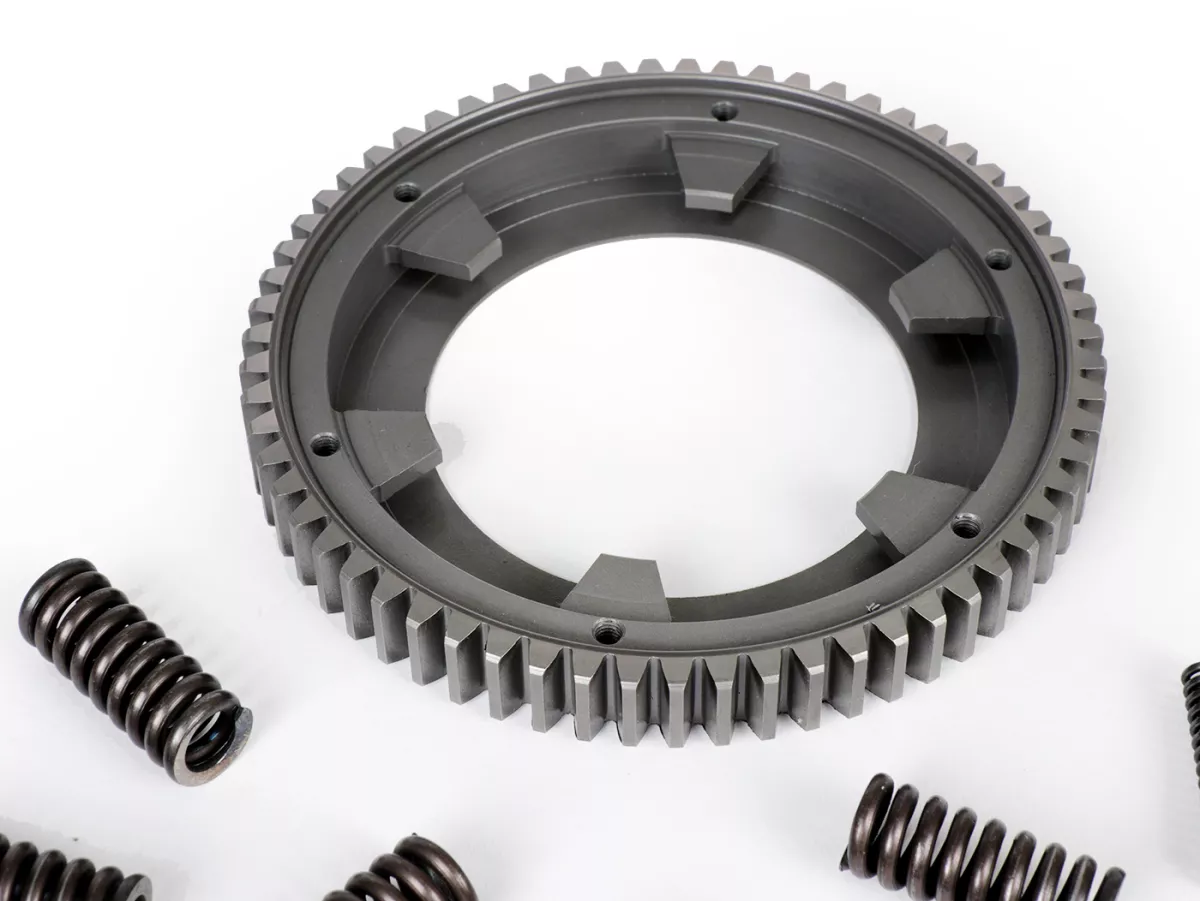

The other side is closed, i.e. it has been machined from solid together with the gear.

ASSEMBLY NOTE
If the set is used in a Malossi housing (VR-One / V-One), the bearing seat of the large crankshaft bearing must be slightly relieved.
Otherwise the primary gear will touch the reinforced bearing seat of the Malossi housings.


Primary gear 65T

Primary pinion

20

21

22

Ratio

3.25

3.09

2.95


Primary gear 64T

Primary pinion

22

23

24

Ratio

2.90

2.78

2.66


Primary gear 63T

Primary pinion

23

24

25

Ratio

2.73

2.62

2.52


Primary gear 61T

Primary pinion

22

23

24

Ratio

2.77

2.65

2.54


Primary gear 60T

Primary pinion

23

24

25

Ratio

2.60

2.50

2.40
