Gearbox parts from Stefano Benelli have rightly earned an excellent reputation in the racing scene.
Anyone looking for reliable racing technology for their gearbox will find it here.
Hardened to an average of 60 HRC, Benelli components offer the perfect balance between hardness and elasticity to withstand the enormous stresses in a racing engine over the long term.

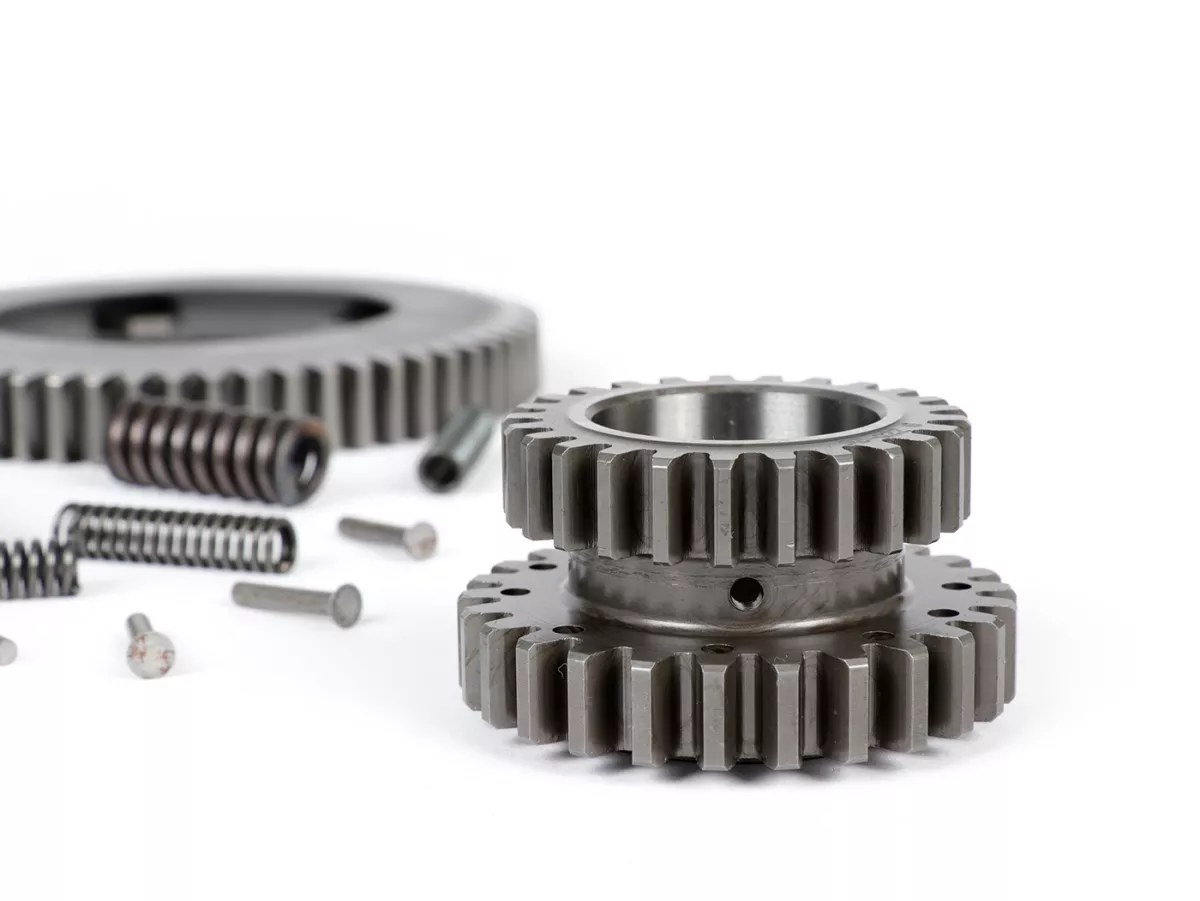

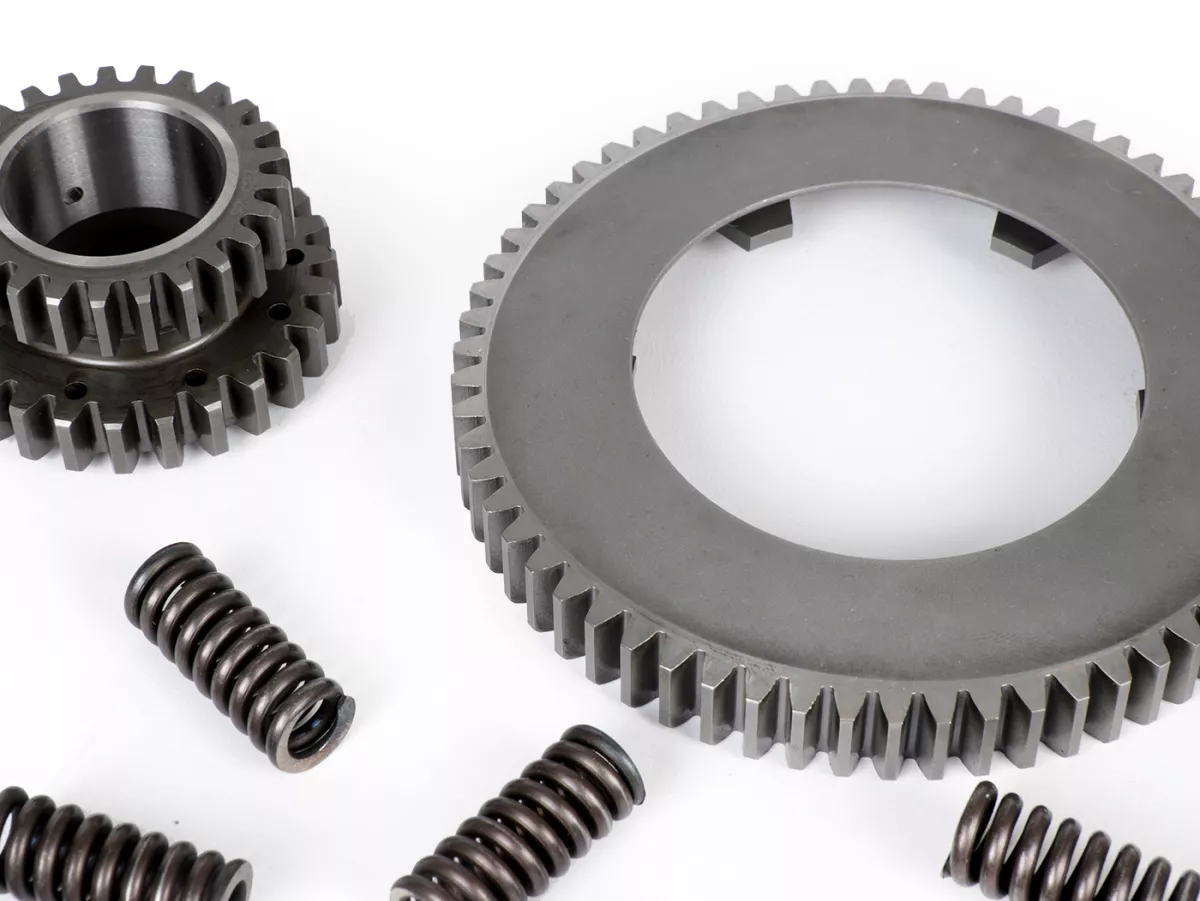

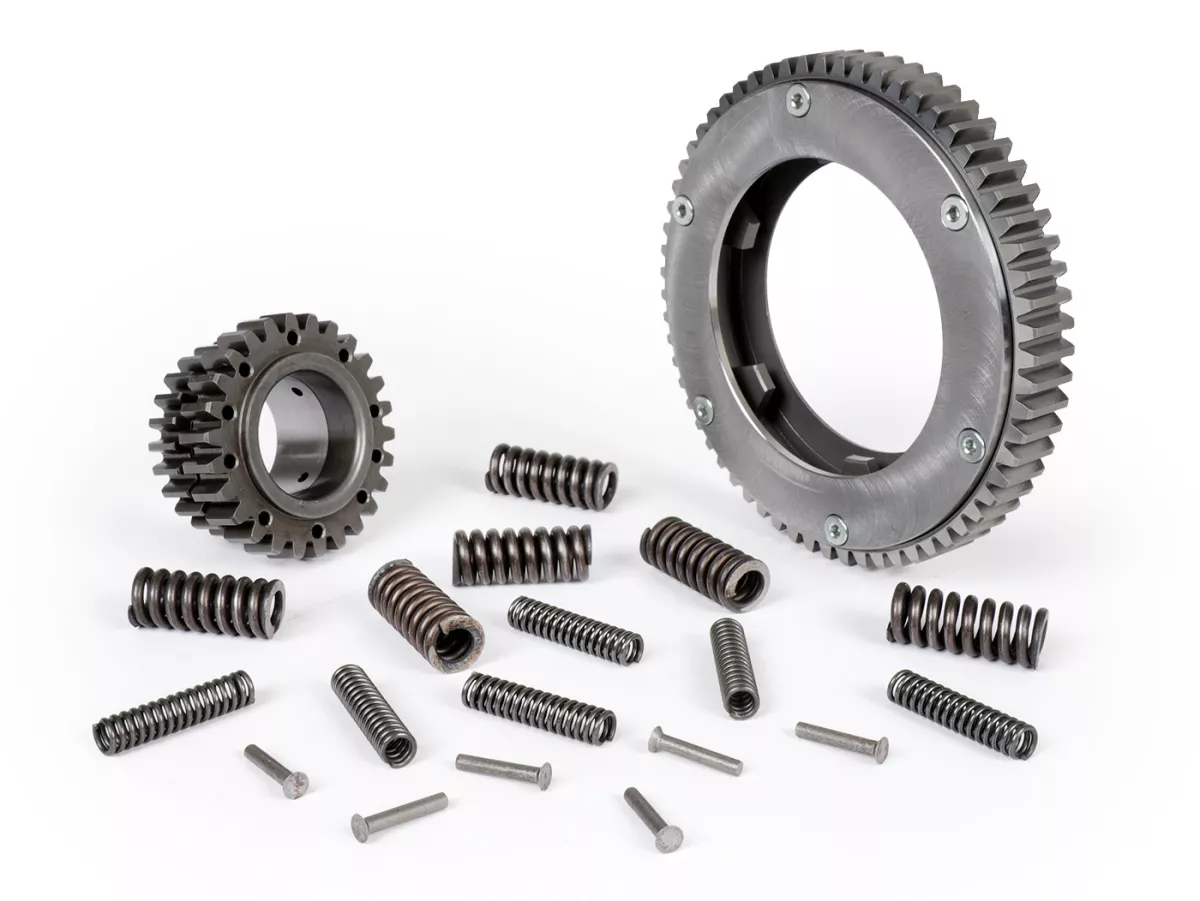

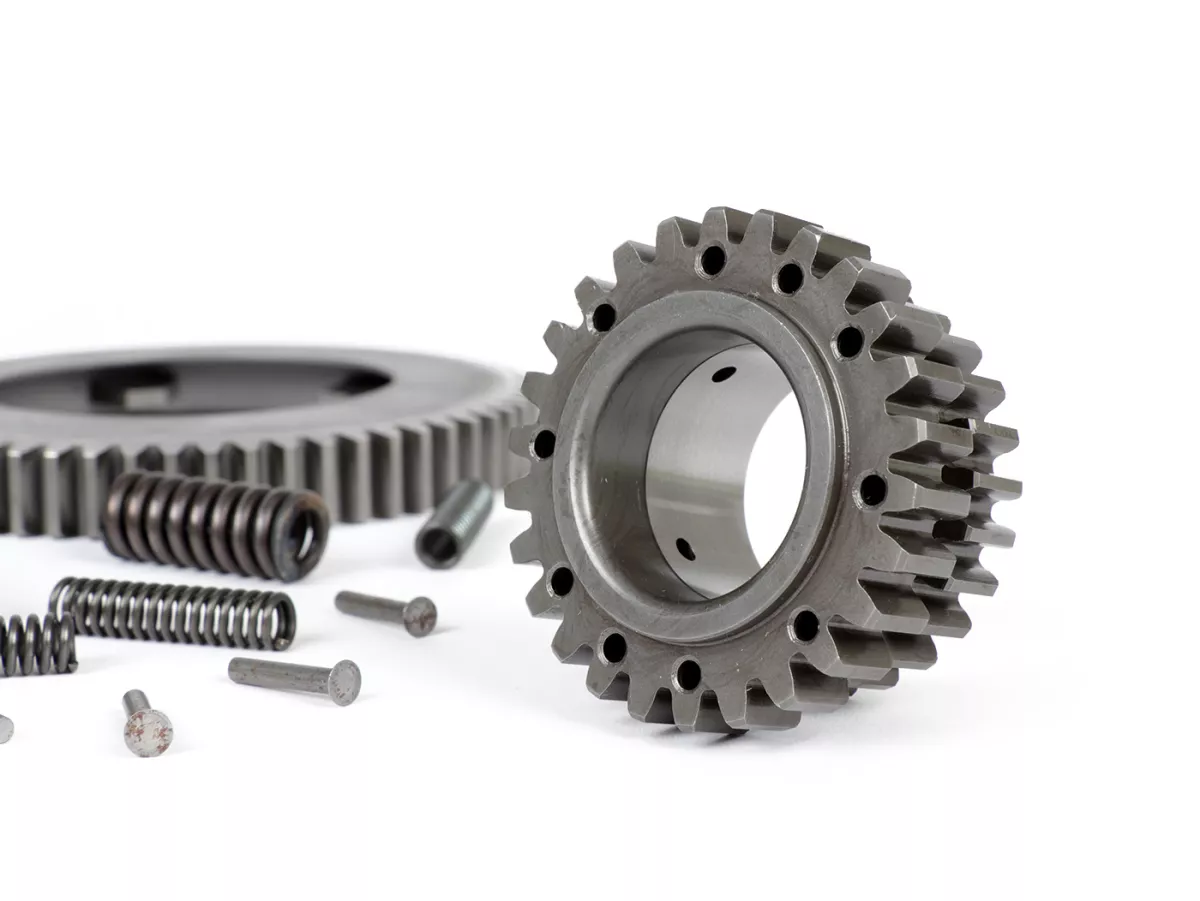

Benelli offers a reinforced primary kit for Vespa Largeframe engines with a wide primary gear (from around 1965 onwards).
This kit offers several special features:
Screwed cover plate = no riveting necessary!

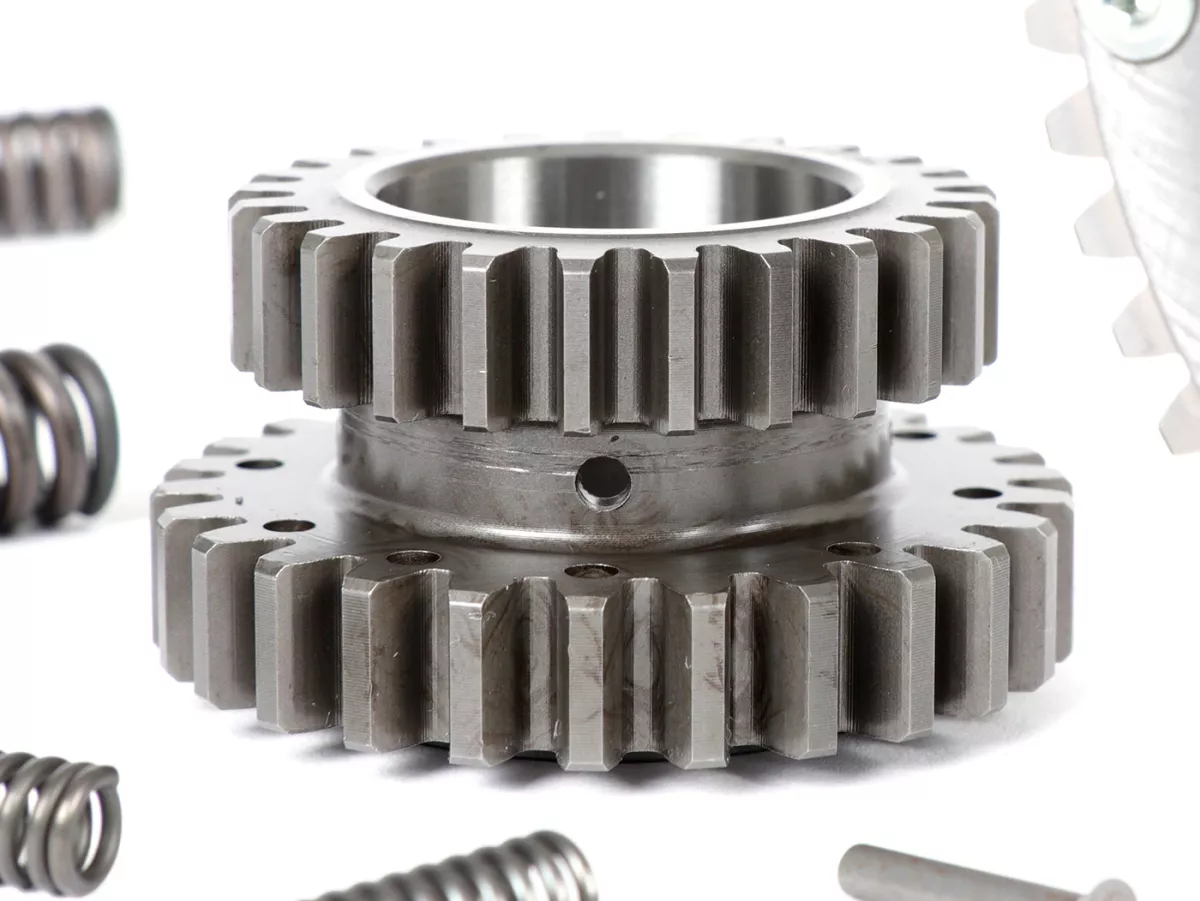

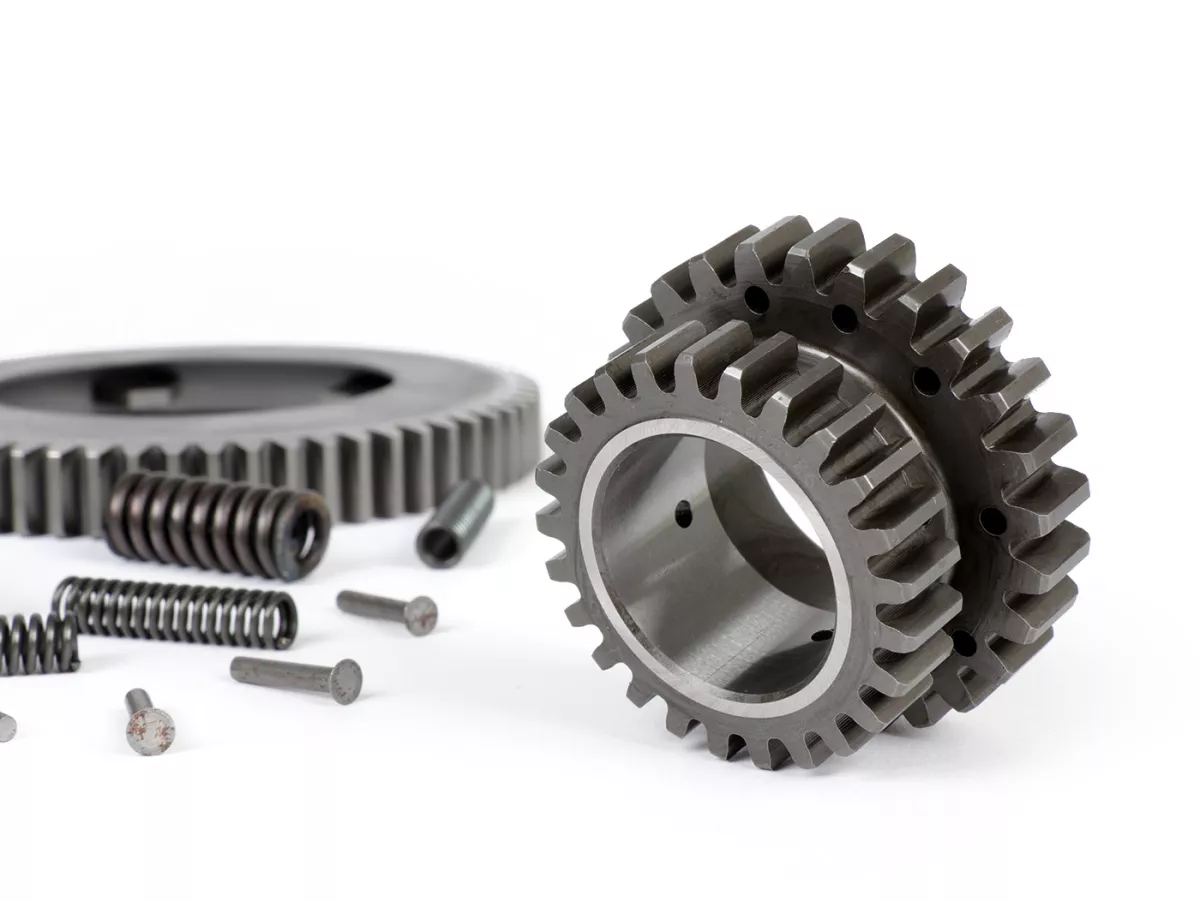

Clutch gear for PX old type clutch (6/7 springs) = suitable for Kingwelle or Crimaz CMX clutches

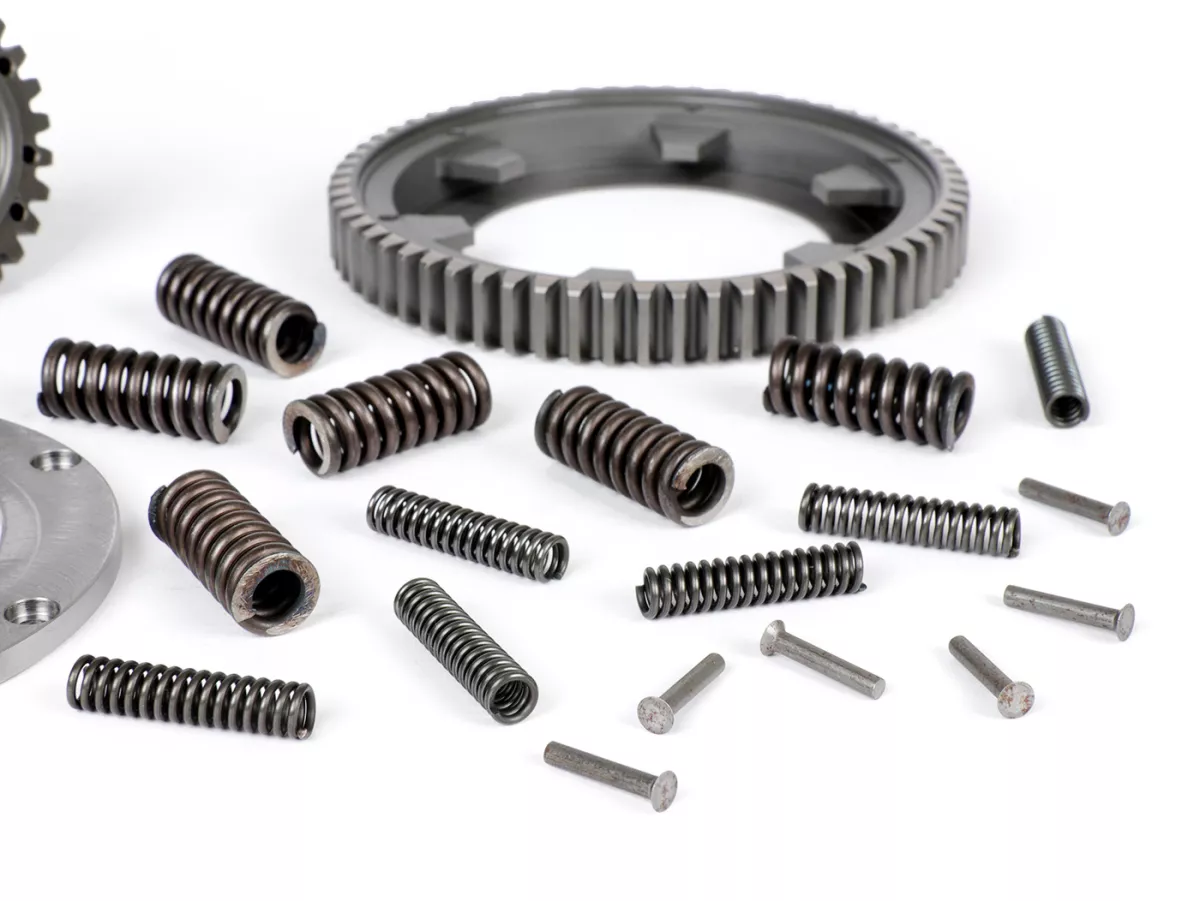

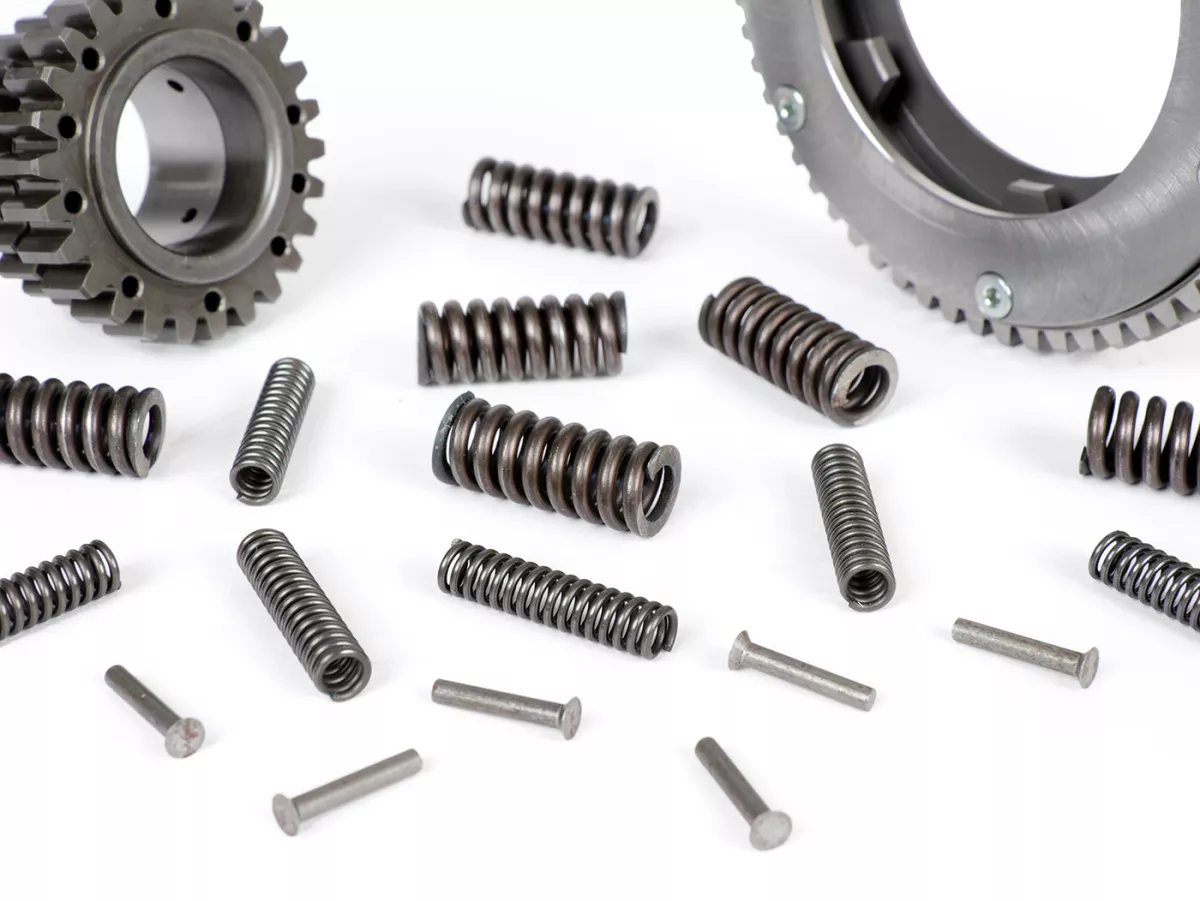

The delivery includes the original primary springs from the PX200 models.
For powerful engines we recommend reinforced primary springs that can handle the high torque of a tuned engine.
Unlike original springs, these no longer go completely solid.
This means the springs do not compress fully and still provide sufficient travel.
This prevents load peaks from being transferred into the gearbox and protects the components despite increased engine power.

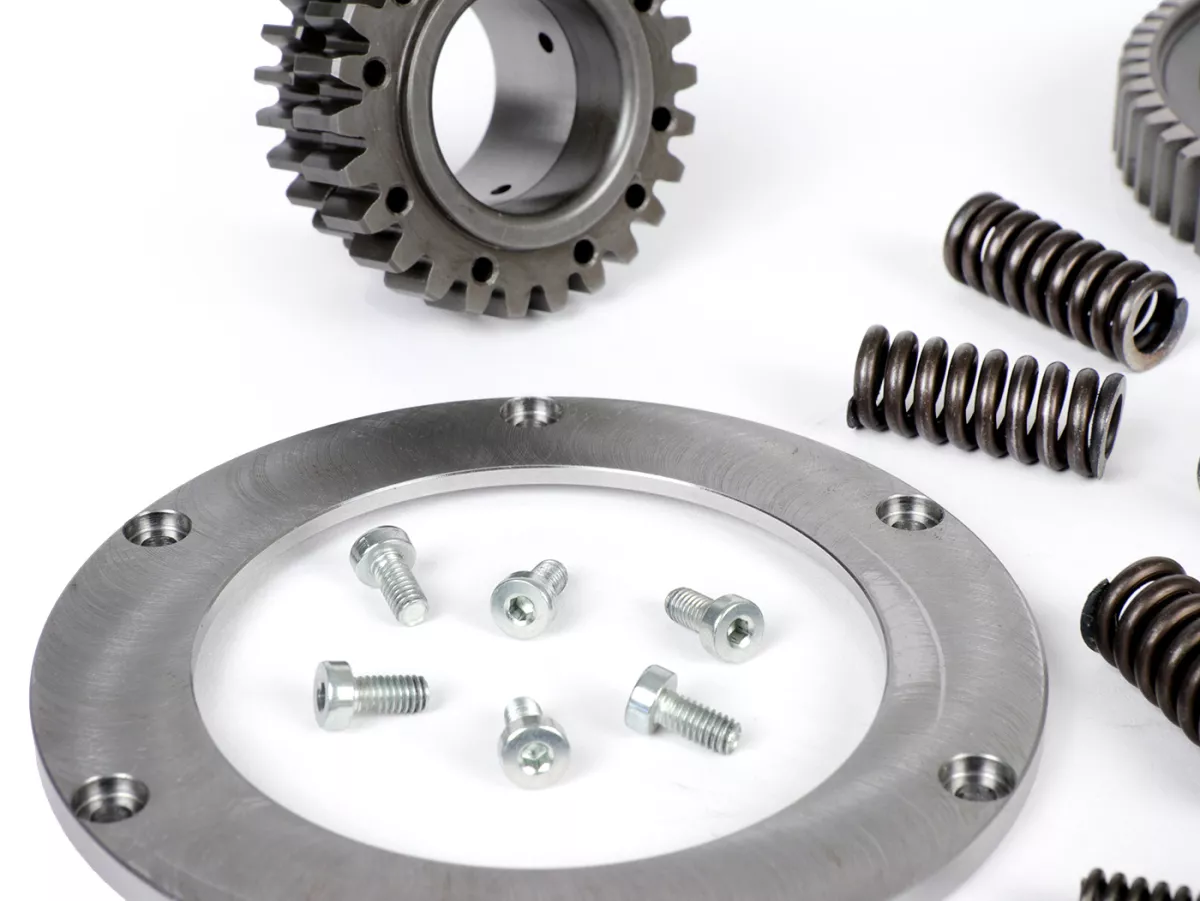

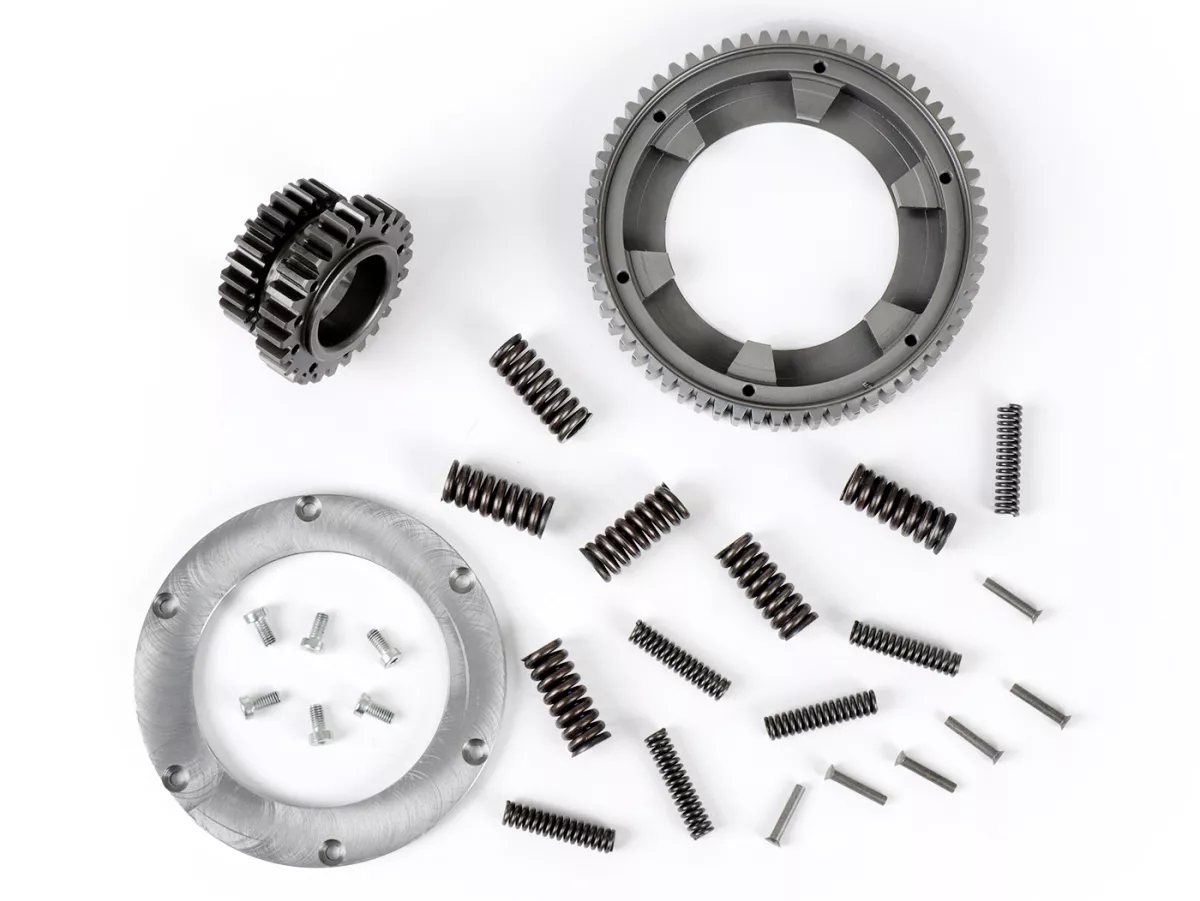

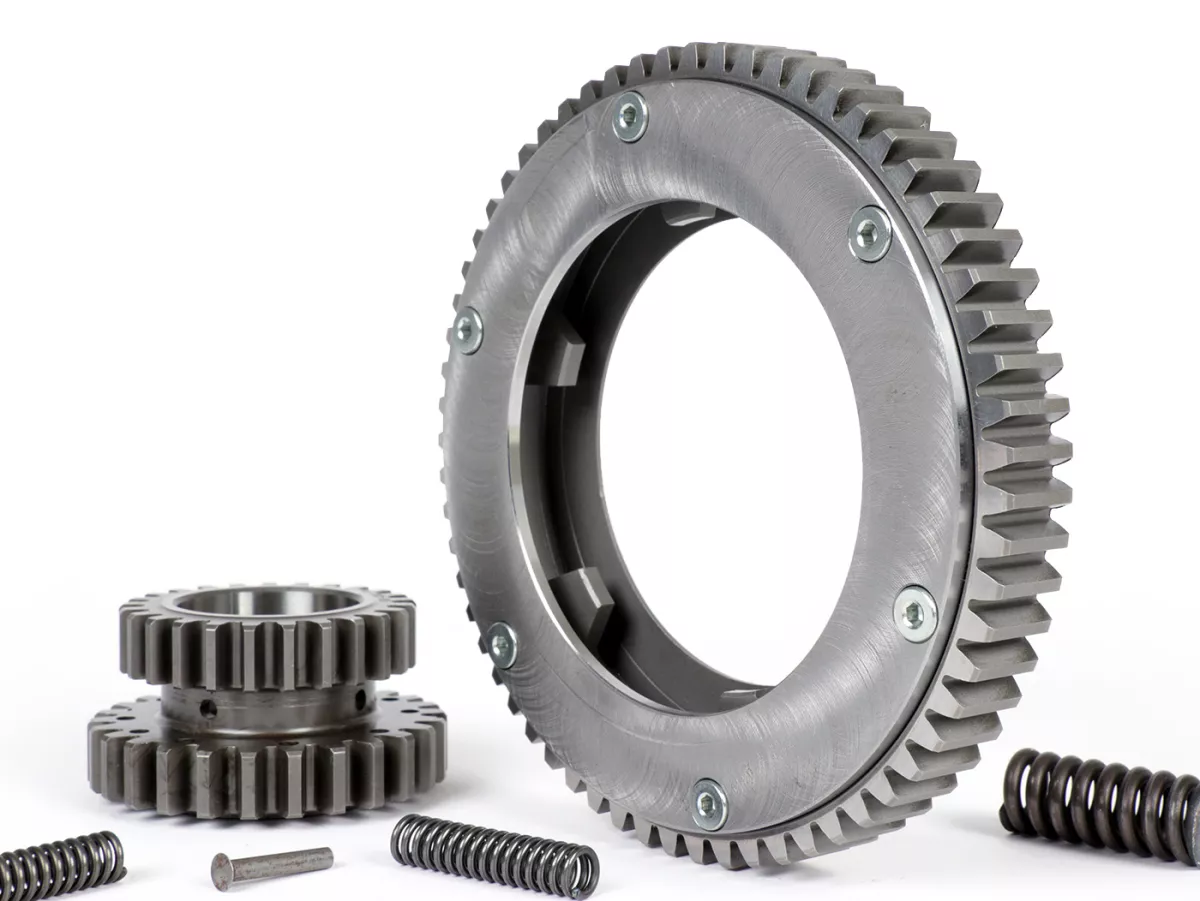

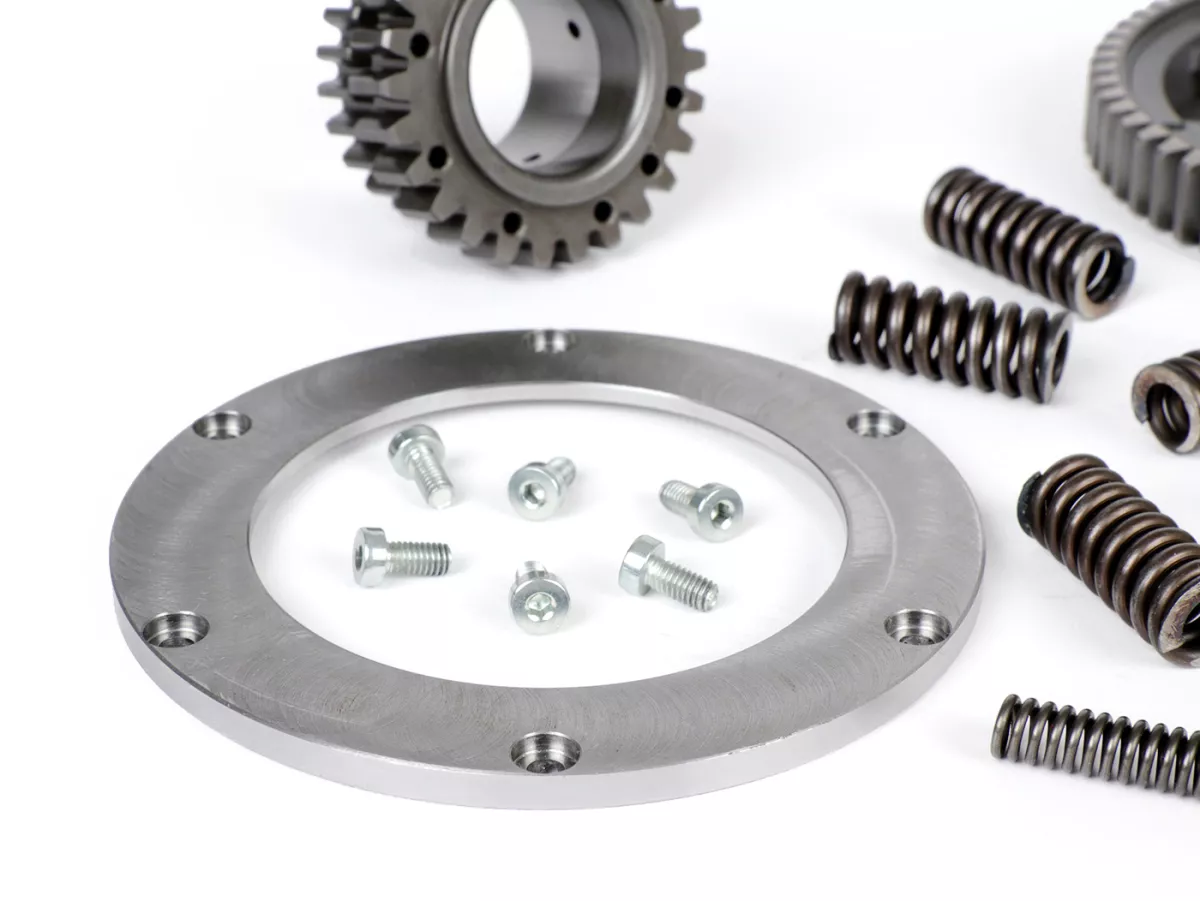

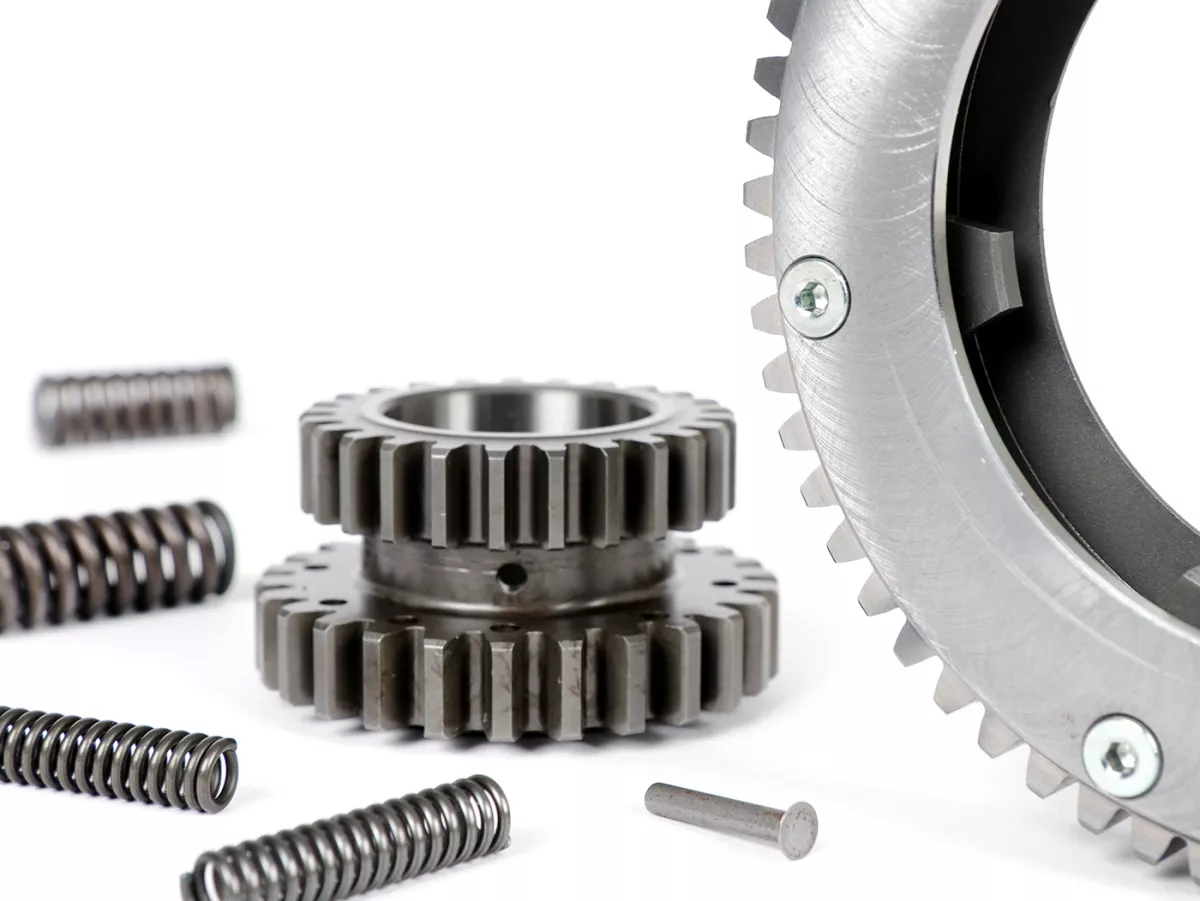

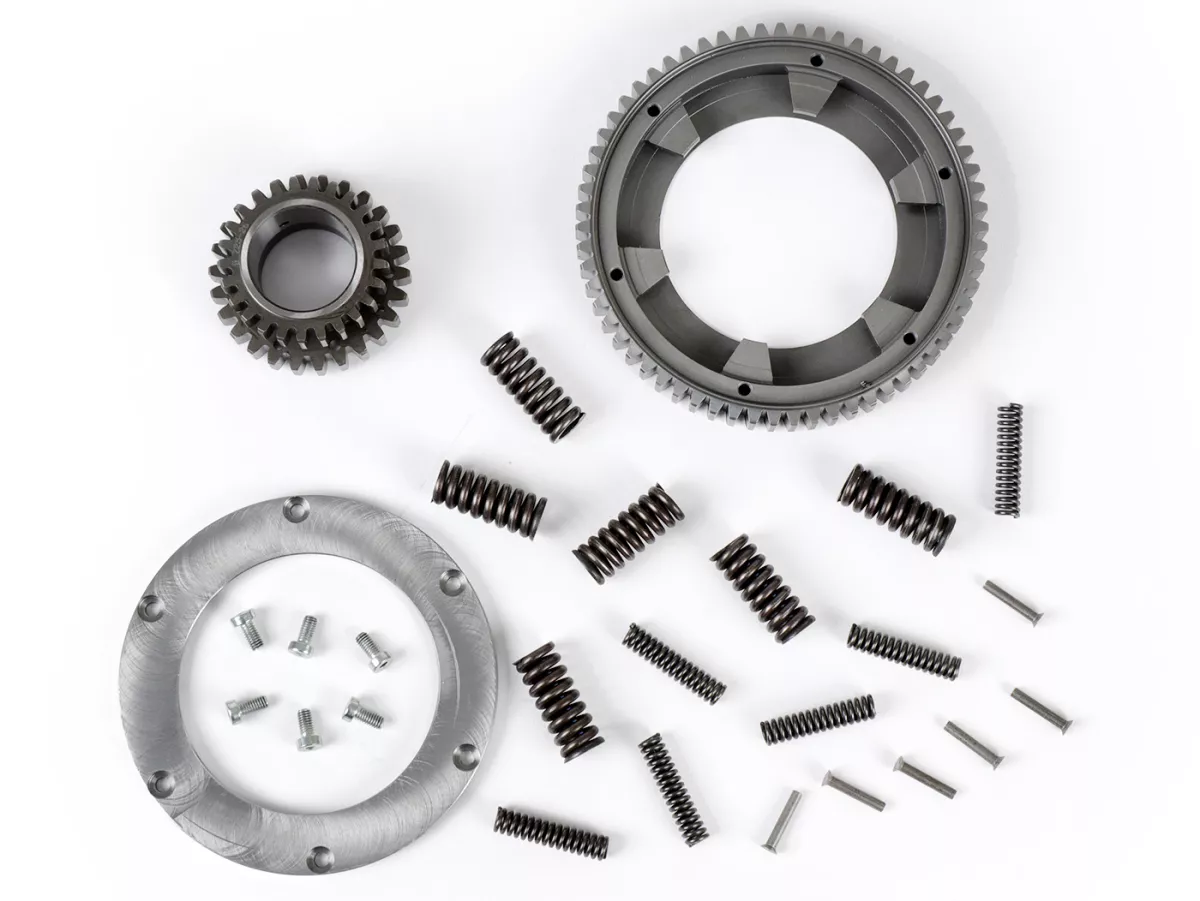

The primary kit is supplied ready to install and comes with a screwed reinforced cover plate for the primary springs.

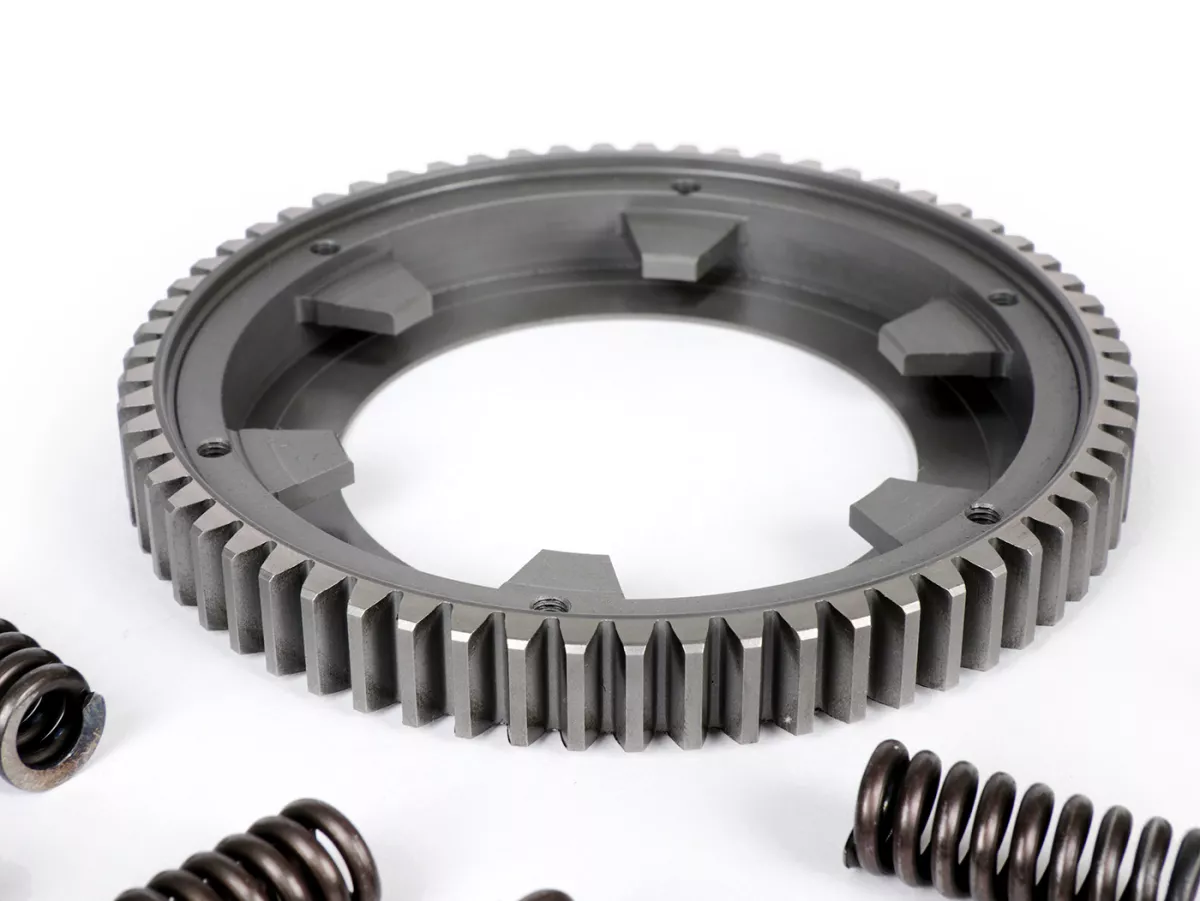

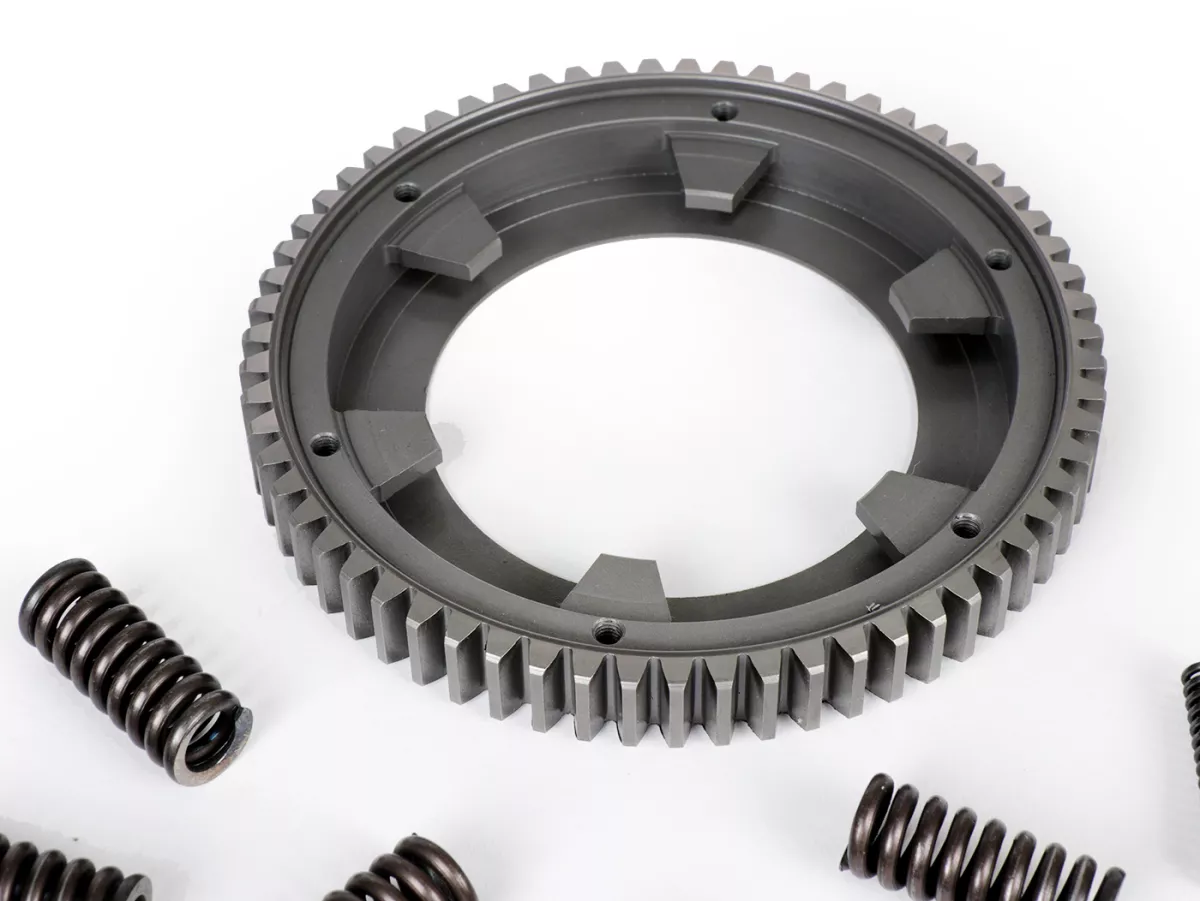

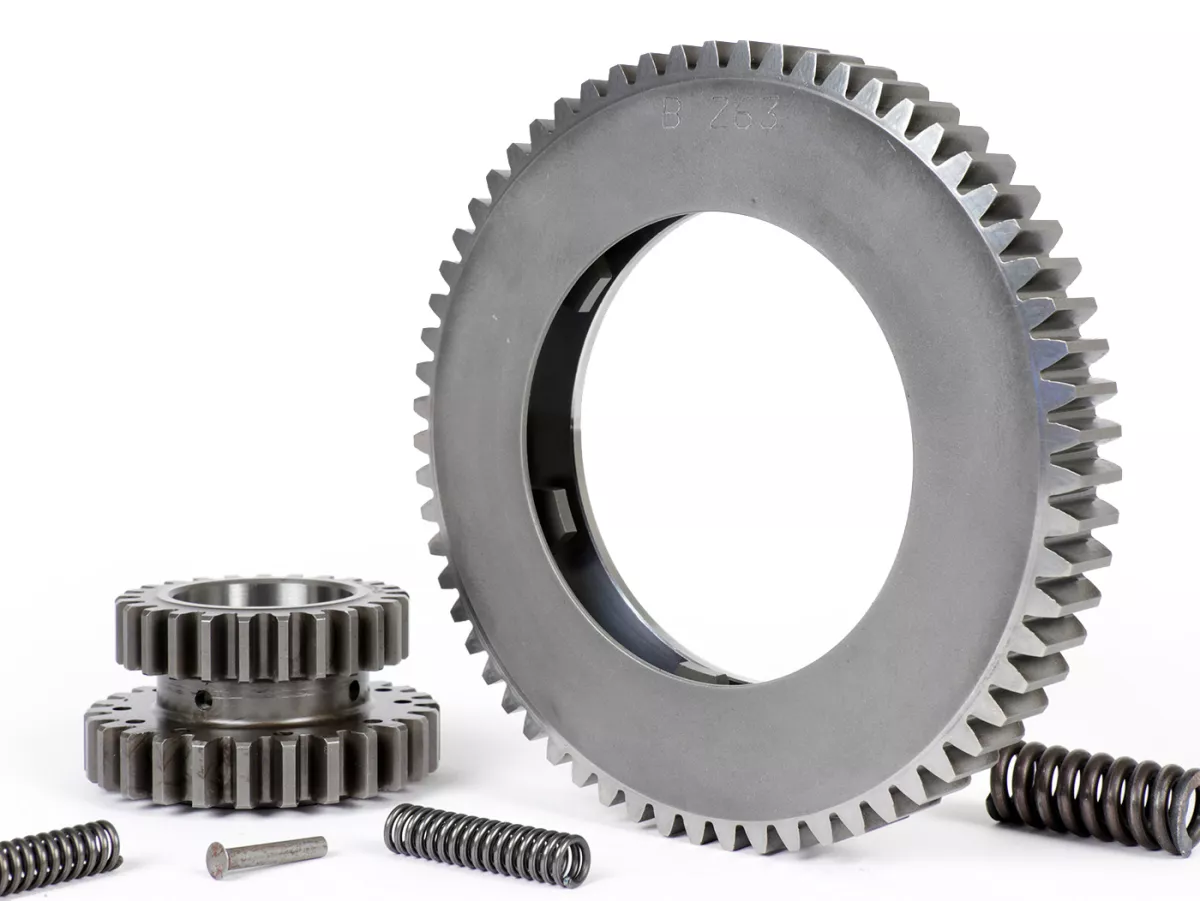

The other side is closed, i.e. it has been machined from solid together with the gear.
ASSEMBLY NOTE
If the set is used in a Malossi housing (VR-One / V-One), the bearing seat of the large crankshaft bearing must be slightly relieved.
Otherwise the primary gear will touch the reinforced bearing seat of the Malossi housings.
Primary gear 65T |
|||
Primary pinion |
20 |
21 |
22 |
Ratio |
3.25 |
3.09 |
2.95 |
Primary gear 64T |
|||
Primary pinion |
22 |
23 |
24 |
Ratio |
2.90 |
2.78 |
2.66 |
Primary gear 63T |
|||
Primary pinion |
23 |
24 |
25 |
Ratio |
2.73 |
2.62 |
2.52 |
Primary gear 61T |
|||
Primary pinion |
22 |
23 |
24 |
Ratio |
2.77 |
2.65 |
2.54 |
Primary gear 60T |
|||
Primary pinion |
23 |
24 |
25 |
Ratio |
2.60 |
2.50 |
2.40 |
