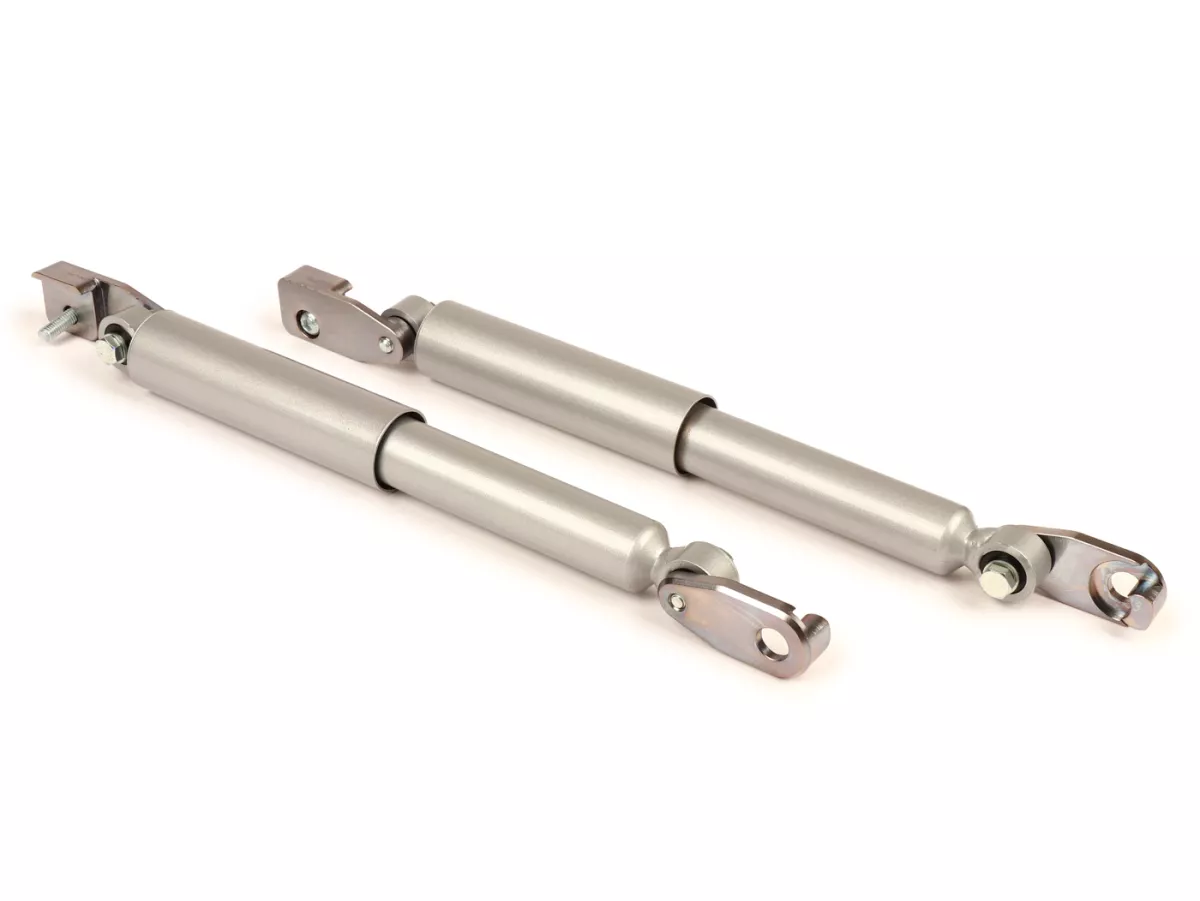

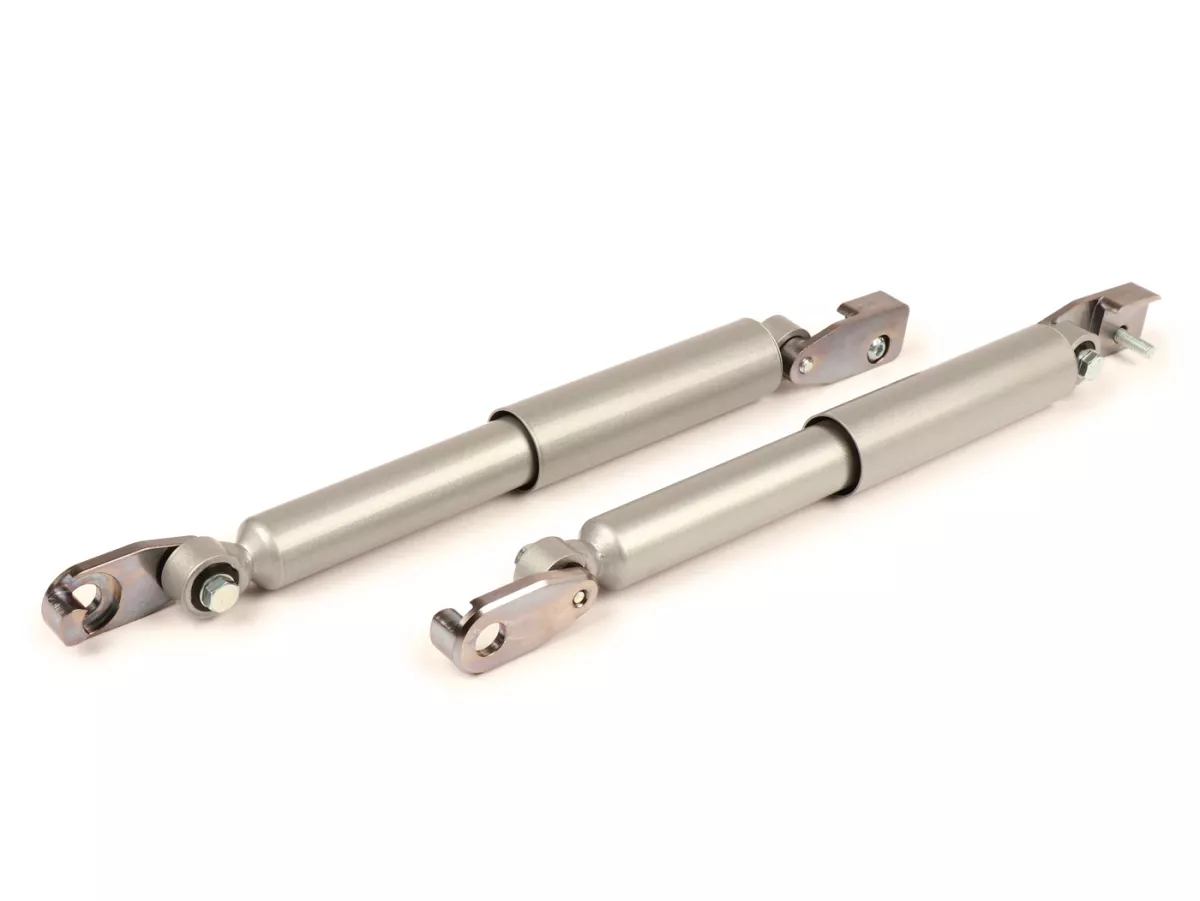

Shock absorber-Set -SC- Piaggio Ciao, additional shock absorber front

Shock absorber set for Piaggio Ciao moped and mopeds.

The set consists of holders from MMW and shock absorbers from the company Italia.

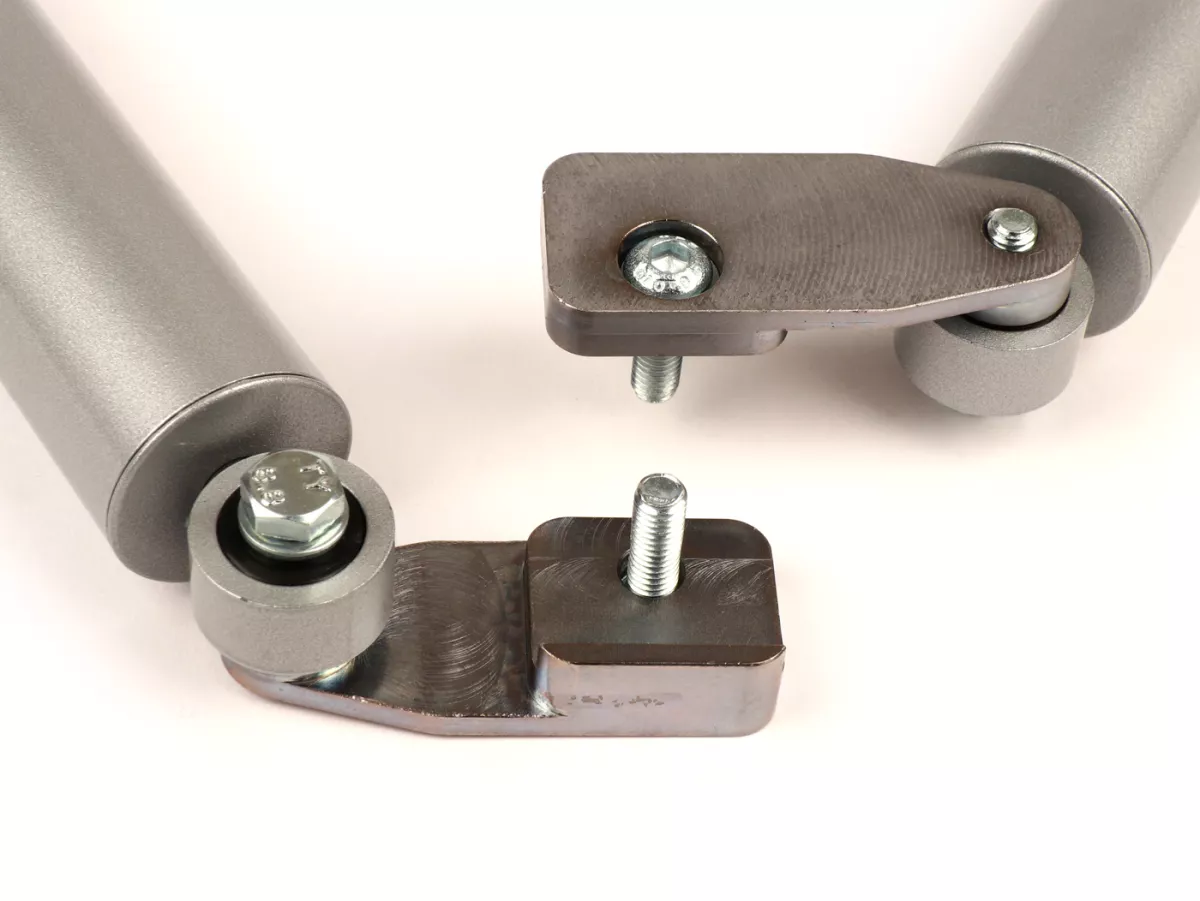

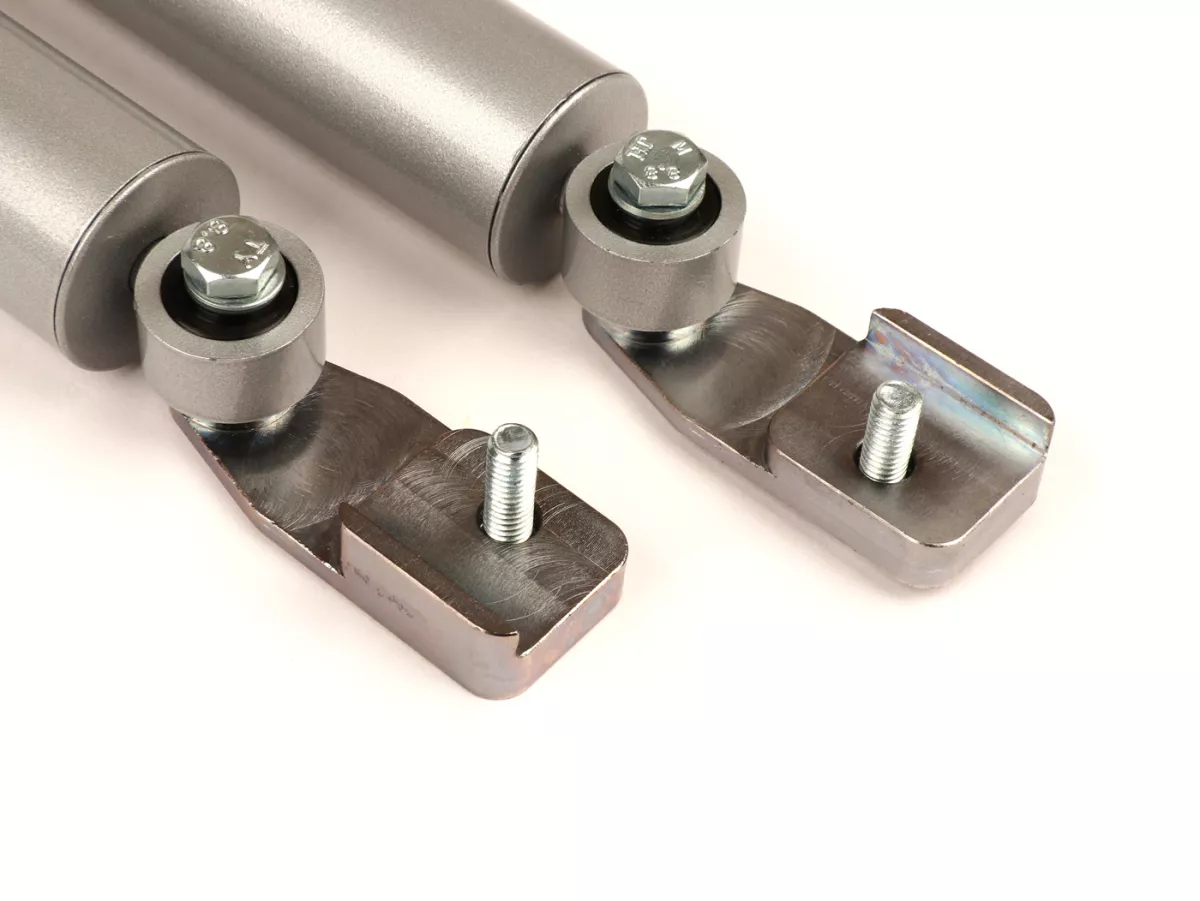

The holders are screwed to the original mounting of the mudguard on the fork.
All necessary screws are included.

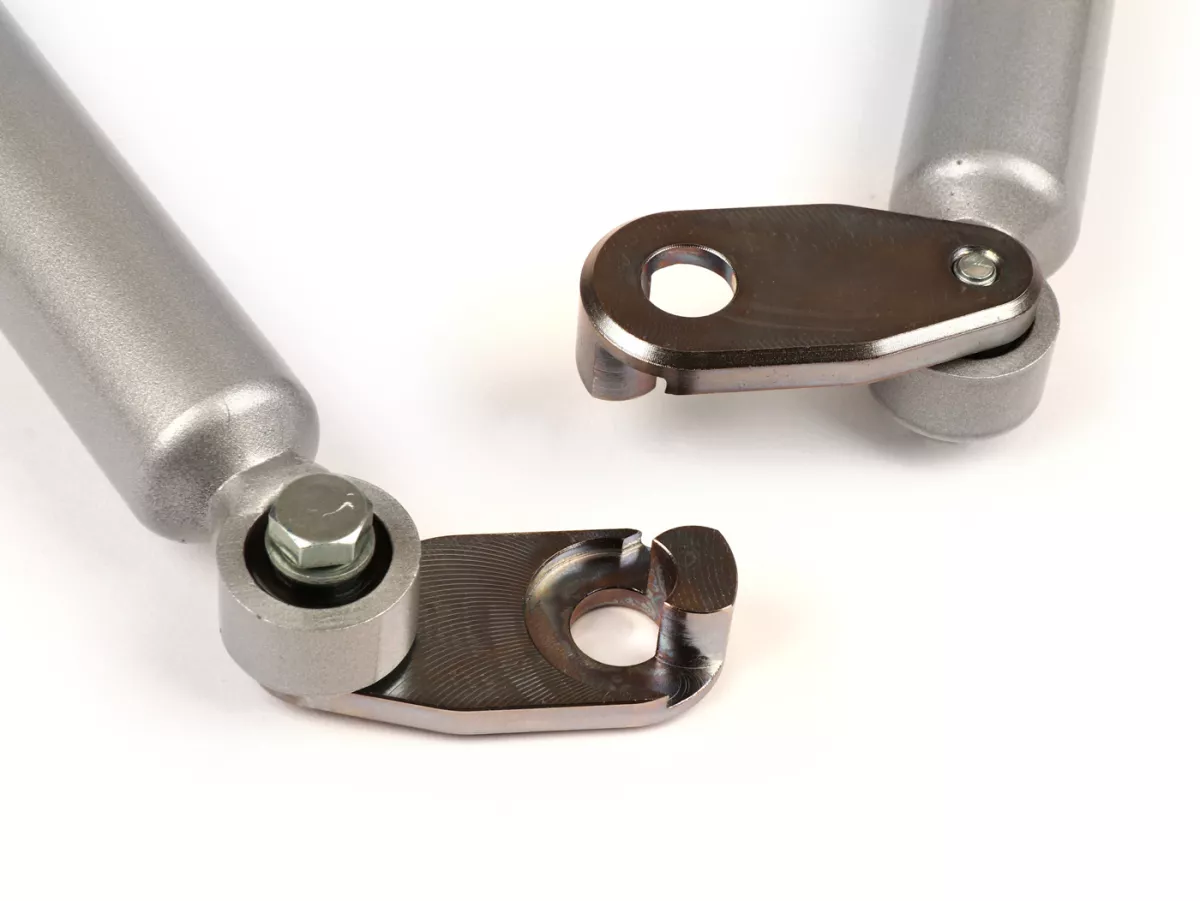

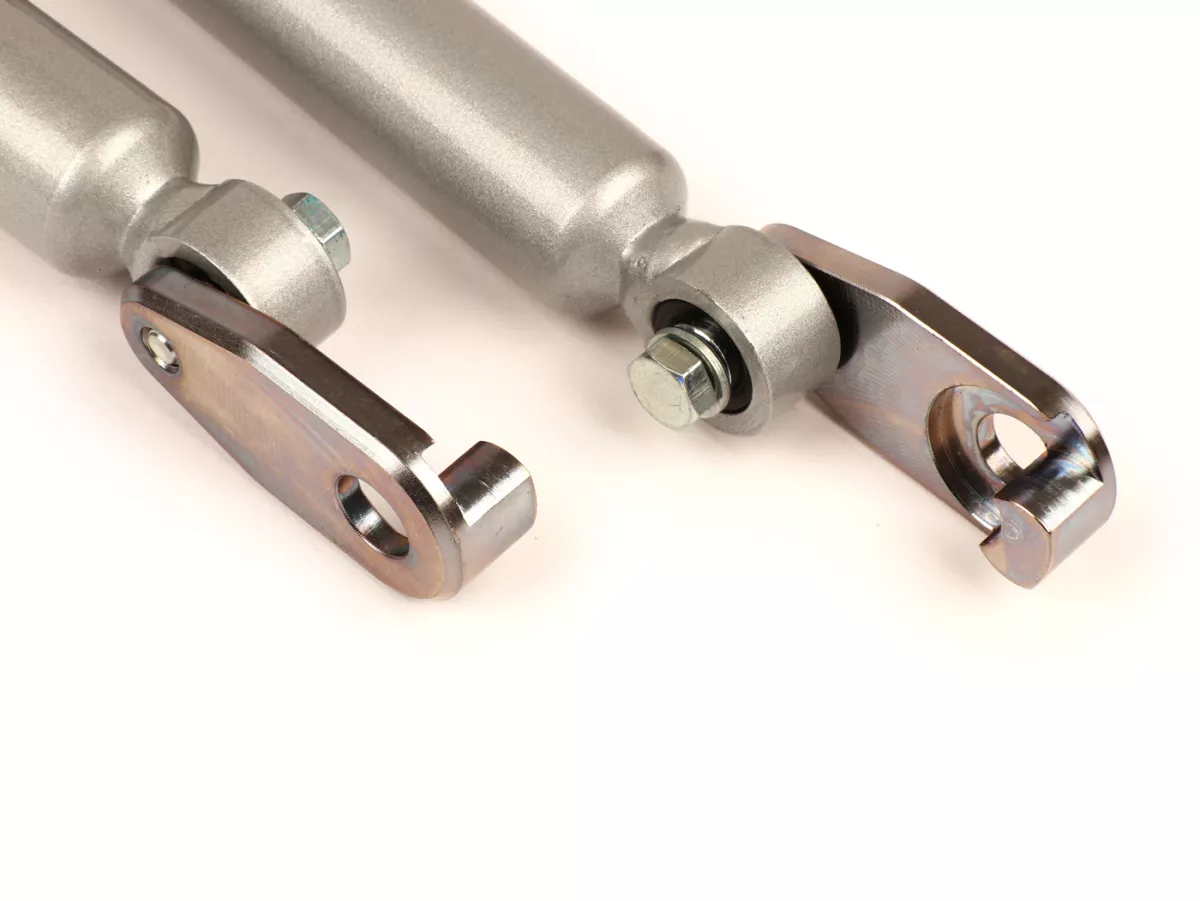

The lower holders are attached instead of the washer from the outside with the swinging arms
.

We recommend to secure the screws with screw lock (medium strength).

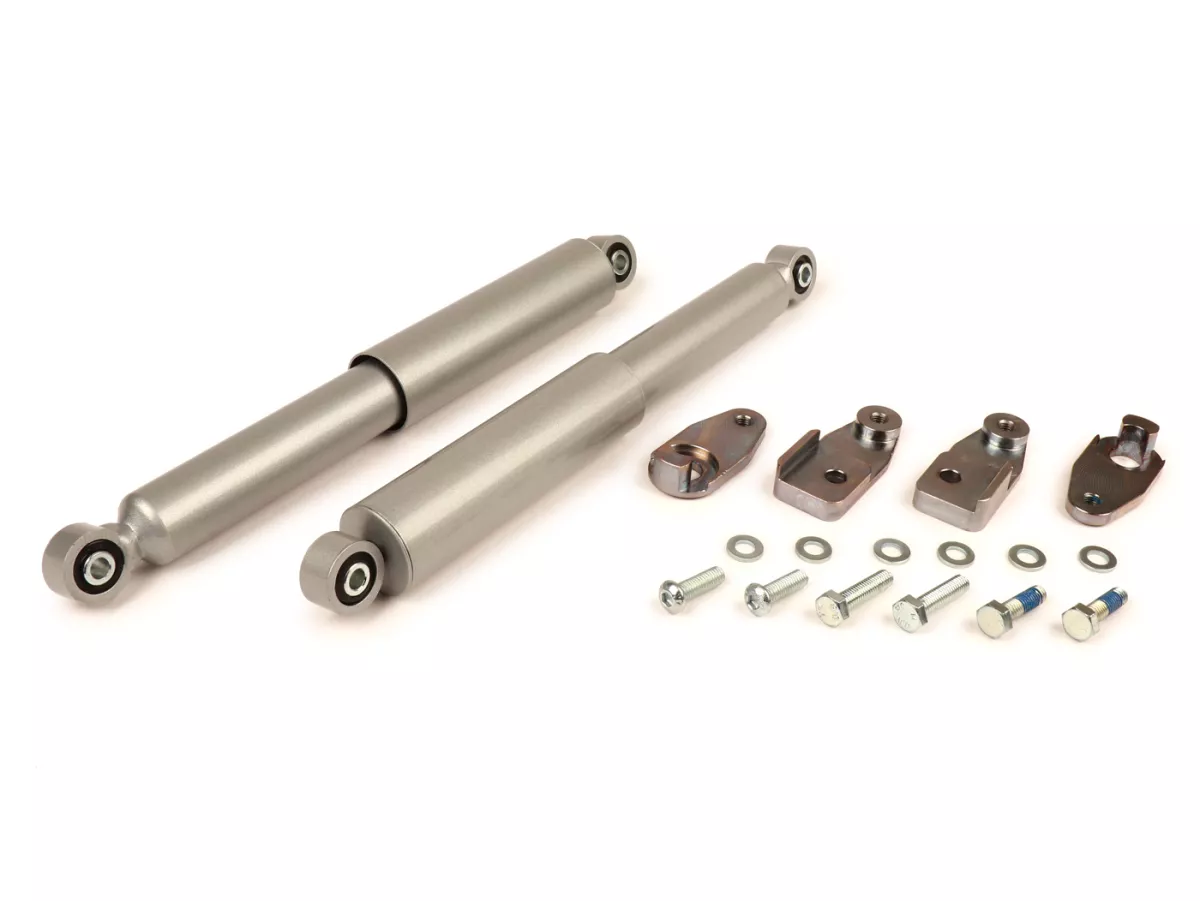

Scope of delivery:

Brackets shock absorber

2 x screws M6x20 hex ( bracket to fork )
2 x screws M6x25 hex ( damper to bracket above )
2 x screws M6x22 hex ( damper to bracket below )
6 x washer M6
