back

Show all articles from: Cylinder

OEM-Qualität Item number: 7671482

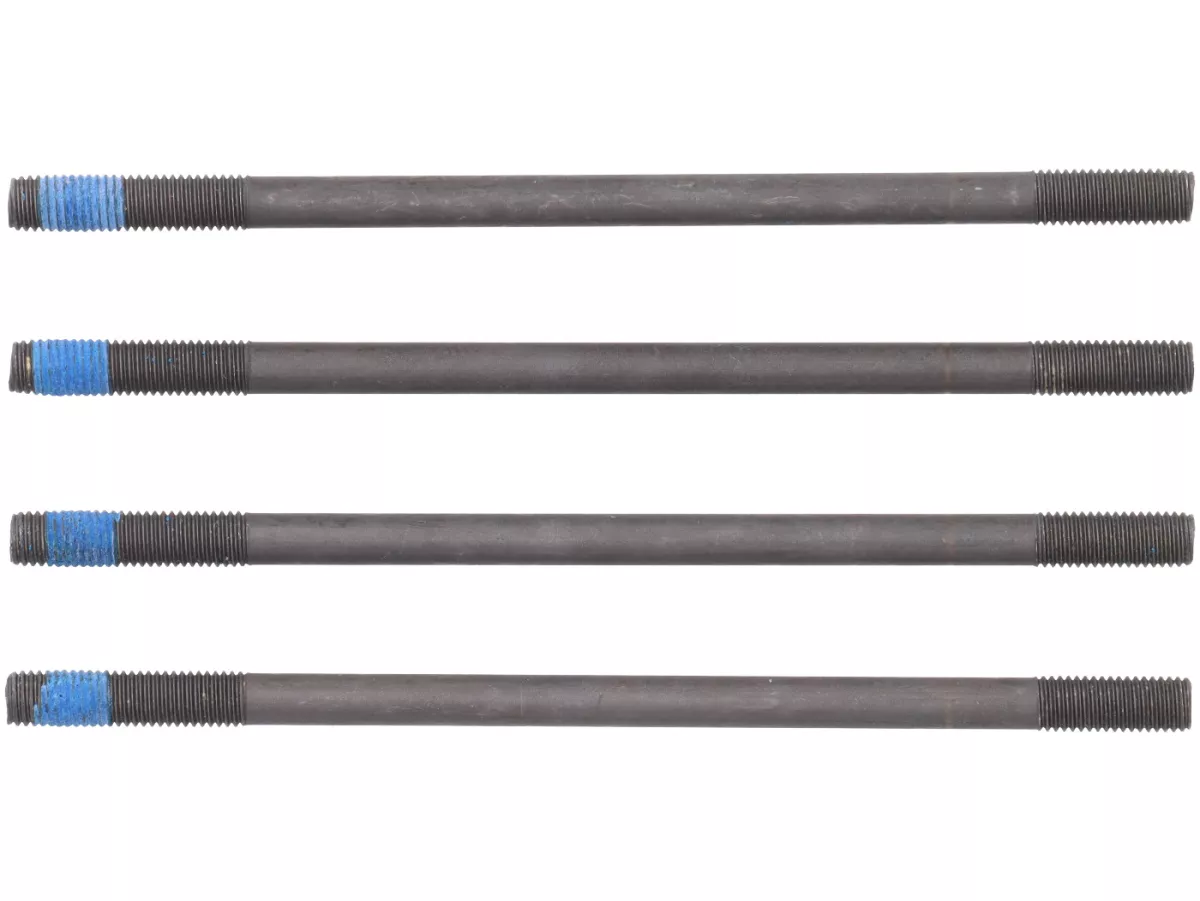

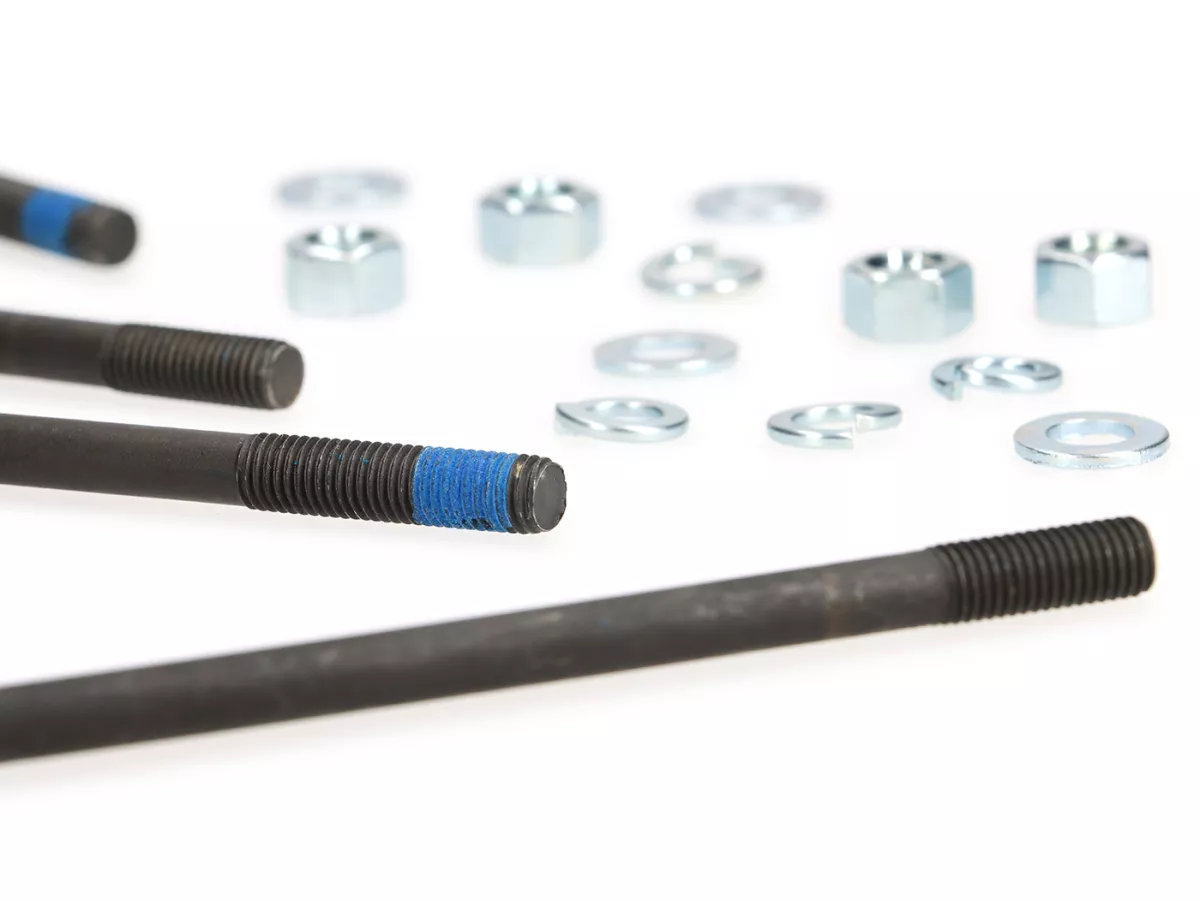

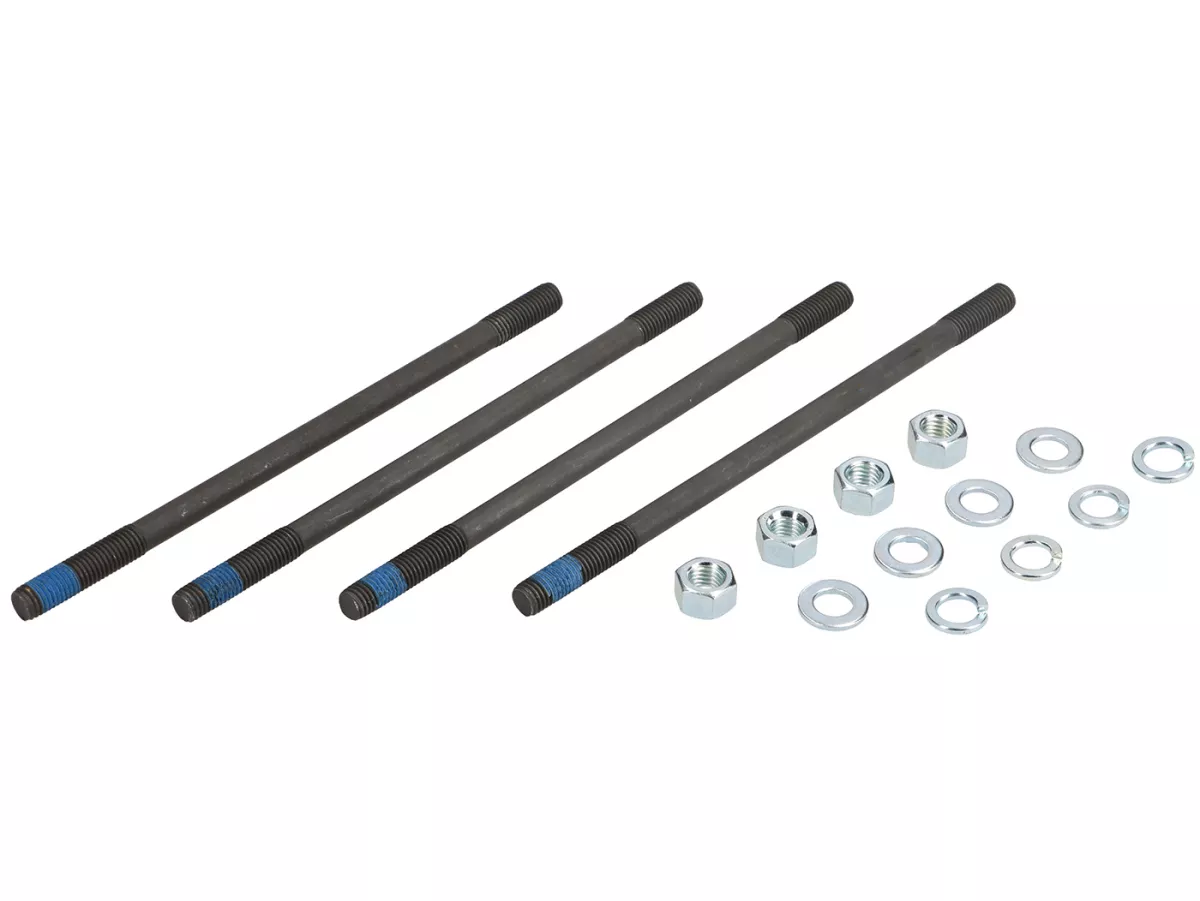

Stud set -M7 x 140mm- (used for cylinder Vespa PX80, PX125, PX150, Sprint GT125 (VNL2T), GTR125 (VNL2T), TS125 (VNL3T), Super, VNA, VNB, VBA, VBB, V90, SS90, PV125, ET3, PK80, PK125, Lambretta LD 125 (since yoc 1956), D 125 (since yoc 1956), LD 150, D 150

21 Ratings

10,90 €*

available immediately

Shipping weight 0,16 kg

Information on product safety

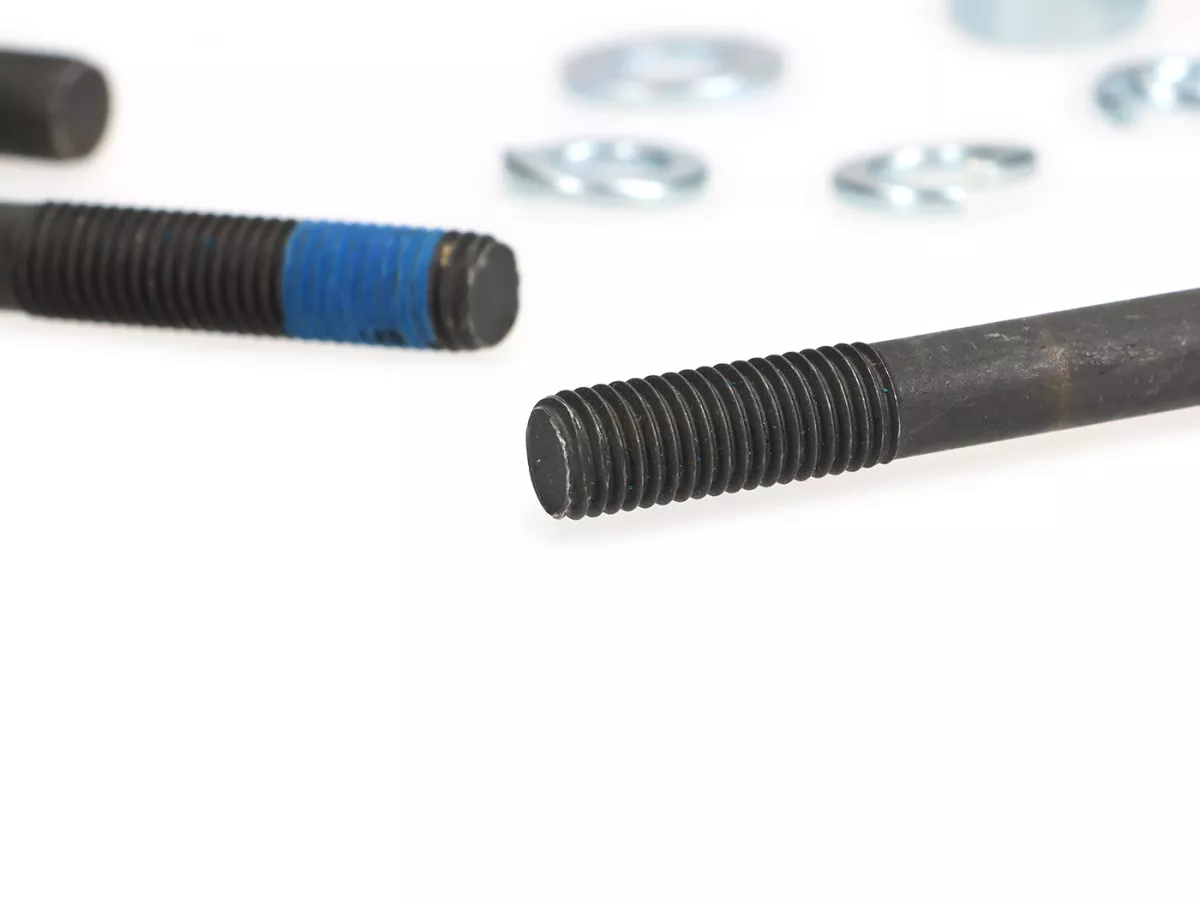

The studs of the PX80-150cc model series have different thread lengths.

Originally they are always installed with the long end towards the engine block. The original bolts therefore already have an applied screw glue on this long thread side.

Suitable for engines from Vespa ET3, Primavera, PK 125,PX80, PX125, PX150, Cosa125, Cosa150, Sprint, VBB, VNB etc.
M7x140mm

(US)

_{AI-translation}

This is how we ensure, that reviews come from real consumers.

Josef F. 02/09/2026

Martin B. 10/26/2025

Rolf M. 06/16/2025

Michelino R. 05/12/2025

Anonym 07/26/2017

Very good quality.

Anonym 07/26/2017

Anonym 07/26/2017

Sehr gute Qualität

Anonym 07/26/2017

Sehr gute Qualität. Leider sind die Muttern nur in Baumarkt Qualität. Zum Entfernen der Stehbolzen auf keinen Fall diese Muttern gebrauchen, sondern im Spezialgeschäft High Tensile Nuts kaufen! Die in Originalfahrzeugen verbauten Muttern (gleich wie bei diesem Set) sind auch viel zu weich.

Anonym 05/28/2016

Kein Problem beim einbauen

Anonym 05/28/2016

Kein Problem beim einbauen.

Anonym 04/03/2016

Einwandfreie Qualität, passt perfekt.

Anonym 04/03/2016

einwandfrei

Stud bolt

Thread 1

M7x1,0

Thread 2

M7x1,0

Length thread 1

25,0mm

Length thread 2

15,5mm

Shank length

100,0mm

Total length

141,0mm

Shank diameter

6,5mm

Quantity included in delivery

4

one thread as screw-in side

ja

Material

Stahl

OEM numbers (for comparison purposes only)

Innocenti:

11110106

Scooter Center:

7671482

Tips & useful information

Matching blog articles for this product

Tutorial Stud bolt Vespa PX

Tutorial Stud bolt Vespa PX

Our first tutorial shows the important differences between the various types of stud bolts and how to fit them correctly.
