Dellorto Item number: DEL3051
Dellorto
199,00 €*
available immediately
Shipping weight 0,57 kg

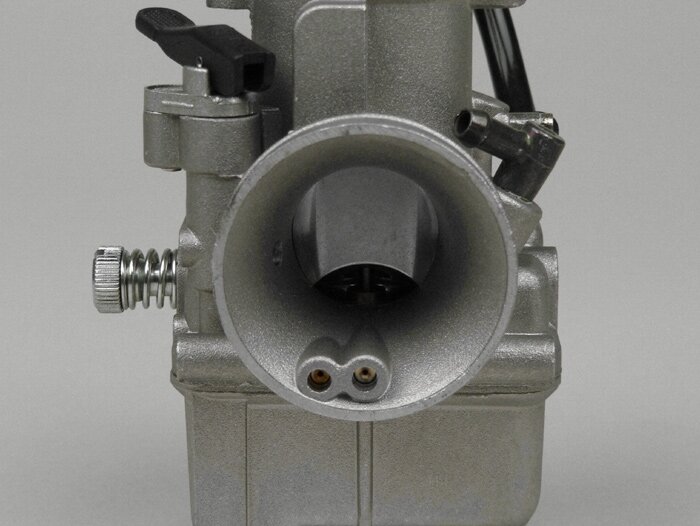

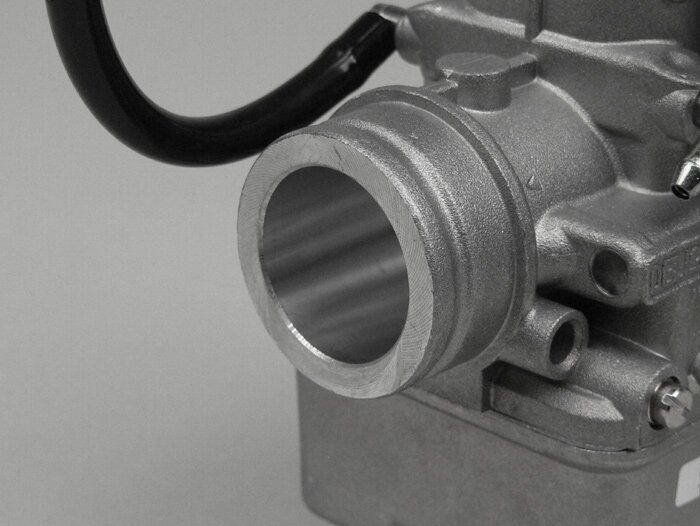

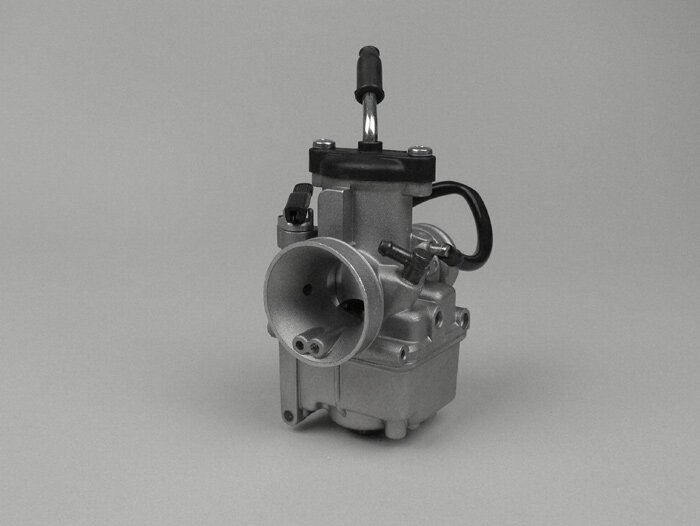

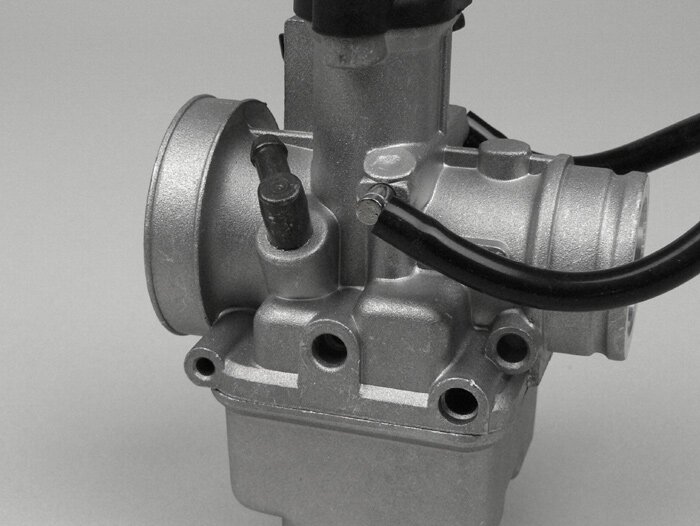

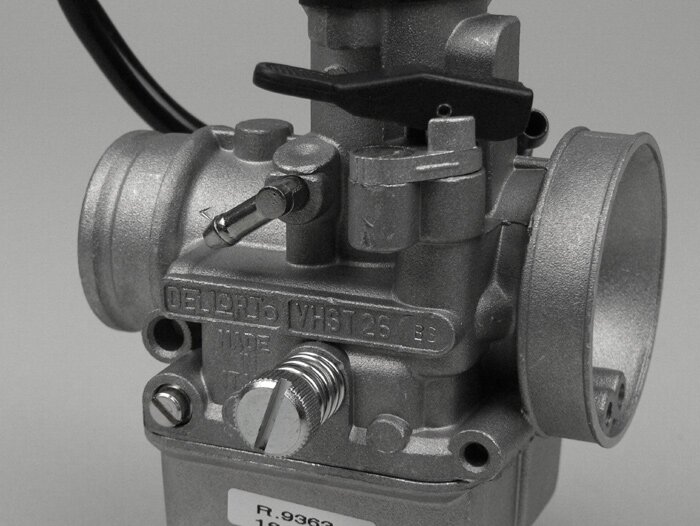

The latest product from Dellorto the VHST is a flat slide carburettor with an extremely small housing. Its dimensions lie exactly between a PHBH and a PHBL. With its 35mm connection it has the same dimensions as the PHPH, and can therefore be mounted on all rubber connectors with this dimension without problems. With 6mm main nozzles and D needles, Dellorto uses the standard range. Only with the mixing tubes HH and the secondary nozzles Dellorto treads a new path.
With the connection width for the air filter is 50mm.
AI-translation

Rate this article now and let us know what you think.
Carburetor
Main nozzle size
128
Main nozzle type
Dellorto 6mm (6413)
Secondary nozzle type
Dellorto VHST (16690)
Choke nozzle type
Dellorto (7746)
Needle type
Dellorto D (2265)
Slider type
Flachschieber
Choke type
manuell Hebel
Connection type Intake manifold
Gummiverbindung
Position of mixture screw
links
Fuel hose position
rechts
Fitting type
M6 x 0.75
Float chamber material
Metall
Size of secondary nozzle
S42
Choke nozzle size
60
Needle size
D48
Mixing tube size
HE265
has Powerjet
nein
Slider size
55
Height
126 mm
Width
68.5 mm
Depth
90.5 mm
Relative connection height
67.9 mm
Connection width air filter
49 mm
Connection width of intake manifold
36 mm
Fuel hose connection width
5.8 mm
has oil connection
nein
has vacuum connection
nein
Venturi size
26 mm
Connection type Air filter
geklemmt
Position of idle throttle screw
links

OEM numbers (for comparison purposes only)
Dellorto:
09363
