Keihin Item number: 7671384
Keihin

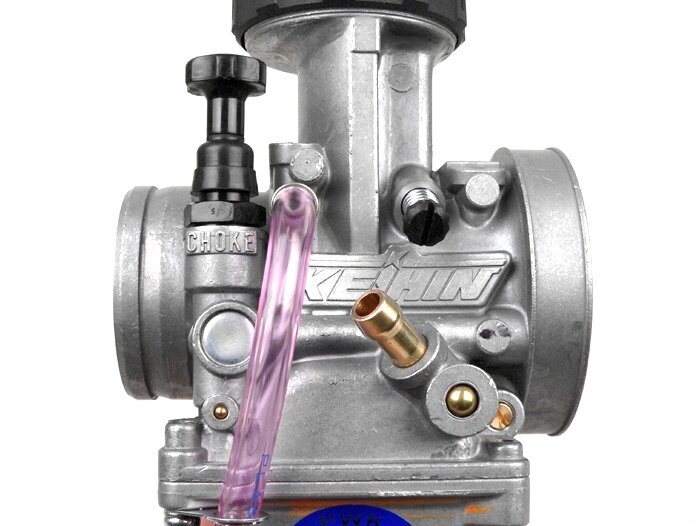

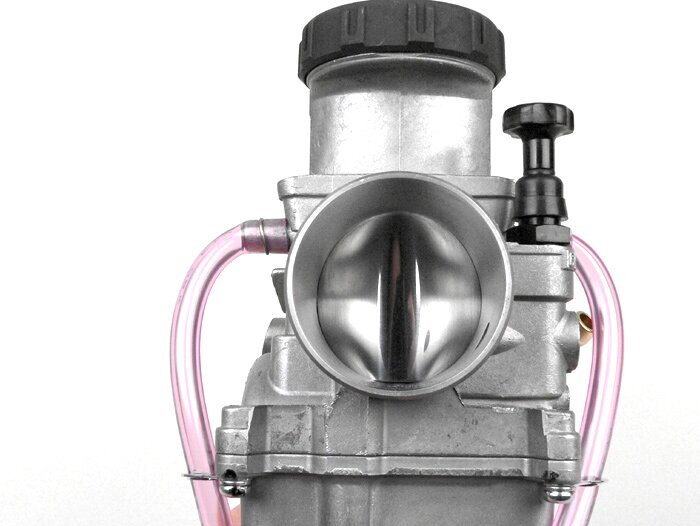

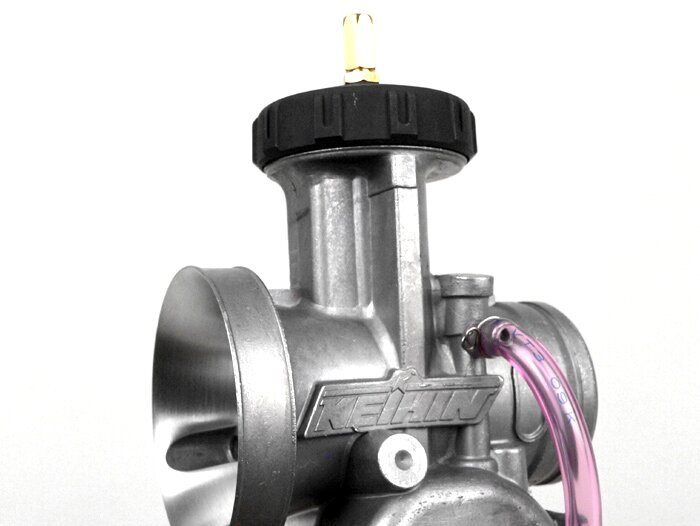

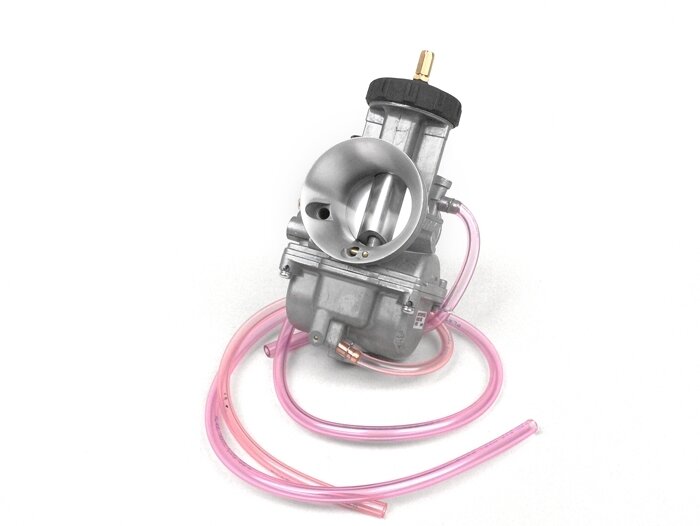

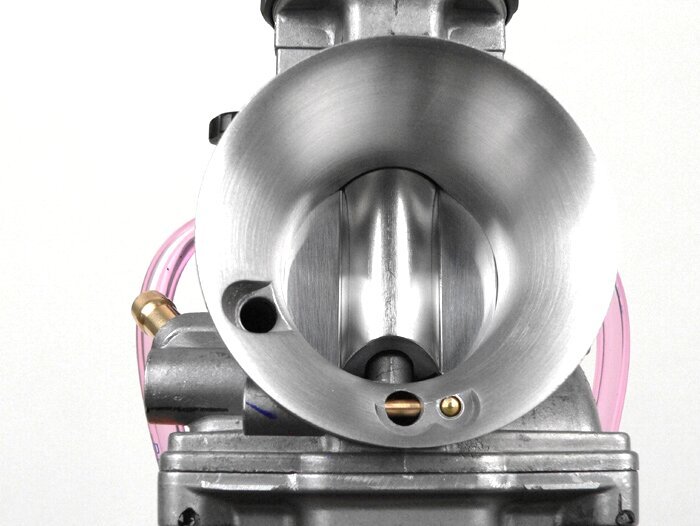

Carburator -KEIHIN PWK Pro 41mm manual choke - CS=46mm

499,00 €*
not available
Shipping weight 0,67 kg
Send me an e-mail as soon as the item is back in stock.
Information on product safety
Good choice for all diaphragm systems in the RD 350 class.
The original Keihin tuning carburetors can all be tuned very well. They come with a well fitting basic setup and the ranges hardly overlap. The float chamber offers a good volume, all this in a compact design!

Kyajet - PWK tuning tool (click)
AI-translation

Rate this article now and let us know what you think.
Rate this product now
Carburetor
Main nozzle size
160
Main nozzle type
Keihin 5mm (99101-357) PWK
Secondary nozzle type
Keihin (N424-21)
Slider type
D-Schieber
Choke type
manuell Zugknopf
Connection type Intake manifold
Gummiverbindung
Position of mixture screw
links
Fuel hose position
links
Fitting type
M6 x 0.75
Float chamber material
Metall
Size of secondary nozzle
60
Needle size
DGH
has Powerjet
nein
Slider size
6
Height
171.6 mm
Width
85 mm
Depth
91 mm
Relative connection height
83.5 mm
Connection width air filter
63 mm
Connection width of intake manifold
46 mm
Fuel hose connection width
7 mm
has oil connection
nein
has vacuum connection
nein
Venturi size
41 mm
Connection type Air filter
geklemmt
Position of idle throttle screw
links
