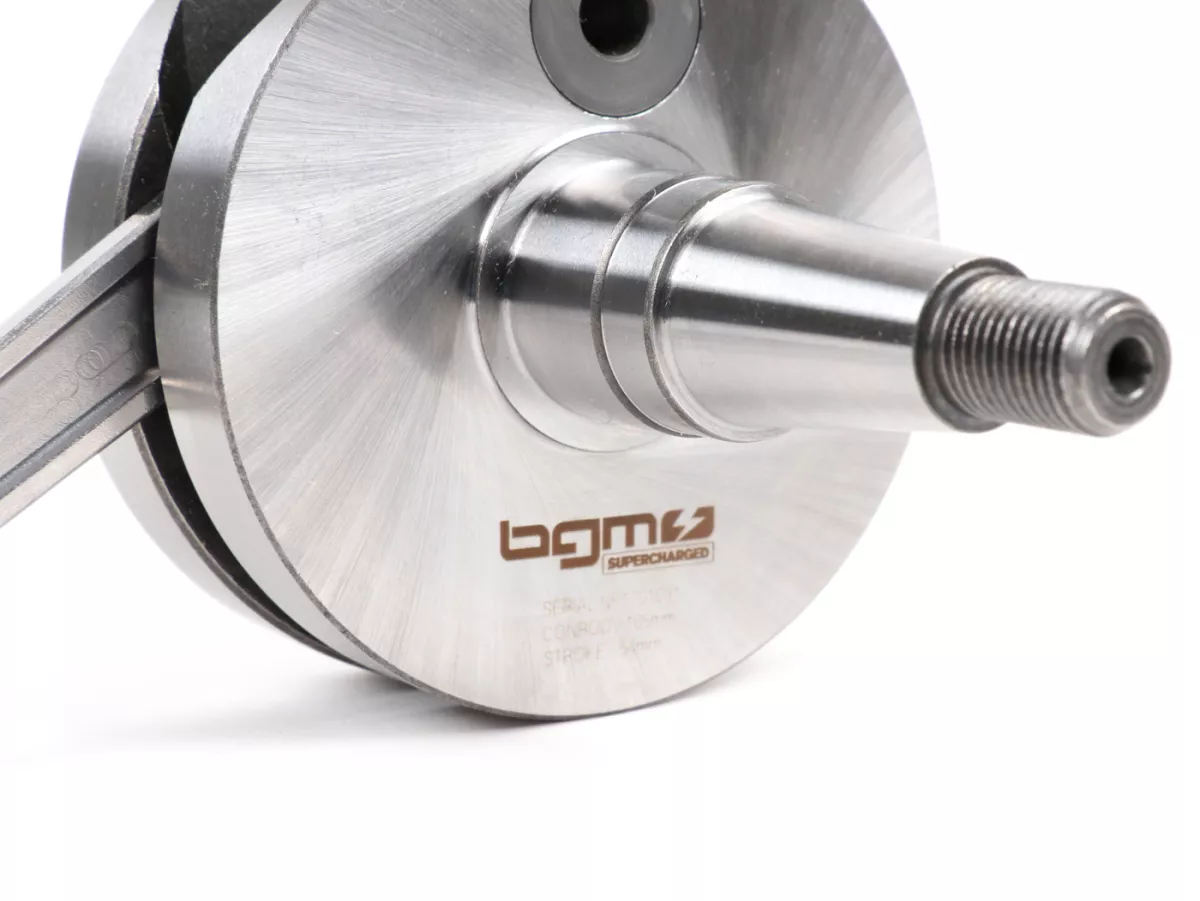

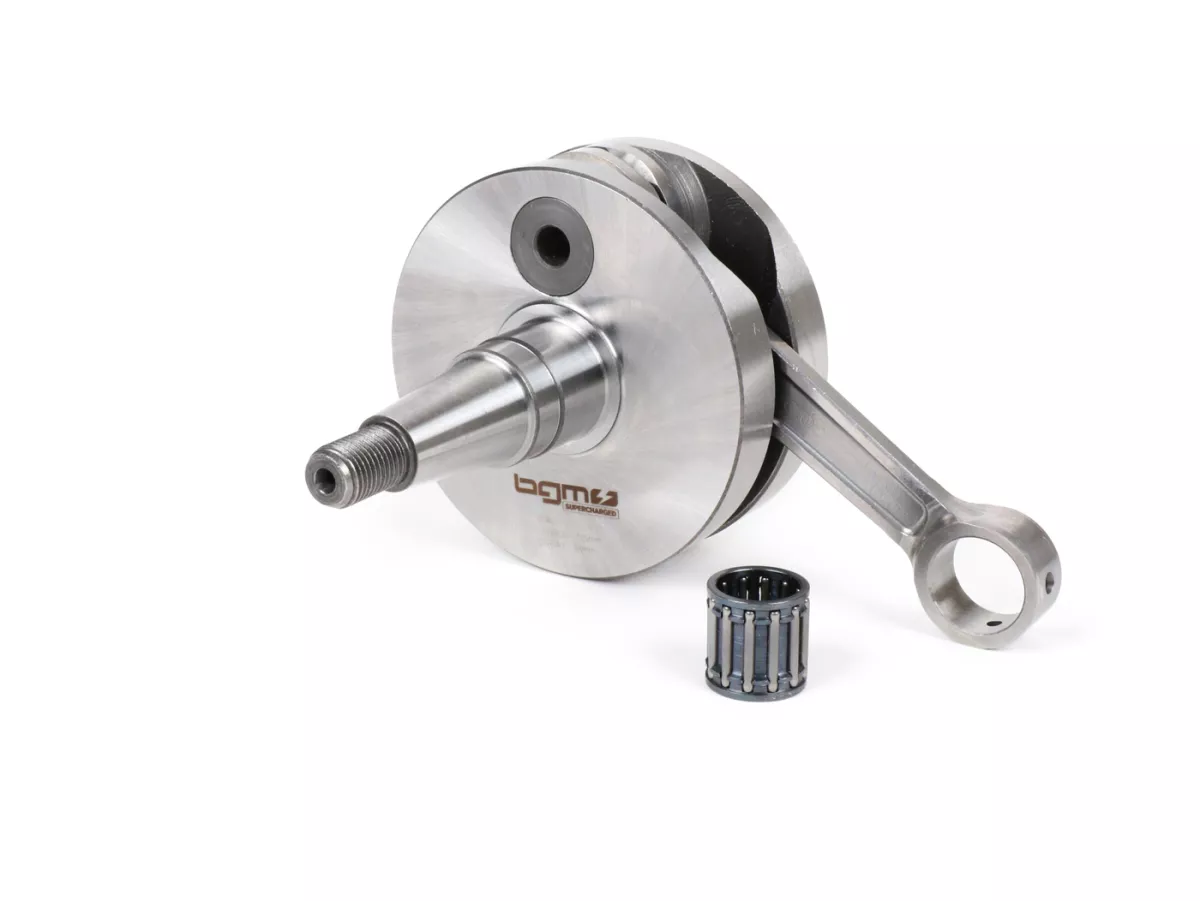

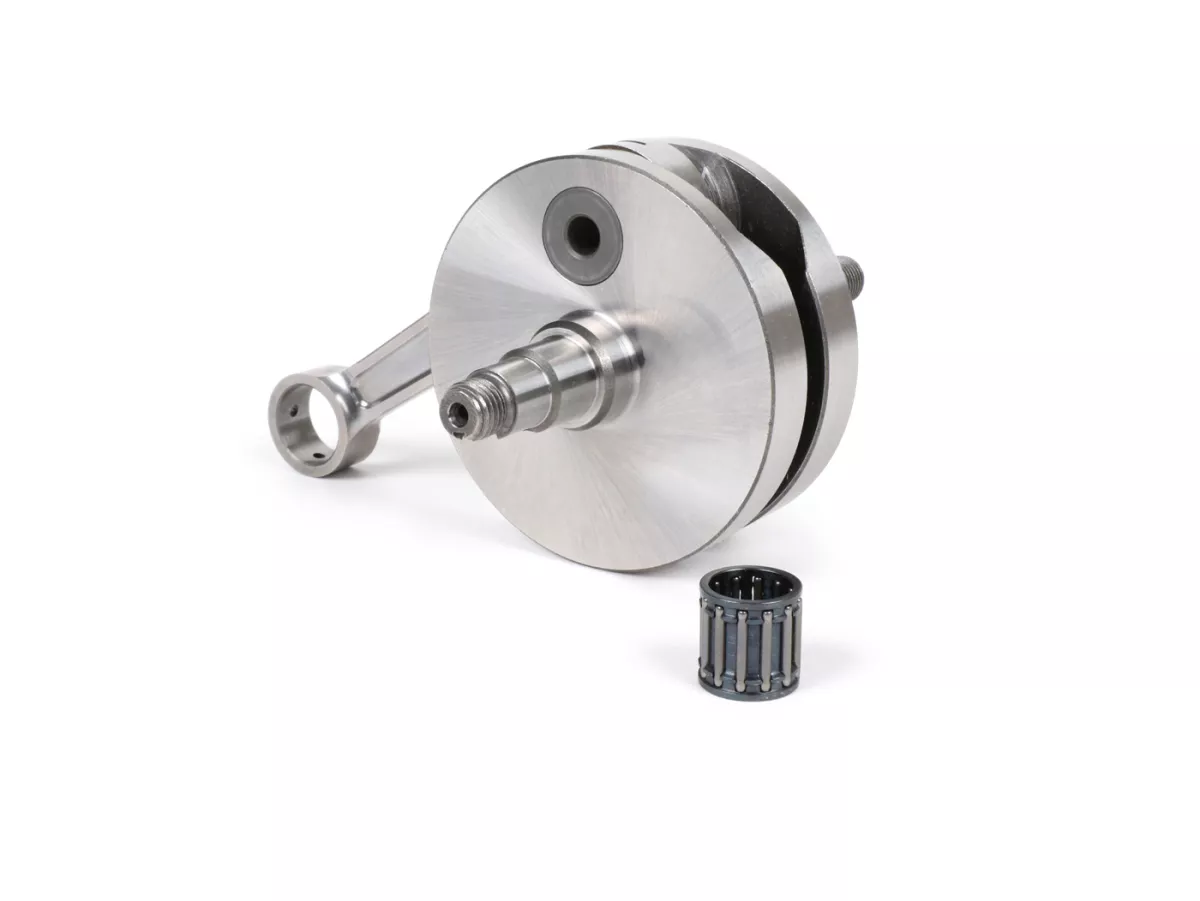

BGM PRO Racing crankshaft for reed valve inlet 54/105 mm Ø 24 mm

The bgm PRO Racing shaft with 54 mm stroke is the maximum for racing or ambitious street tuning.
In contrast to a normal shaft, the cheek diameter has been increased in order to

achieve

the necessary, higher overlap on the crank pin and thus additional torsion resistance despite the increased stroke.

.

This minimizes the risk of twisted cheeks and welding with the usual disadvantages is not necessary.

In the case of virgin housings, the housing must therefore

be spindled

to 88 mm,

a huge advantage being the high-quality 105 mm long connecting rod, with cleanly executed lubrication holes and now 5 mm thick. This is eight millimeters longer than the standard connecting rod of the 125cc. The advantages of the longer connecting rod are a more favorable deflection angle and the resulting lower friction of the piston in the raceway.

This increases performance and results in lower pre-compression, which works particularly well with the new reso systems such as the Feuerzauber from Ludwig und Scherer.

The transition at the transfer ports to the engine housing can also be made much more flow-favorable, which results in better performance .

We also recommend the spacer (BGM0223) to distance the cylinder and keep the timing the same. Furthermore, longer M7 stud bolts (BGM 0290) must be used. All this is included in the kit (7673184).

The shaft is operated with the standard ETS bearing.

-

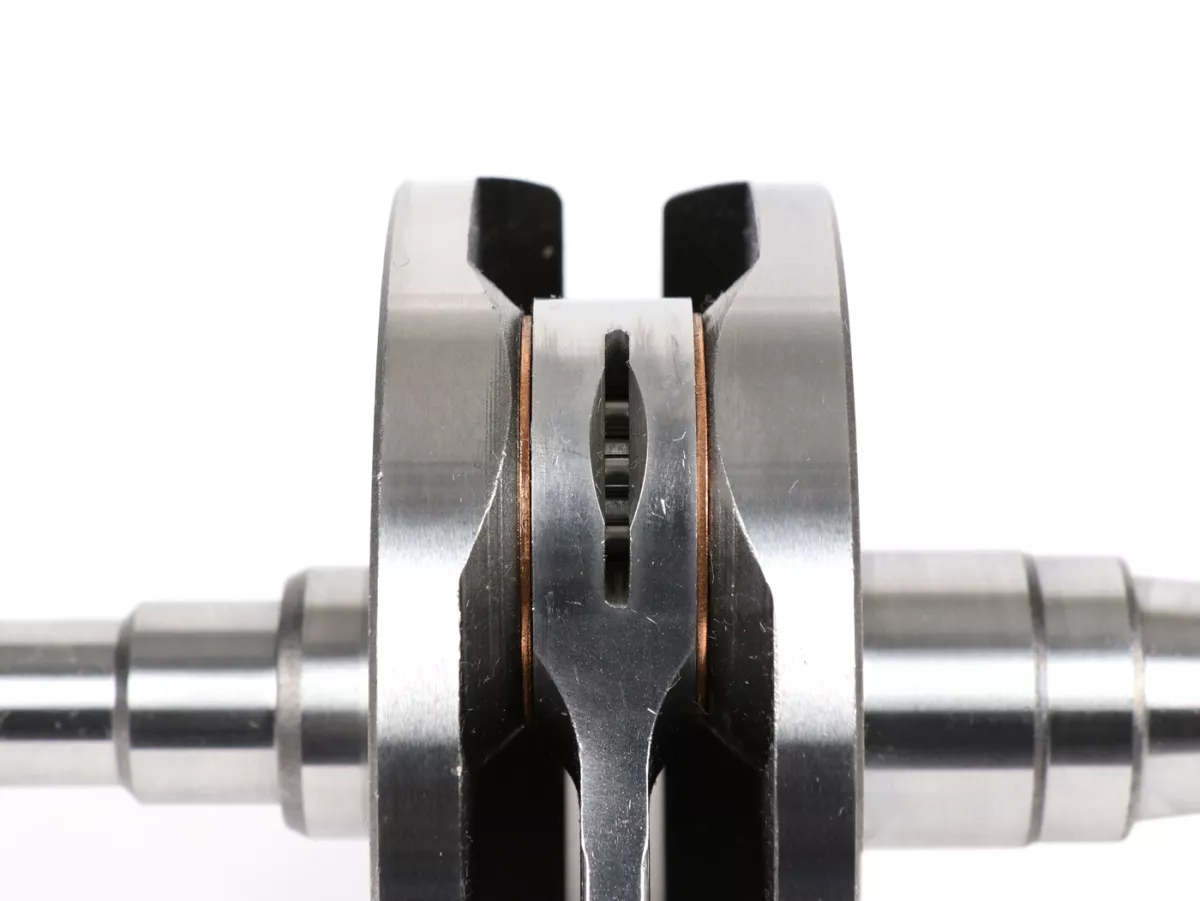

Torsion-proof, stable cheeks

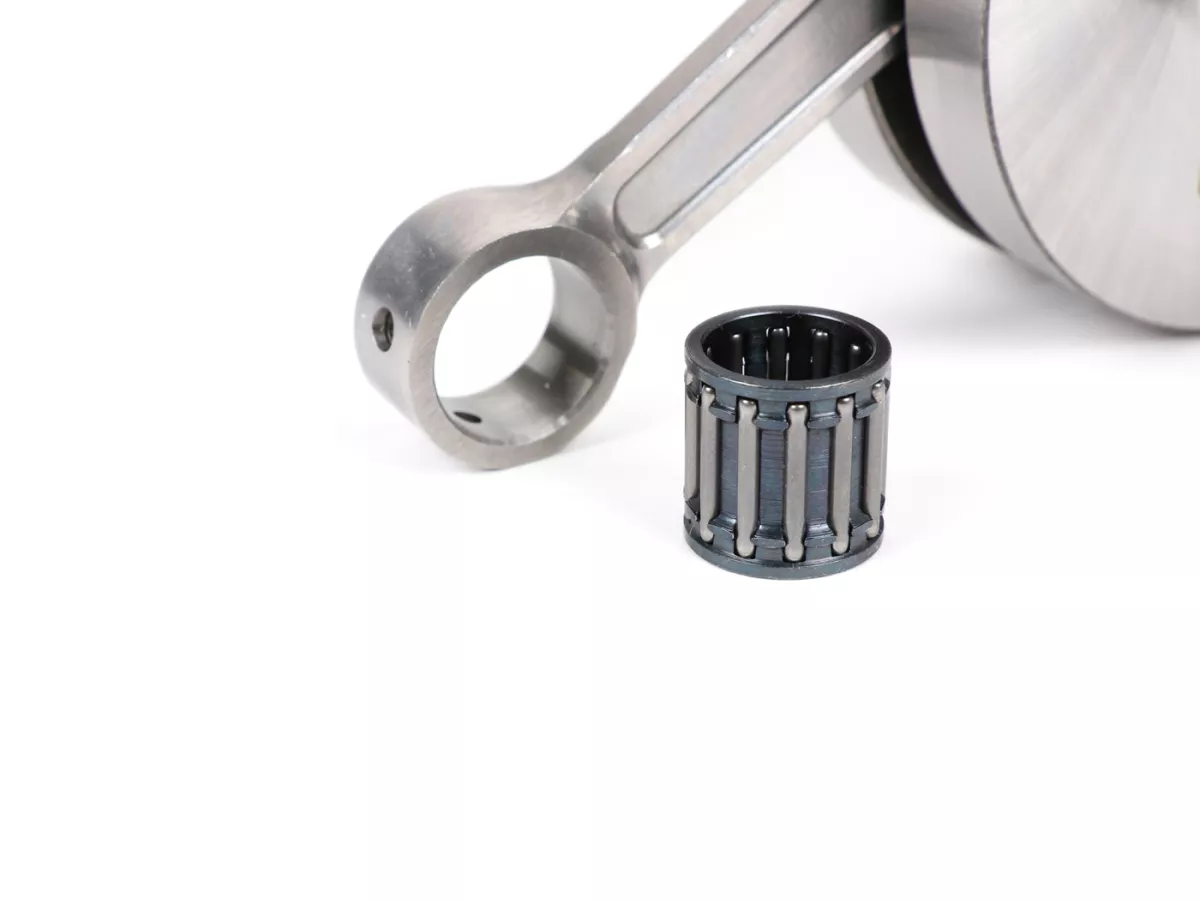

- High-quality 105 mm long connecting rod with 5 mm thickness

- Good lubrication holes and slots

- Reasonably dimensioned thrust washers

- Designed for the high-speed ETS Lima bearing

- Lower pre-compression

- Favorable deflection angle on the connecting rod bearing

This is how we ensure, that reviews come from real consumers.
Anonym  01/30/2018

bon produit

Anonym  03/20/2016

Preis/Leistung IO TOP Produkt !

Ball bearing
Dimensions
15x19x20mm

Piston pin
Diameter
15 mm

Crankshafts
Stroke
54 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M10x1,5 Rechtsgewinde
Crank web diameter
87 mm
Crankcase must be spindled
nein
Motor housing must be modified
ja
Rotary vane crankshaft
nein
Full cheek crankshaft
ja
Filling material for full cheek
Stahl
Wide crank webs
35 mm
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
17 mm
Diameter of sealing ring seat on alternator side
24 mm
Diameter of sealing ring seat on drive side
22.7 mm

Connecting rod
Connecting rod length
105 mm
Connecting rod strength
5 mm
Connecting rod eye top diameter
19 mm
Lifting pin diameter
20 mm
Upper connecting rod eye lubrication hole
ja
Lower connecting rod eye lubrication hole
Schlitz
Connecting rod thrust washers
ja

General
EAN
4250366692609
