BGM PRO Item number: BGM2403
BGM PRO
4 Ratings
110,00 €*
available immediately
Shipping weight 1,2 kg

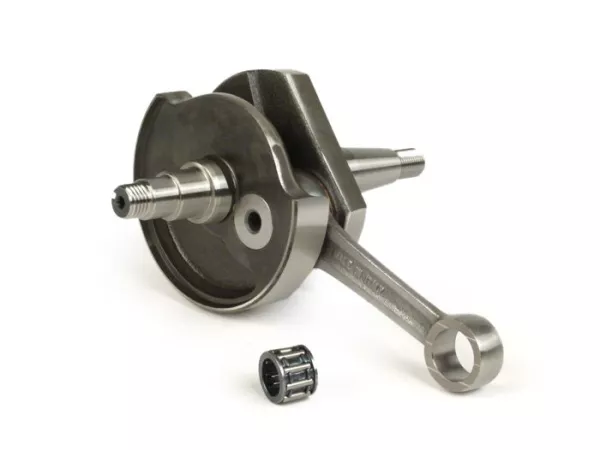

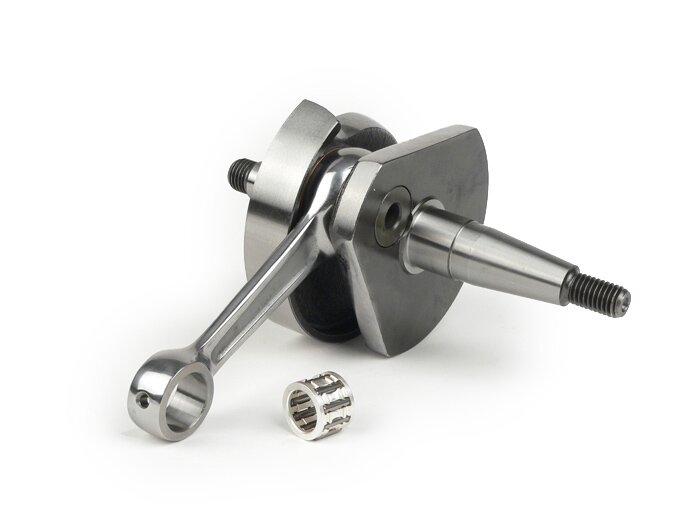

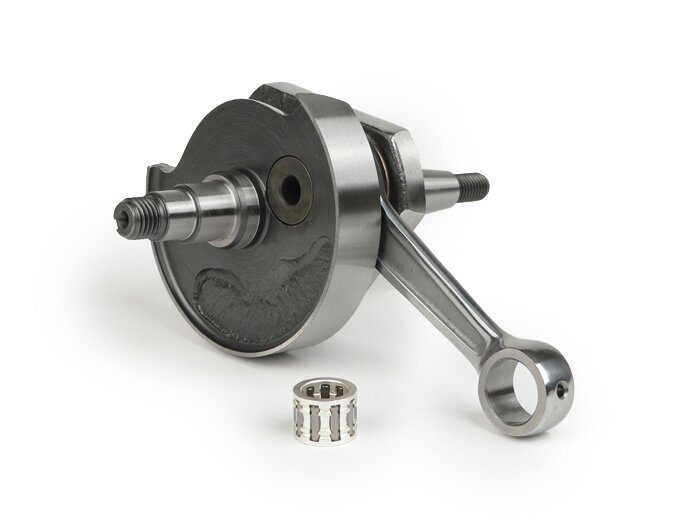

BGM PRO Racing crankshaft for Vespa V50 and PK50 with Ø19 mm cone

Material:
The BGM crankshafts are forged like in the good old Piaggio days. During forging, the material is pressed together under high temperature and pressure. This results in a higher density of the material. Heat is dissipated much better. The material is more resistant to warping. This is a huge advantage over the crankshafts produced by other manufacturers, whose materials often do not even reach the level of a standard shaft.

Tuning:
The high quality of the material used also allows the use of very light pole wheels without the risk of crankshaft damage. This allows better acceleration behavior to be combined with significantly increased engine durability. This is particularly important on high-displacement and high-speed engines.

Timingangle:
The timing angle of this crankshaft is longer than that of a standard shaft. Ideal for giving all cylinders, from 50cc Sport to 112cc Racing, a lot more steam. With tuning cylinders, the standard shaft with its much too short intake time cannot keep up. When a certain engine speed level is reached, the engine is then literally shut off. With the optimized control angles of our shaft, the engine can be tuned as if an original Piaggio shaft had been installed. Nevertheless, the extended intake angle ensures that even completely rebuilt engines can fully rev up. In addition, the rotary valve inlet of the housing can be extended to create sufficient space for a larger carburettor and to further increase the engine's performance.

Design:

Crankshaft

with so-called small cone with 19 mm. Such shafts can be recognized by the diameter of the shaft sealing ring surface on the alternator side. This is the surface that is located after the cone, but before the bearing seat of the bearing on the crankshaft stub.

  • Cone: 19 mm, pointed
  • Control angle: Standard
  • Stroke: 43 mm
  • Connecting rod bearing top: 12 mm

TIP: The 19 mm diameter shafts have a narrow pointed cone, which can also break off in powerful engines with high engine speeds. In this case, we recommend converting to a crankshaft with a 20 mm taper. However, this requires the ignition to be converted.



This is how we ensure, that reviews come from real consumers.
Anonym  11/05/2014

die Quallität ist der Hammer. Für V50 mit 85 ccm top

Anonym  08/20/2015

In diesem Preissegment die Beste Kurbelwelle auf dem Markt!

Anonym  09/25/2021

Angegebene Maße vom Pleuel...
Die Welle sieht ordentlich aus. Die Angegebenen Maße vom Pleuelauge und Lager stimmen allerdings nicht. Das Pleuelauge hat einen Durchmesser von 17 mm und das Lager hat die Maße 12x17x12,6. Vielleicht kann Scooter-Center das im Shop korrigieren.

Roland W. from Straßkirchen 06/17/2025
Ball bearing
Dimensions
12x15x15mm

Piston pin
Diameter
12 mm

Crankshafts
Stroke
43 mm
Thread on alternator side
M10x1,5 Rechtsgewinde
Thread on drive side
M12x1,25 Rechtsgewinde
Crank web diameter
87 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
ja
Length of rotary vane sealing surface on crank web
185 mm
Vespa V50, PV - Control angle short sealing surface (22mm) (°)
145
Vespa PK XL2, ETS - Control angle long sealing surface (28mm) (°
153
Vespa PK XL2, ETS - Control angle long sealing surface (37mm ful
166
Full cheek crankshaft
nein
Wide crank webs
37.8 mm
Bearing seat diameter on alternator side
20 mm
Bearing seat diameter on drive side
17 mm
Diameter of sealing ring seat on alternator side
19 mm
Diameter of sealing ring seat on drive side
22.7 mm

Connecting rod
Connecting rod length
87 mm
Connecting rod strength
4.5 mm
Connecting rod eye top diameter
19 mm
Lifting pin diameter
20 mm

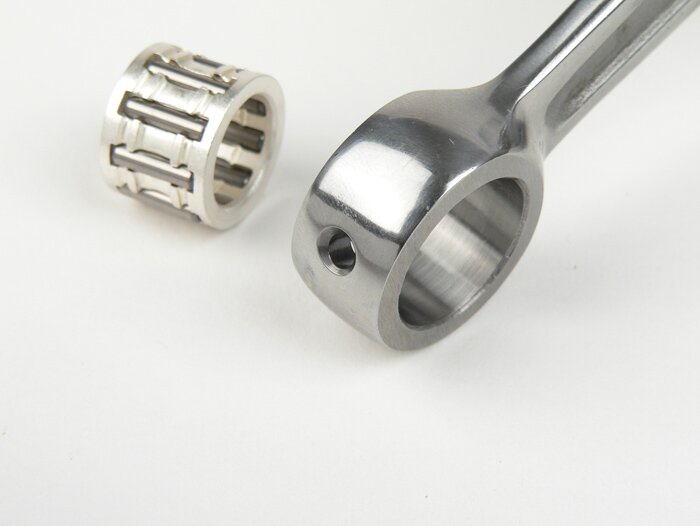

Upper connecting rod eye lubrication hole
ja
Lower connecting rod eye lubrication hole
Nut

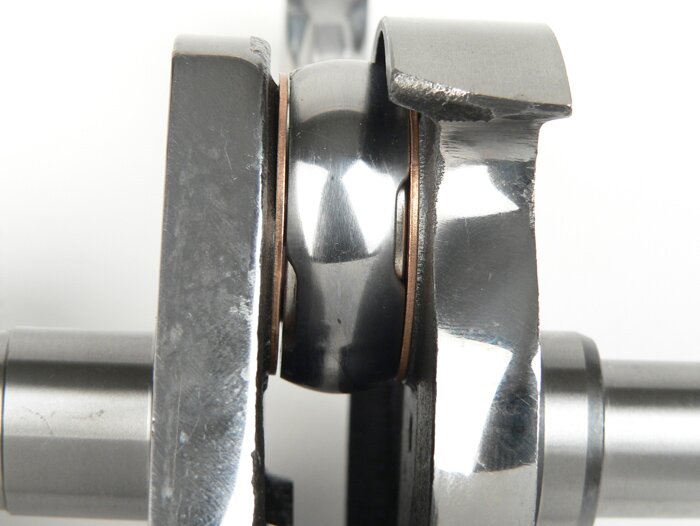

Connecting rod thrust washers
ja

General
EAN
4250366615530
