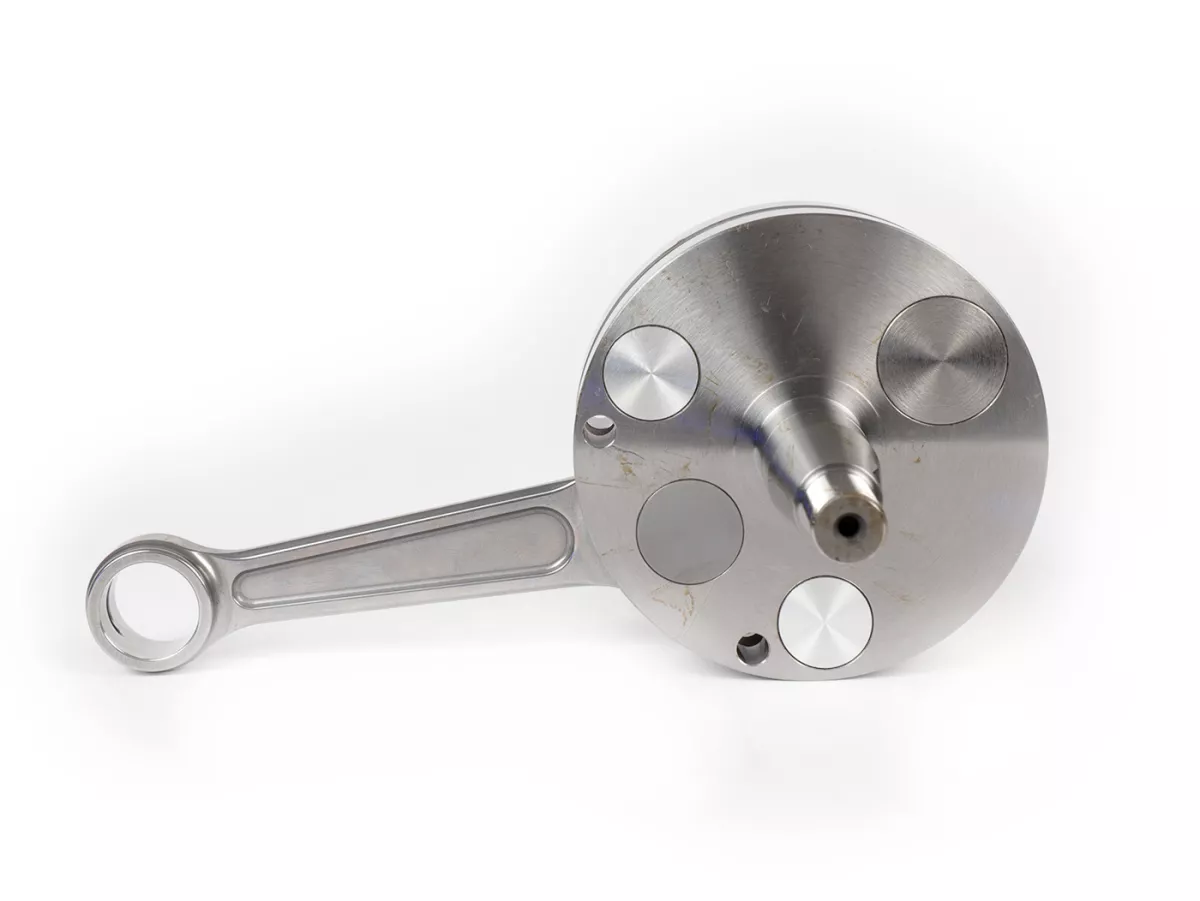

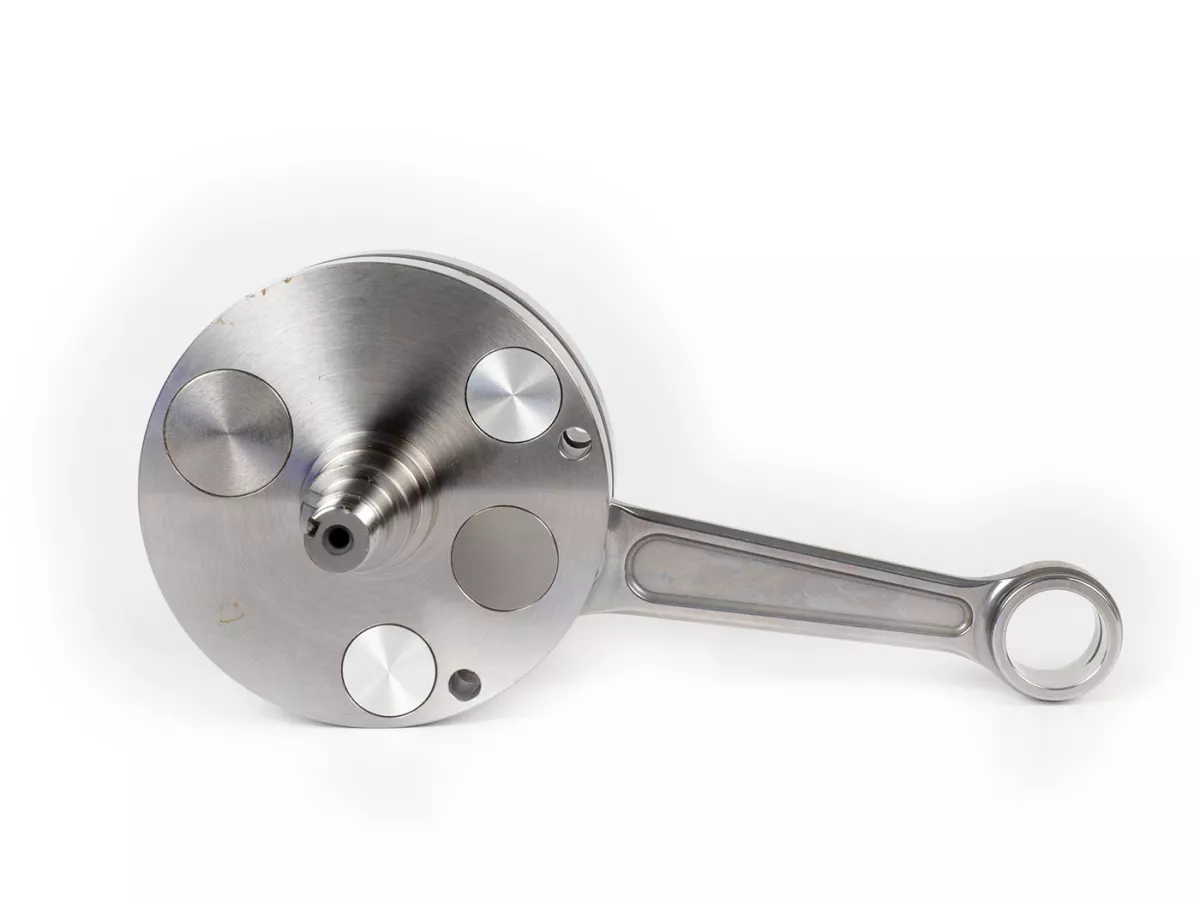

Polini full-circle crankshaft 54 mm – for direct intake PX setups

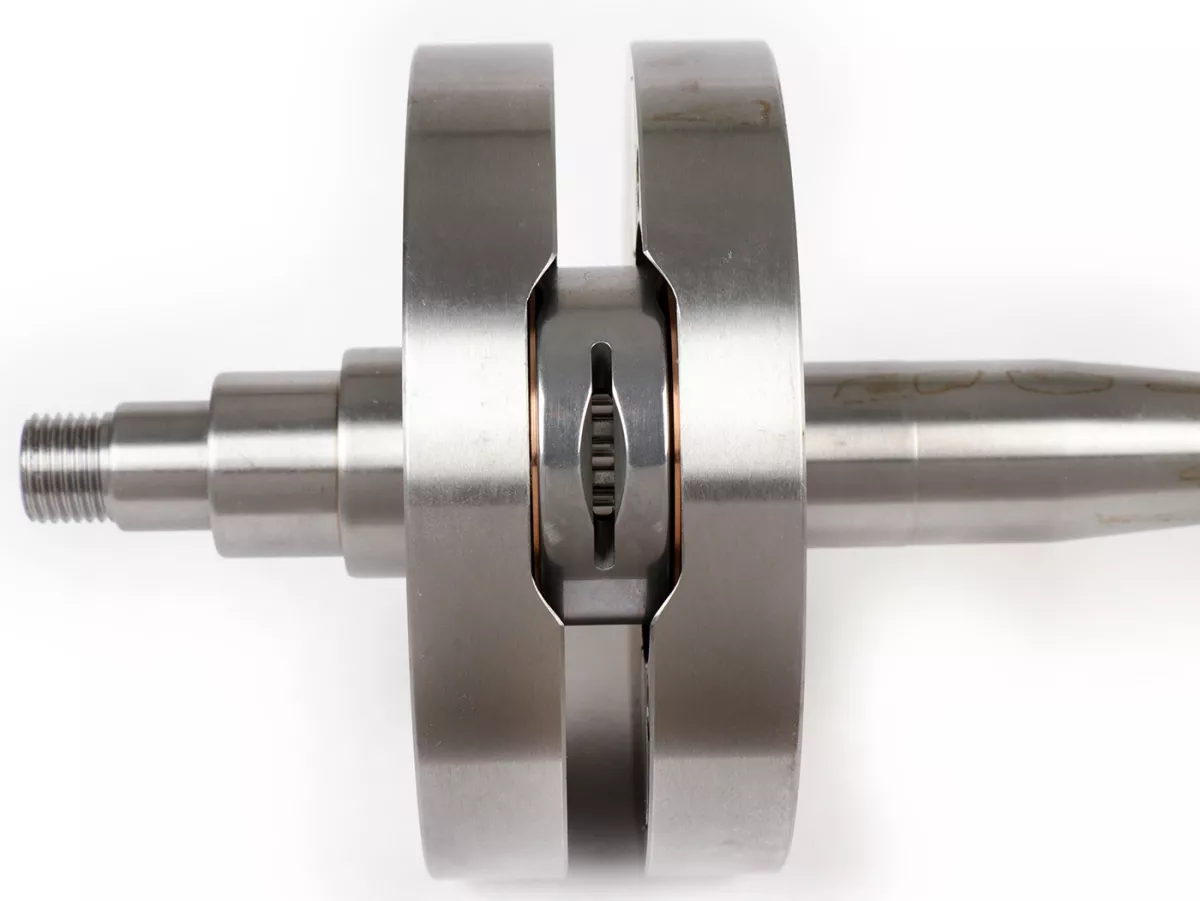

Solid cheek shaft Polini 54mm stroke

Polini offers here a matching crankshaft for their new direct aspirated cylinder (P1400227 ), with which you get together to 152cc.

  • 105mm CNC slotted connecting rod top and bottom

  • Finely balanced via balancing holes and weight

  • 1680g heavy

  • bearings on both sides 6204

  • Oil seal alternator 20x35x7mm

  • Oil seal drive 22,7x47x7,5mm

  • Spindle dimension left crankcase: Ø89,5x 22,4mm

  • Spindle dimension right crankcase: Ø89,5x 15,8mm

  • Spindle dimension cylinder base Ø 65,3mm

  • Thread alternator and drive side M12x1,25mm

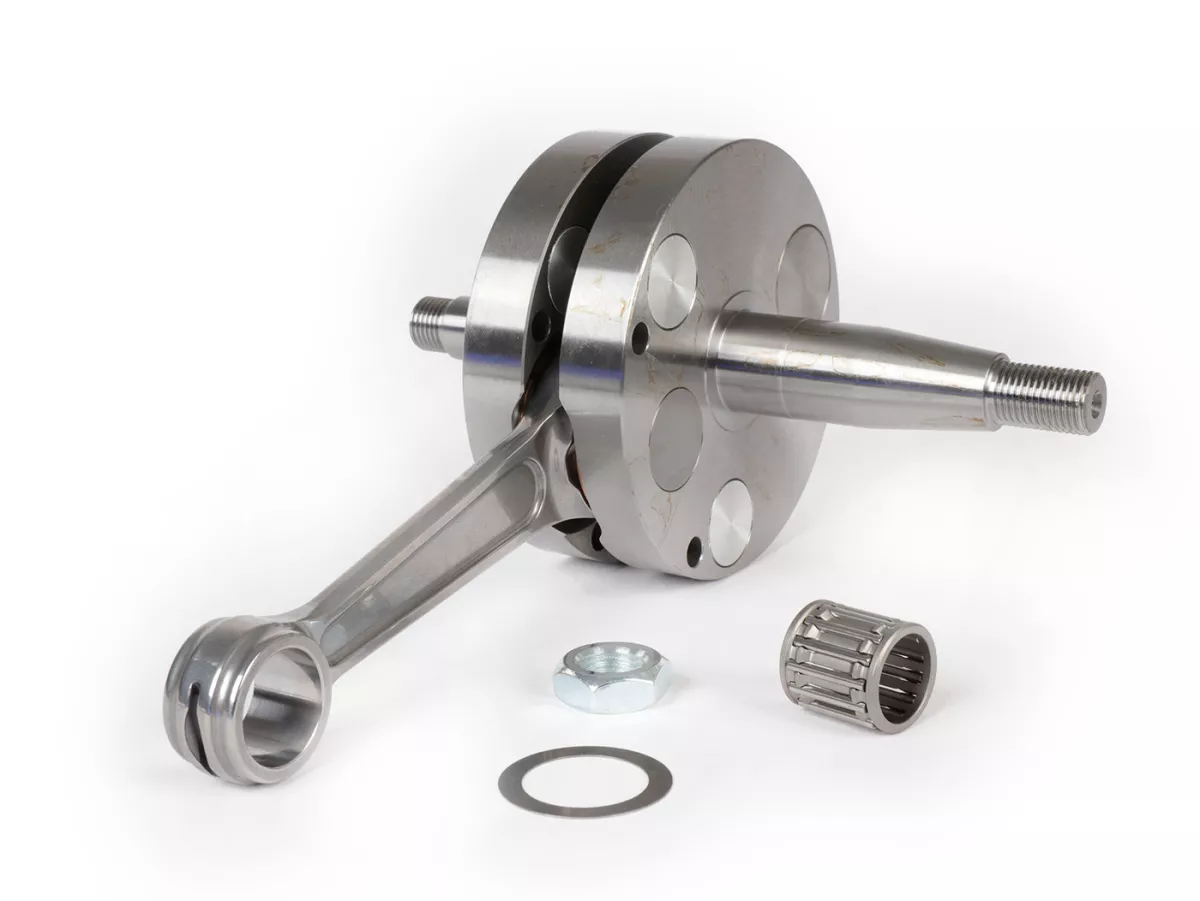

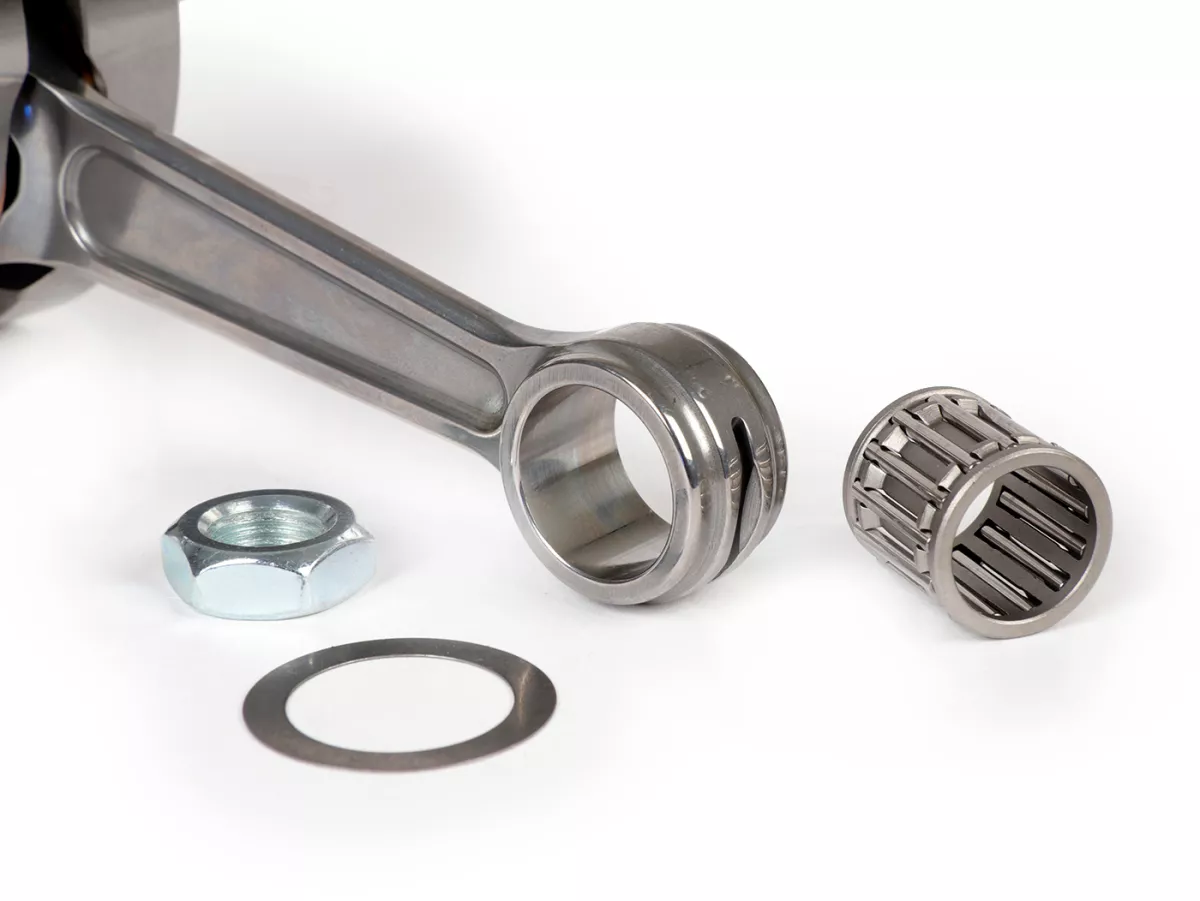

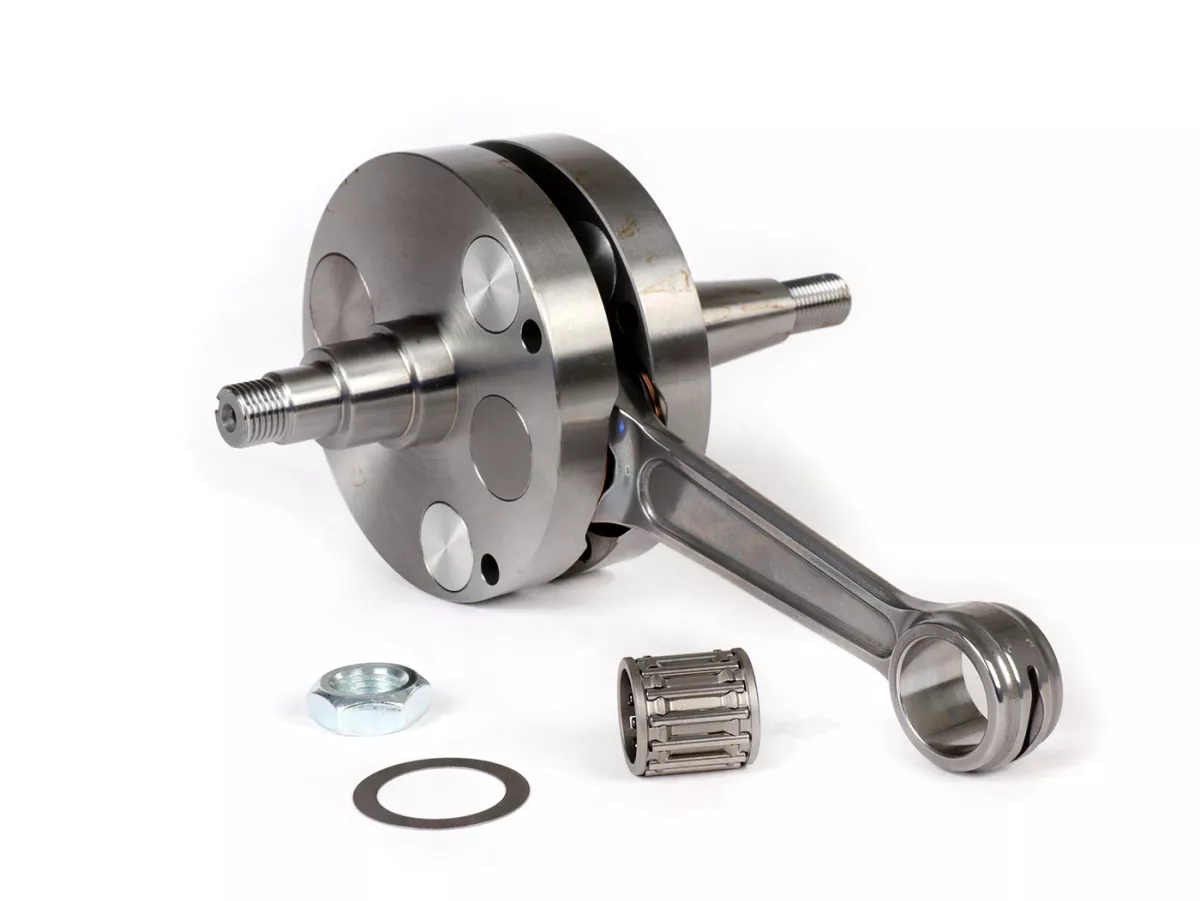

SCOPE OF DELIVERY

Drawing (or PDF under Downloads) for machining the housing

Nut M12x1,25mm

Connecting rod bearing


(TW27.10.21)

AI-translation

Rate this article now and let us know what you think.
OEM numbers (for comparison purposes only)
Scooter Center:
P2100070
Polini:
210.0070, 2100070, P210.0070, P2100070
