Mazzucchelli Item number: 1610005
Mazzucchelli
109,00 €*
available immediately
Shipping weight 1,48 kg

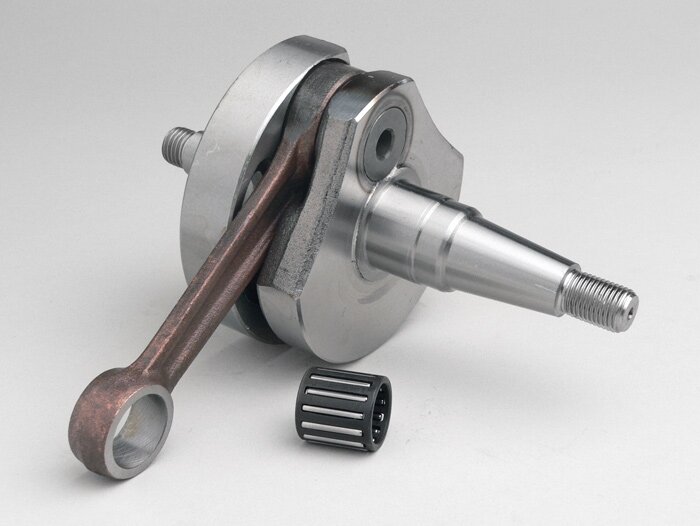

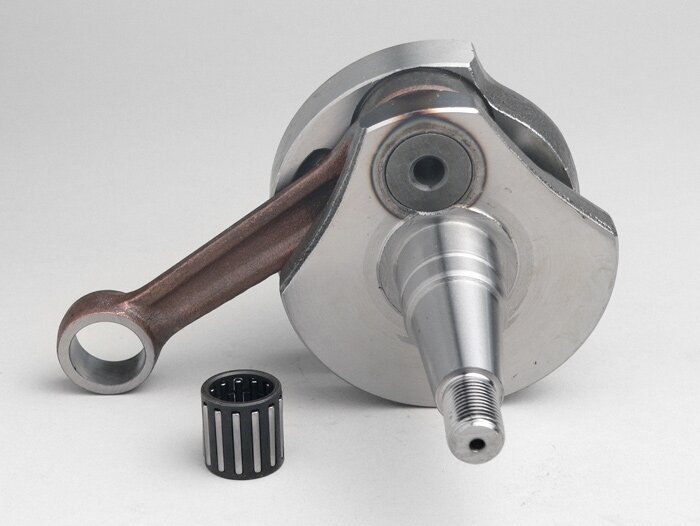

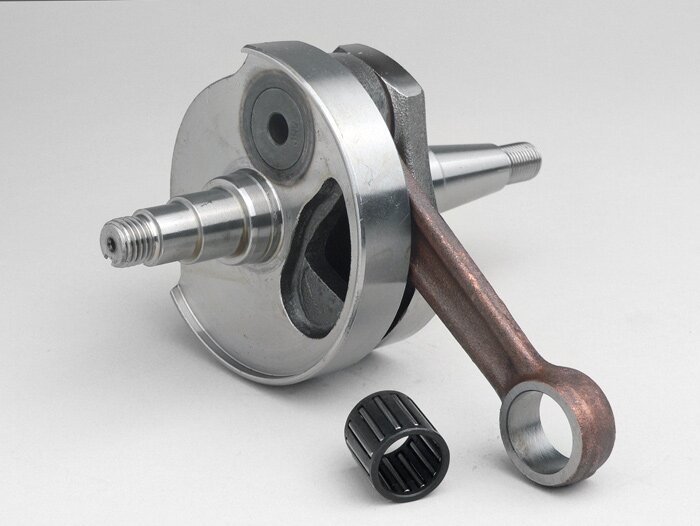

MAZZUCCHELLI ETS crankshaft with strong cone for sporty smallframes

The ETS crankshaft comes from the PK125 sports model of the same name. 8.5 hp makes it the most powerful engine version of the smallframe models. For this reason, it has an extra strong tapered stump and therefore offers a very stable base, even for tuned engines. The relatively long opening angle of the intake rotary valve for a standard crankshaft supports a sporty engine. This means that the ETS crankshaft can also use significantly larger carburetors than the Ø20mm standard carburetor. Revising the intake window in the engine housing to the desired timing angle rewards the engine with a further increase in performance.

SPECIAL FEATURE
The PK125 ETS shaft uses an alternator-side crankshaft needle bearing with an inner diameter of Ø25mm (original ETS = 25x38x15mm) due to the reinforcement. If the crankshaft is to be installed in a V50, PV125, ET3 or similar smallframe engine, a special conversion bearing is required (ball bearing 25x47x12mm). Alternatively, we offer a shrink-fit adapter ring. This allows the standard bearing of the ETS models to be used.

If not already available, a suitable pole wheel for the large cone and matching ignition are also required. We offer complete conversion kits (all pole wheels/ignitions for engines with 20 mm cone fit).

(US)


Rate this article now and let us know what you think.
Ball bearing
Dimensions
15x19x20mm

Piston pin
Diameter
15 mm

Crankshafts
Stroke
51 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M10x1,5 Rechtsgewinde
Crank web diameter
87 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
ja
Length of rotary vane sealing surface on crank web
179 mm
Vespa V50, PV - Control angle short sealing surface (22mm) (°)
153
Vespa PK XL2, ETS - Control angle long sealing surface (28mm) (°
161
Vespa PK XL2, ETS - Control angle long sealing surface (37mm ful
174
Full cheek crankshaft
nein
Wide crank webs
37.8 mm
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
17 mm
Diameter of sealing ring seat on alternator side
24 mm
Diameter of sealing ring seat on drive side
22.7 mm

Connecting rod
Connecting rod length
97 mm
Connecting rod strength
5 mm
Connecting rod eye top diameter
19 mm
Lifting pin diameter
20 mm
Upper connecting rod eye lubrication hole
nein
Lower connecting rod eye lubrication hole
keine

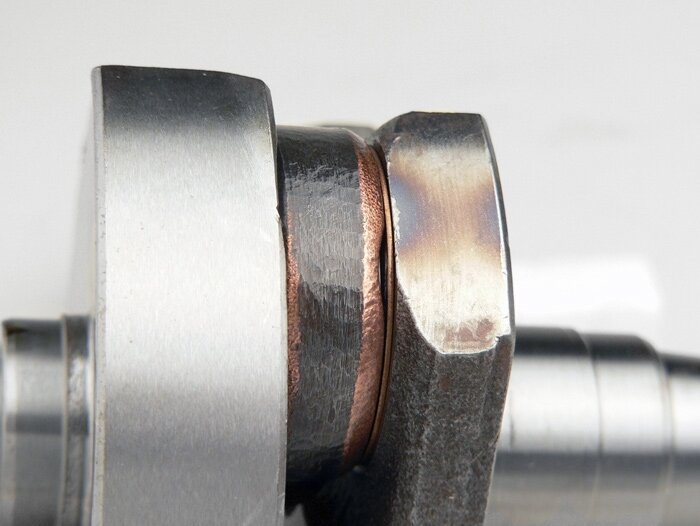

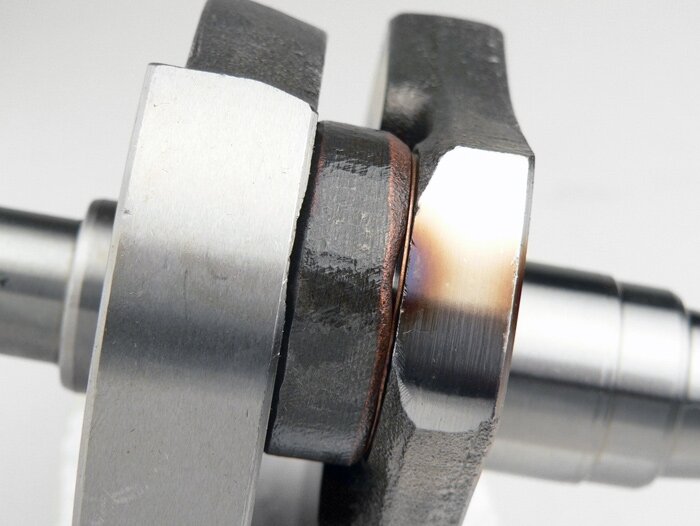

Connecting rod thrust washers
ja

OEM numbers (for comparison purposes only)
Scooter Center:
1610005
