DR Item number: 1310004
DR
4 Ratings
115,00 €*
available immediately
Shipping weight 2,12 kg

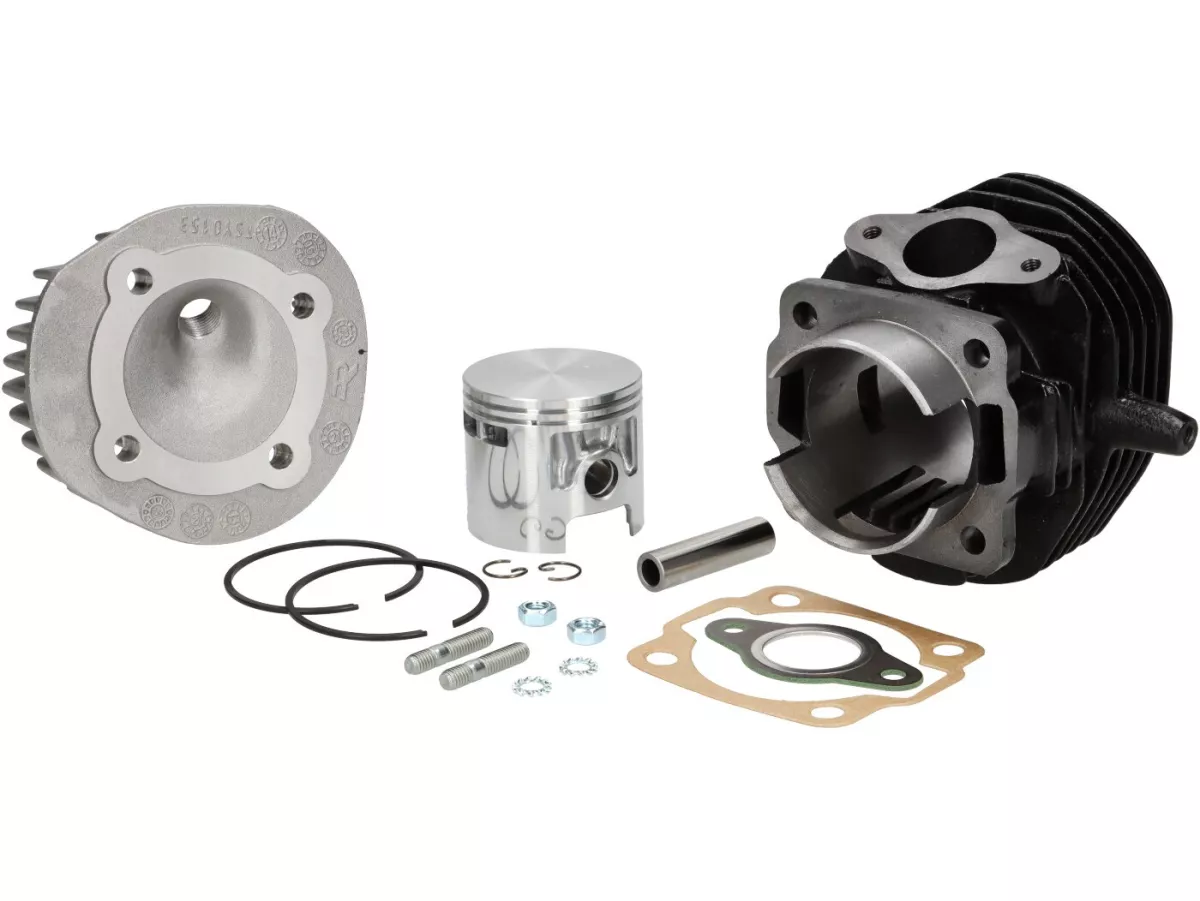

The 102 is D.R.'s most powerful cylinder for the 1950 crankshaft. It is very well suited to build a fast touring engine. Necessary is then the longer primary (3.00) and a 19er carburetor.

Optionally in addition also a racing shaft with longer control times can be used. This will increase the power output in the upper rpm range, which is especially interesting in combination with a sports exhaust system. Beside the allround exhaust systems like the ET3 or SS 50/90 Banana, more sporty systems can be used. The LeoVinci Banana, for example, offers an official increase in performance, which of course has to be paid for with a sporty sound.
AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  12/10/2014

Ideal für ein gutes Tourensetup das auch an einem Berg nicht in die Knie geht. Bester Preis im I-Net

Anonym  06/29/2015

Ideal für Traktor feeling mit wenig Drehzahl und viel Kraft.

Anonym  01/11/2018

Für den Preis ein Top Produkt

Oliver K. from Bergheim 08/10/2025
General
Performance class
Sport

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B8HS
Spark plug thread
kurz

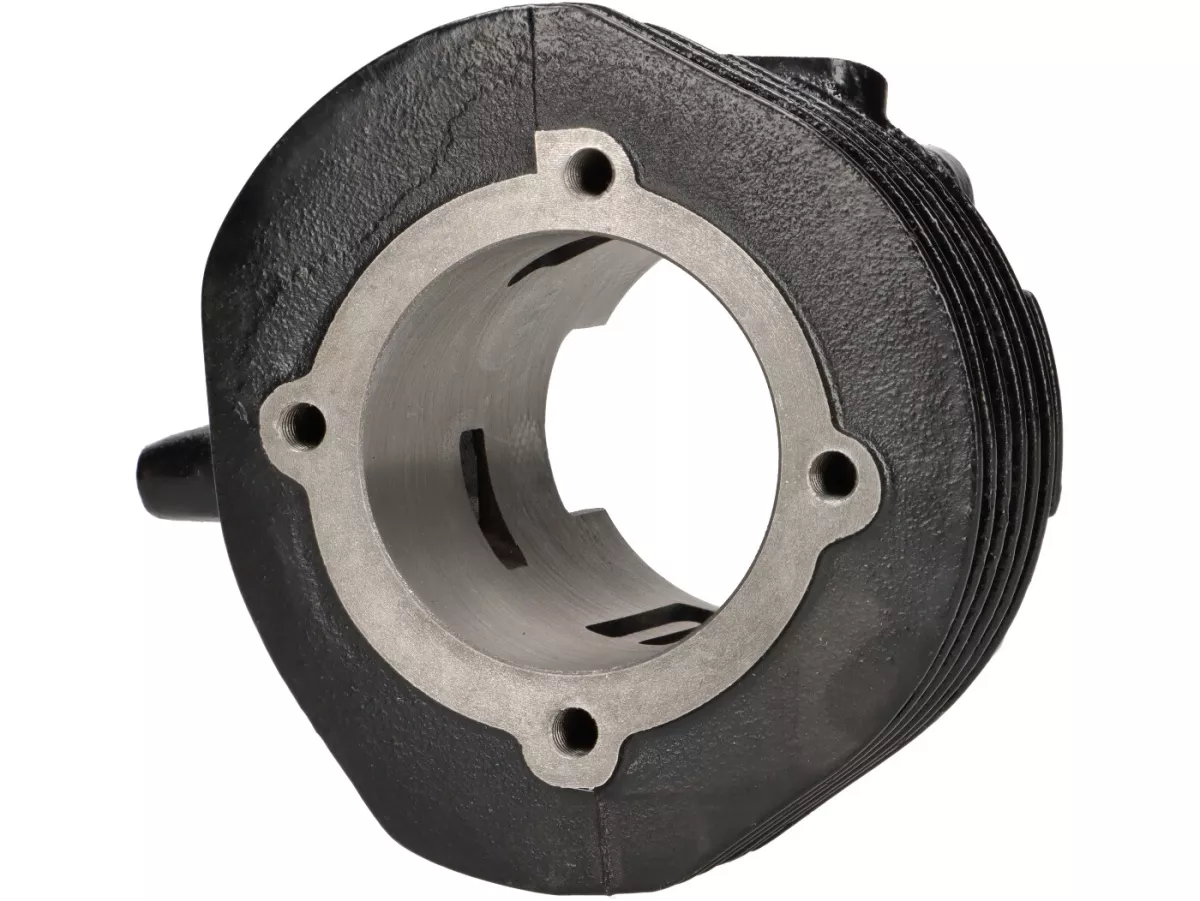

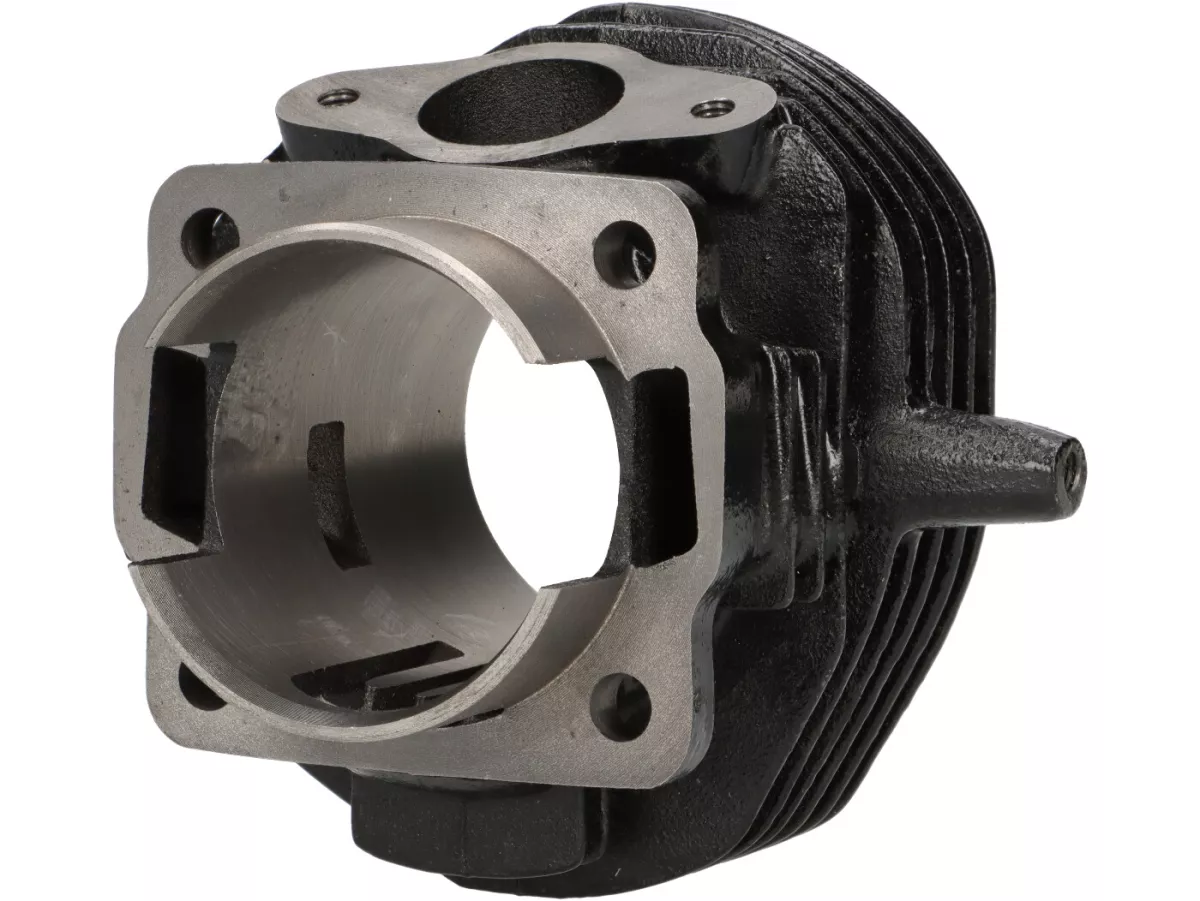

Cylinder
Drill hole
55 mm
Type of cooling
luftgekühlt
Displacement
102 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß

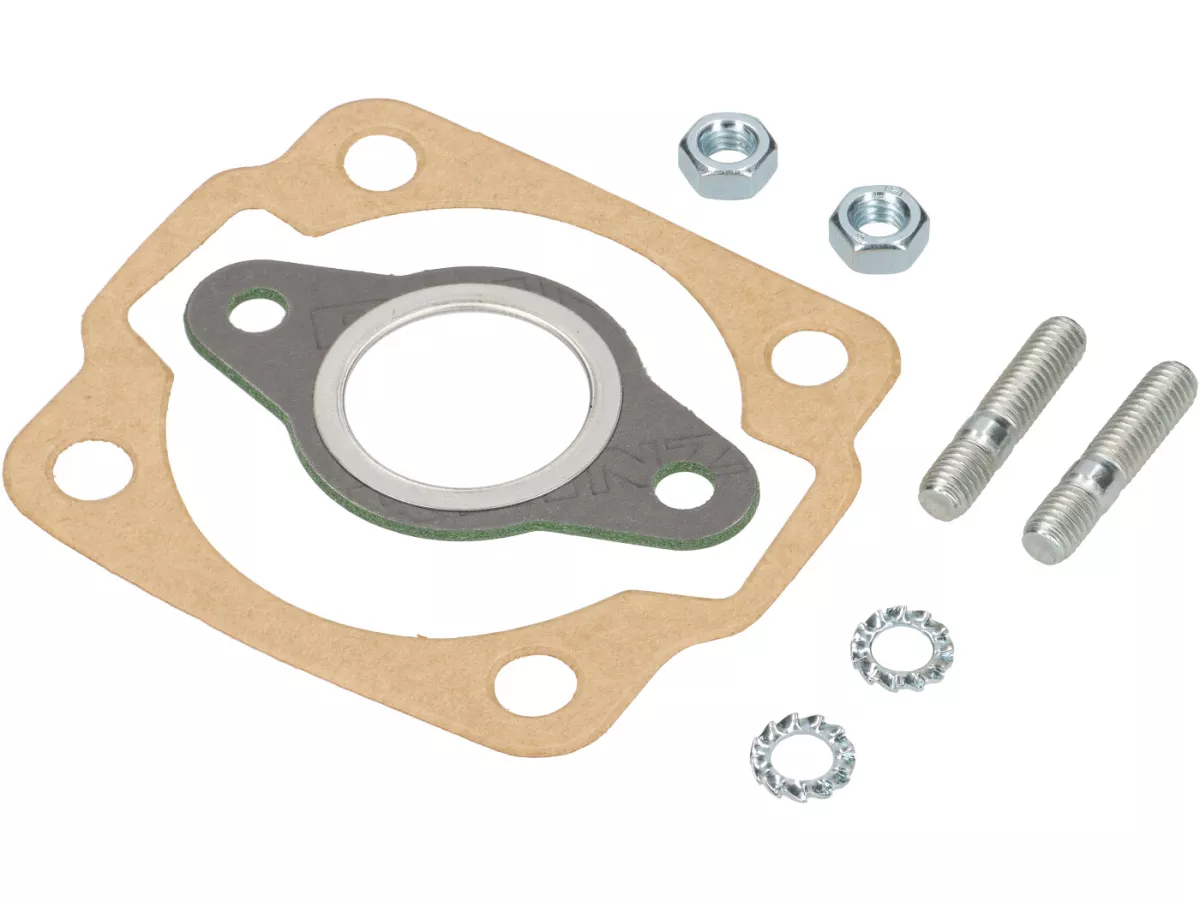

Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
52 mm
Threaded exhaust studs
M6
Number of boost ports
4
Number of transfers (incl. boost ports)
6

Crankshafts
Stroke
43 mm

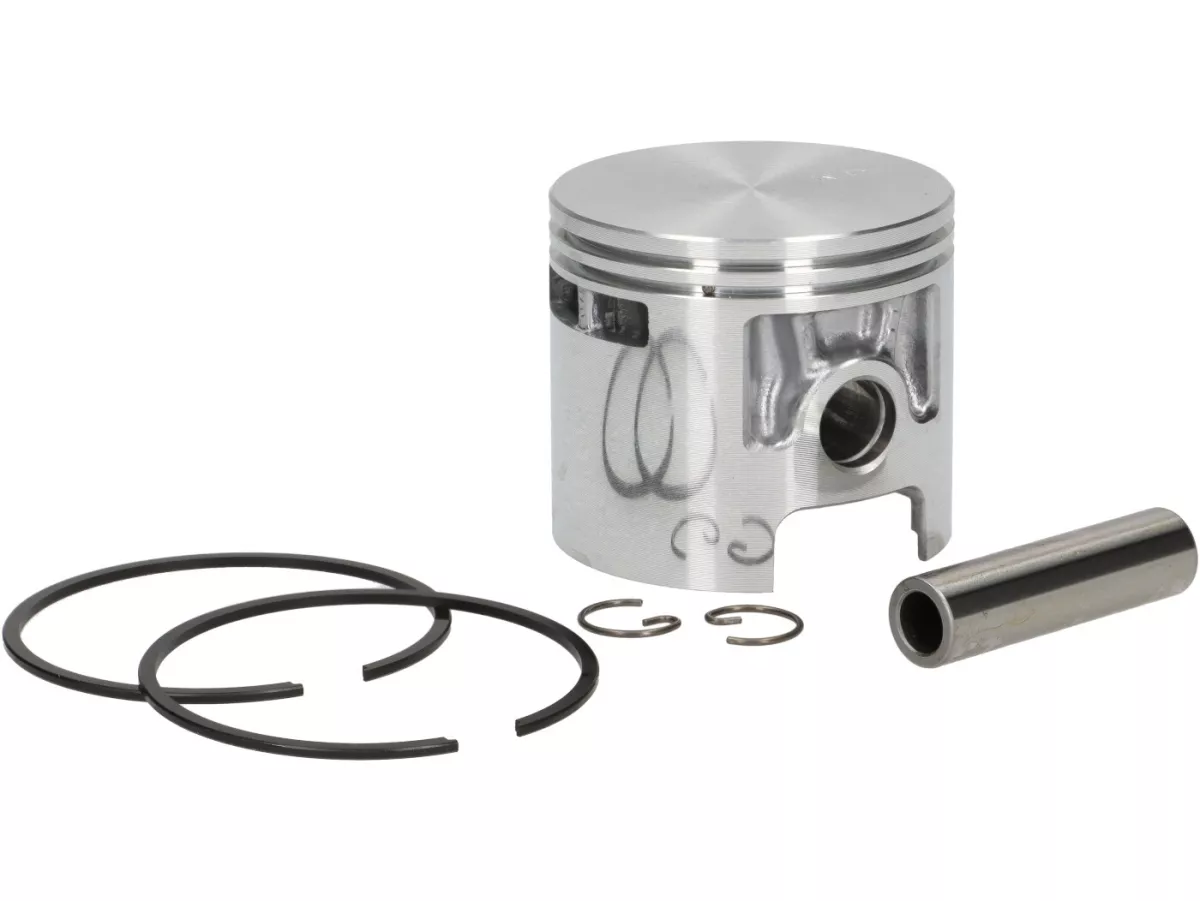

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,0mm

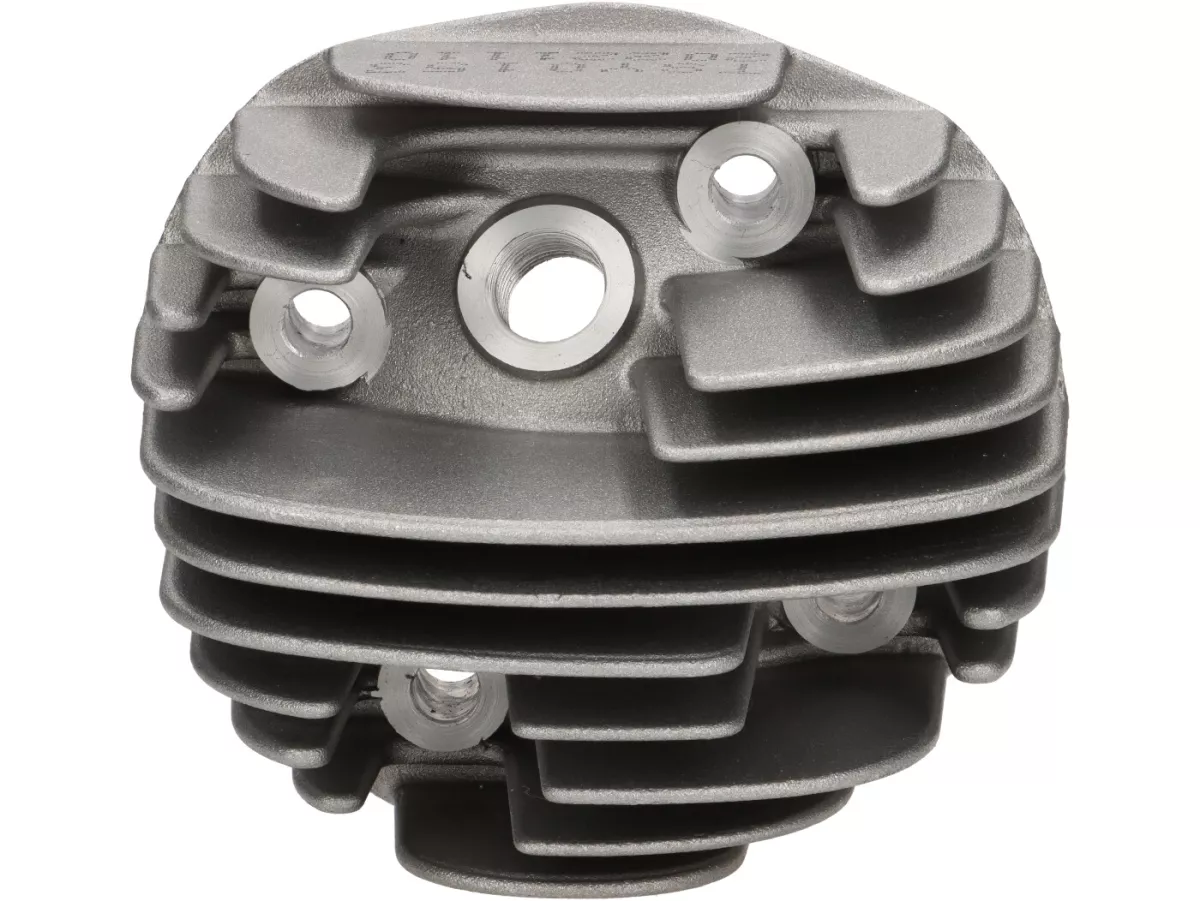

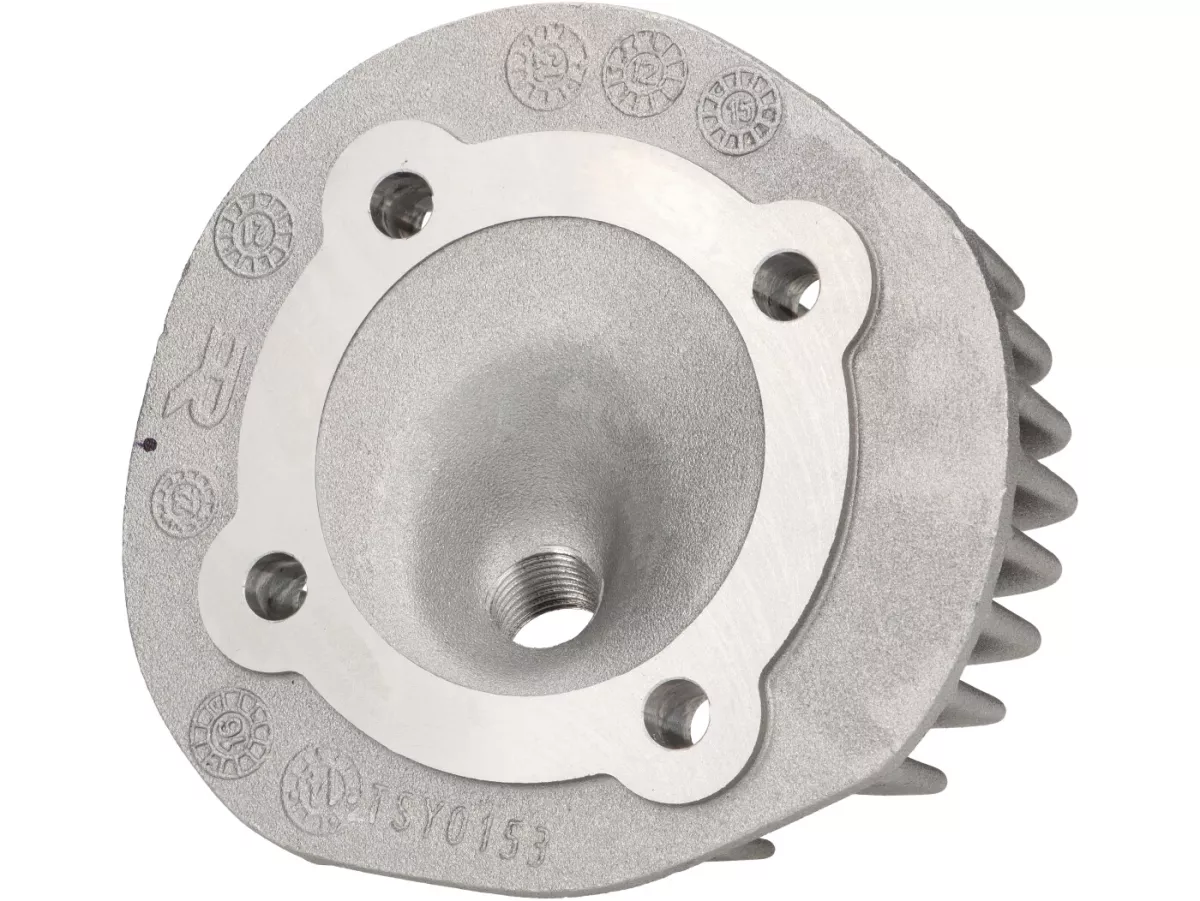

Cylinder heads
Cylinder head type
einteilig
