Piaggio Item number: 1827041
Piaggio

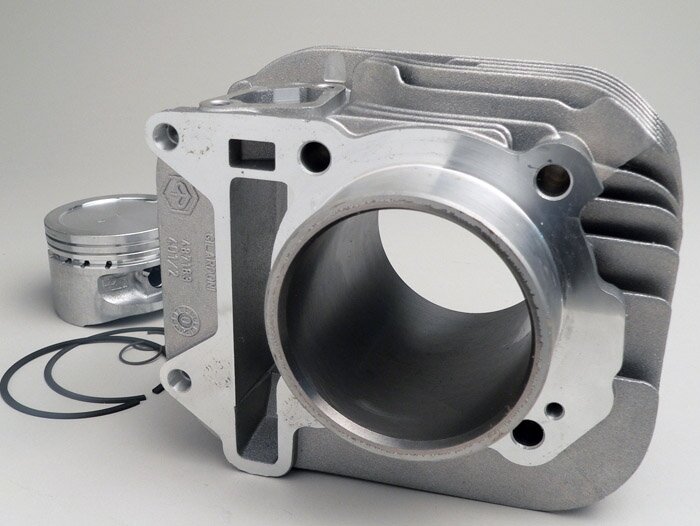

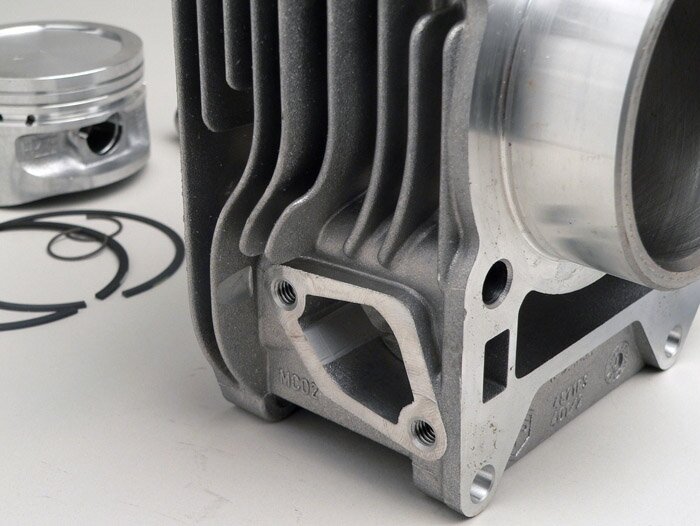

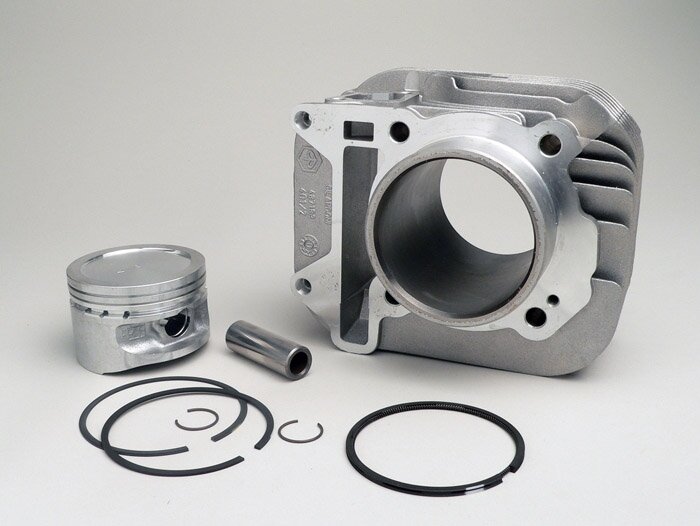

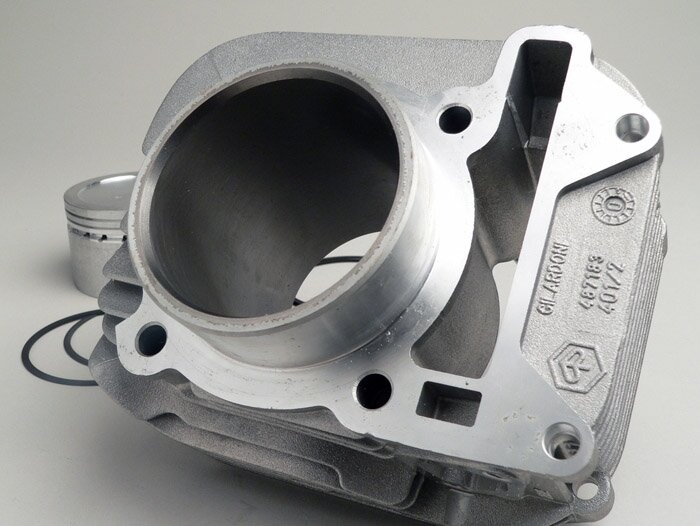

Cylinder -PIAGGIO 150 cc- Piaggio AC Leader

239,00 €*
available immediately
Shipping weight 1,8 kg
Information on product safety
Report error
Cylinder -PIAGGIO 125cc- Piaggio 125ccm old 4-stroke engine (not leader) - Original Piaggio
AI-translation

Rate this article now and let us know what you think.
Rate this product now
General
Performance class
Standard

Piston pin
Diameter
15 mm

Spark plugs
Thread type
M10x1,00
Thermal value NGK
CR8EB
Spark plug thread
lang

Cylinder
Drill hole
62.6 mm
Type of cooling
luftgekühlt
Displacement
150 cm³
Motor type
4-Takt
Material
Aluminium
Piston raceway material
Grauguß
Cylinder gasket set included
nein
Cylinder head included
nein

Crankshafts
Stroke
48.6 mm

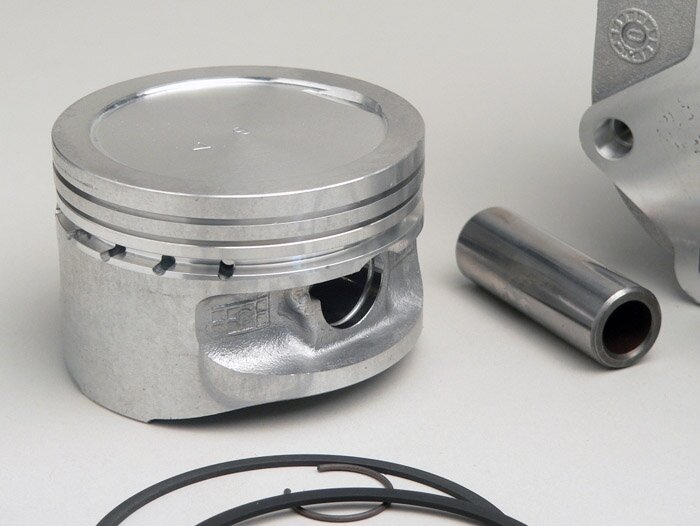

Piston
Number of piston rings
3
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring

Piston clips
Piston clip type
C-Typ
Wire gauge Piston clip
1,0mm

OEM numbers (for comparison purposes only)
Piaggio:
827041
Scooter Center:
1827041
