Piaggio Item number: 9021023
Piaggio
1 Rating
99,00 €*
Ready for dispatch in 72h
Shipping weight 0,8 kg

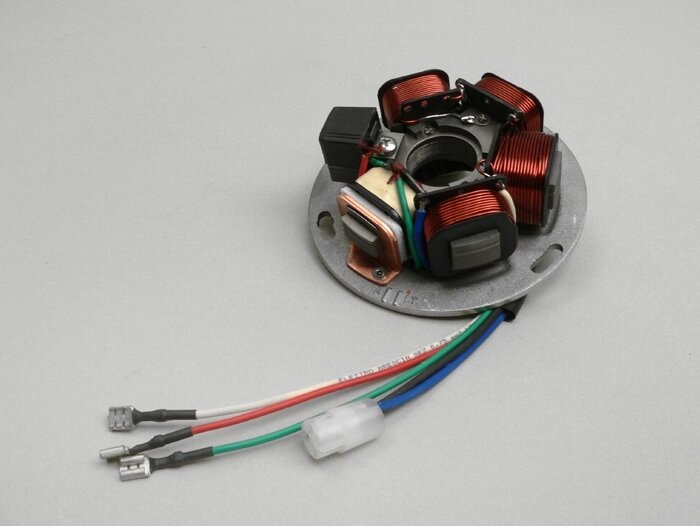

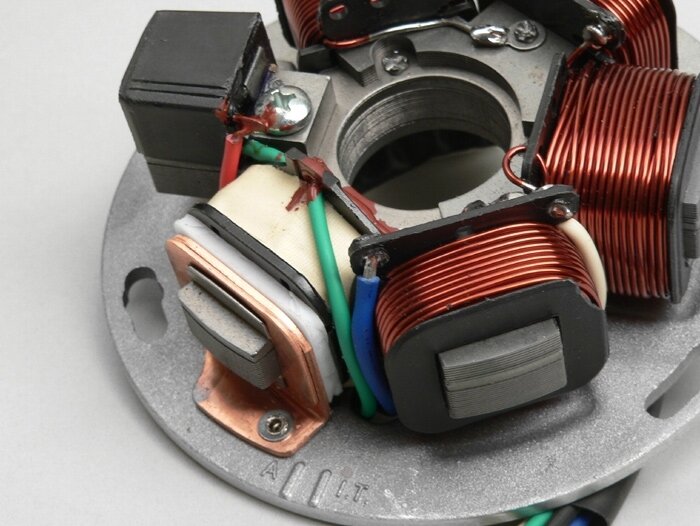

Ignition -PIAGGIO base plate- Vespa PX Lusso (without battery 1984-2011),
PX Lusso Elestart (with battery 1998-2011) - 5 cables
Original Piaggio spare part for the Vespa PX Lusso types with multi-plug and 5 cables.
After assembly make an ignition adjustment or check ignition timing .



(TW160123)

AI-translation

This is how we ensure, that reviews come from real consumers.
Franz K. from Asperg 08/17/2025
Stator ignition (base plate)
Ignition type
kontaktlos (elektronisch)
Position (pickup / contact)
innenliegend
Stator uses pole wheel type
Außenrotor
Number of coils
6
Tension
12V
Electricity
Wechselstrom (AC)
Base plate diameter
115.5 mm
Coil diameter
93 mm
Total height
39 mm

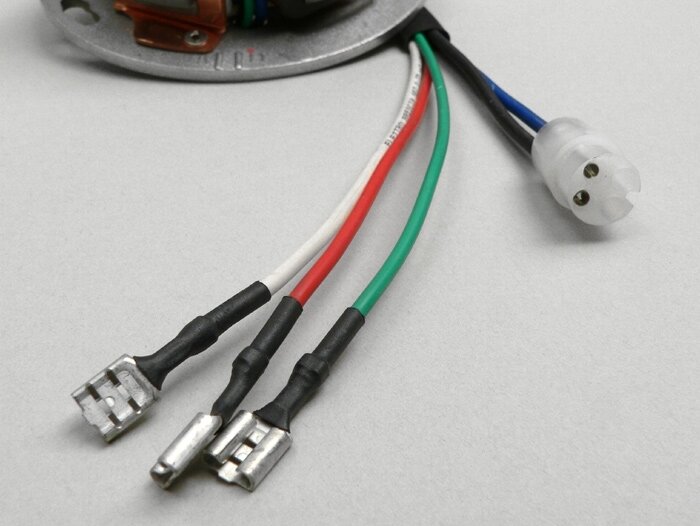

Number of cables
5
Plug type
Multistecker

Rotor ignition (pole wheel)
Pole wheel type
Außenrotor

Ignition in general
Rotor (pole wheel) included in the scope of delivery
nein
CDI included in scope of delivery
nein
Voltage regulator included in the scope of delivery
nein
Ignition timing
fest

OEM numbers (for comparison purposes only)
Piaggio:
217866, 497652
Scooter Center:
9021023
