Adjusting the Carburetor on the Vespa - Here's How

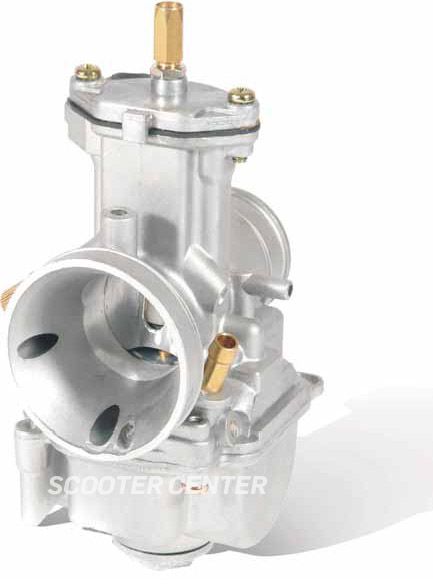

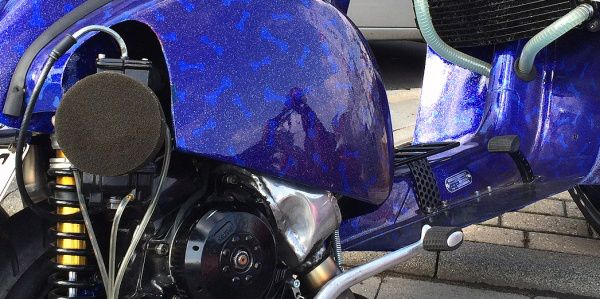

VESPA - CARBURETOR

The choice of carburetor size has a significant influence on the performance and characteristics of the engine. Sensibly usable carburetor sizes range from 19 mm to 35 mm.

In addition to the experience of other mechanics, there are also formulas or tables to determine the required carburetor size. This is primarily determined by RPM and displacement:

d = k * Vh * n
  • d = carburetor diameter (mm)
  • Vh = displacement volume (liters)
  • n = RPM max. power (1/min)
  • k = factor (empirical, approx. 0.7 to 0.8 for scooter engines)
Vespa Carburetor Adjustment

VESPA - ADJUSTING THE CARBURETOR

Many engine damages result from poorly tuned engines. Critical are compression, squish band, ignition, and carburetor adjustment.

The correct carburetor setup is not as simple as the ignition timing and cannot be checked as easily. Our Jetting Tips Table helps you find an initial reference point.

SPARK PLUG IMAGE

Modern synthetic oils make interpreting the spark plug image more difficult. After a full-throttle run, however, the plug can be used as a rough indicator.

A grayish/snow-white plug

Too hot combustion - do not continue operating the engine!

A black spark plug

Indicates a too rich setting or too high oil content.

JETTING TIPS

So that you don't have to start completely from scratch when adjusting your carburetor, we have put together a small overview of well-functioning carburetor setups. You should understand this as a guide to get the engine running. After that, you should richen it area by area and then jet down. No guarantee!

Cylinder Carburetor Main Jet Idle Jet Emulsion Tube Needle
Vespa Smallframe 75 ccSHB 16/1055-60
Vespa Smallframe 75 ccSHB 16/1668-75
Vespa Smallframe 75 ccSHB 19/1975-82
Vespa Smallframe 85 ccSHB 19/1975-82
Vespa Smallframe 110 ccSHB 19/1982-88
Polini 130PHBL 24/2585-98
D.R. 133SHB 19/1985-90
Malossi 136PHBL 24/2598-115
D.R. 135SI 20/20102 (TÜV)
D.R. 135SI 24/24112-115
D.R. 177SI 24/24108-112
D.R. 177PHBH 30112-118
D.R. 177PHBH 30105-12050-60AV262X2
Malossi 139SI 20/20112 (TÜV)
Malossi 139SI 24/24100-110
Malossi 166SI 24/24125-130
Malossi 166PHBH 30125-135
Malossi 166TMX 3035017.5std.hd.
Malossi 210Dell'Orto 28128-13850-56AV266
Malossi 210Mikuni 30300-33020-27.5fixed5EL68
Polini 177SI 24/24120-125
Polini 177PHBH 30125-130
Pinasco 177SI 20/20108-112
Pinasco 177SI 24/24118-122
Pinasco 177PHBH 30138-15052-55AV262X3
Pinasco 213SI 24/24125-13055/160 or 52/140BE3190 or 160
T5 Polini 152SI 24/24112-120
T5 Malossi 172SI 24/24115-120
T5 Malossi 172PHBH 30125-130
