Keihin Item number: KH350000
Keihin
339,00 €*
Ready for dispatch in 1-2 weeks
Shipping weight 0,59 kg

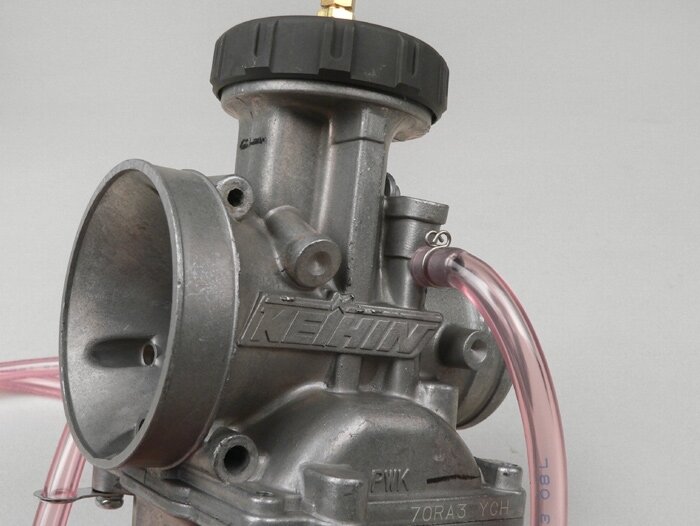

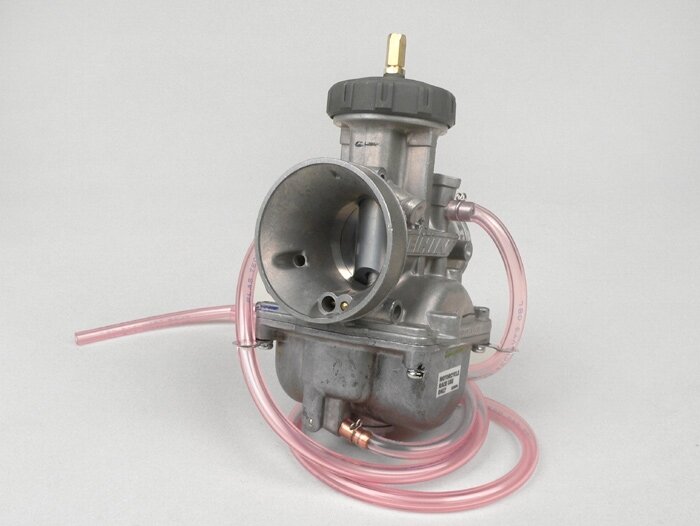

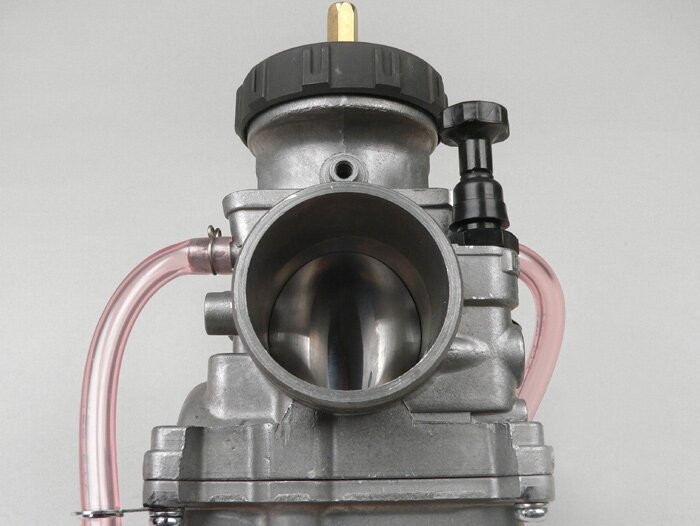

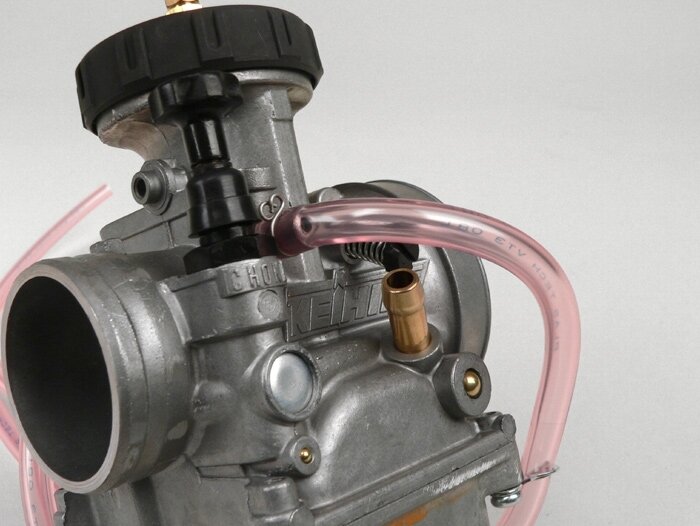

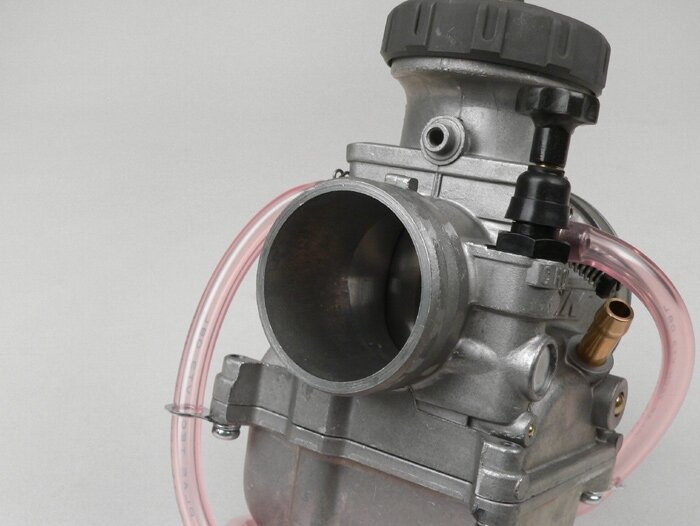

Power without compromise. Keihin's PWK carburetors are the first choice in motocross. Both for original equipment manufacturers and in the tuning sector. Due to the high quality workmanship, the easy tuning and the unique response, they are the first choice wherever performance is required.
Feature:
  • Chrome-plated D-shape slide in solid design
  • Direct response from idle gas
  • Flow-optimized in high rpm ranges
  • Easy tuning behaviour
.
The large PWKs are perfectly suited for all diaphragms derived from the RD350 reed block.
The carburettors come with a usable basic tuning and the large float chamber offers enough volume for speed orgies beyond the 10,000 mark. And that even with large displacement.

Kyajet - PWK tuning tool (click)
AI-translation

Rate this article now and let us know what you think.
Carburetor
Main nozzle size
160
Main nozzle type
Keihin 5mm (99101-357) PWK
Secondary nozzle type
Keihin (N424-21)
Slider type
D-Schieber
Choke type
manuell Zugknopf
Connection type Intake manifold
Gummiverbindung
Position of mixture screw
links
Fuel hose position
links
Fitting type
M6 x 0.75
Float chamber material
Metall
Size of secondary nozzle
68
Needle size
DGK
has Powerjet
nein
Slider size
6
Height
163.3 mm
Width
82.8 mm
Depth
91 mm
Relative connection height
80.7 mm
Connection width air filter
59 mm
Connection width of intake manifold
42 mm
Fuel hose connection width
7 mm
has oil connection
nein
has vacuum connection
nein
Venturi size
35 mm
Connection type Air filter
geklemmt
Position of idle throttle screw
links
