Clutch -EGIG PERFORMANCE- One Finger Clutch 2.0 - 5-disc- Vespa V50, V90, SS50, SS90, PV125, ET3, PK50, PK80, PK50 S, PK80 S, PK125 S, PK50 XL, PK125 XL, ETS, PK50 HP, PK50 SS

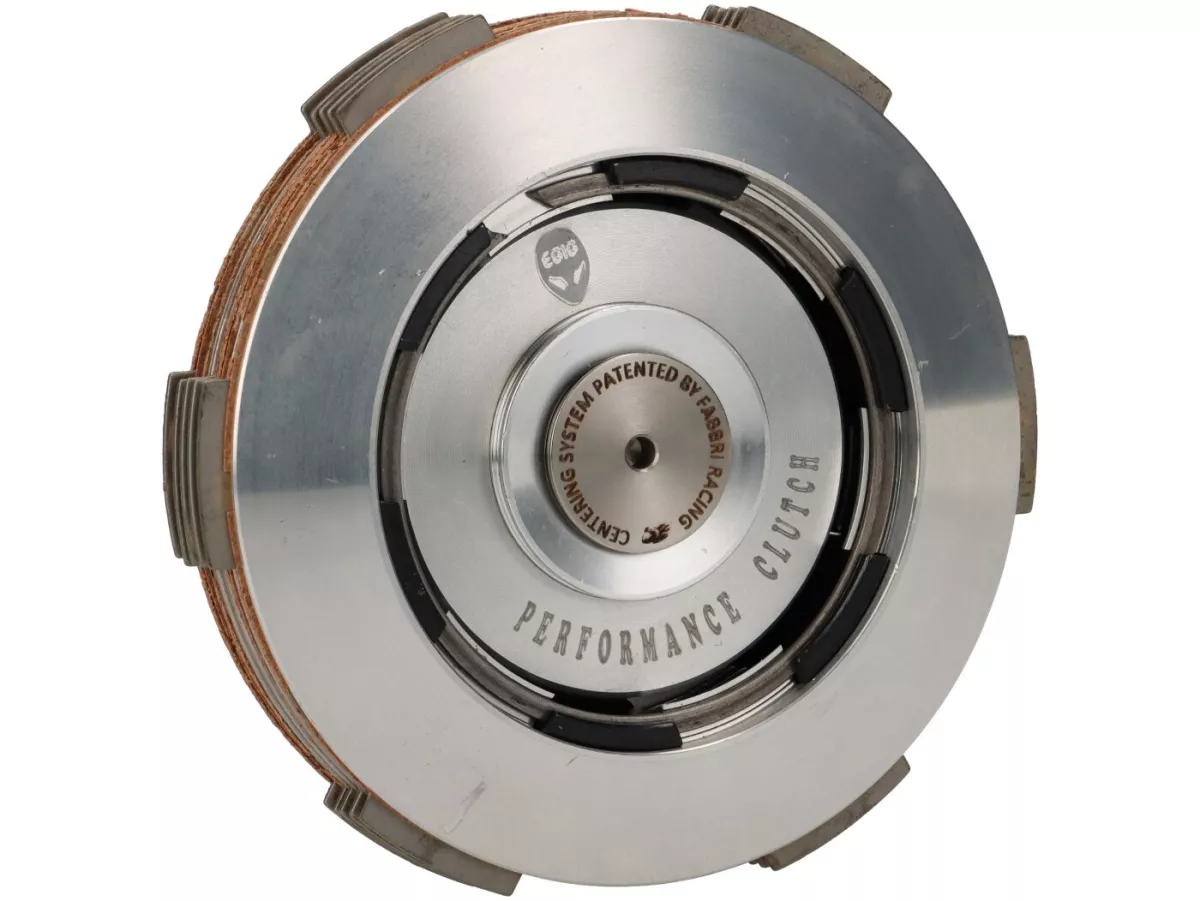

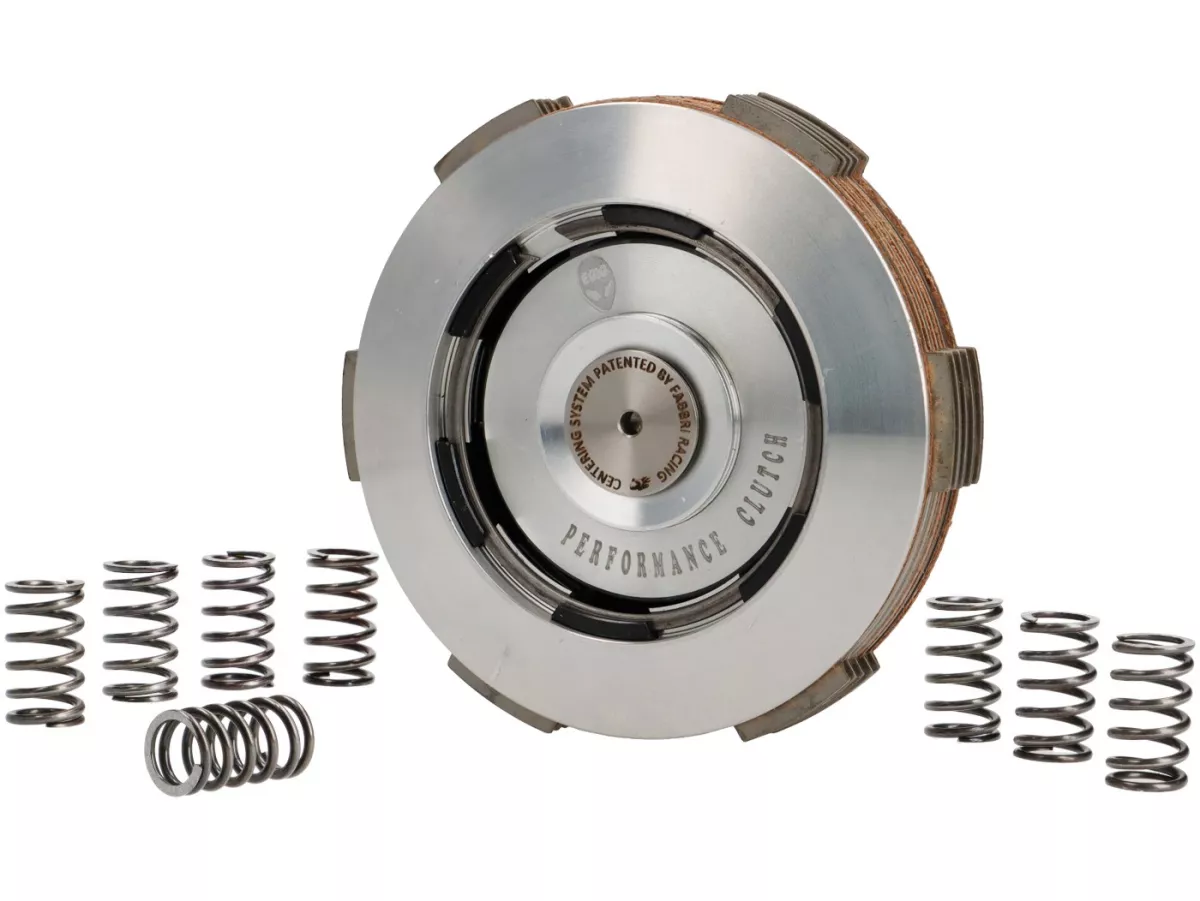

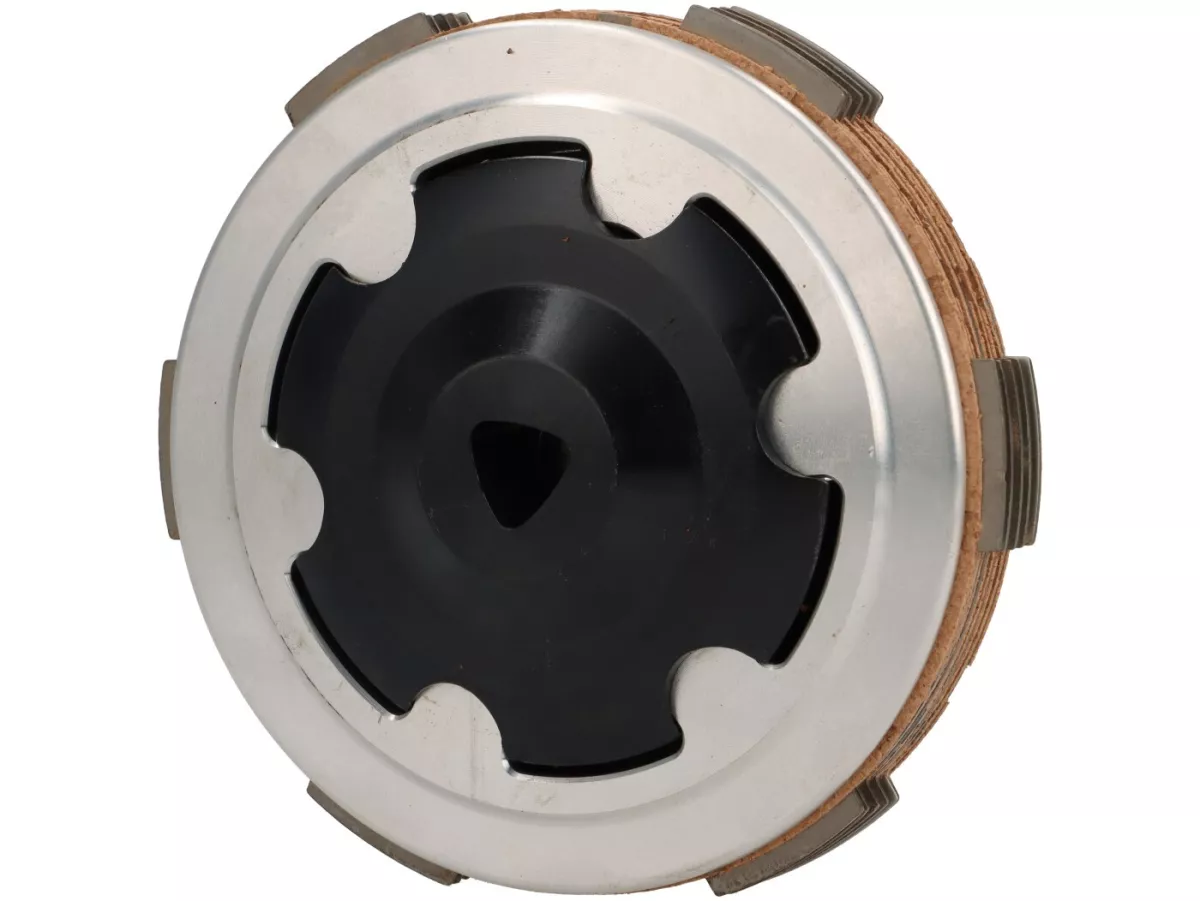

EGIG One Finger Clutch 2.0 - 5-disc version with poligon connection

EGIG PERFORMANCE sports clutch - One Finger Clutch 2.0 (poligon) - smooth-running clutch for smallframe engines up to approx. 47 hp

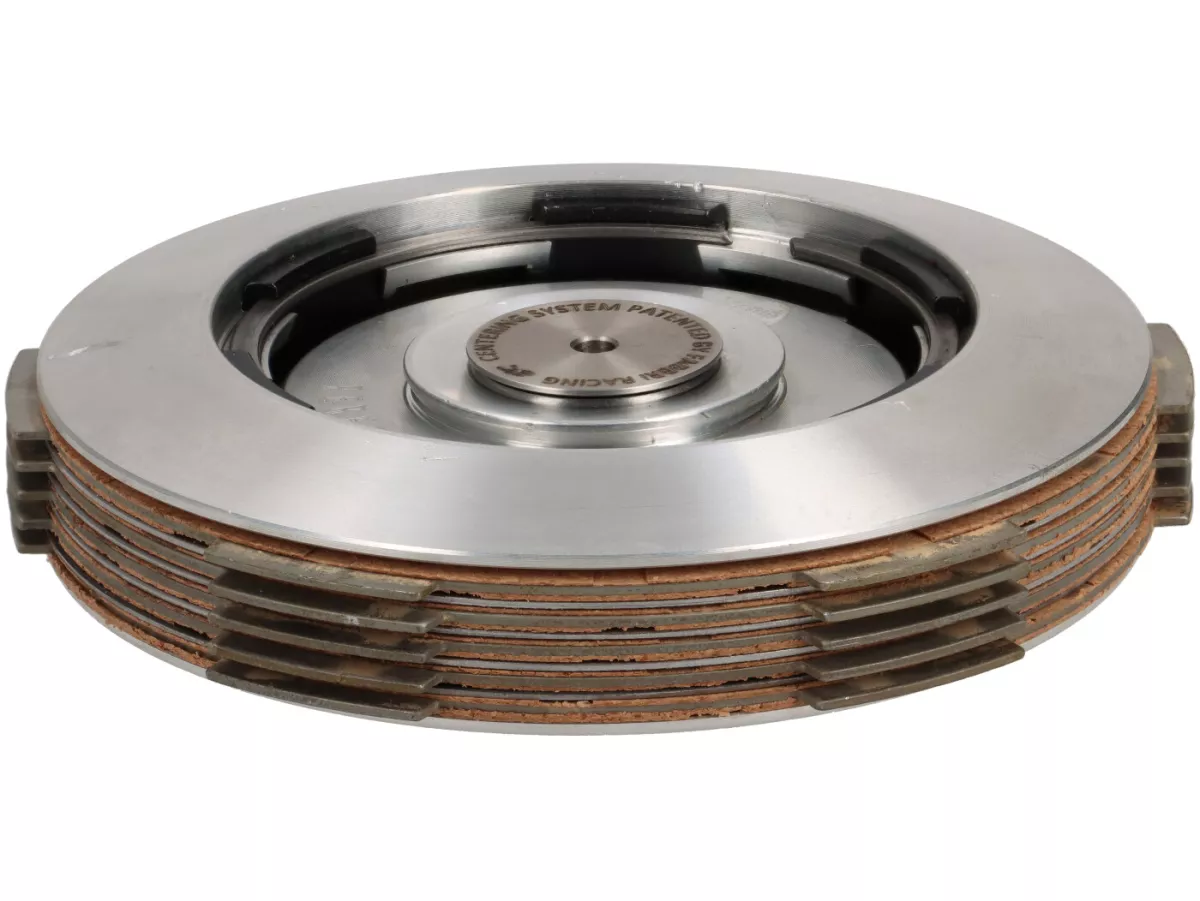

• 5 cork/carbon disks

• 4 steel intermediate plates

• Bearing-mounted pressure plate

• also fits into an original primary without repkit

• only for repkits bolted from the rear (with repkits bolted from the outside, the bolt heads may protrude from the inner basket)

• 500ml SAE 30

• No spacers necessary

• The pads of the Xl2/HP 4 disks can also be used or Fabbri 4s carbon disks

• Can only be installed in conjunction with the Egig Performance Poligon side shafts

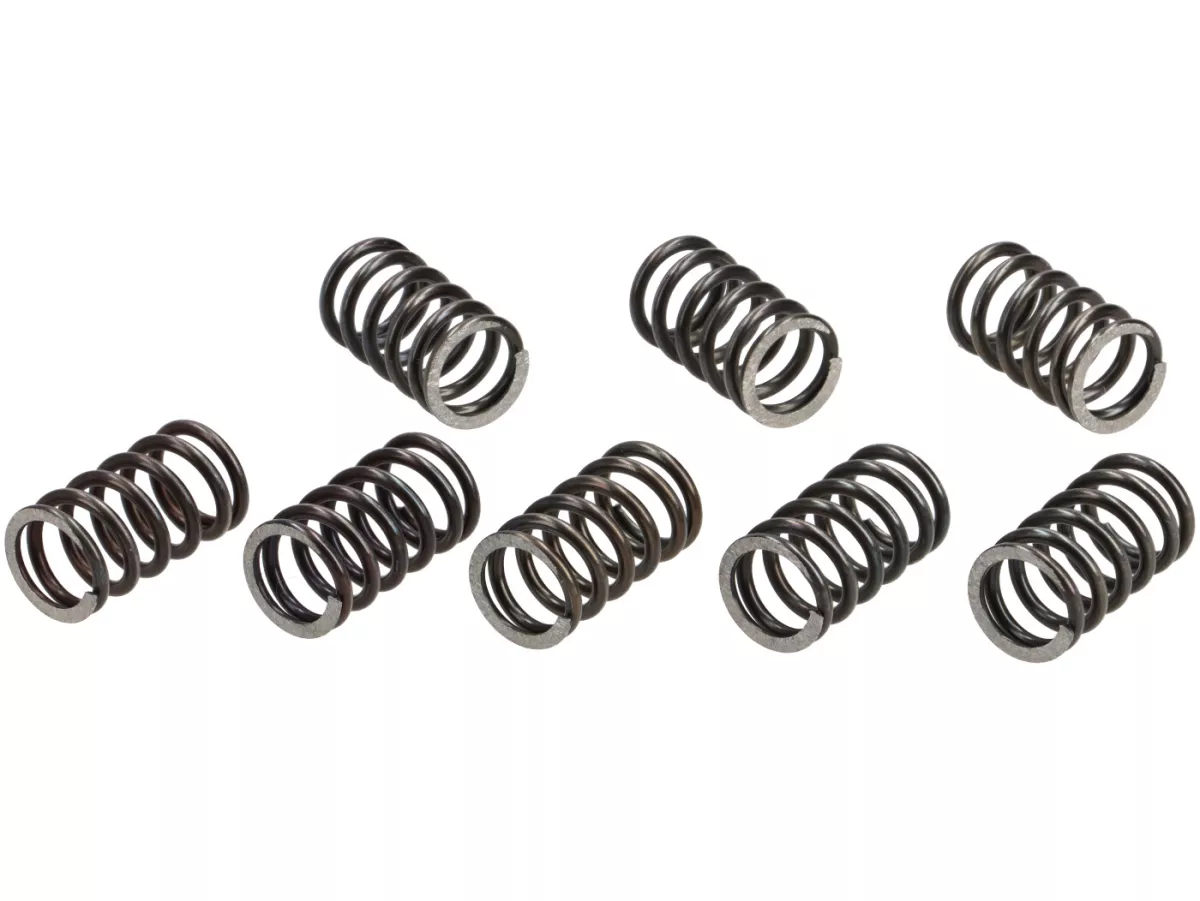

• 6 springs 30Ps 26 nm

• 8 springs 39hp 32 mm

• 8 + 4 springs 45hp 36 nm (extra)

• 8 + 8 springs 50hp 40 nm (extra) the additional inner springs, marked as extra, must be purchased separately.

The number of springs can be reduced by the 5 washers, resulting in an extremely easy to pull clutch. In conjunction with an Xl2 cover, the clutch is pulled with one finger. With 6 springs with the little finger.

We recommend clutch levers with a small knob at the end, as these have considerably more disengagement travel than those with a large knob, so that the clutch disengages cleanly without much pre-tension. Attention: The nut of the auxiliary shaft with washer must not be higher than 7 mm and the thread of the auxiliary shaft should not be higher than the nut. Furthermore, the housing seal should not be thicker than 0.2 mm when using a Piaggio auxiliary shaft. Both can impair the separation behavior of the clutch and adjustments must be made, e.g. spacing the auxiliary shaft.
