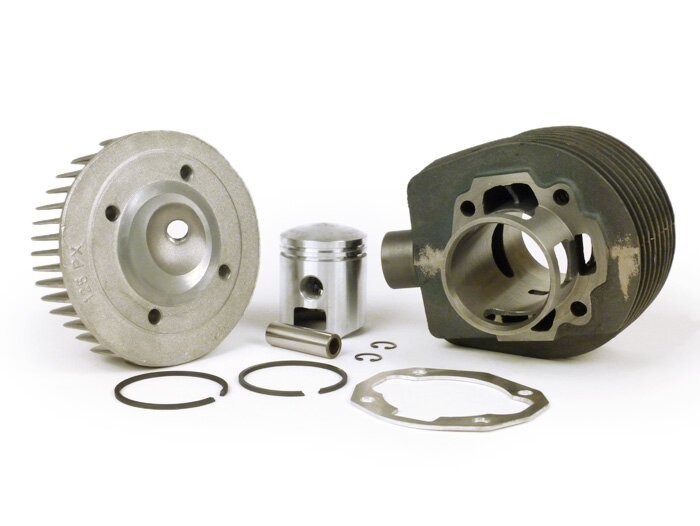

Convert PX80 to 125 cc – complete cylinder kit

Complete cylinder kit to convert any PX80 to 125 cc without changing the crankshaft.
If the kit is individually registered at TÜV, you can benefit from significantly lower insurance rates for 125 cc models.
Only the cylinder, piston, and head need to be replaced; the engine block remains unopened. It should be in perfect condition. Many PX80s have not been ridden for a long time. The rubber crankshaft seals primarily suffer from this. If they are brittle/hardened, the engine can draw false air even if it has only done 5000 km. An engine overhaul should therefore always be considered.

Technical details and performance data

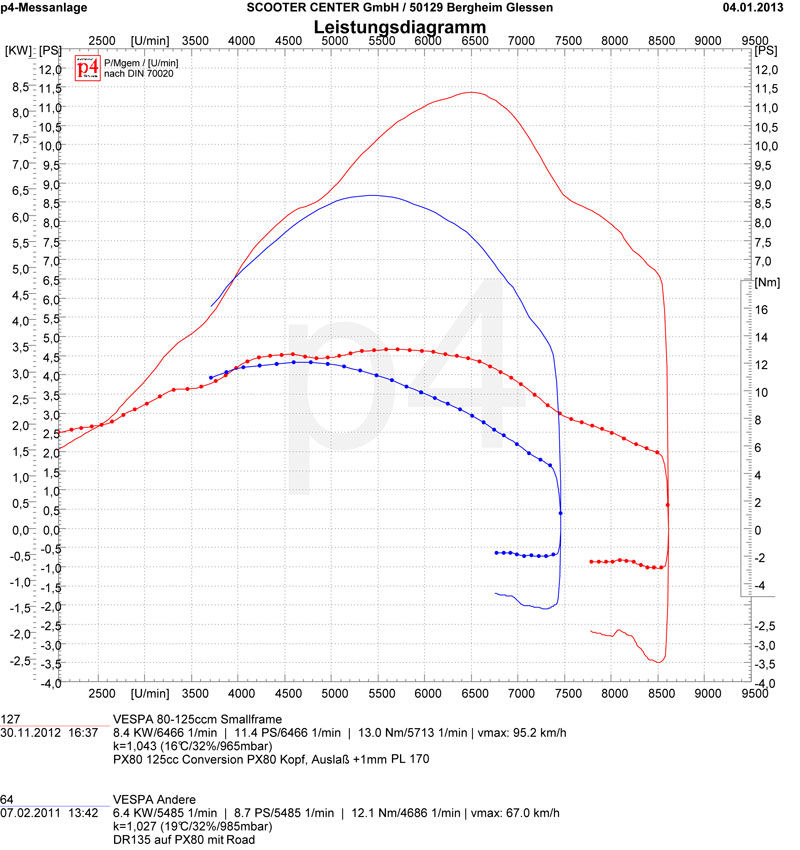

The original 80 cc engine produces about 5 hp at the rear wheel. With our conversion cylinder, power increases to an impressive 7-8 hp with extreme reliability. The cylinder’s performance is comparable to a 135 DR. The attached diagram shows a direct comparison between a stock PX80 with stock exhaust (red curve) and the SCK 125 cc conversion cylinder also with stock exhaust (red curve). With a better exhaust (BGM Big Box Touring, Polini Box), the cylinder delivers about 1-2 hp more.

With a longer gear ratio (achieved by simply changing the clutch gear to 22 teeth), top speed is significantly increased. Thanks to the broader torque curve, gears no longer need to be fully revved out and consumption decreases. Two vehicles equipped with SCK conversion cylinder prototypes covered several thousand kilometres problem-free in 2011. The riders were delighted with the performance and low consumption.

Recommended jetting and settings

  • Main air correction jet: 160
  • Mixer tube: BE3
  • Main jet: 102-108 (start large)
  • Idle jet: 52/140
  • Spark plug: W3AC or NGK B8HS
  • Ignition timing: 18-19° BTDC

Technical data:

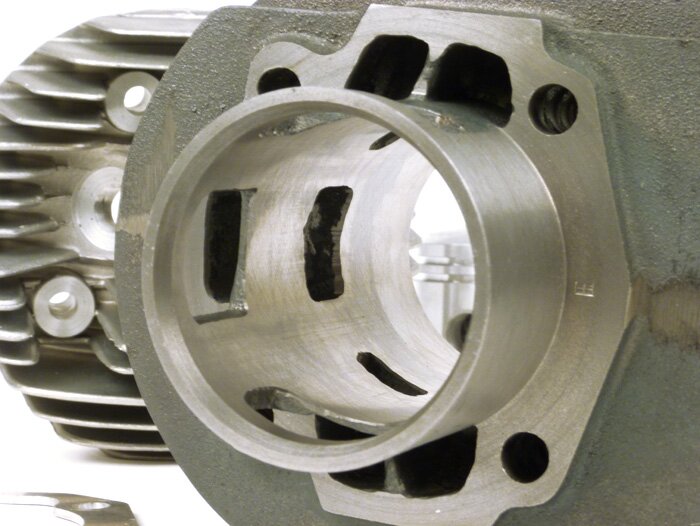

  • Bore: Ø57.0 mm
  • Stroke: 48 mm (PX80 series)
  • Compression: 8:1
  • Port timings: approx. 110°/151°

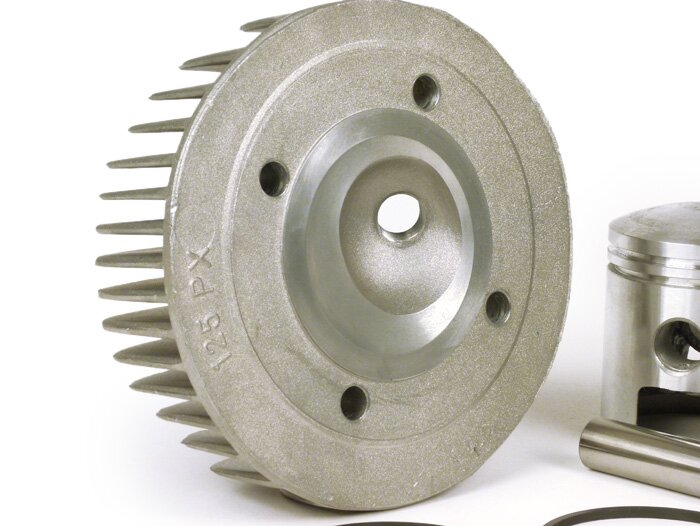

  • Incl. cylinder head

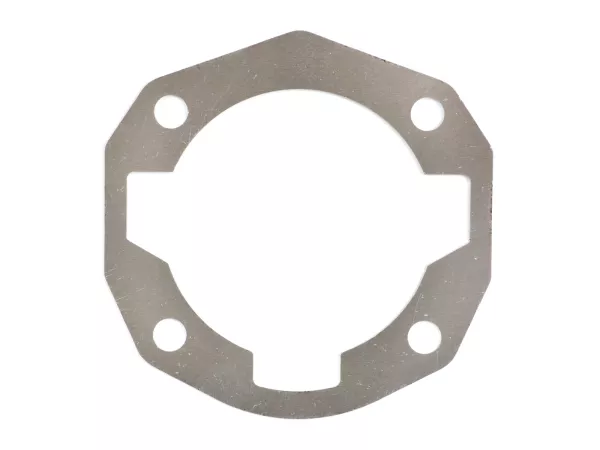

  • Base gasket: spacer 0.8 mm (fit with sealant)
  • Head gasket: none (as stock)
  • Piston clearance at TDC: 0.6-0.8 mm


Tip:

You can measure the squish clearance (distance between piston crown and combustion chamber at the outer edge) using thin solder wire.
The value can easily be reduced to 0.6 mm to improve torque and performance.
If the value is 1.0 mm, two of the three gaskets can be removed to reduce the clearance by about 0.4 mm.
Adjust jetting again if necessary.


Unfortunately, it is currently not possible to deliver this cylinder with a TÜV certificate.

The technical and formal requirements for such certification are now so high that it is no longer economically viable (the price would be far too high).
Please arrange individual approval with TÜV.


NOTE: The cylinder fits Elestart engine cases without modification!



This is how we ensure, that reviews come from real consumers.
Anonym  05/03/2015

Die Leistungssteigerung ist Klasse, jedoch ist die angelieferte Qualität nicht das, was es sein sollte. Überall Grat und einfach nur schlecht verarbeitet. Hier muss selber nachbearbeitet werden, bevor das Produkt zu verwenden ist.

Anonym  10/15/2016

gut

Oliver R. from Scherstetten 05/04/2025
Anonym  05/11/2015

mat und lieferumfang lässt keine wünsche übrig. leider wäre eine montageanleitung/montagehinweis, dass keine zylinderfussdichtung mehr benötigt wird, dafür aber die mitgelieferte distanzplatte montiert werden muss, hilfreich gewesen.

Anonym  03/23/2016

einwandfrei

Anonym  10/21/2016

eingebaut, Motor läuft, Langzeittest steht noch aus

Anonym  01/15/2022

Leichter Umbau - Eintragung ohne Probleme

General
Performance class
Sport

Piston pin
Diameter
15 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B8HS
Spark plug thread
kurz

Cylinder
Drill hole
57 mm
Type of cooling
luftgekühlt
Displacement
122 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
1-teilig (oval)
Exhaust assembly
Stutzen

Crankshafts
Stroke
48 mm

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
2,5mm

Piston clips
Piston clip type
Seeger-Typ

Cylinder heads
Cylinder head type
einteilig
