Engine gasket set -BGM Pro Silikon- Vespa

Silicone gasket sets for Vespa

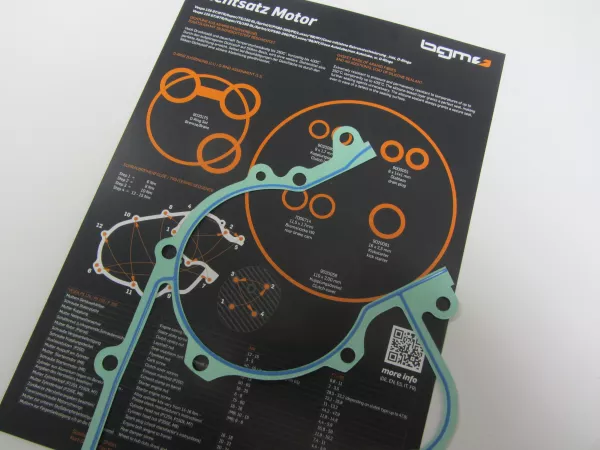

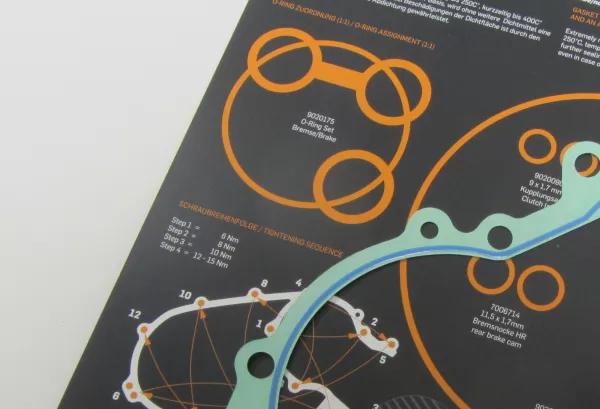

Now available from us: High-quality bgm PRO Vespa engine gasket sets with silicone application for Distanzbuchsen 002 The new BGM gasket sets are manufactured by a renowned manufacturer in Italy. They are characterized by the high-quality sealing material (in 0.5 mm on a fiber composite basis) and the additionally applied silicone sealant. The silicone coating is able to compensate for even minor unevenness or damage and thus seal the engine effectively and permanently. Each gasket set comes with an information sheet describing the installation location of the respective 1:1 illustrated gasket. A recommendation for the tightening sequence of the housing bolts and the prescribed tightening torque for the bolt nuts are also shown.

VESPA SMALLFRAME V50, PV125, ET3, PK

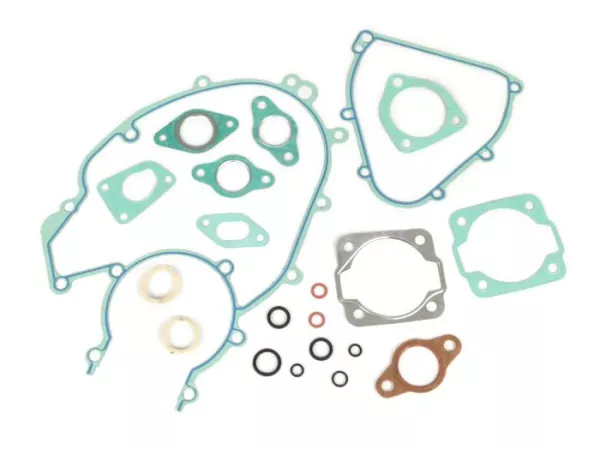

The gasket set for Vespa smallframe engines includes silicone-coated gaskets for the housing halves and the clutch cover.BGM1214(1)The gasket set for smallframes offers a large scope of delivery and is suitable for almost all manual transmission vehicles in this range. The following gaskets are included:
  • Engine housing with silicone coating
  • Clutch cover with silicone coating
  • Brake anchor plate
  • Intake manifold/engine 2-hole
  • Intake manifold/engine 3-hole
  • Felt ring 16mm
  • Felt ring 19mm
  • Exhaust, perforated 56mm/M8
  • Exhaust, perforated 56mm/M6
  • Exhaust, perforated 52mm/M8
  • Exhaust, perforated 52mm/M6
  • Cylinder base 0.5mm (fiber material)
  • Cylinder base, aluminum 0.2mm
  • Oil filler and drain plug
  • O-ring kick starter shaft
  • O-ring brake cam
  • O-ring clutch arm
From this gasket set we currently also have the gasket for the clutch cover available separately [su_spacer] [su_button url="https://www.scooter-center.com/de/product/BGM1214" background="#d40e14" size="10" center="yes" icon="icon: shopping-cart"]Gasket set engine -BGM Pro Silikon- Vespa Smallframe, V50, V90, V100, PV125, ET3, PK50-125/S/XL/XL2, ETS, incl. O-rings[/su_button O-rings buy here[/su_button] [su_spacer]

VESPA LARGEFRAME Sprint Veloce, Rally, PX, Cosa

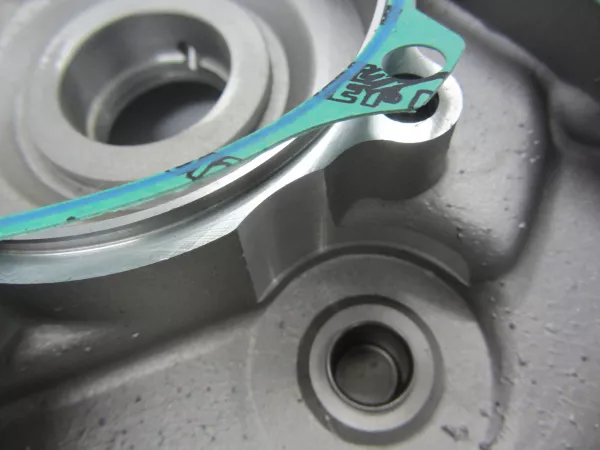

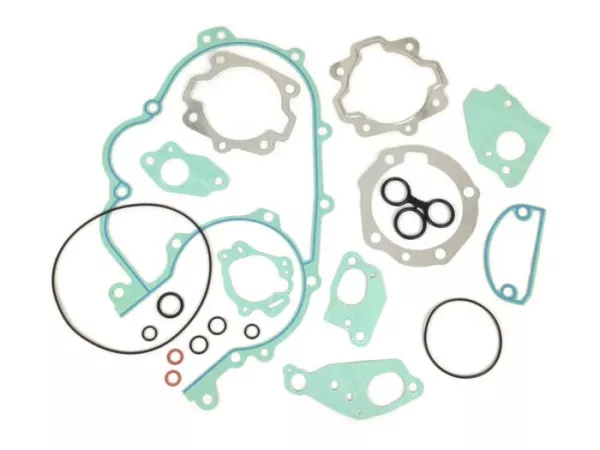

Especially with Vespa largeframe engines, the sealing kit offers the advantage that the critical area in the area of the clearance for the kickstarter pinion is securely sealed and the engine cannot suck in any gear oil there. If the sealing surfaces are clean, the gasket can no longer slip in this area due to the silicone coating. When installing a conventional gasket in combination with sealing compound, the gasket may be squeezed out of the gap between the housing halves by the additional sealant when the housing halves are joined together. It's a bit like biting into a richly topped hamburger and the toppings spill out between the two halves of the bun. This effect cannot occur with a seal with a silicone coating. On the one hand, we have attached great importance to the fit and as soon as the silicone makes contact with the sealing surface under slight pressure, the coating sticks and the seal is secured against slipping when the housing bolts are tightened. 06.01.2016 003To ensure that the gasket fits the PX125 and PX200 engines, we have adapted the silicone coating and the shape of the gasket.BGM1212_2The gasket for the housing halves and the gear lever are coated with silicone.BGM1212(1)The gasket set for Vespa Largeframe engines includes the following gaskets:
  • Motor housing with silicone coating
  • Gear shift detent with silicone coating
  • between carburetor and 125cc sump
  • between sump and 125cc engine
  • between carburetor and 200cc sump
  • between carburetor and 200cc engine
  • Oil pump
  • Cylinder base 125/150; 2-channel; 0.2mm
  • Cylinder base 125/150; 3-channel; 0.2mm
  • Cylinder base 200; 0.2mm
  • Oil filler and drain plug
  • O-ring kick starter shaft
  • O-rings brake cam
  • O-ring clutch arm
  • O-ring clutch cover
  • O-ring brake dust cover
From this gasket set we currently also have the gasket for the gear lever available separately [su_spacer] [su_button url="https://www.scooter-center.com/de/product/BGM1212" background="#d40e14" size="10" center="yes" icon="icon: shopping-cart"]Gasket set engine -BGM Pro Silikon- Vespa Largeframe, PX80-125-150-200 (all), Rally200, Cosa, Sprint Veloce, incl. O-rings - with/without separate lubrication buy here[/su_button] [su_spacer] For Lambretta enthusiasts, we also have gasket sets and individual gaskets in preparation, including the gaskets for the engine cover, the alternator housing and for the cover plate of the 6305 ball bearing, which are also manufactured in Italy.
Autor
Uwe Schneider
