Piaggio Item number: 9010104

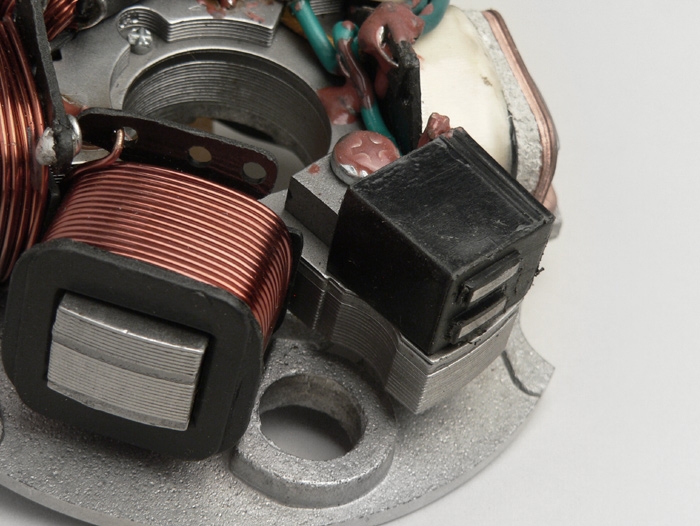

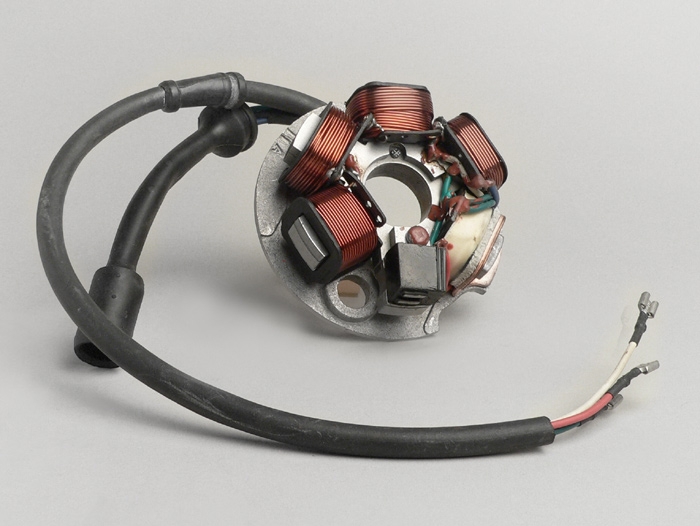

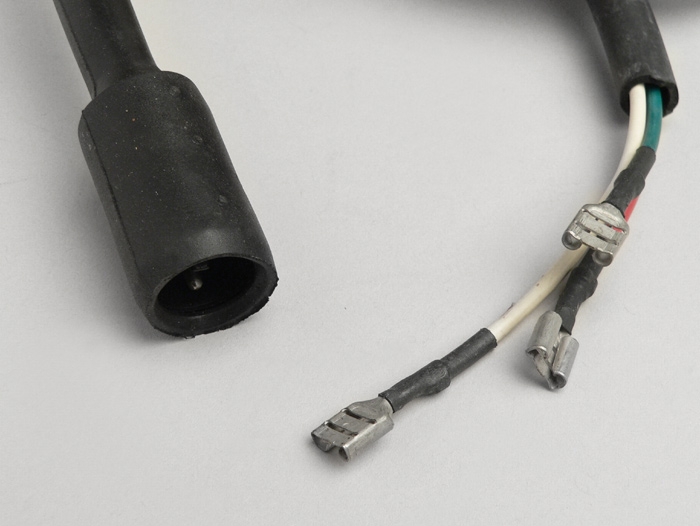

Ignition -PIAGGIO stator- Vespa PK XL, Ape 50 - 5 coils, 6-cable (round plug with 3-pin) - for vehicles without battery

7 Ratings

139,00 €*

available immediately

Shipping weight 0,8 kg

Information on product safety

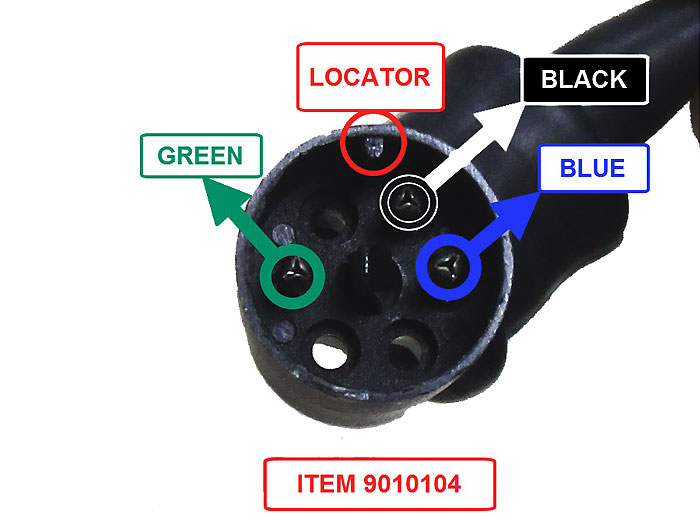

The ignition base plates of PK XL models are available with different pin assignments. The models without battery have three occupied pins, the models with battery have five occupied slots. If you want to convert your V50 or PV to electronic ignition, it is best to use the base plate without battery (3 cables). Here you simply place the current-carrying blue cable on the voltage regulator and tap the current required on the vehicle from there.

NOTE: Piaggio purchases its goods from various manufacturers in Europe and Asia. The picture material may therefore differ from the delivered goods.

_{AI-translation}

This is how we ensure, that reviews come from real consumers.

Annette H. 05/25/2025

Antonio J. P. 05/08/2025

Anonym 02/18/2016

Das produkt verwende ich in meiner Pk 50 XL2,empfehlen würde ich das allen die eine Vespa fahren.

Anonym 05/11/2015

piaggio grundplatte wie immmer zuverlässig und top qualität

Anonym 11/06/2014

Bin sehr zufrieden.Es hat alles geklappt.

Anonym 11/05/2014

Ware hat leider nicht gepasst mein Fehler schnelle Rückerstattung

Anonym 11/05/2014

Ware hat leider nicht gepasst mein Fehler schnelle ückerstattung

Stator ignition (base plate)

Ignition type

kontaktlos (elektronisch)

Position (pickup / contact)

innenliegend

Stator uses pole wheel type

Außenrotor

Number of coils

5

Tension

12V

Electricity

Wechselstrom (AC)

Base plate diameter

105 mm

Coil diameter

93 mm

Total height

39.5 mm

Number of cables

6

Plug type

Multistecker

Rotor ignition (pole wheel)

Pole wheel type

Außenrotor

Ignition in general

Rotor (pole wheel) included in the scope of delivery

nein

CDI included in scope of delivery

nein

Voltage regulator included in the scope of delivery

nein

Ignition timing

fest

OEM numbers (for comparison purposes only)

Piaggio:

196992, 199495, 213878

Scooter Center:

9010104
