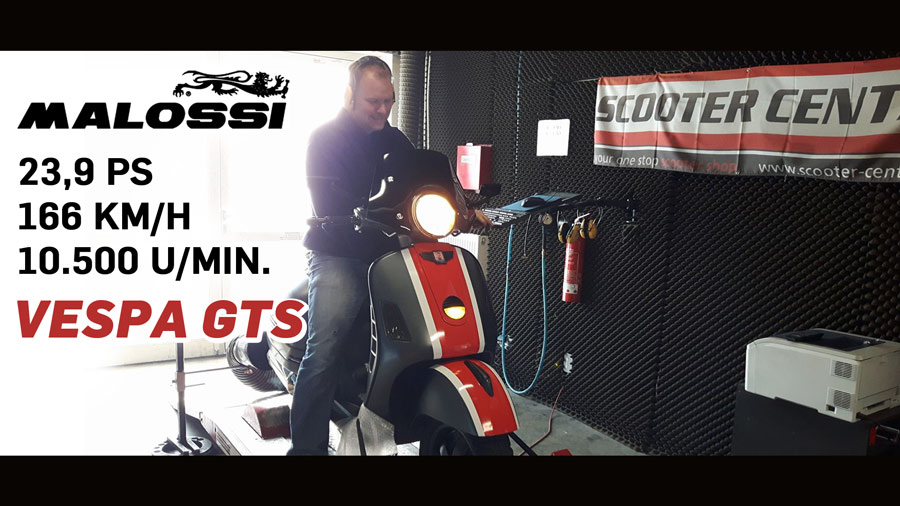

Vespa GTS with Malossi tuning on test bench

Vespa GTS on the test bench with Malossi tuning

Bernd's (customer) Vespa GTS has undergone some tuning measures, both visually and technically:

Engine: Vespa GTS with Malossi tuning

Everything from Malossi was fitted to the engine, from the cylinder and cylinder head to the clutch, variator and gearbox. As a result, the GTS has real pressure from below, the power increase is available across the entire rev range, and thanks to the Malossi Forcemaster2, the rev limiter is raised by 1,000 rpm, measured at 10,500 rpm on this vehicle. The 4 different setting maps of the Malossi Forcemaster2, depending on the expansion stage, also have the option of changing the injection quantity +-20% at min/medium/max.
  • Curve 0original cylinder, original camshaft, original cylinder head and Malossi exhaust with DB killer
  • Curve 1: original cylinder, original camshaft, Malossi cylinder head and Malossi exhaust with DB killer
  • Curve 2: Malossi cylinder, original camshaft, Malossi cylinder head and original exhaust
  • Curve 3Malossi cylinder, original camshaft, Malossi cylinder head and Malossi exhaust with DB killer

Installed Malossi tuning for Vespa GTS

The following parts were installed from the Scooter Center Vespa Shop:
  • Malossi cylinder set 282ccm³ V4, Ø=75,5mm incl. Malossi V4 head
  • Malossi injection module "Forcemaster2"
  • M6714844 Malossi secondary gearbox Z22/45 straight toothed
  • M5111885 Malossi Multivar with 3x14gr. + 3x15gr. rollers
  • M6113027 Malossi Kevlar belt
  • M5211821 + M2911326 Malossi Delta clutch with Malossi springs red
  • Remus RSC stainless steel with large dB eater

Power +5PS & +31 km/h

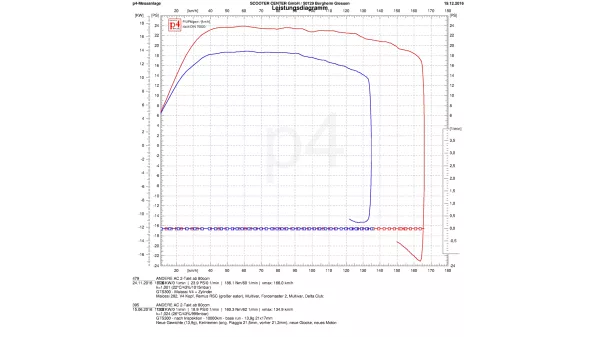

Leistungsdiagramm Vespa GTS

Data according to performance diagram

VESPA GTS SERIES VESPA GTS MALOSSI
POWER 18,9 HP 23,9 HP
VMAX to limiter 134.9 km/h 166 km/h
REV LIMITER 9,500 rpm 10,500 rpm.

To ensure that the Vespa not only reaches top speeds and accelerates extremely well, but also comes to a safe stop, we will soon be able to supply a suitable adapter for the Brembo 4 piston brake caliper caliper. The following is already available:

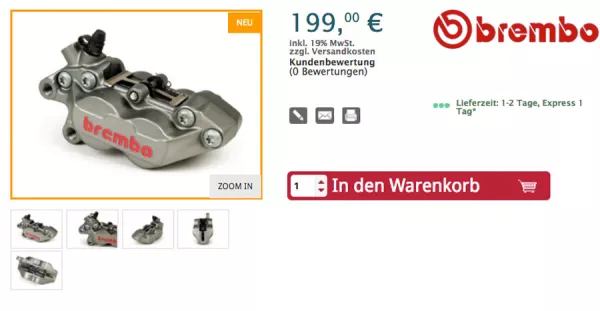

Front brake caliper, left -BREMBO, 4-piston, Ø=30/34mm, (P4 30/34C)- Titan Style

Part no. 3332085


Bremszange vorne, links -BREMBO, 4-Kolben, Ø=30/34mm, (P4 30/34C)- Titan Style Artikelnr. 3332085 Brake caliper front, left -BREMBO, 4-piston, Ø=30/34mm, (P4 30/34C)- Titan Style
Part no. 3332085
