The following components are included in this set:
Ball bearing -6303- (17x47x14mm) - (used for crankshaft, drive side Vespa V50, V90, PV125, ET3, PK S, PK XL, Lambretta Lui 50, J 50-100)
Ball bearing -6303- (17x47x14mm) - (used for crankshaft, drive side Vespa V50, V90, PV125, ET3, PK S, PK XL, Lambretta Lui 50, J 50-100)
Ball bearing -16005- (25x47x8mm) - (used for primary gear Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Ball bearing -16005- (25x47x8mm) - (used for primary gear Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Ball bearing -6200- (10x30x09mm) - (used for gear cluster Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Ball bearing -6200- (10x30x09mm) - (used for gear cluster Vespa V50, V90, SS50, SS90, PV125, ET3, PK S, PK XL)
Needle roller bearing -HK 1612- (16x22x12mm) - (used for drive shaft V 50-90, SS 50-90, PV 125, ET3, PK S, PK XL)
Needle roller bearing -HK 1612- (16x22x12mm) - (used for drive shaft V 50-90, SS 50-90, PV 125, ET3, PK S, PK XL)
Ball bearing -6204- (20x47x14mm) - (used for drive shaft Vespa PX, T5 125cc, Cosa, Rally180 (VSD1T), Rally200 (VSE1T), Sprint150 (VLB1T), TS125 (VNL3T), GT125 (VNL2T), GTR125 (VNL2T))
Ball bearing -6204- (20x47x14mm) - (used for drive shaft Vespa PX, T5 125cc, Cosa, Rally180 (VSD1T), Rally200 (VSE1T), Sprint150 (VLB1T), TS125 (VNL3T), GT125 (VNL2T), GTR125 (VNL2T))
Ball bearing -6204 TN9 C4- (20x47x14mm) - (used for crankshaft Minarelli 50cc (type MA, MY, CW, CA, CY), Vespa V50, V90, PV125, ET3, PK S, PK XL (flywheel side))
Ball bearing -6204 TN9 C4- (20x47x14mm) - (used for crankshaft Minarelli 50cc (type MA, MY, CW, CA, CY), Vespa V50, V90, PV125, ET3, PK S, PK XL (flywheel side))
69,90 € *
Scooter Center ball bearing sets for the fast and high-quality engine revision.
The bearing sets contain high-quality standard bearings from renowned companies such as SKF, FAG, INA or similar. Exceptions are the drawing bearings which are not available as standard bearings. These are manufactured in small series by specialized companies. Due to the small quantities involved, these are naturally expensive, but are of a very high quality.

The bearing sets always contain the ball or roller bearings fitted in the motor housing and the individual bearing needles used on the auxiliary shaft. The connecting rod bearing is not included in the set.

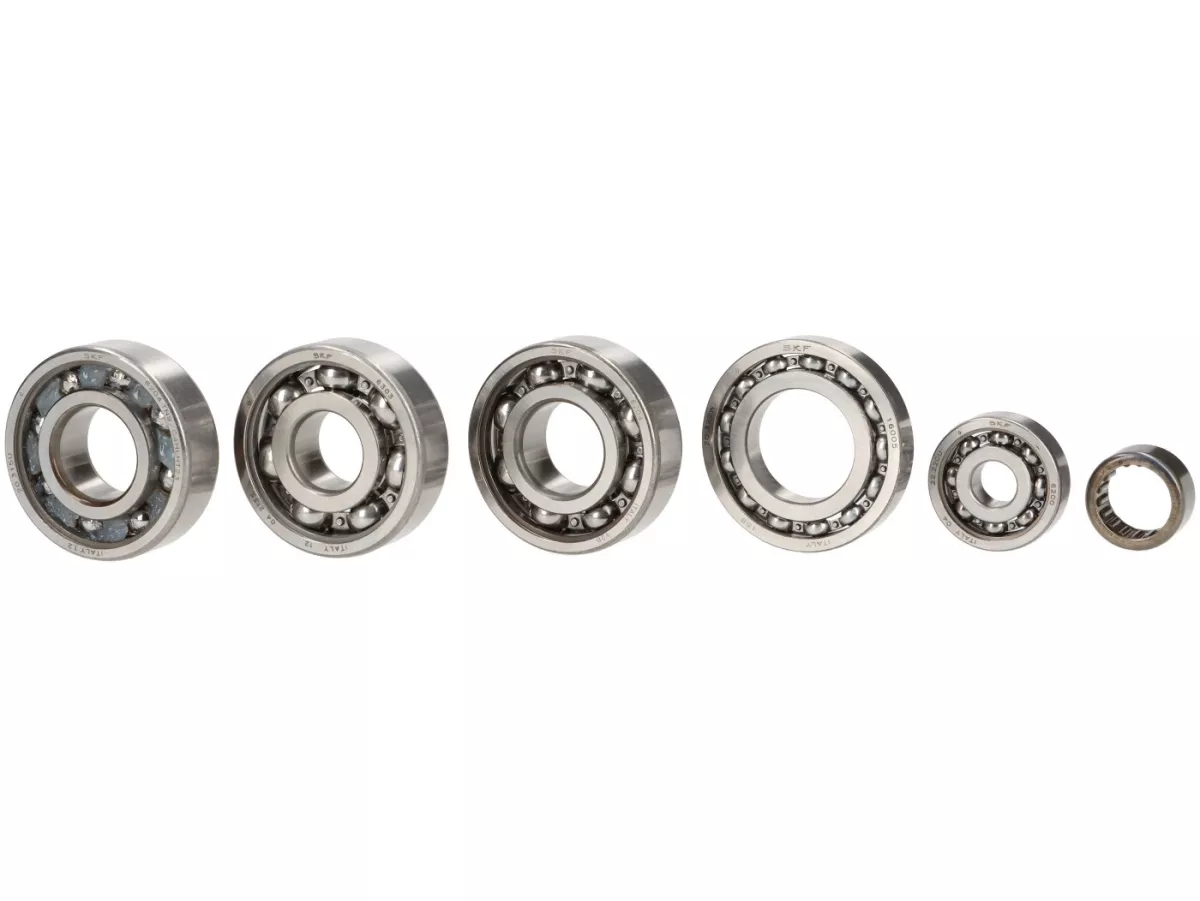

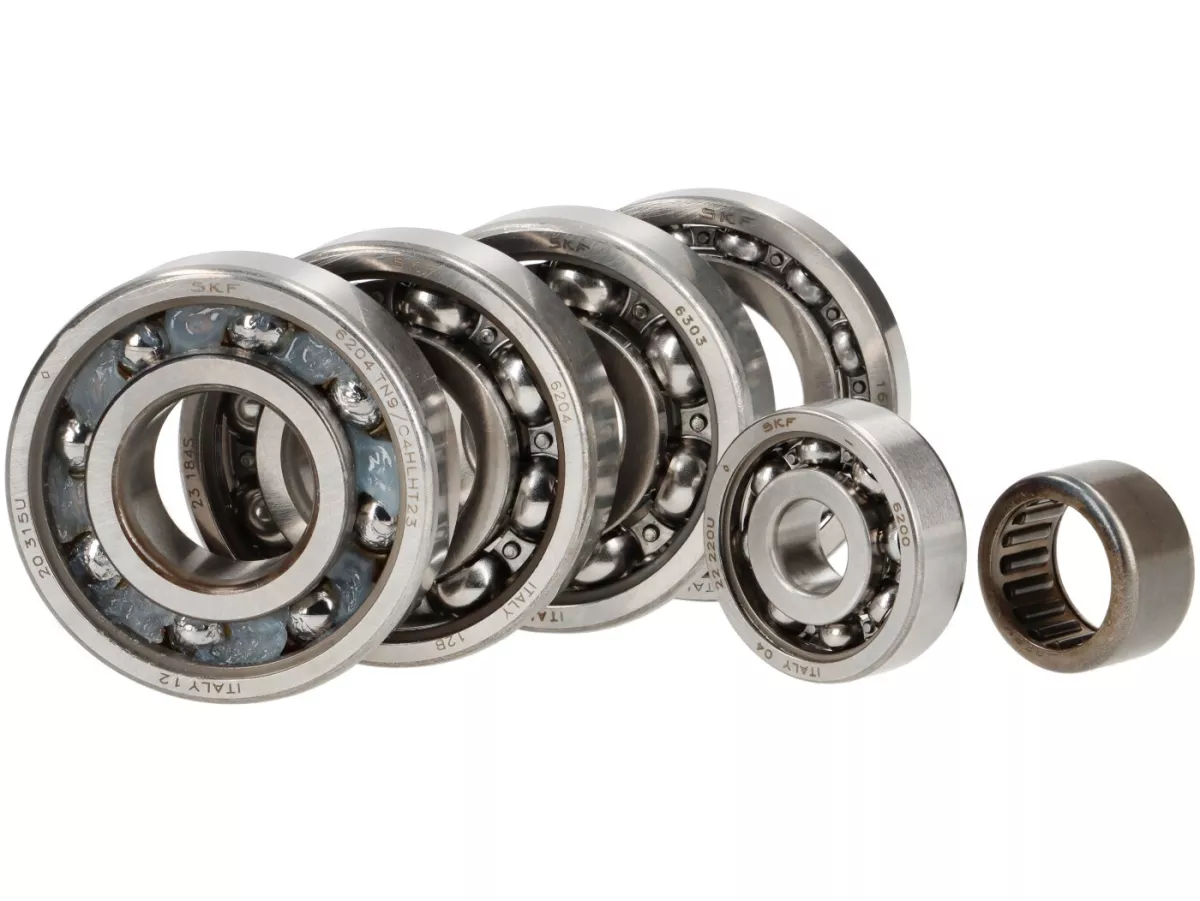

The set contains:

  • 1x crankshaft clutch side: 17x47x14mm
  • 1x crankshaft limo side: 20x47x14mm (TN9)
  • 1x auxiliary shaft: 10x30x9mm
  • 1x auxiliary shaft 25x47x8mm
  • 1X main shaft wheel side: 20x47x14mm
  • 1x main shaft limo side (needle bearing): 16x22x12mm

TIP: If you want to tune your Smallframe to the highest level, you should choose the very high quality two-piece NU bearings. Due to their considerably larger bearing width, these bearings have a fatigue limit load that is almost ten times higher (2750N compared to 280 of a normal 6204)! This bearing can be used on all shafts with 20mm Lima stub (e.g. V50, Primavera, ET3, PK XL).

AI-translation

Rate this article now and let us know what you think.
General
Quantity included in delivery
6

Ball bearing sets
Size bearing 1
20x47x14mm
Size bearing 2
17x47x14mm
Size bearing 3
10x30x09mm
Size bearing 4
25x47x8mm
Size bearing 5
20x47x14mm
Size bearing 6
16x22x12mm
Designation Bearing 1
6204 ETN9 C4
Designation bearing 2
6303
Designation Bearing 3
6200
Designation Bearing 4
16005
Designation Bearing 5
6204
Designation Bearing 6
HK 1612
