Egig Performance Item number: EGIG220KWSR
Egig Performance
499,00 €*
available immediately
Shipping weight 2,6 kg

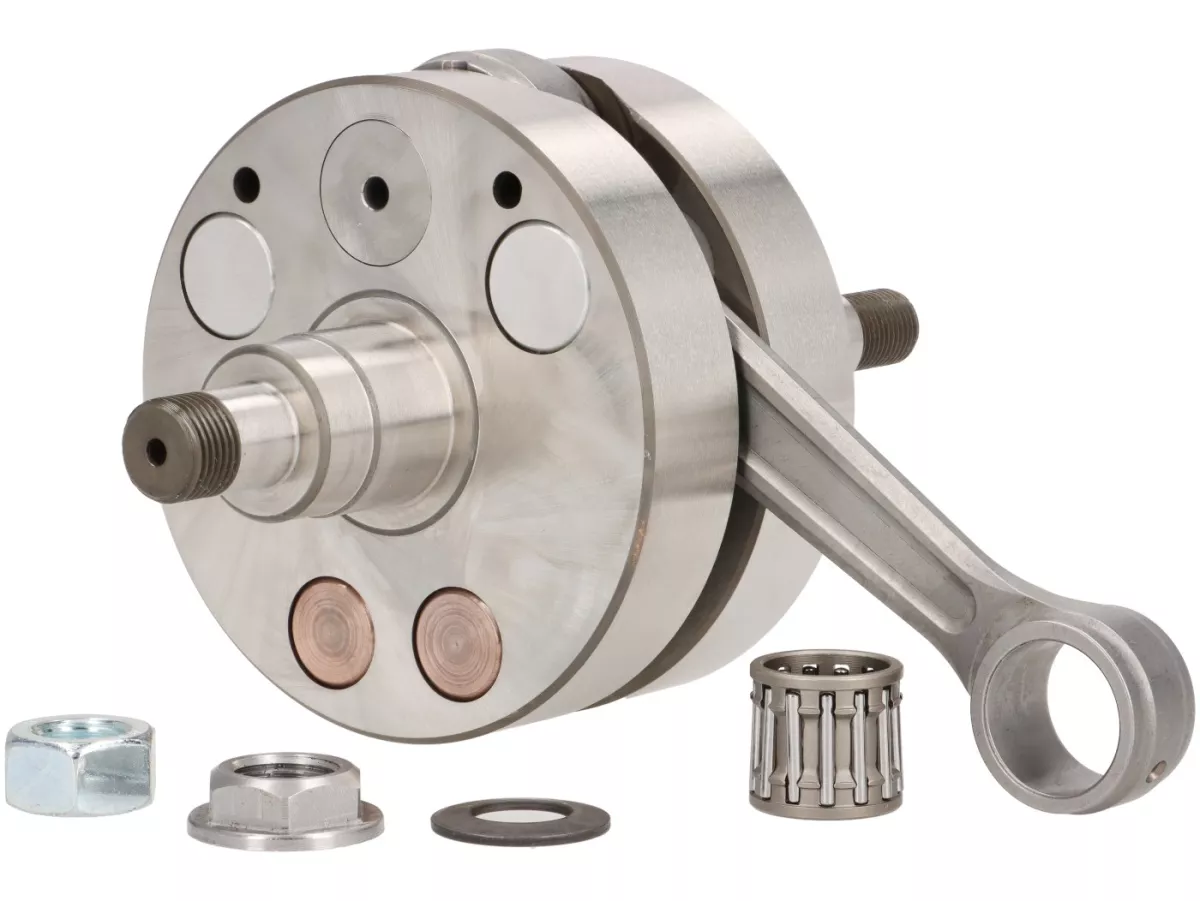

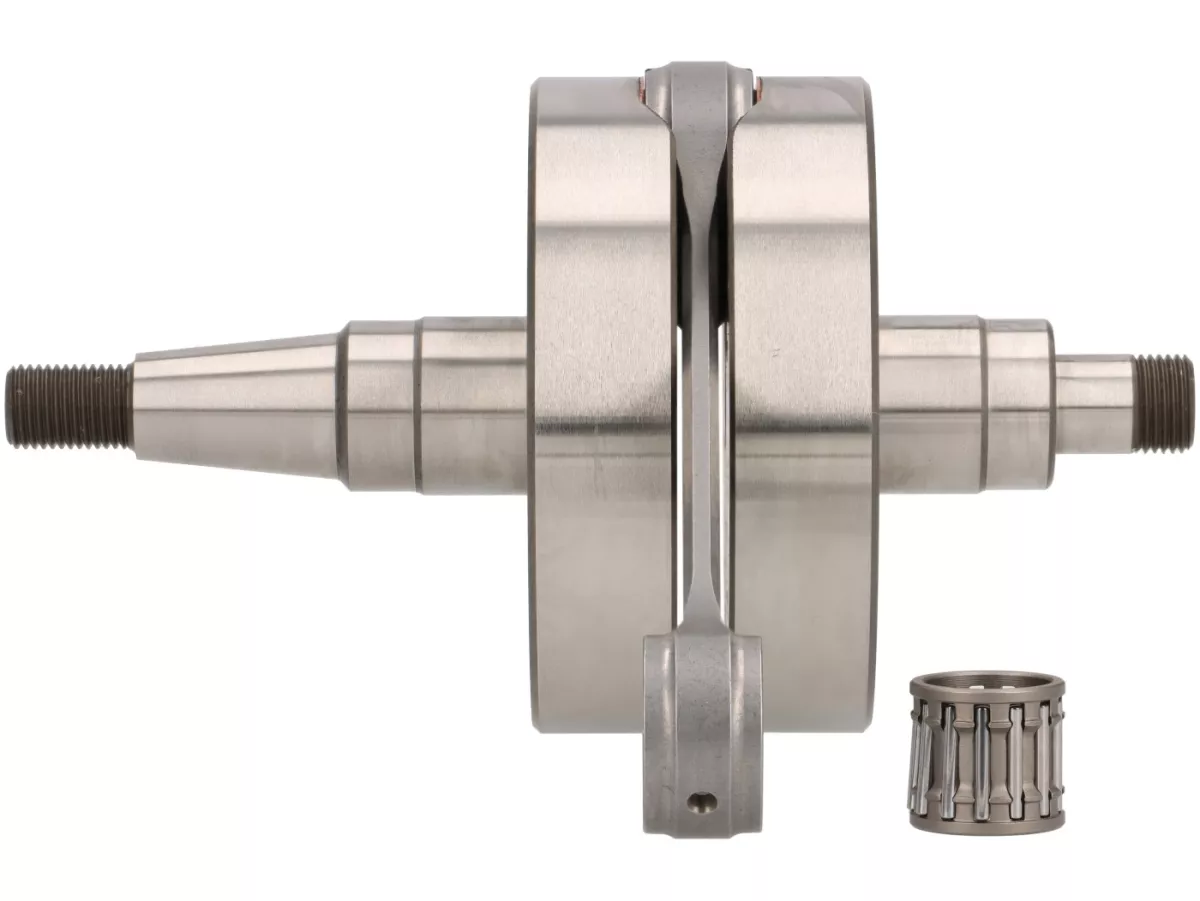

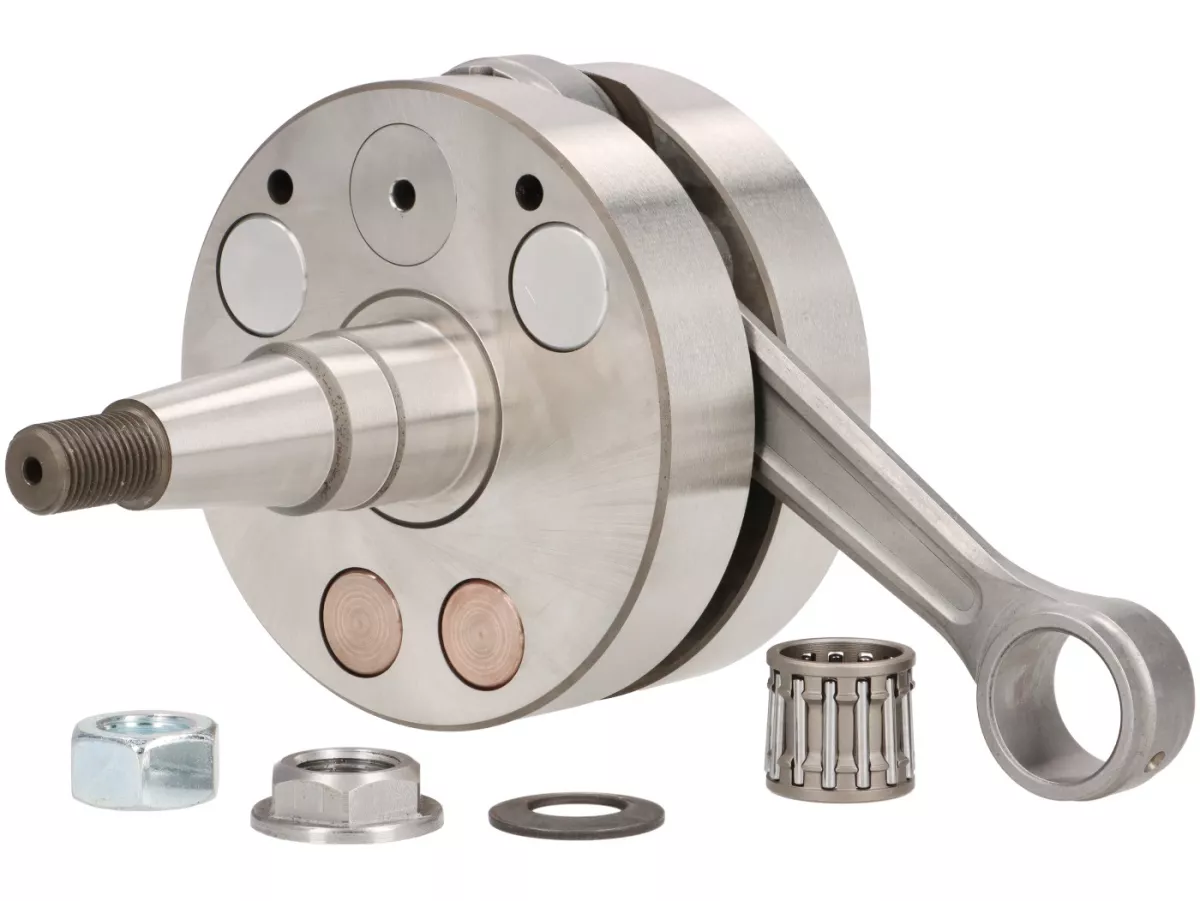

Egig220 S/R crankshaft - high performance at a fair price

The new Egig220 S/R crankshaft is the price-conscious version of the high-end EGIG220KW version - developed for all those who want maximum performance and quality without compromising on economy.

Highlights

  • Forged primatist connecting rod from Italy
    Extremely resilient, precisely manufactured, proven in high-performance applications.
  • Compatible with EGIG220 engine housing and cylinder
    Completely accurate fit, no spindling or reworking necessary.
  • Easy to install thanks to sliding fit
    Specially designed on the pinion side for tool-free installation/removal.
  • Reinforced M14 thread
    Enables a high tightening torque of up to 100 Nm.

Technical data at a glance

Stroke 60 mm
Connecting rod length 117 mm
Connecting rod type Primatist forged
Piston pin 16 mm
Bore range For cylinders with 66-68 mm bore
Crankshaft taper 20 mm
Bearing stubs 25 mm
Cheek diameter 92 mm
Spindle diameter of cheeks 93 mm
Spindle diameter connecting rod area 96.8 mm
Sealing ring fan wheel side 24×35×7 mm
Clutch side sealing ring 24×35×7 mm
Primary pinion mount Standard, with small keyway

This crankshaft is ideal for powerful Vespa setups with more than 40 Nm torque. The combination of precision, material quality and ease of installation makes the Egig220 S/R the first choice for tuning enthusiasts and long-distance riders.
