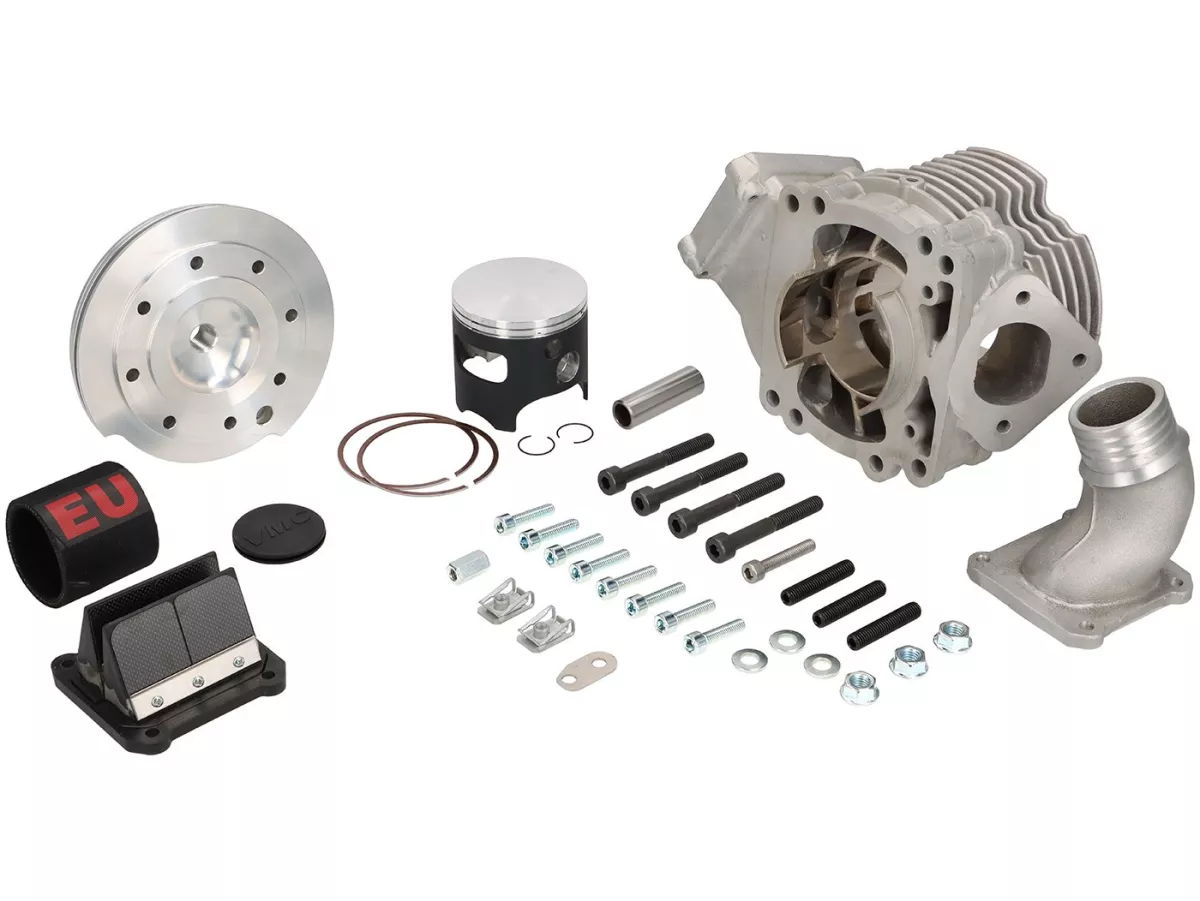

Cylinder -EGIG PERFORMANCE 220cc, single exhaust port, bore Ø68mm, stroke 60mm, connecting rod 117mm - Vespa PV125, ET3 125, PK125

EGIG 220 ccm Cylinder Kit for Vespa PV, ET3 and PK – Touring or Racing

EGIG High Performance cylinder kit - modular, powerful & versatile

Developed for ambitious tuners and touring riders alike: The new EGIG cylinder combines maximum flexibility with uncompromising performance - whether on the road or the race track.

Technical highlights

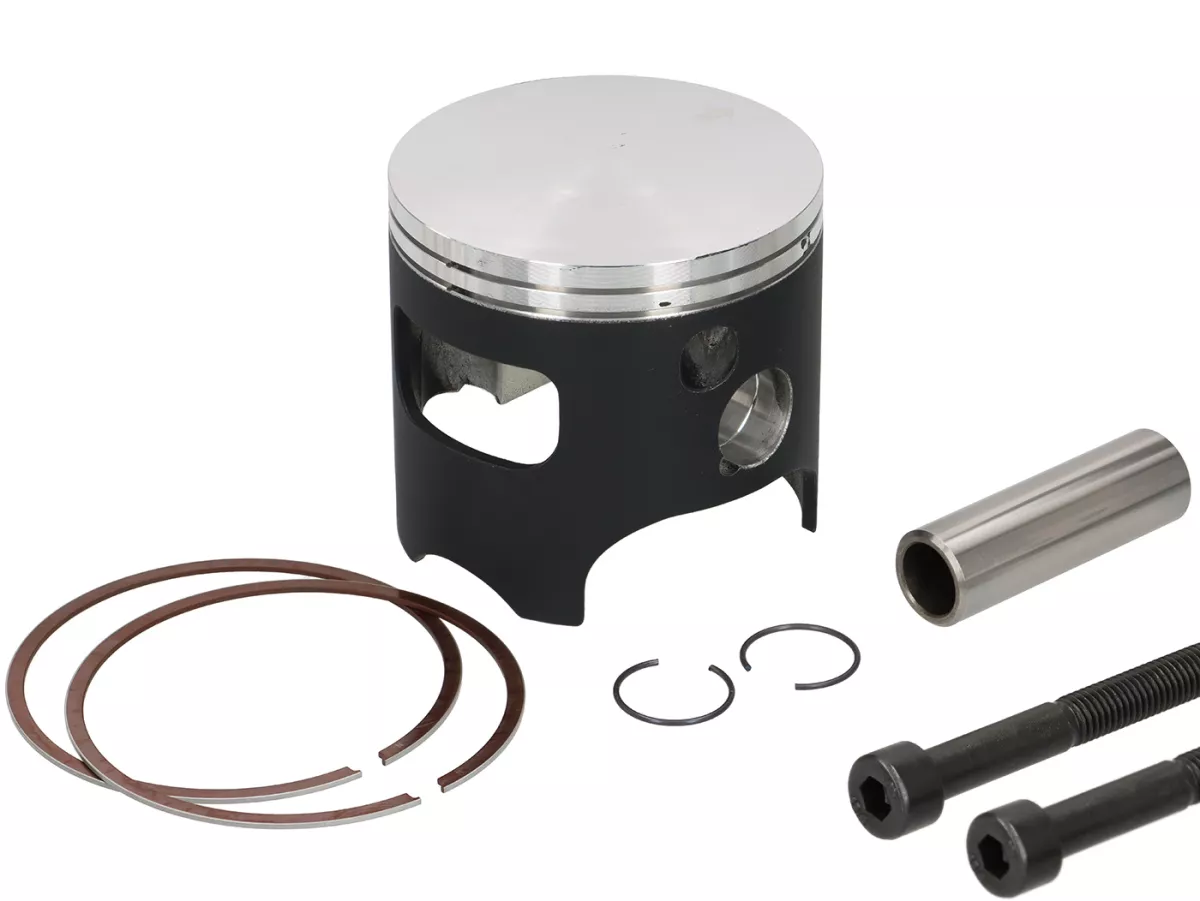

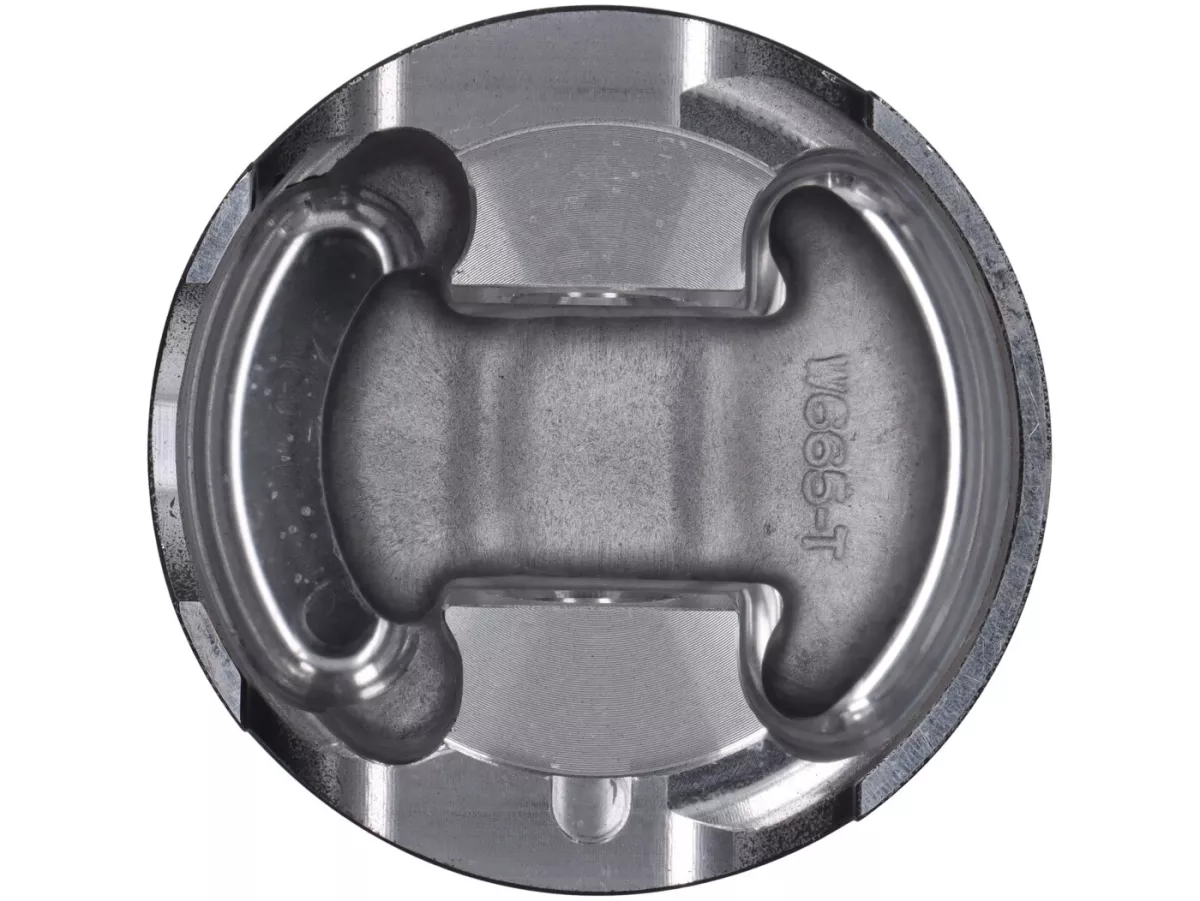

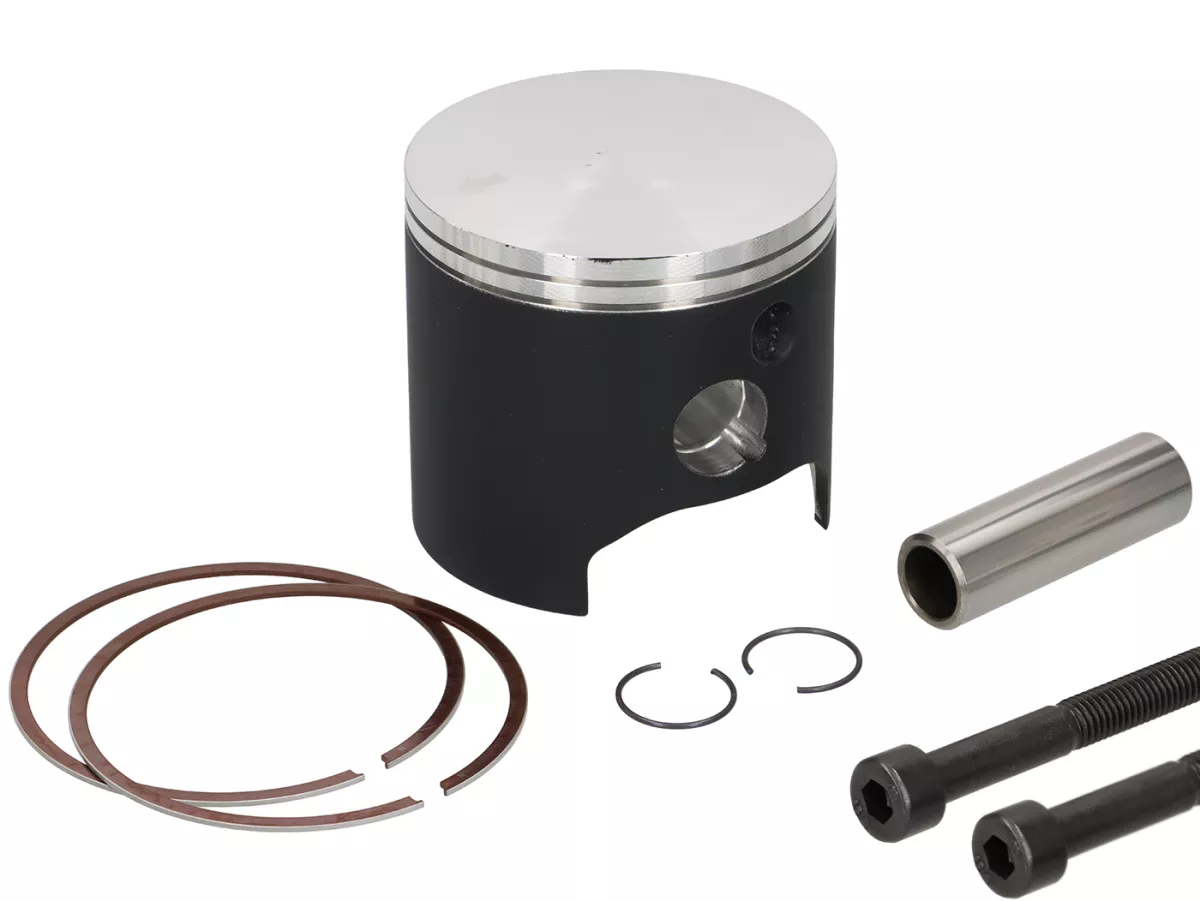

• 68 mm Wössner forged piston

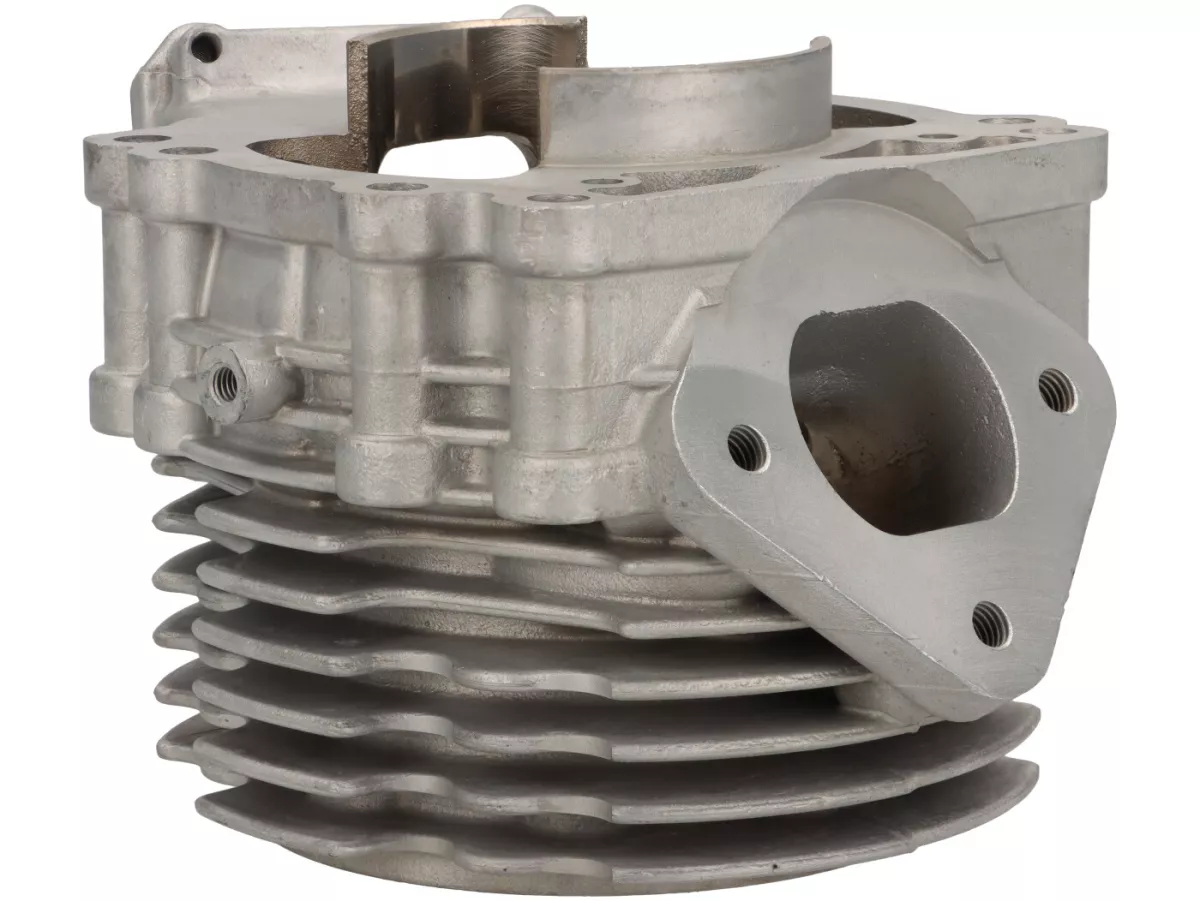

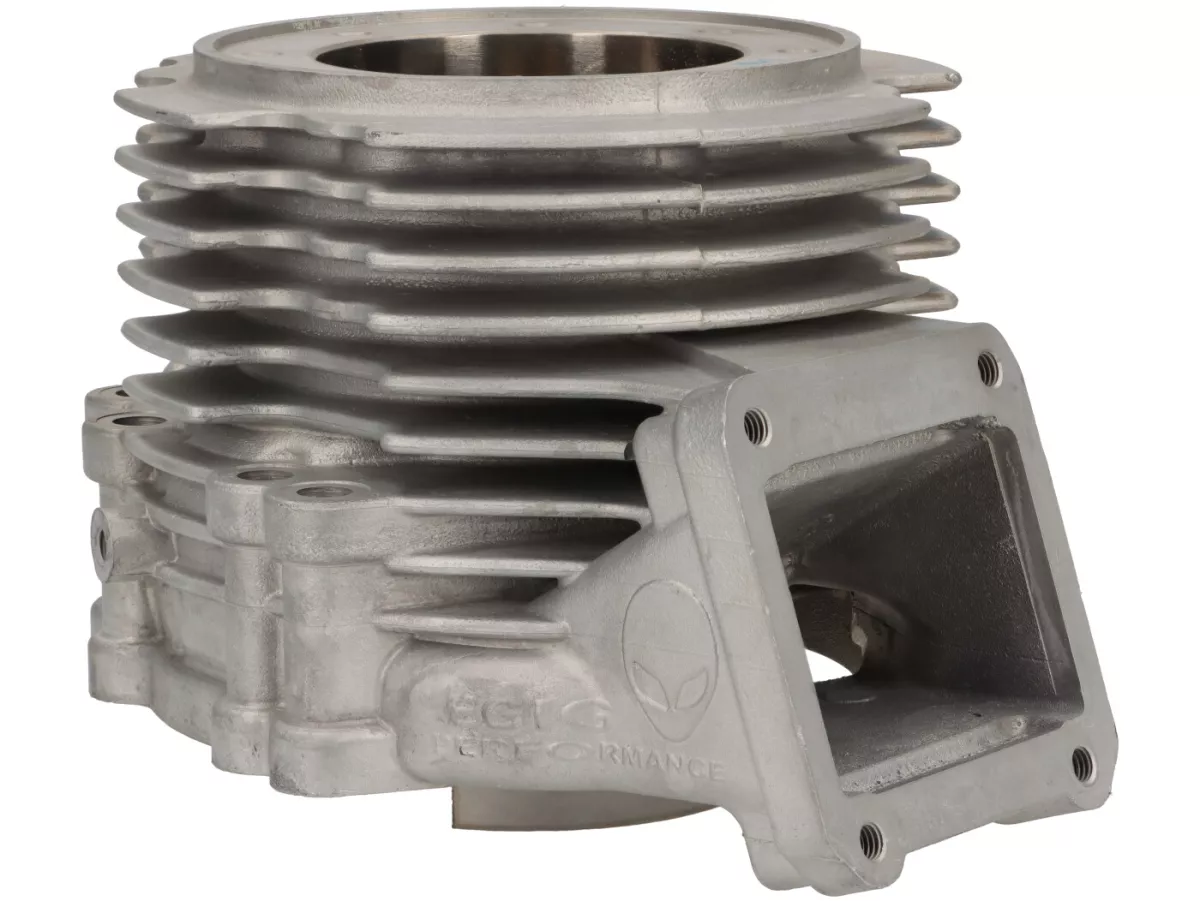

• Aluminum cylinder with heavy-duty Nikasil coating

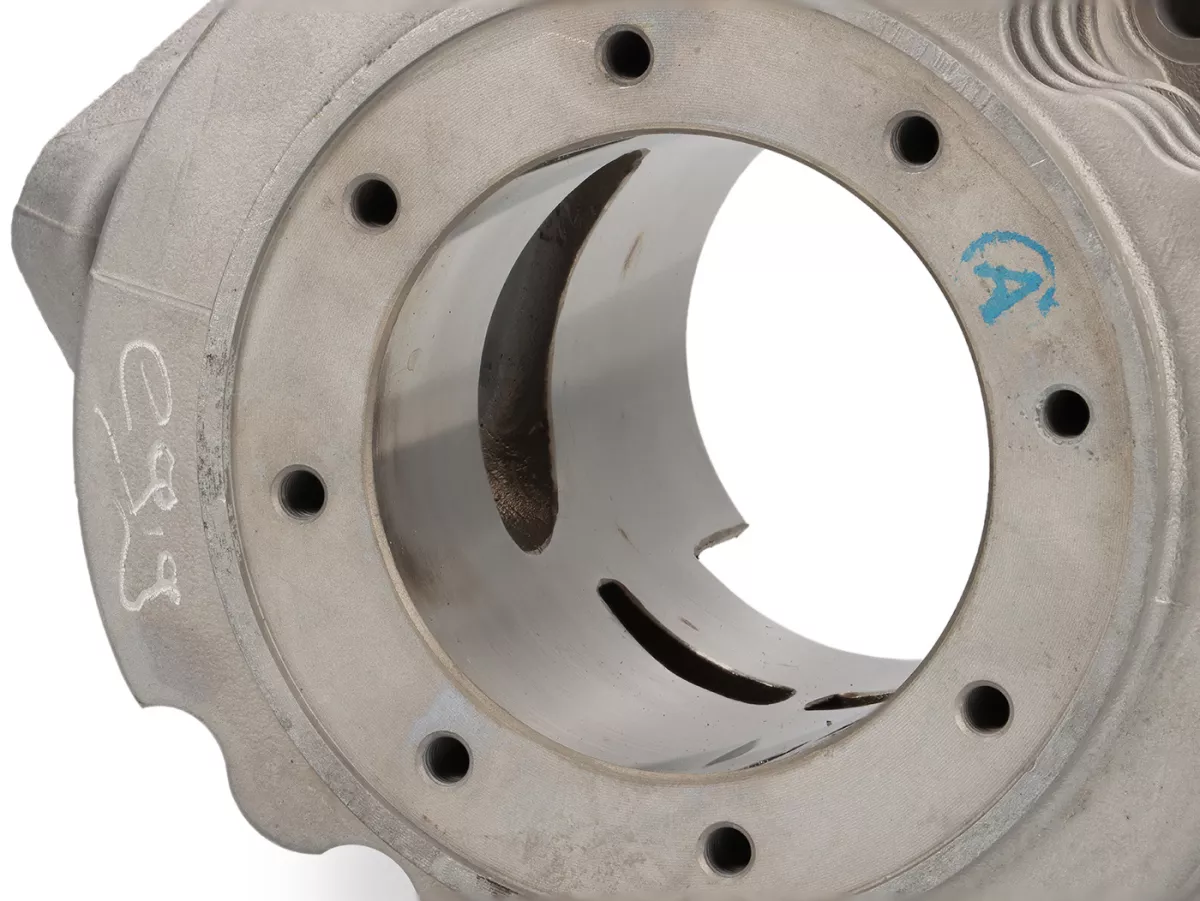

• Suitable for M200 and EGIG 250/300 stud bolt hole pattern (8-fold)

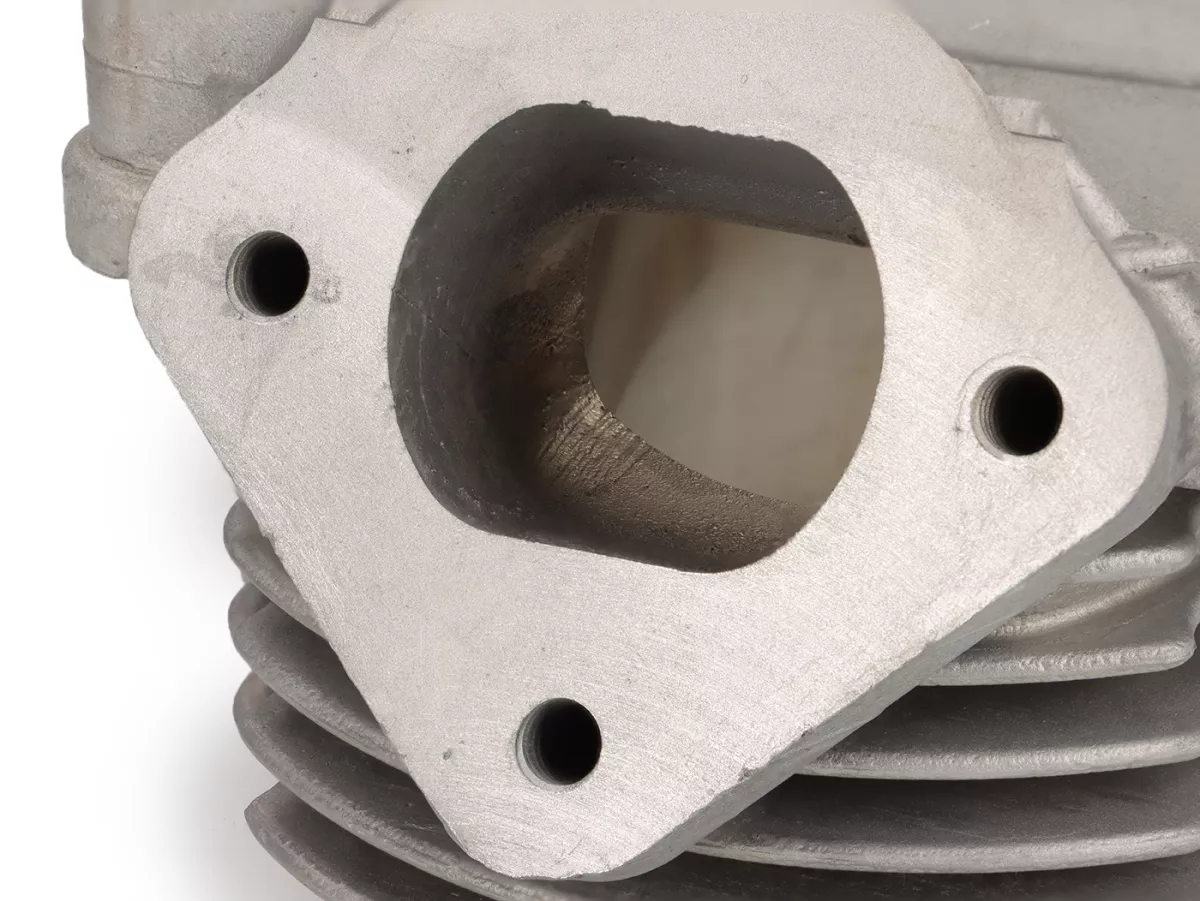

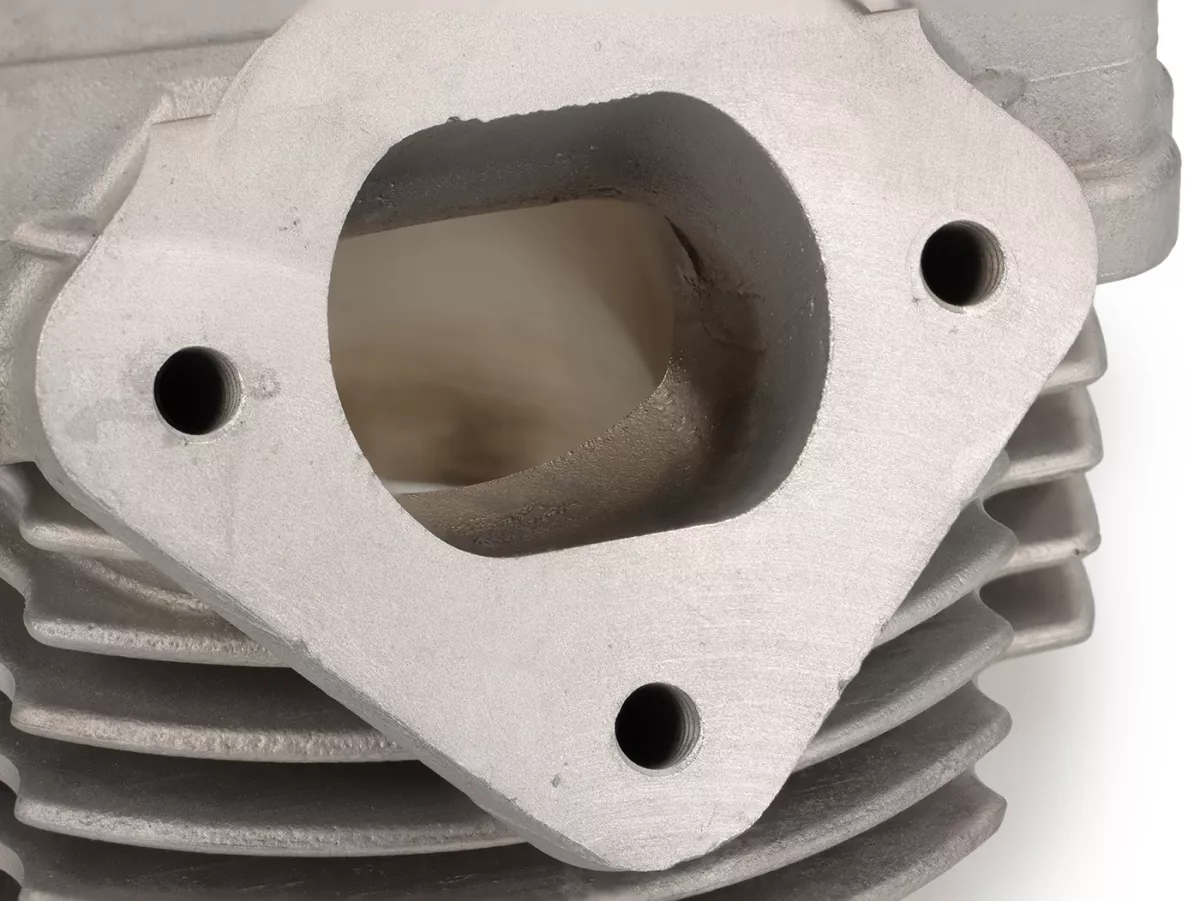

• Exhaust hole pattern: 65 mm (identical to M200) with additional central M8 fastening thread

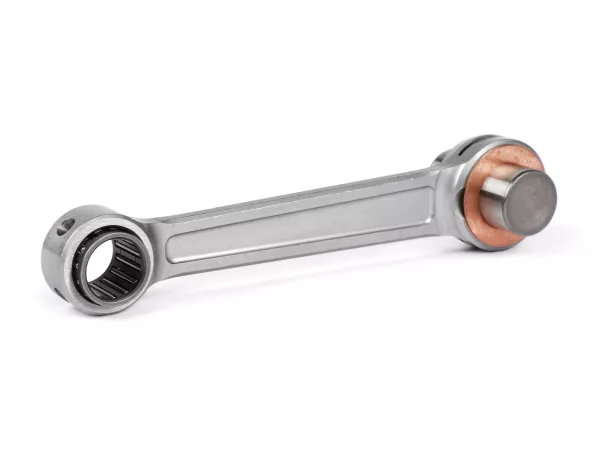

• Stroke / connecting rod combinations:
• 56.5 mm stroke / 116 mm connecting rod = 205 ccm
• 58 mm stroke / 117 mm connecting rod = 210 ccm
• 60 mm stroke / 117 mm connecting rod = 220 ccm
  (Note: For deviating connecting rod lengths, a spacer may be required or the cylinder base must be turned off).

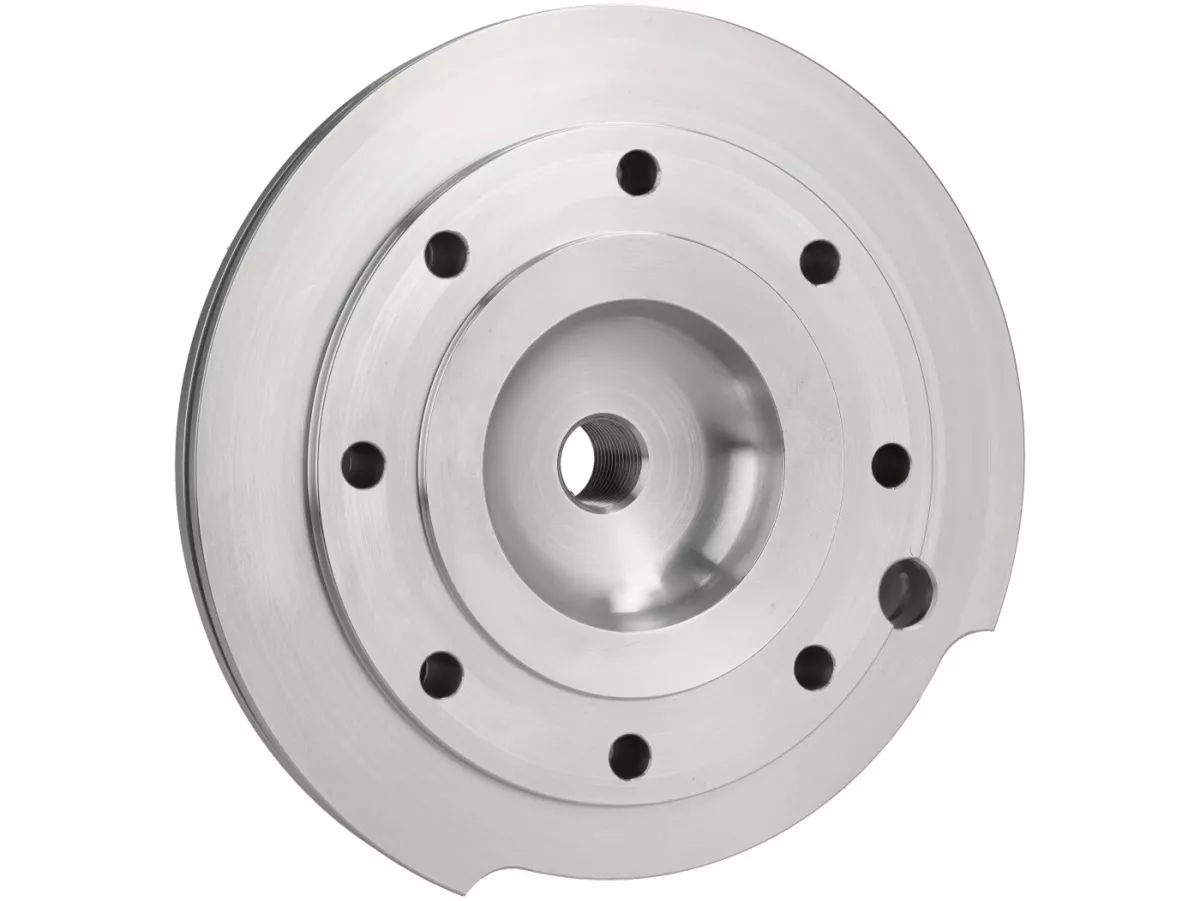

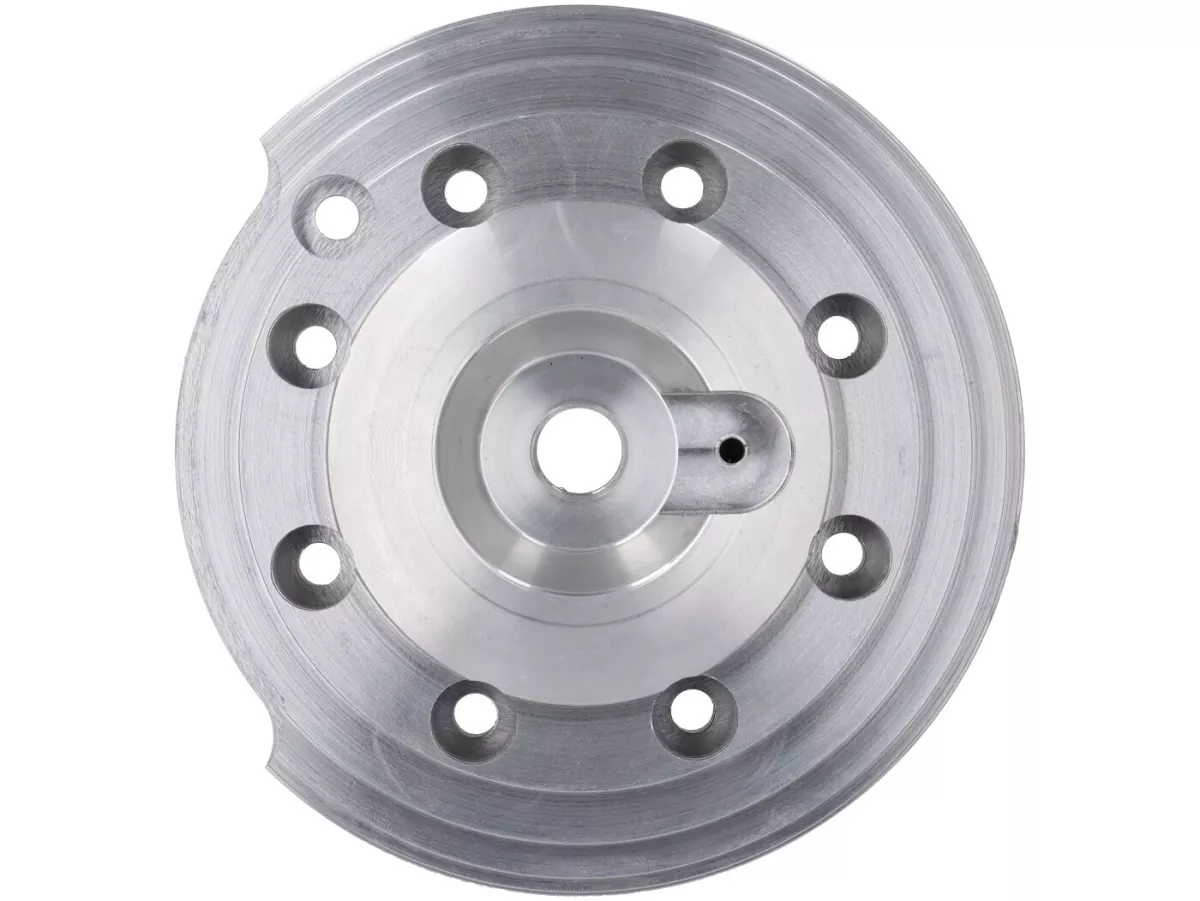

• Thread for Koso temperature probe in cylinder head: M4.5
• Suitable for PX125 cylinder cover (fixing points & dimensions)
• Compression ratio with crushing edge 1.2-1.3 mm: approx. 12.5:1
• Choice of one-piece or three-piece exhaust

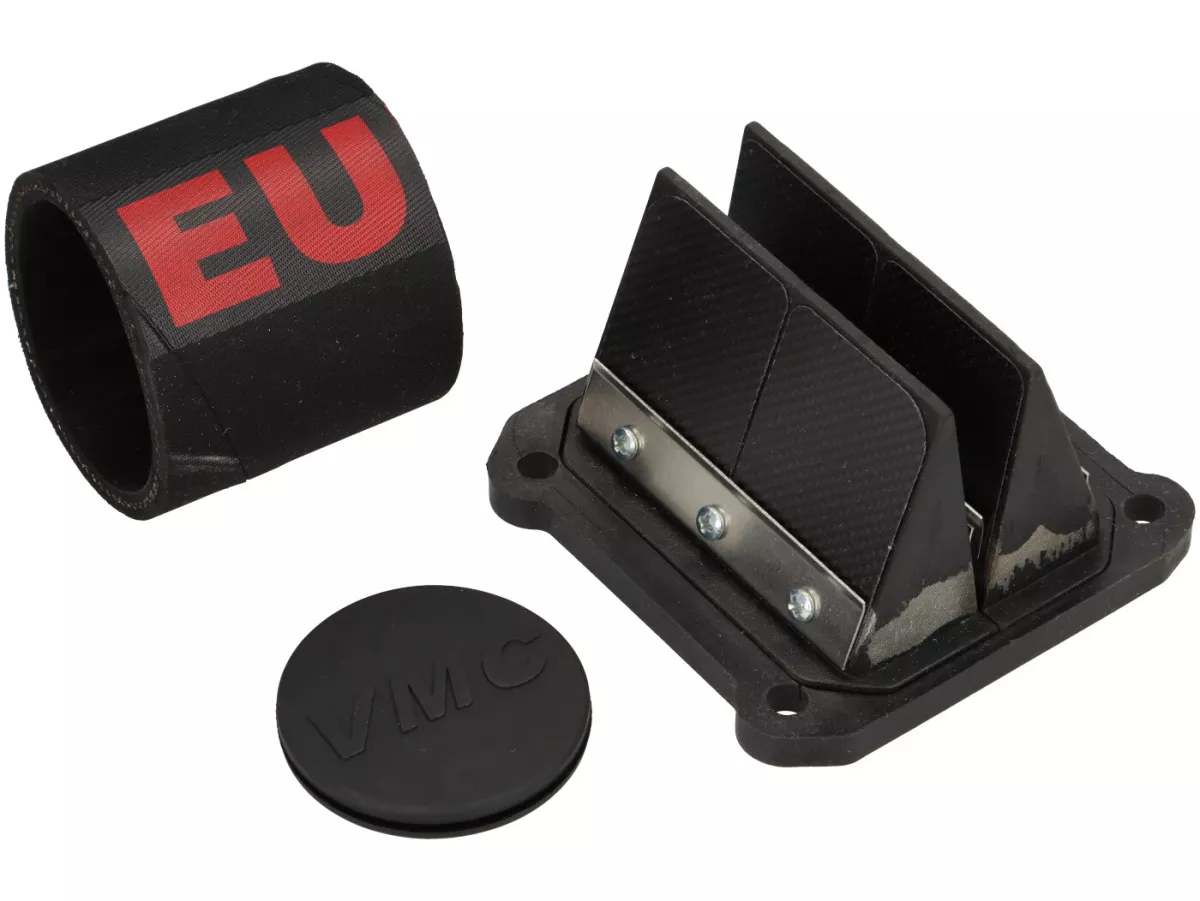

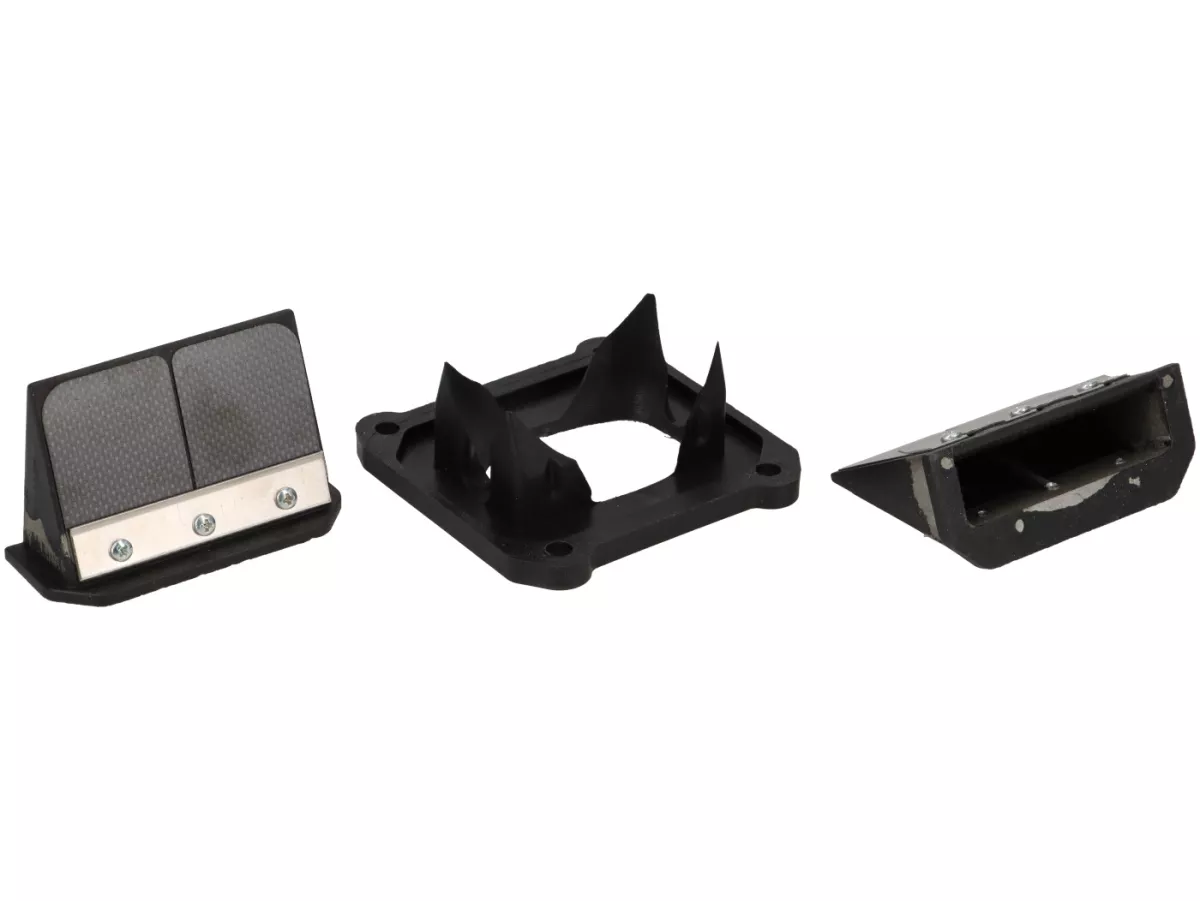

• 8-flap diaphragm block from Italkit

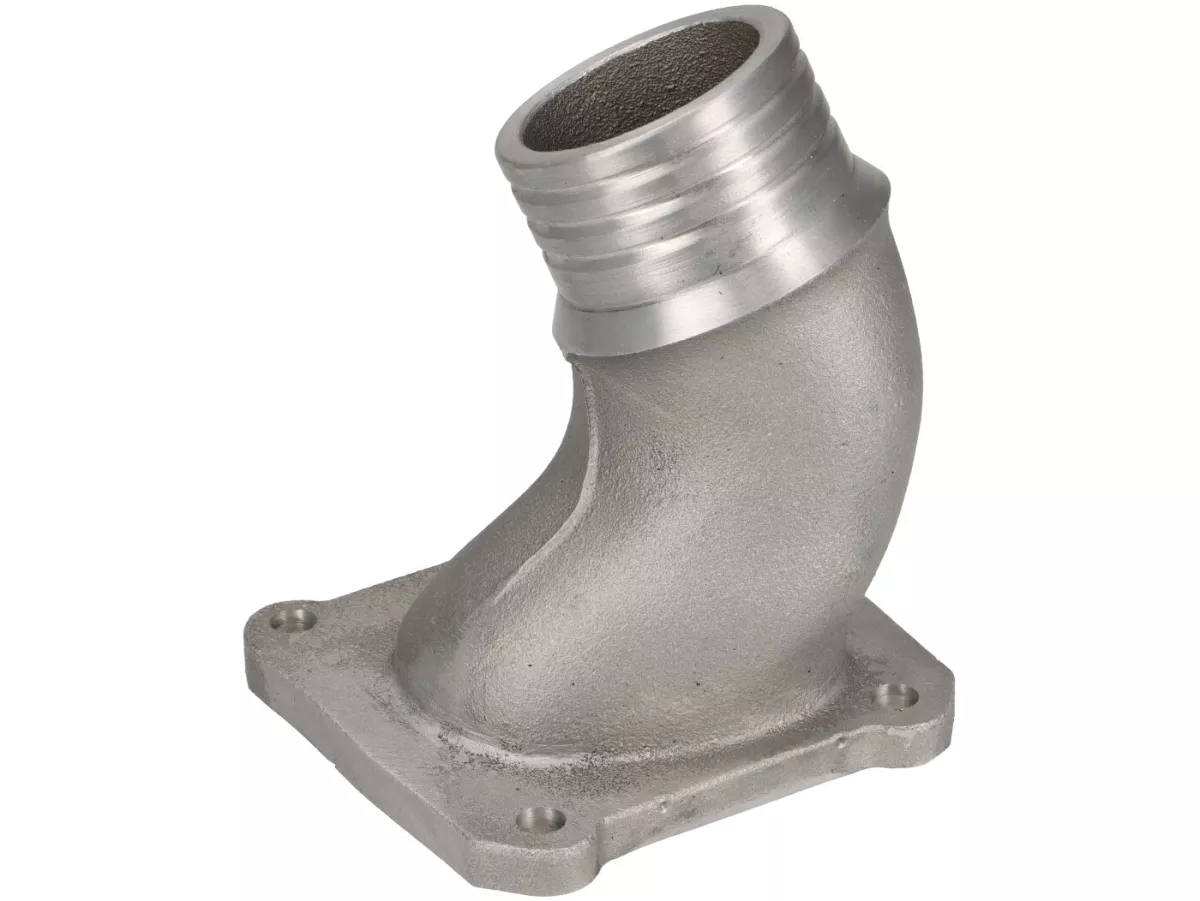

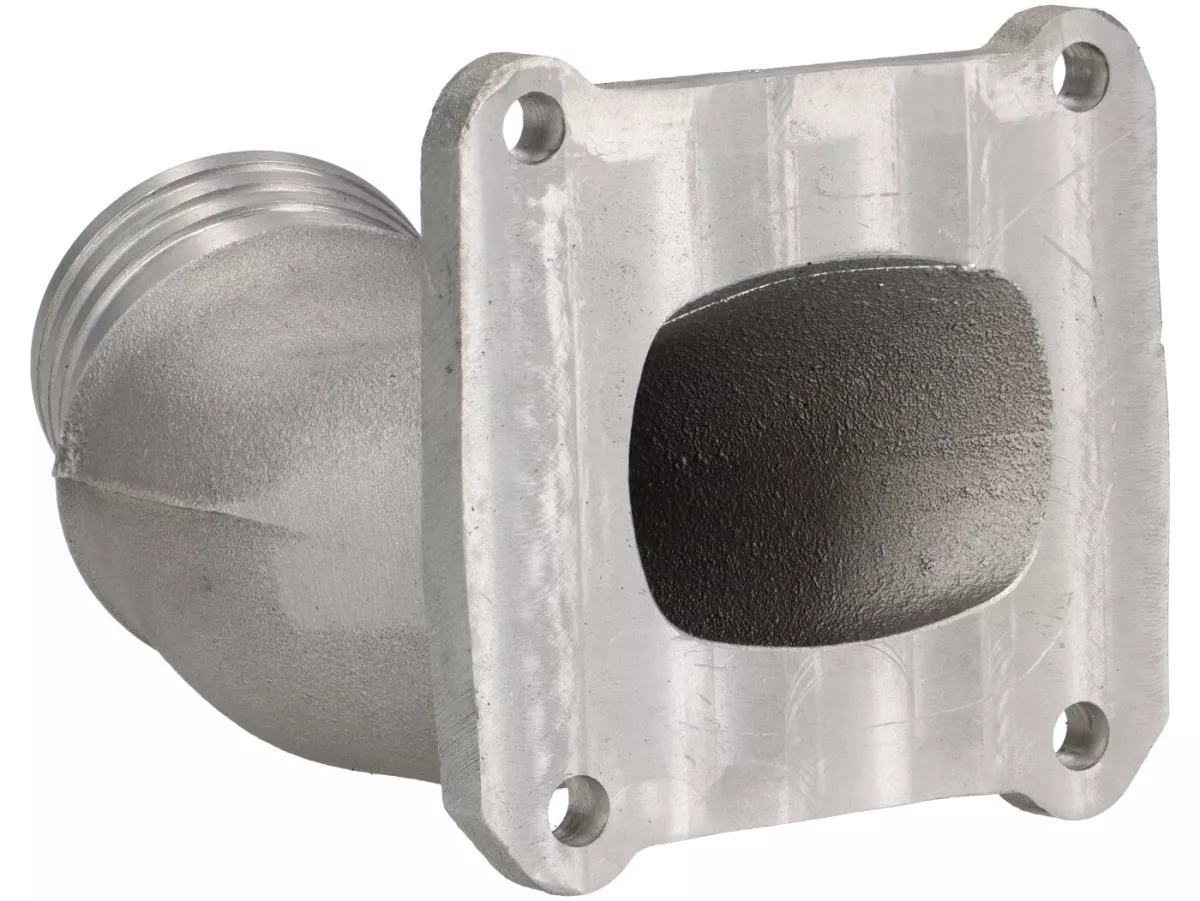

• Intake manifold: 30 mm or 34 mm, precisely fitting the original frame hole
• Central plug for optimum combustion
• 2 centering pins on the cylinder base (can only be used with EGIG/Fabbri housing)

Application range & philosophy

The cylinder can be used in a wide variety of configurations - whether as a sporty touring cylinder or a performance-oriented racing cylinder. It was deliberately designed to cover as many requirements as possible. Whether touring rider or long-distance racer: this project offers the right setup for everyone.

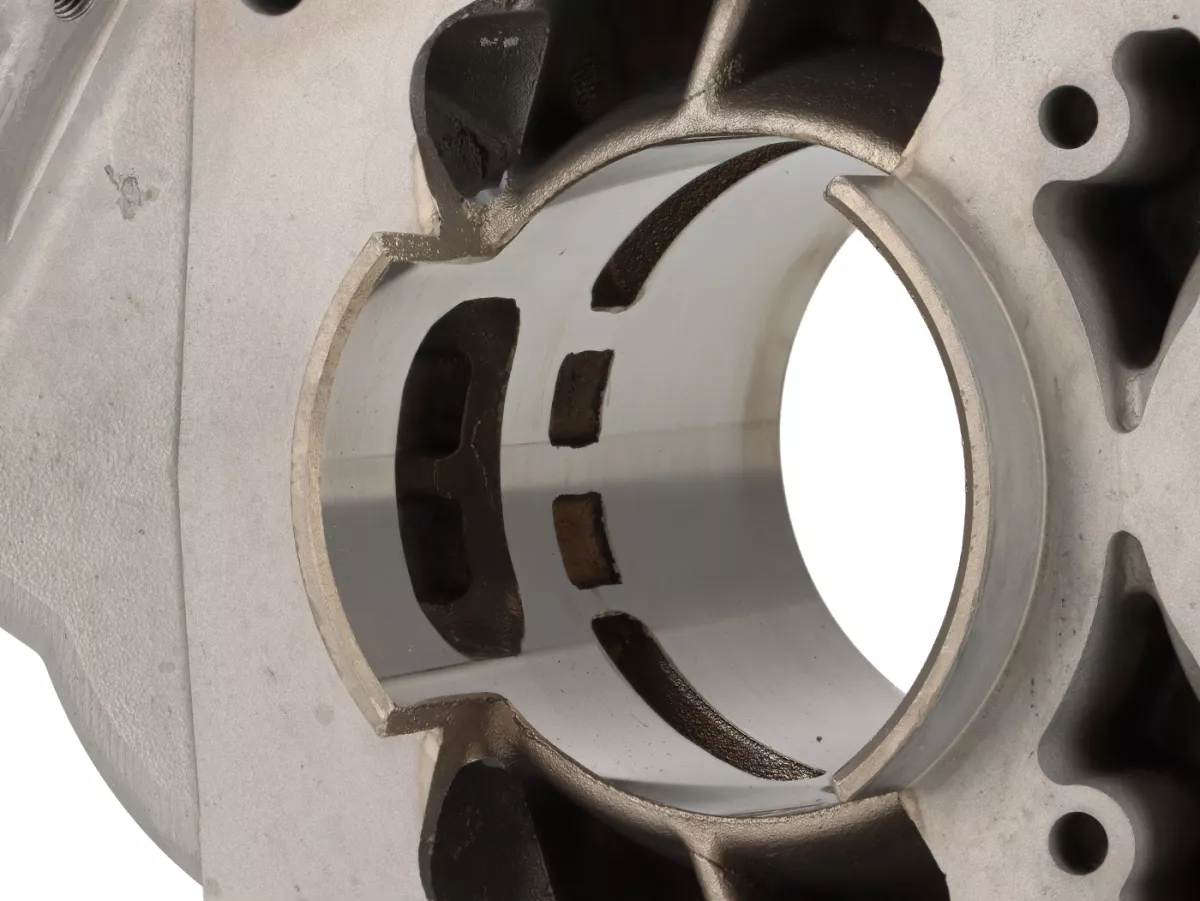

Cylinder layout & timing

A balanced compromise between racing and road cylinders:

• Timing (depending on stroke):
• Intake: 127°-129°
• Exhaust: 183°-186°
• Rule of thumb: The higher the stroke, the lower the advance.

Exhaust variants in comparison

One-piece exhaust

• Power: up to 35 hp / 35 Nm
• Early onset of power, very linear power delivery
• Insensitive to weather or altitude
• Carburetor tuning much easier
• Ideal for touring and everyday use
• Disadvantage: approx. 3-4 hp and 500 rpm speed range less compared to the three-part version
• Usually superior up to 7,500 rpm

Three-piece exhaust

• Power: up to 40 hp / 35 Nm
• Higher rev range, but less torque at low revs
• Power delivery more brutal and delayed
• Carburettor tuning more complex, higher risk of pre-resonance holes
  (but well balanced by clever layout, reed valve block and timing on the EGIG cylinder)
