Mazzucchelli Item number: 1620004
Mazzucchelli
4 Ratings
159,00 €*
available immediately
Shipping weight 2,08 kg

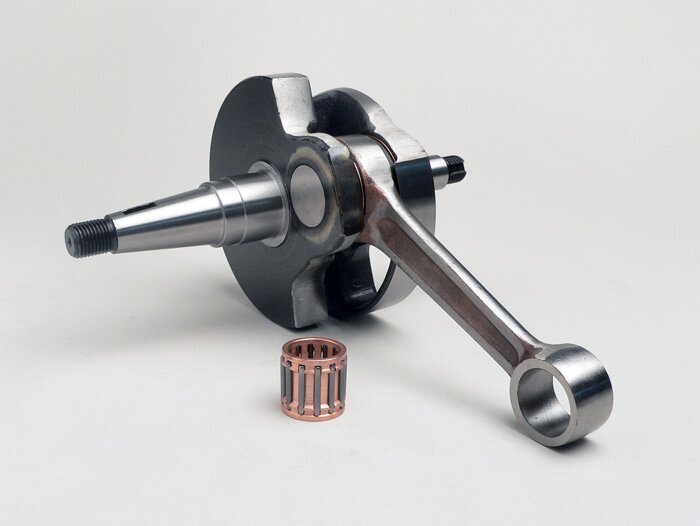

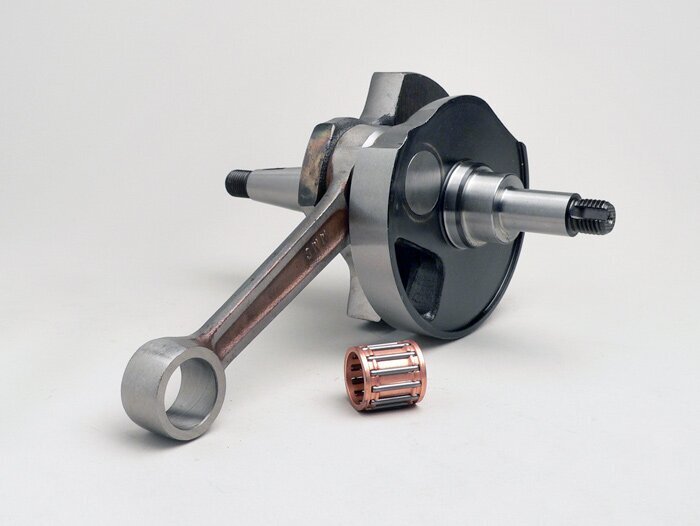

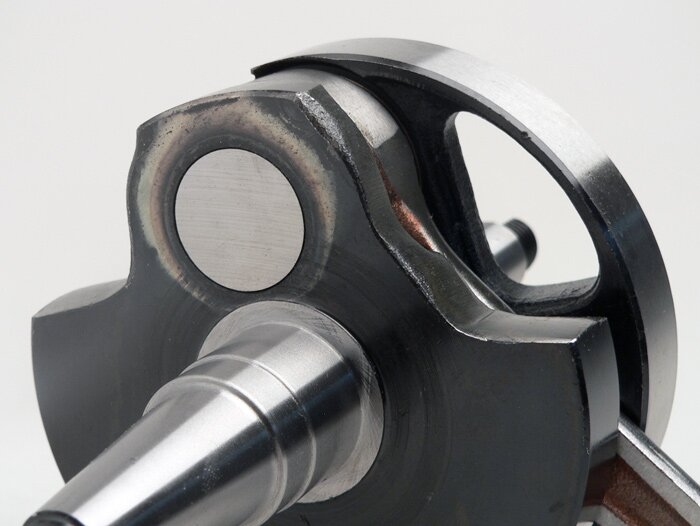

Mazzucchelli Racing crankshaft 57 mm for Vespa PX200

To achieve higher engine speeds, you should use a racing crankshaft. The extended intake timing allows the engine to rev much more freely. This measure is particularly noticeable with high-speed cylinders.

The quality of the crankshafts is very good and they can withstand even the highest speeds. They are an ideal addition, especially for engines with a larger displacement, in order to extend the usable speed range. These engines rev freely, which leads to a significant increase in top speed.

This is how we ensure, that reviews come from real consumers.
Anonym  04/19/2015

alles Prima sieht gut aus was sie kann wird der Test im Alltags Betrieb zeigen

Anonym  05/21/2015

200 Vesper kann ma empfehlen...

Anonym  02/05/2016

Wie immer Top

Stefan S. from Herzogenrath 05/06/2025
Ball bearing
Dimensions
16x20x20mm

Piston pin
Diameter
16 mm

Crankshafts
Stroke
57 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M12x1,5 Rechtsgewinde
Crank web diameter
98 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
ja
Length of rotary vane sealing surface on crank web
194 mm
Vespa PX200 - Control angle short sealing surface (46mm) (°)
186
Vespa PX200 - Control angle long sealing surface (62mm fully mac
205
Full cheek crankshaft
nein
Wide crank webs
40.4 mm
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
25 mm
Diameter of sealing ring seat on alternator side
24 mm
Diameter of sealing ring seat on drive side
31 mm

Connecting rod
Connecting rod length
110 mm
Connecting rod strength
5.3 mm
Connecting rod eye top diameter
20 mm
Lifting pin diameter
22 mm
Upper connecting rod eye lubrication hole
nein
Lower connecting rod eye lubrication hole
Nut
Connecting rod thrust washers
ja

OEM numbers (for comparison purposes only)
Scooter Center:
1620004
