Cylinder -PINASCO 102 cc- Vespa V50, PK50

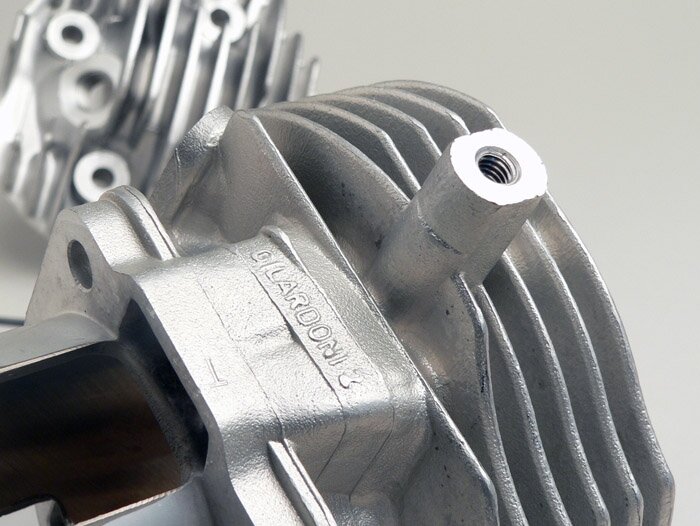

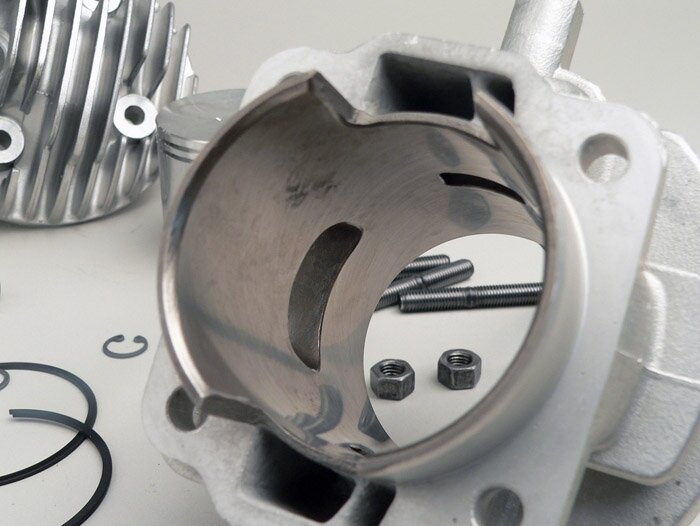

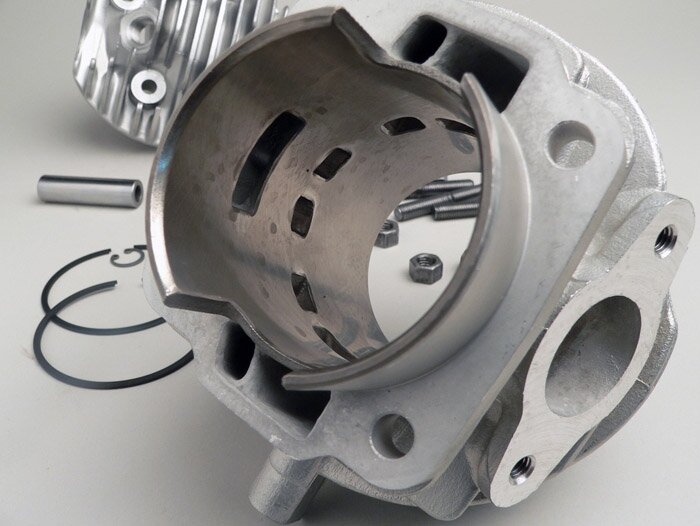

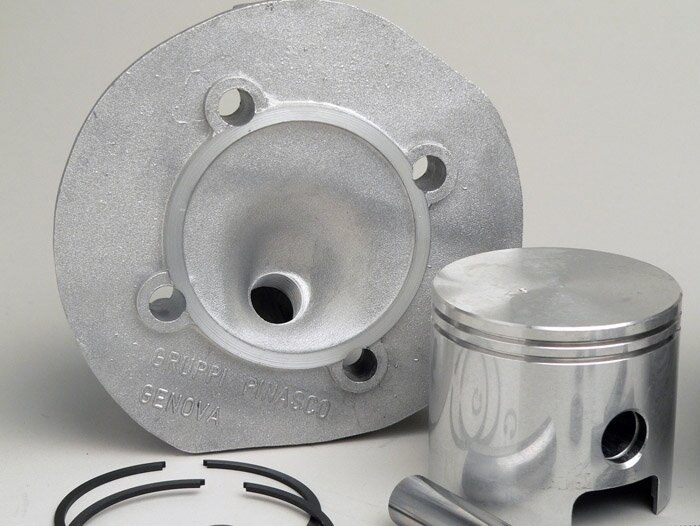

Pinasco's 102 cc cylinder is cast in aluminum just like the 75 HP cylinder and is coated with an ultra-hard Nicasil layer. Due to the aluminium, this cylinder is thermally very insensitive despite the increased displacement of over 100%. This is due to the up to 70 percent better heat dissipation than a cast cylinder. The Nicasil coating results in a very wear-resistant raceway. The Pinasco is a very nice to drive Tourer, which convinces with a full torque even at low rpm. A wide rpm range together with a 3.00 primary transmission and a 19 carburettor result in a top speed of 90kmh with an output of 5.1kW, as stated by Pinasco. Pinasco recommends an ignition setting of 18 degrees F.S.T., as well as a fuel injection (with original exhaust) of 74.

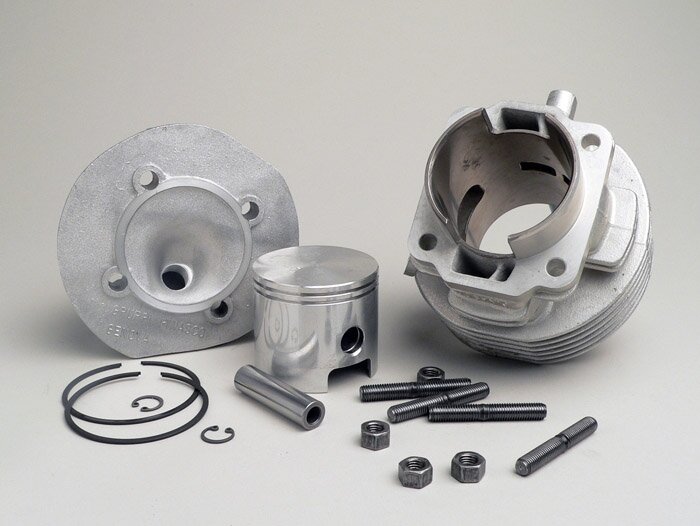

The scope of delivery of this cylinder includes 4 stud bolts M7 x 47mm and 4 M7 nuts with 11mm wrench size.
