Horns and buzzers with 6V and 12V for the Lambretta Li family and their mounting
Considering the 14-year production span of the Li family – starting with the TV 175 Series 1 in September 1957 and ending with the dl / GP 200 in April 1971 – the variation of horns and buzzers as well as their mounting on the Lambretta frame is not that confusing.
First of all, it should be mentioned that there are either buzzers (for AC systems with alternating current) or horns (for DC systems with direct current, recognizable by the battery). All Lambretta scooters were originally delivered with 6 V electrics. When converting to 12 V systems, the original buzzers and horns continue to work perfectly even with the now available 12 volts. However, a “horn orgy” should be avoided, otherwise they will sooner or later stop working.
Series 1 and early Series 2 models up to July 1960

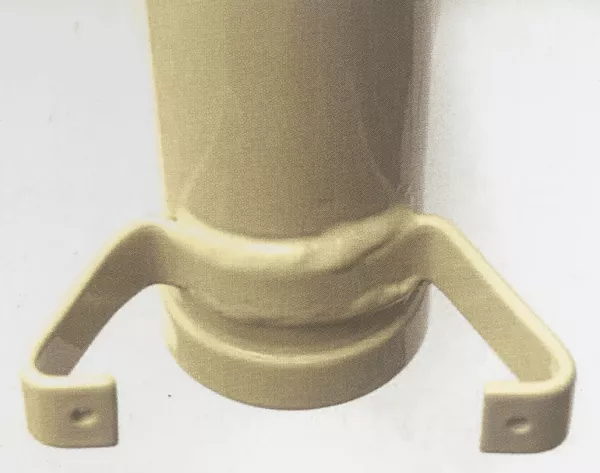

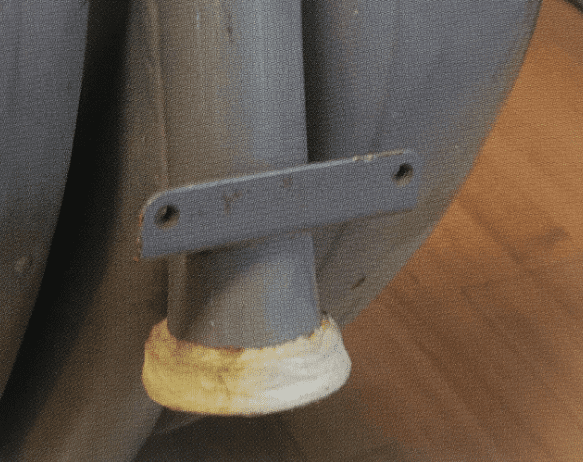

On all Series 1 and Series 2 models up to July 1960, the bracket for the horn is welded directly to the frame and looks like this:

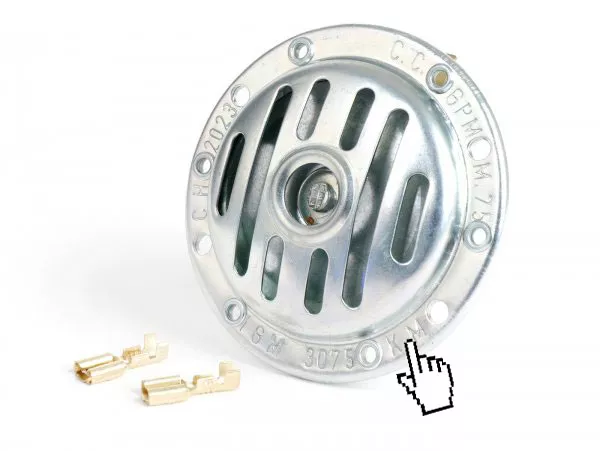

The matching horn:
Part no.: CLE66D
Horn - GPM 12V DC
Lambretta LI 150 (Series 1), LI 150 (Series 2), TV 175 (Series 1), TV 175 (Series 2)

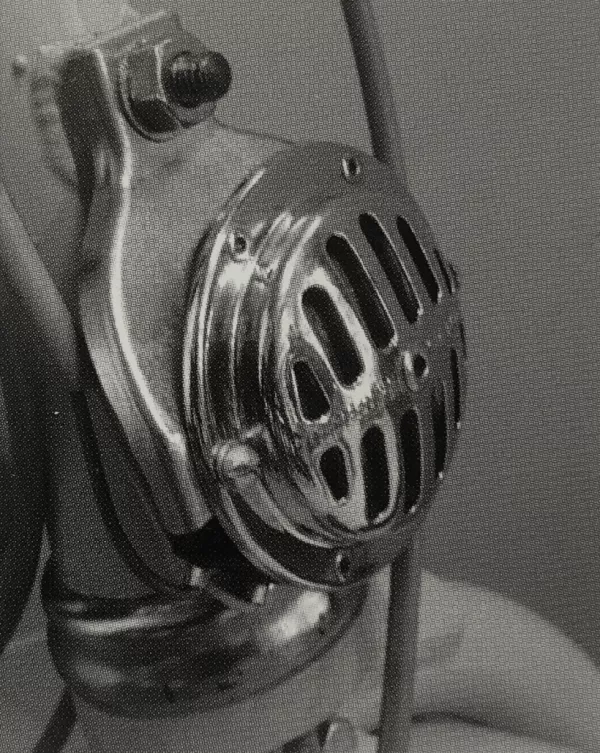

is bolted directly to the frame and decoupled from the frame with two rectangular anti-vibration rubbers.
Series 2 from 07/1960 and Series 3 until the end of 1967

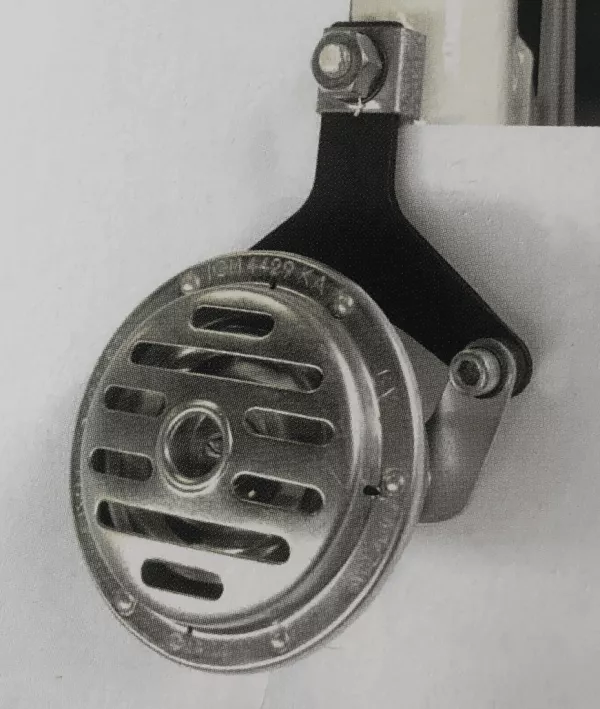

During the production period of Series 2, the horn mounting was changed. The welded bracket with two screw connections was replaced by a rectangular block with an M8 stud bolt. A mounting plate, often called a Y-bracket, is attached to it.
This special bracket was not available as a reproduction for a long time, but Timo from TD Customs took care of it and supplied us with it:

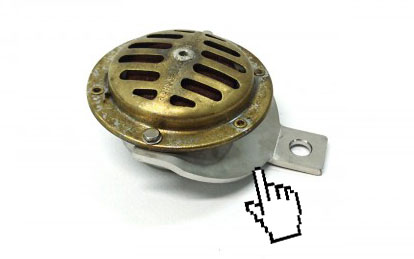

Horn bracket - TD-Customs
Lambretta LI (Series 2), TV (Series 2) -> 07/1960
Part no.: 3333492
Matching horn:
Horn - GPM 12V DC
Lambretta LI 150 (Series 1), LI 150 (Series 2), TV 175 (Series 1), TV 175 (Series 2)
Part no.: CLE66D

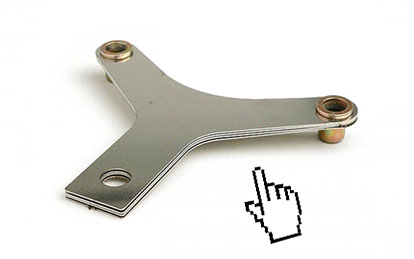

Since the mounting of the late Series 2 is identical to Series 3, the mounting plate of Series 3 can also be used with the corresponding horn:
Available here:
Part no.: 8030562
Mounted with this part:
Part no.: 7672861
Suitable horns:
CASA LAMBRETTA buzzer 6V/12V AC
Part no.: 9500613
Horn - GPM 6V DC
Part no.: 7671720
Horn - GPM 12V DC
Part no.: 7671719
Series 3 from 1968 and dl / GP
From 1968 onwards, the mounting was simplified and the Y-bracket was replaced by a bracket welded to the frame.

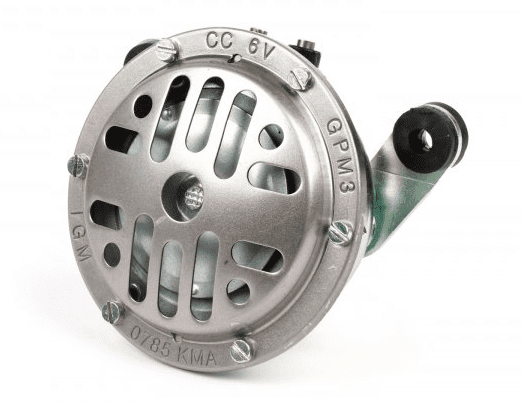

To decouple the horn from vibrations, special Allen screws and anti-vibration rubbers are used:
Horn - GPM 6V/12V DC
Part no.: CLE66A
Horn - GPM 6V/12V AC
Part no.: CLE66E

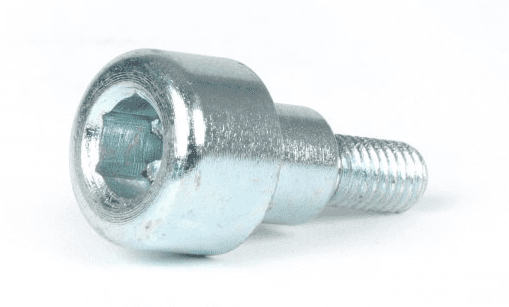

Screws:
Part no.: CL0837

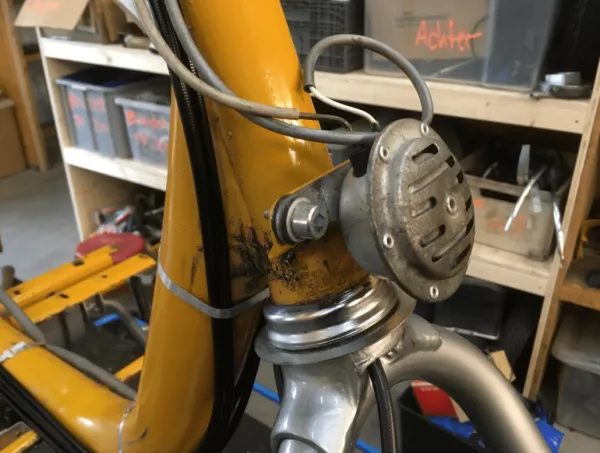

Mounted on a preserved dl 200:
Many thanks to Markus for the picture rights.
Large horns
Originally, the real DC horns had a diameter of 85 mm. Occasionally we also get Casa Lambretta versions:
Horn - GPM 6V/12V DC
Part no.: CLE66BL
Horn - GPM 6V/12V AC
Part no.: CLE66AL
