DR Item number: 1310002
DR
9 Ratings
115,00 €*
not available
Shipping weight 2,28 kg

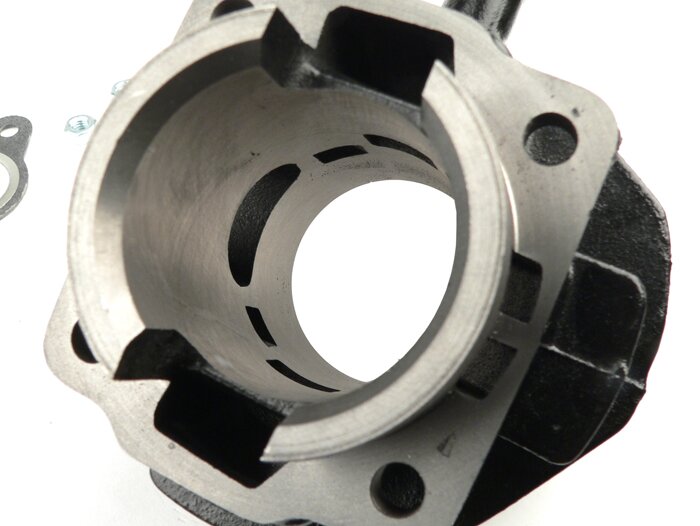

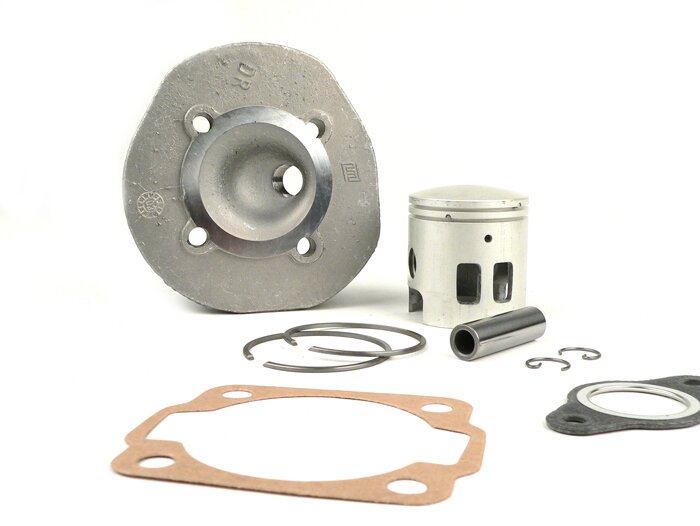

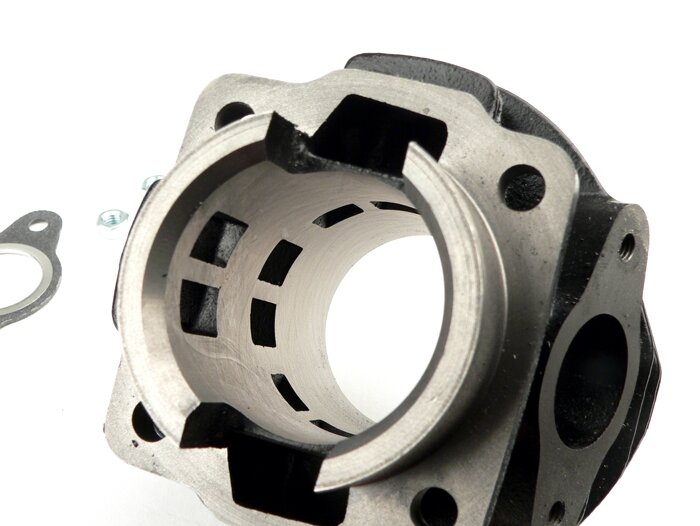

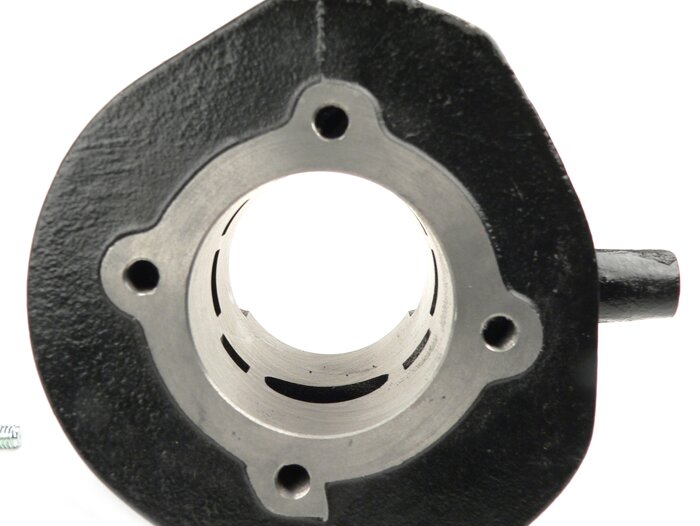

Cylinder DR 75 Formula Uno - this is the sportiest 75cc DR cylinder for the Vespa V50 and PK50 models.

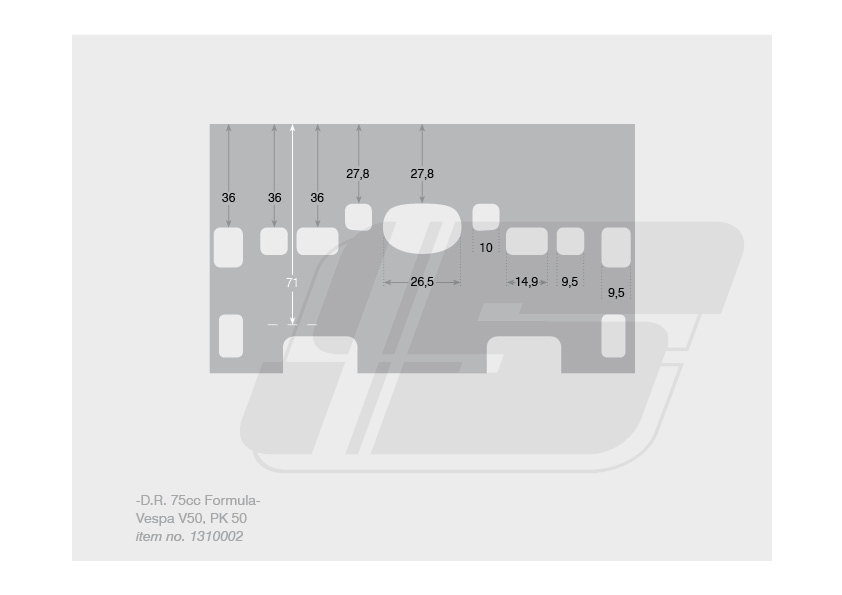

The cylinder has significantly more channel areas and exhaust cross section, and has, compared to all other DR cylinders for the small frame engines, the longest control angles (+13° exhaust compared to the very tame DR85).
In combination with the two generous secondary exhaust ports (which the cylinder still has, although otherwise claimed) the DR75 offers enough area to release the exhaust gases quickly from the cylinder even at higher speeds. This makes the cylinder particularly suitable for engines that are equipped with a very short gear ratio ex works. Especially the PK XL2 is grateful for any additional speed that can be obtained.
The DR thus also responds very well to larger carburettors such as the SHB 19/19 and other exhaust systems such as the LeoVinci or BGM Banana.

The cylinder is absolutely suitable for everyday use and reliable, despite all its speed capability, to which not least the coated piston plays its part. However, here too, as with any other conversion, the spraying (approx. 72-74 with SHB 16/16) and the heat value of the spark plug (NGK B8HS or Bosch W4AC) must be correct. The compression ratio of 10,7:1 is equal to the conventional 75/85cc DR cylinders.

An ideal addition is a carburetor kit with Ø19mm passage, a racing crankshaft and a 3.72 primary gear ratio. With this the Formula easily reaches the 70km/h mark.


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  11/05/2014
Anonym  05/31/2016

gute leistung

Anonym  11/05/2014

Top

Anonym  08/27/2015

Zylinder musste ich entgraten, ist aber obligatorisch; gut verpackt, sauber gecheckt und von Hand abgezeichnet.

Anonym  02/14/2016
Anonym  07/28/2017

solide und gut! ein muss für die kleinen smallframe-modelle.

Anonym  01/11/2018

Ich würde diesen Zylinder wieder verbauen, einfache Montage durch bereits eingesetzte Kolbenringe

Siegfried S. from Pörnbach 06/17/2025
Ralph S. from Wermelskirchen 06/18/2025
General
Performance class
Sport

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B7HS
Spark plug thread
kurz

Cylinder
Drill hole
47 mm
Type of cooling
luftgekühlt
Displacement
75 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
52 mm
Threaded exhaust studs
M6
Number of boost ports
2
Number of transfers (incl. boost ports)
6

Crankshafts
Stroke
43 mm

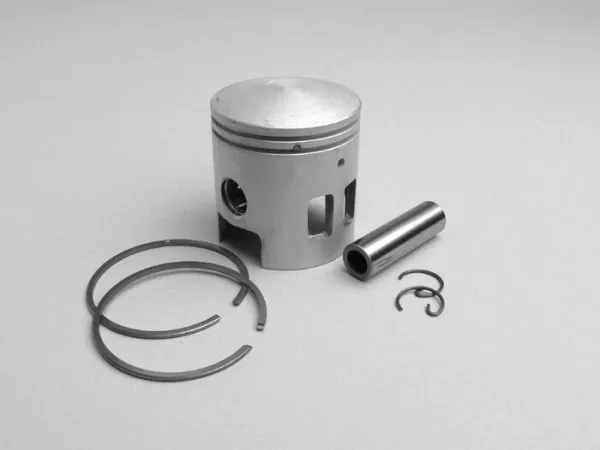

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,0mm

Cylinder heads
Cylinder head type
einteilig
