Olympia Item number: 3330748
Olympia
2 Ratings
99,00 €*
available immediately
Shipping weight 1,63 kg

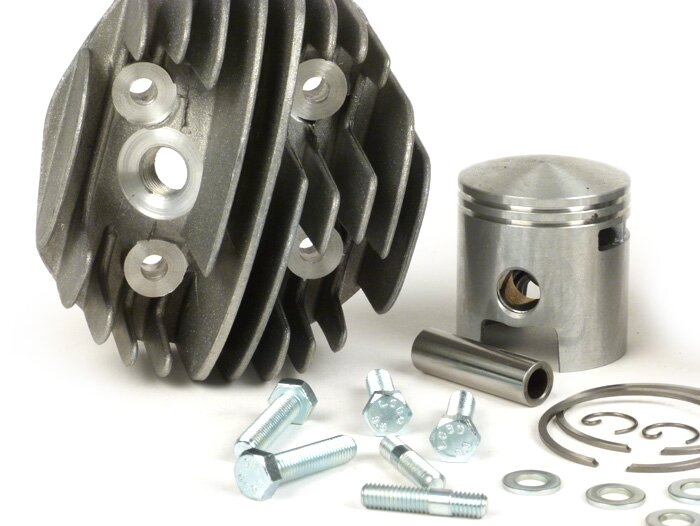

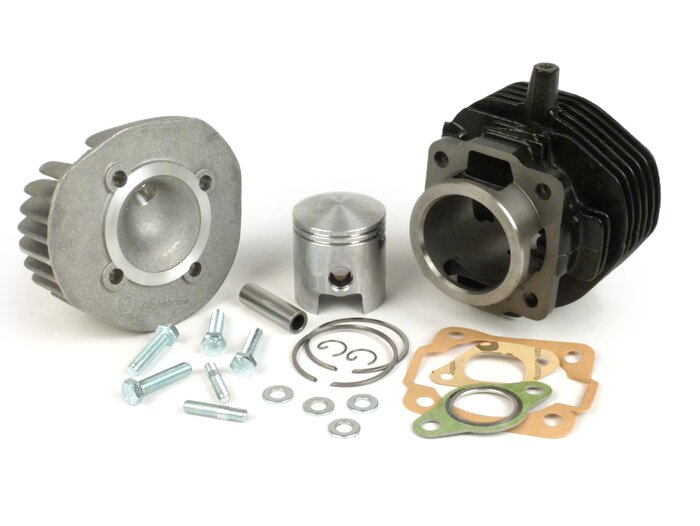

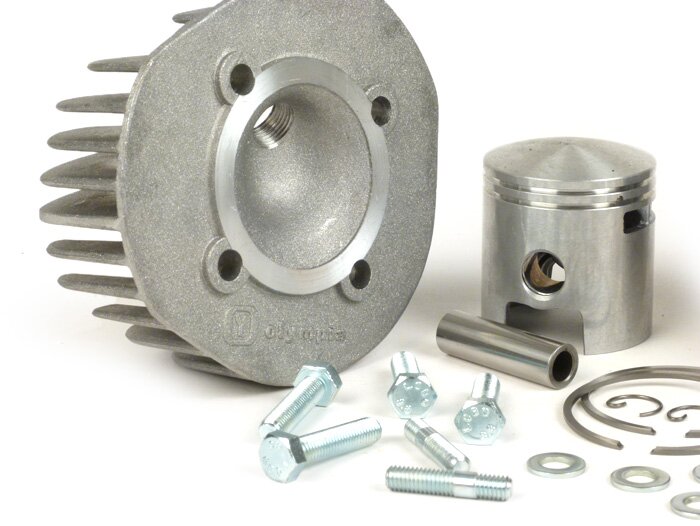

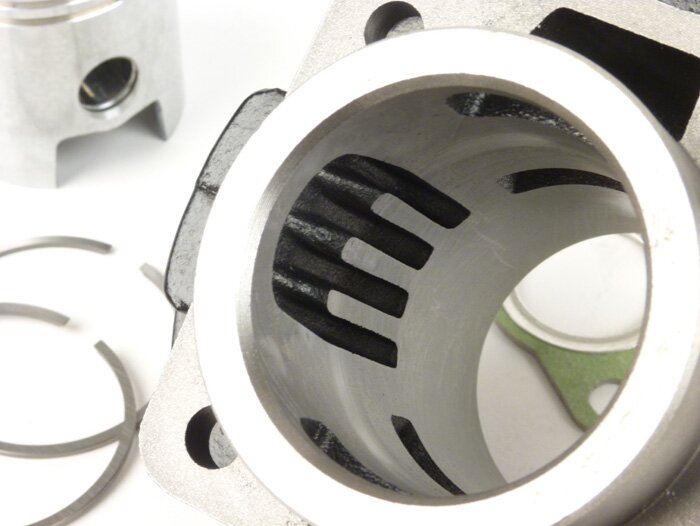

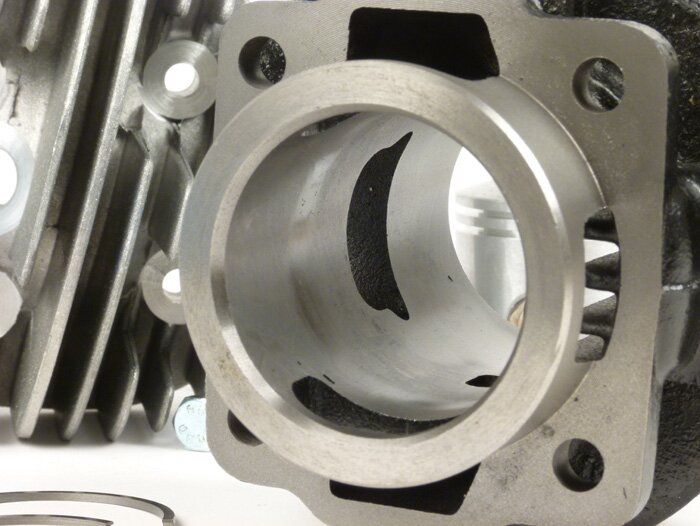

The 75cc Olympia with identical construction to the 6 channel D.R. cylinder. The Olympia is a very high torque cylinder, which gives its full performance quite early. The comparatively large port areas in combination with very tame timing make this cylinder a good choice if you want to build an inconspicuous and durable Tourer.
The stable Asso pistons give it a long life
BR> runs very well with the also high torque banana exhaust and a 16/16 carburetor. Main jet 74-76, spark plug: B7HS.
AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  01/07/2015

Qualität ist ok für den preis,past perfekt und ist alles dabei für den montage. Ich bin zufrieden

Anonym  05/26/2015

Einfach günstig und Gut

General
Performance class
Sport

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B7HS
Spark plug thread
kurz

Cylinder
Drill hole
47 mm
Type of cooling
luftgekühlt
Displacement
75 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
52 mm
Threaded exhaust studs
M6
Number of boost ports
4
Number of transfers (incl. boost ports)
6

Crankshafts
Stroke
43 mm

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,0mm

Cylinder heads
Cylinder head type
einteilig
